Location
Berlingo-2-VU_en_Chap01_vue-ensemble_ed02-2015
Berlingo-2-VU_en_Chap01_vue-ensemble_ed02-2015
ASR-DSC 95
Parking sensors 91-92
Electric mirrors

87-88Headlamp beam height adjustment 57
Stop & Start
49-51 Starter motor
, ignition switch
52
Wipers

58-59
Automatic wiping

58Windscreen / headlamp wash 59, 128
Trip computer
60
Cruise control

61-63
Speed limiter


64-66
Lighting


55-57
Automatic illumination of headlamps


56
Foglamps


56, 57
INSTRUMENTS AND CONTROLS
dashboard, passenger
compartment fuses 154-156o

pening the bonnet
124
Parking brake,


handbrake

90 Instrument panels,


screens, dials
28-29Warning lamps, indicator lamps 32-39
Indicators, gauge
40, 43-44
Setting the time

in the instrument panel

29
Lighting dimmer


44
Gear shift


indicator

46
Steering mounted controls:-


T
ouch screen tablet
172
-


Audio system

239
Steering wheel adjustment


45
Horn


90
6-speed electronic


gearbox

47-48

10
Location
Berlingo-2-VU_en_Chap01_vue-ensemble_ed02-2015
Berlingo-2-VU_en_Chap01_vue-ensemble_ed02-2015
Heating, ventilation- heating 67-68, 71
-

air conditioning

67-68, 71d

igital air conditioning

69-70, 71
Demisting/defrosting


72-73
Rear view mirror


88
Controls-


electric windows

89
-


hazard warning lamps

90
-


load space

locking

27
-


central locking

27
"Grip control"


96-97
Cab fittings


79-80
-


storage compartment.
-


glove box,
-


bottle holder

,
-

side storage,
-


bag holder

,
-

console,
-


overhead storage,
-


sun visor

,
-

storage compartments under seats.
dashboard, passenger compartment fuses 154-156o

pening the bonnet
124
T

ouch screen tablet
169-236
Audio system

237-254
Reversing camera

93
Screens, menus

28, 173, 240
Setting the date and time

30-31
Gearbox
45
Courtesy lamps

81, 151
INSTRUMENTS AND CONTROLS

27
Access
Berlingo-2-VU_en_Chap03_Pret-a-partir_ed02-2015
Driving with the doors locked may
make access to the interior more
difficult in an emergency.
CENTRAL LOCKING
Cab and load space
Load space
Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
The characteristic central locking noise
is heard. The LED in the control switch
on the dashboard central switch panel
comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
Anti-intrusion protection
An initial press locks the front
and rear doors, when they
are closed.
A second press unlocks the
vehicle.
The control switch is inactive when
the vehicle has been locked using
the remote control or the key from the
outside. Activating / deactivating the
function
With the ignition on, press
and hold this switch to
activate or deactivate the
function.
Door open warning lamp If this warning lamp comes
on, check that all of your
vehicle's doors are closed
correctly.
Press to lock/unlock the rear
doors without changing the
locking status of the cab.
The doors can still be opened
from the inside.
The control switch LED:
-

flashes when the doors are locked with
the vehicle stationary and the engine off,
- comes on when the doors are locked
and from the time the ignition is
switched on.
READY TO GO
3

69
Berlingo-2-VU_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VU_en_Chap04_Ergonomie_ed02-2015
Good practice
For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the value 15 by turning until
LO is displayed or the value 27 by
turning until HI is displayed.
o
n entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is
no advantage in changing the value
displayed in order to quickly reach the
level of comfort required. The system
will use its maximum performance to
reach the comfort value set.
DIGITAL AIR CONDITIONING
Automatic operation
AUTO comfort programme
This is the normal air conditioning
system operating mode. Driver or passenger side comfort
value
The value indicated in the screen
corresponds to a level of comfort and
not a temperature in degrees Celsius
or Fahrenheit.
Turn this control to the left
or to the right to decrease or
increase the value. A setting
around the value 21 provides
optimum comfort. However,
depending on your requirements, a
setting between 18 and 24 is usual.
d

o not cover the sunshine sensor
located on the dashboard.
Press this button, the AUTO
symbol is displayed.
The system controls the
distribution, the flow and the
intake of air to guarantee
comfort and a sufficient circulation
of air in the passenger compartment
according to the comfort value set. No
further action on your part is required. Air flow will increase gradually when
the engine is cold, to prevent excessive
distribution of cold air.
For your comfort, the settings are
stored when the ignition is switched off
and are reinstated the next time the
vehicle is started.
The automatic function will no longer
be maintained if you change a setting
manually (AUTO is cleared).
SEPARATE SETTINGS FOR DRIVER AND
PASSENGER
EASE OF USE and COMFORT
4
Ventilation

79
Berlingo-2-VU_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VU_en_Chap04_Ergonomie_ed02-2015
FRONT FITTINGS
1. Lower glove box
This may or may not be fitted with a lid.
Upper storage compartment
This is located on the dashboard,
behind the steering wheel.
A recess makes lifting of the lid easier
when opening. Guide it to its rest
position.
To close, guide the lid then press the
centre gently.
Any liquid which could spill risks
causing an electrical short circuit and
therefore a potential fire.
3. Side storage compartment
4. Bag hook
Only hang flexible bags which are not
too heavy on this hook.
2. Storage pocket and bottle
holder (1.5 L)
EASE OF USE and COMFORT
4
Practical information

90
Driving safely
Berlingo-2-VU_en_Chap05_Securite_ed02-2015
HAZARD WARNING LAMPS
H
ORN
Press the centre of the steering wheel.
PARKING BRAKE
Applying
Pull the parking brake lever up to
immobilise your vehicle.
Check that the parking brake is applied
firmly before leaving the vehicle. Pull on the parking brake lever, only
with the vehicle stationary.
In the exceptional case of use of the
parking brake when the vehicle is
moving, apply the brake by pulling
gently to avoid locking the rear wheels
(risk of skidding).
Press this button, the direction
indicators flash.
They can operate with the ignition off.
The hazard warning lamps should only
be used in dangerous situations, when
stopping in an emergency or when
driving in unusual conditions.
When parking on a slope, direct your
wheels towards the pavement and pull
the parking brake lever up.
There is no advantage in engaging
a gear after parking the vehicle,
particularly if the vehicle is loaded.
If the parking brake is still on or has
not been released properly, this is
indicated by this warning lamp which
comes on in the instrument panel.
Automatic operation of hazard
warning lamps
When braking in an emergency,
depending on the force of deceleration,
the hazard warning lamps come
on automatically. They switch off
automatically the first time you
accelerate.
It is also possible to switch them off by
pressing the switch on the dashboard.Releasing
Pull the lever up slightly and press the
button to lower the parking brake lever.

105
Berlingo-2-VU_en_Chap05_Securite_ed02-2015Berlingo-2-VU_en_Chap05_Securite_ed02-2015

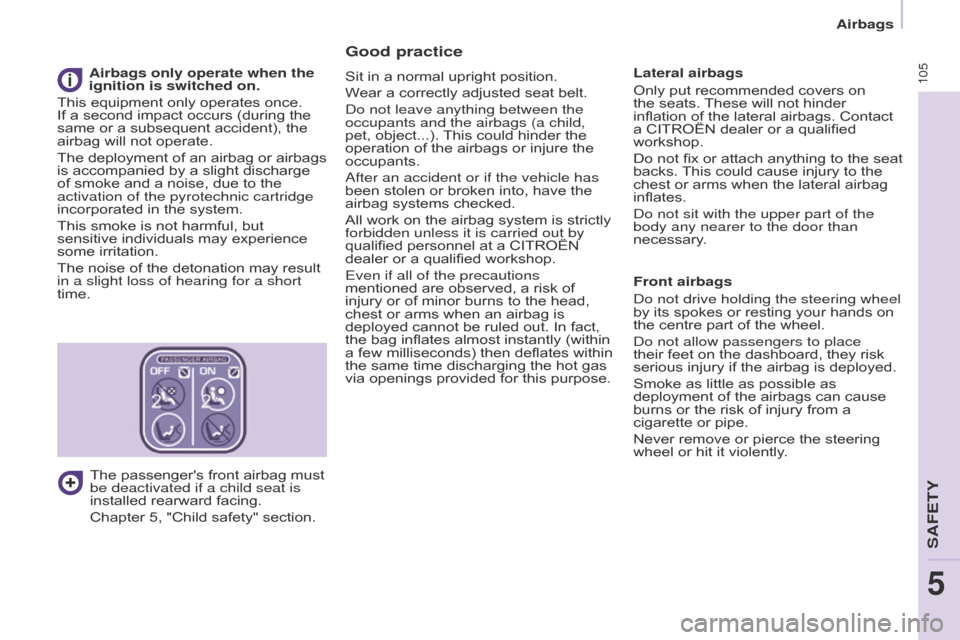

Good practice
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
d
o not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hinder the
operation of the airbags or injure the
occupants.
a

fter an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strictly
forbidden unless it is carried out by
qualified personnel at a CITROËN
dealer or a qualified workshop.
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an airbag is
deployed cannot be ruled out. In fact,
the bag inflates almost instantly (within
a few milliseconds) then deflates within
the same time discharging the hot gas
via openings provided for this purpose. Lateral airbags
Only put recommended covers on
the seats. These will not hinder
inflation of the lateral airbags. Contact
a CITROËN dealer or a qualified
workshop.
Do not fix or attach anything to the seat
backs. This could cause injury to the
chest or arms when the lateral airbag
inflates.
d

o not sit with the upper part of the
body any nearer to the door than
necessary.
Front airbags
d

o not drive holding the steering wheel
by its spokes or resting your hands on
the centre part of the wheel.
d

o not allow passengers to place
their feet on the dashboard, they risk
serious injury if the airbag is deployed.
Smoke as little as possible as
deployment of the airbags can cause
burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Airbags only operate when the
ignition is switched on.
This equipment only operates once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not operate.
The deployment of an airbag or airbags
is accompanied by a slight discharge
of smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
This smoke is not harmful, but
sensitive individuals may experience
some irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
The passenger's front airbag must
be deactivated if a child seat is
installed rearward facing.
Chapter 5, "Child safety" section.
SaFETY
5
airbags

107
Berlingo-2-VU_en_Chap05_Securite_ed02-2015Berlingo-2-VU_en_Chap05_Securite_ed02-2015
Front airbags
Deployment
They are deployed, except the
passenger's front airbag if it has been
deactivated, in the event of a serious
front impact applied to all or part of the
front impact zone A in the longitudinal
centreline of the vehicle on a horizontal
plane directed from the front towards
the rear of the vehicle.
The front airbag inflates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.Deactivating the passengers front
airbag
o

nly the passenger's front airbag can
be deactivated.
-
W
ith the ignition switched off,
insert the key into the passenger's
front airbag deactivation switch.
- T urn it to the "OFF" position.
-

Remove the key keeping the switch
in the new position.
The passenger's front airbag


warning lamp in the instrument
panel remains on while the
airbag is deactivated. If the two airbag warning lamps
are on continuously, do not install
a rearward facing child seat and
contact a CITR
o Ë n dealer or a
qualified workshop.
Front airbag fault
To ensure the safety of your child,
it is essential to deactivate the
passenger's front airbag when you
install a rearward facing child seat on
the front passenger seat. Otherwise,
the child would risk being killed or
seriously injured if the airbag were
deployed. Reactivation
In the "OFF" position, the passenger's
front airbag will not be deployed in the
event of an impact.
As soon as the child seat is removed,
turn the passenger's front airbag switch
to the "ON" position to reactivate the
airbag and thus ensure the safety
of your passenger in the event of an
impact.
If this warning lamp comes
on, accompanied by an
audible signal and a message
in the screen, consult a
CITR o Ë n dealer or a
qualified workshop to have
the system checked.
The front airbags are fitted in the
centre of the steering wheel for the
driver and in the dashboard for the
front passenger(s).
SaFETY
5
airbags
