2016 CHRYSLER 300 fog light

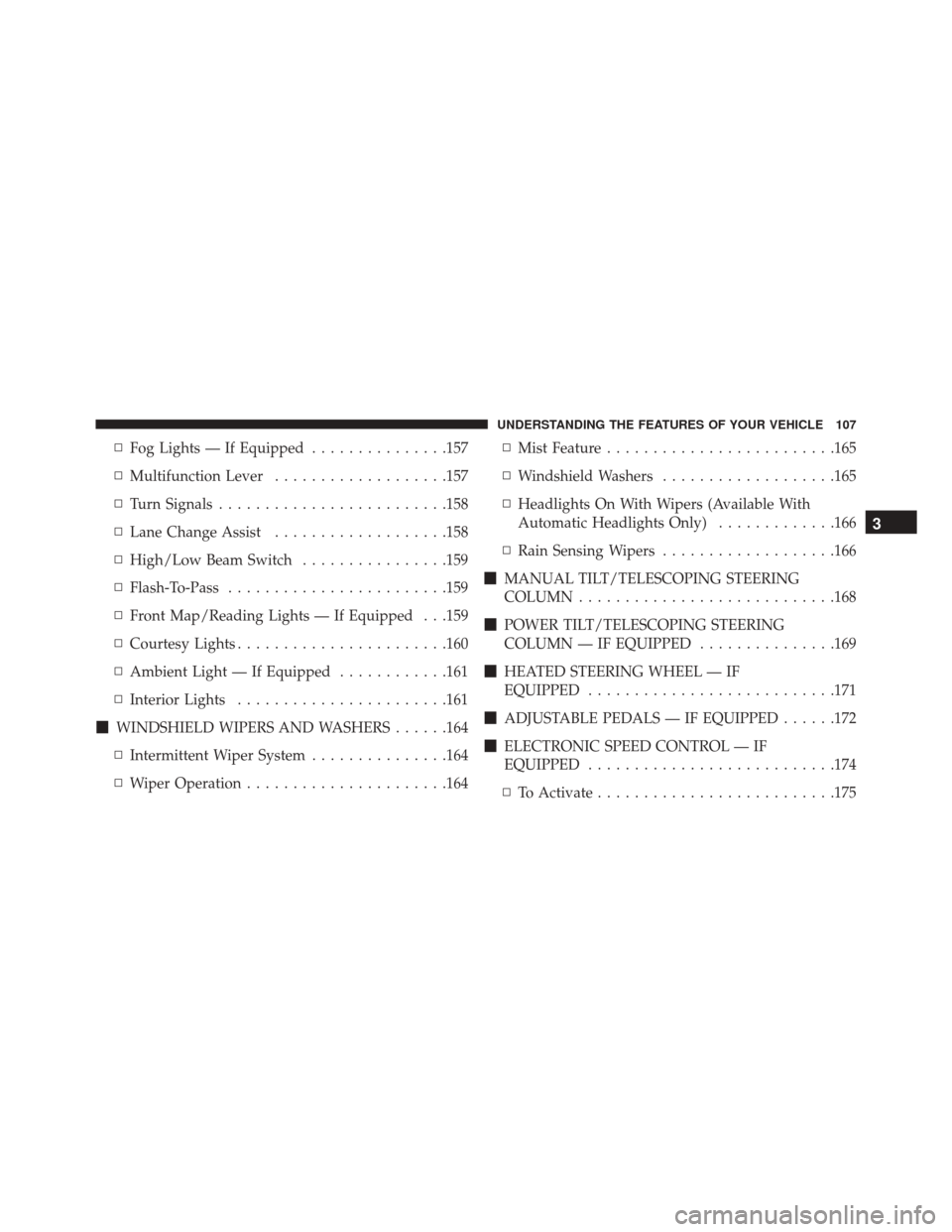

▫Fog Lights — If Equipped ...............157
▫ Multifunction Lever ...................157
▫ Turn Signals ........................ .158
▫ Lane Change Assist ...................158
▫ High/Low Beam Switch ................159
▫ Flash-To-Pass ....................... .159
▫ Front Map/Reading Lights — If Equipped . . .159
▫ Courtesy Lights ...................... .160
▫ Ambient Light — If Equipped ............161
▫ Interior Lights ...................... .161
 WINDSHIELD WIPERS AND WASHERS ......164
▫ Intermittent Wiper System ...............164
▫ Wiper Operation ..................... .164▫
Mist Feature ........................ .165
▫ Windshield Washers ...................165
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............166
▫ Rain Sensing Wipers ...................166
 MANUAL TILT/TELESCOPING STEERING
COLUMN ........................... .168
 POWER TILT/TELESCOPING STEERING
COLUMN — IF EQUIPPED ...............169
 HEATED STEERING WHEEL — IF
EQUIPPED .......................... .171
 ADJUSTABLE PEDALS — IF EQUIPPED ......172
 ELECTRONIC SPEED CONTROL — IF
EQUIPPED .......................... .174
▫ To Activate ......................... .175
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

LIGHTS
Headlight Switch
The headlight switch is located on the left side of
the instrument panel. This switch controls the
operation of the headlights, parking lights, instru-
ment panel lights, instrument panel light dimming, inte-
rior lights and fog lights.
Rotate the headlight switch clockwise to the first detent
for parking light and instrument panel light operation.
Rotate the headlight switch to the second detent for
headlight, parking light and instrument panel light op-
eration.
Headlight Switch
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Fog Lights — If Equipped
The front fog light switch is built into the headlight
switch.To activate the front fog lights, turn on the parking
lights or the low beam headlights and push the headlight switch. To turn off the front fog lights, either
push the headlight switch a second time or turn off the
headlight switch.
NOTE:
The fog lights will operate with the low beam
headlights or parking lights on. However, selecting the
high beam headlights will turn off the fog lights.
Multifunction Lever
The multifunction lever controls the operation of the turn
signals, headlight beam selection and passing lights. The
multifunction lever is located on the left side of the
steering column.
Fog Light Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

Yellow Telltale Indicator Lights
Rear Fog Light Indicator — If Equipped
Yellow TelltaleLight What It Means
Rear Fog Light Indicator
This indicator will illuminate when the rear fog lights are on.4
UNDERSTANDING YOUR INSTRUMENT PANEL 283

Green Telltale Indicator Lights
Park/Headlight ON Indicator Light
Green TelltaleLight What It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
Front Fog Indicator Light — If Equipped
Green Telltale
Light What It Means
Front Fog Indicator Light — If Equipped
This indicator will illuminate when the front fog lights are on.
296 UNDERSTANDING YOUR INSTRUMENT PANEL

CAUTION!
Direct contact of air fresheners, insect repellents,
suntan lotions, or hand sanitizers to the plastic,
painted, or decorated surfaces of the interior may
cause permanent damage. Wipe away immediately.
CAUTION!
Damage caused by these type of products may not be
covered by your New Vehicle Limited Warranty.
CAUTION!
Do not use Alcohol and Alcohol-based and/or Keton
based cleaning products to clean leather seats, as
damage to the seat may result.
Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights that are lighter and less susceptible to stone break-
age than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive type
544 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam And High Beam Headlamp
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the ignition turned to the OFF
position. Because of this, you should not attempt to
service a headlamp bulb yourself. If a headlamp bulb
fails, take your vehicle to an authorized dealer for
service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE: On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Standard Low Beam And High Beam Headlamp
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
7
MAINTAINING YOUR VEHICLE 563

Flash-To-Pass........................... .159
Flexible Fuel Vehicles Cruising Range ........................ .457
Engine Oil ........................... .456
Fuel Requirements ...................455, 456
Maintenance .......................... .458
Replacement Parts ...................... .457
Starting ............................. .457
Flooded Engine Starting ....................380
Floor Console ........................... .255
Fluid, Brake ......................... .568, 571
Fluid Capacities ......................... .566
Fluid Leaks ............................ .104
Fluid Level Checks ....................... .539
Automatic Transmission ..................537
Brake ............................... .535
Cooling System ........................ .528
Engine Oil ........................ .514, 515
Transfer Case ......................... .538Fluids, Lubricants And Genuine Parts
...........568
Fog Lights .......................... .157, 283
Folding Rear Seat ........................ .144
Forward Collision Warning ..................205
Freeing A Stuck Vehicle .....................495
Fuel .................................. .450
Additives ............................ .452
Clean Air ............................ .451
Ethanol .......................... .451, 455
Gasoline ............................. .450
Gauge .............................. .291
Materials Added ....................... .452
Methanol ............................ .451
Octane Rating ................450, 568, 569, 570
Requirements ......................... .450
Specifications ...................568,
569, 570
Tank Capacity ......................... .566
Fuel, Flexible ........................... .45510
INDEX 601
