2016 CHRYSLER 300 Owners Manual

The power sunshade can also be operated by passengers
in the rears seats. The power sunshade switch is located
on the back of the center console between the heated seat
switches. Push the switch once to raise the sunshade.
Push the switch a second time to lower the sunshade.LOAD LEVELING SYSTEM — IF EQUIPPED
The automatic load leveling system will provide a level-
riding vehicle under most passenger and cargo loading
conditions.
A hydraulic pump contained within the shock absorbers
raises the rear of the vehicle to the correct height. It takes
approximately 1 mile (1.6 km) of driving for the leveling
to complete depending on road surface conditions.
If the leveled vehicle is not moved for approximately 15
hours, the leveling system will bleed itself down. The
vehicle must be driven to reset the system.
Power Sunshade Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 263

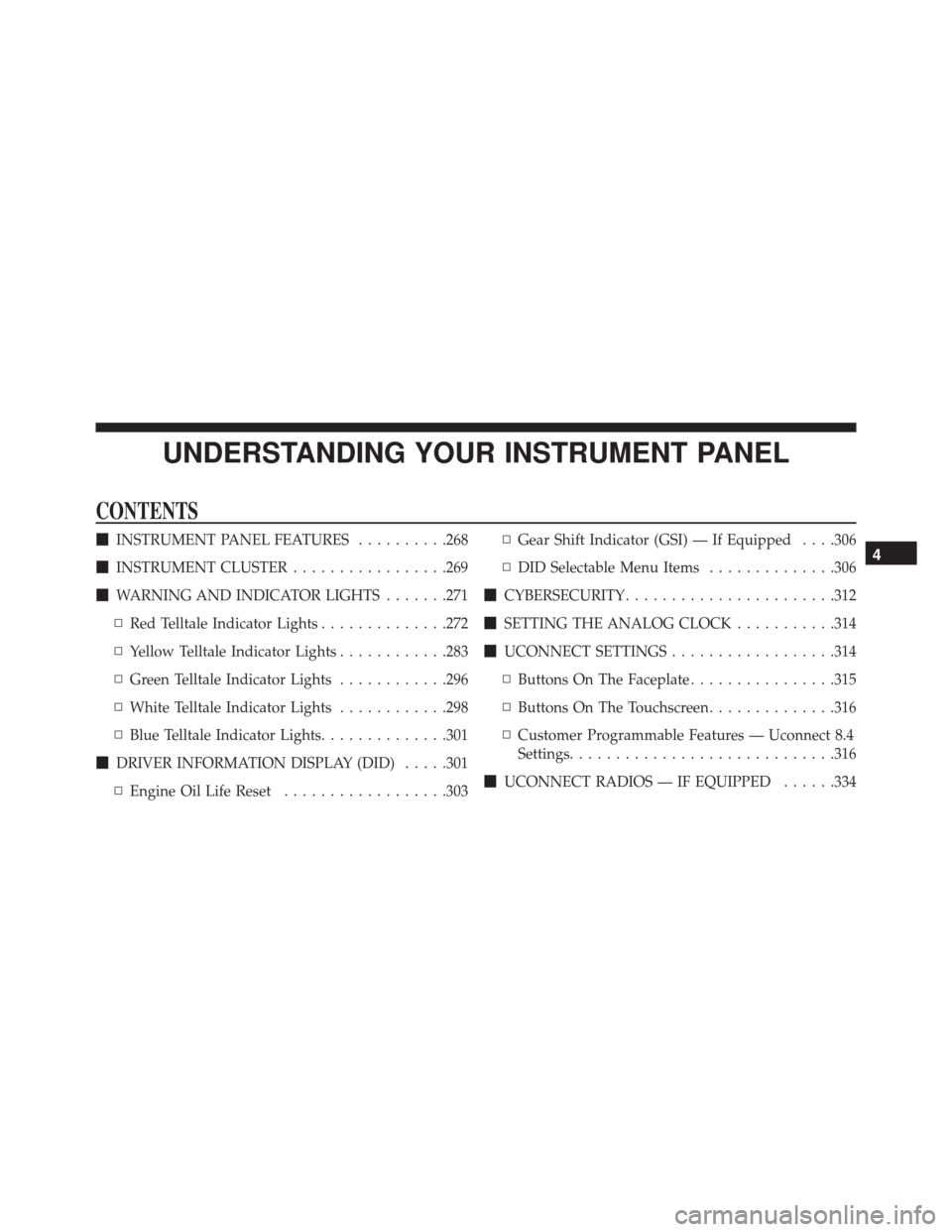

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........268
 INSTRUMENT CLUSTER .................269
 WARNING AND INDICATOR LIGHTS .......271
▫ Red Telltale Indicator Lights ..............272
▫ Yellow Telltale Indicator Lights ............283
▫ Green Telltale Indicator Lights ............296
▫ White Telltale Indicator Lights ............298
▫ Blue Telltale Indicator Lights ..............301
 DRIVER INFORMATION DISPLAY (DID) .....301
▫ Engine Oil Life Reset ..................303 ▫
Gear Shift Indicator (GSI) — If Equipped . . . .306
▫ DID Selectable Menu Items ..............306
 CYBERSECURITY ...................... .312
 SETTING THE ANALOG CLOCK ...........314
 UCONNECT SETTINGS ..................314
▫ Buttons On The Faceplate ................315
▫ Buttons On The Touchscreen ..............316
▫ Customer Programmable Features — Uconnect 8.4
Settings ............................ .316
 UCONNECT RADIOS — IF EQUIPPED ......3344

AUX/USB/MP3 CONTROL ...............334
 STEERING WHEEL AUDIO CONTROLS ......336
▫ Radio Operation ..................... .336
 CD/DVD DISC MAINTENANCE — IF
EQUIPPED .......................... .337
 RADIO OPERATION AND MOBILE DEVICES . .337
 CLIMATE CONTROLS ...................338
▫ Dual Zone Automatic Climate Controls With
Touchscreen ........................ .338
▫ Climate Control Functions ...............344
▫ Automatic Temperature Control (ATC) ......345
▫ Operating Tips ...................... .347
 PERSONALIZED MENU BAR ..............350
UCONNECT VOICE RECOGNITION QUICK
TIPS ............................... .350
▫ Introducing Uconnect ...................350
▫ Get Started ......................... .351
▫ Basic Voice Commands ..................353
▫ Radio ............................. .354
▫ Media ............................. .355
▫ Phone ............................. .356
▫ Voice Text Reply ..................... .357
▫ Climate (8.4A/8.4AN) ..................359
▫ Navigation (8.4A/8.4AN) ................360
▫ Uconnect Access (8.4A/8.4AN) ............361
▫ Vehicle Health Alert ...................362
266 UNDERSTANDING YOUR INSTRUMENT PANEL

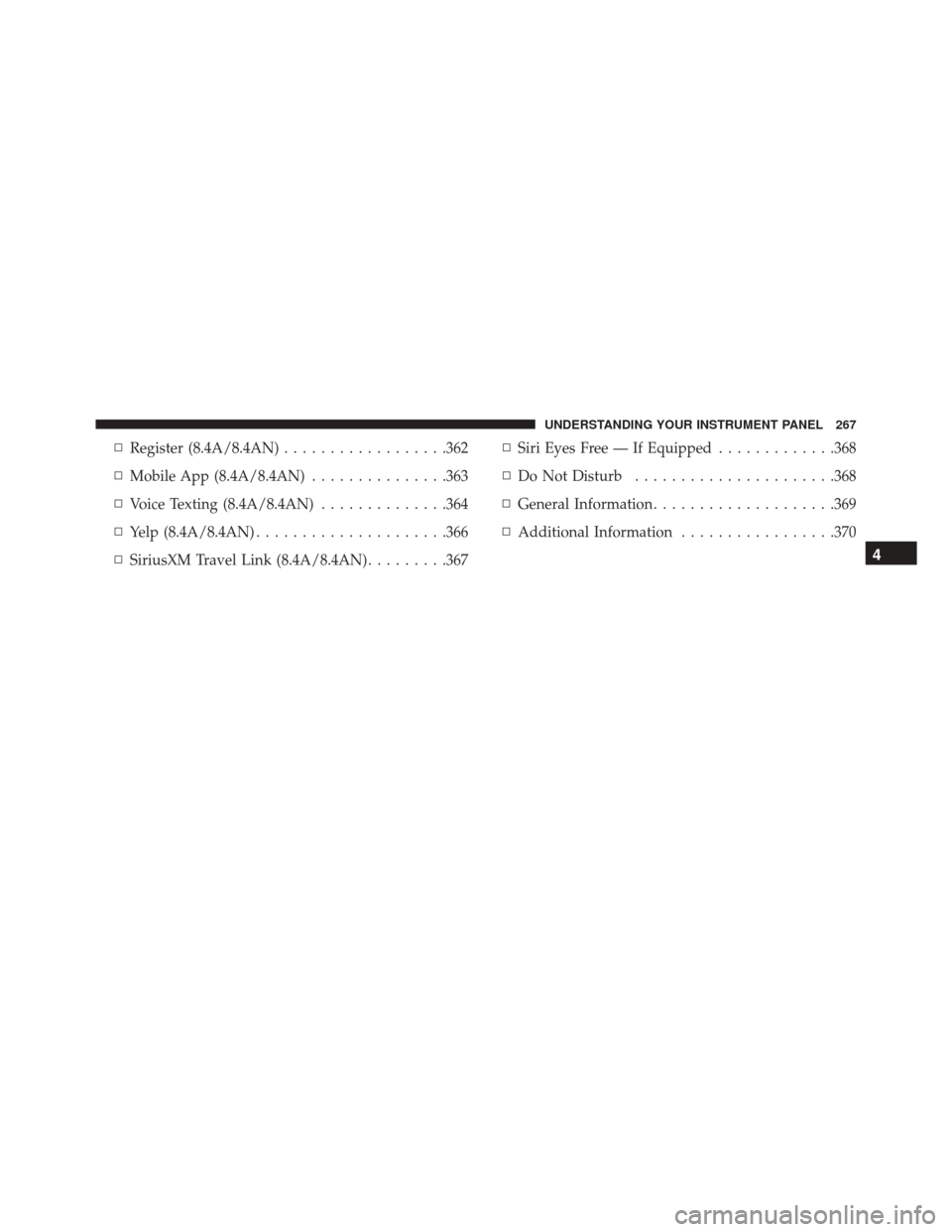

▫Register (8.4A/8.4AN) ..................362
▫ Mobile App (8.4A/8.4AN) ...............363
▫ Voice Texting (8.4A/8.4AN) ..............364
▫ Yelp (8.4A/8.4AN) .....................366
▫ SiriusXM Travel Link (8.4A/8.4AN) .........367▫
Siri Eyes Free — If Equipped .............368
▫ Do Not Disturb ..................... .368
▫ General Information ....................369
▫ Additional Information .................370
4
UNDERSTANDING YOUR INSTRUMENT PANEL 267

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Glove Compartment13 — Headlight Switch
2—Driver Information Display (DID) Con-
trols8 — Uconnect System Hard Controls 14 — Adaptive Cruise Control
3 — Instrument Cluster 9 — Switch Bank15 —Uconnect Phone Controls
4 — Speed Controls 10 — Climate Control Hard Controls
5 — Uconnect System 11 — Engine Start/Stop Button
6 — Analog Clock 12 — Trunk Release Button
268 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
Premium Instrument Cluster
4
UNDERSTANDING YOUR INSTRUMENT PANEL 269

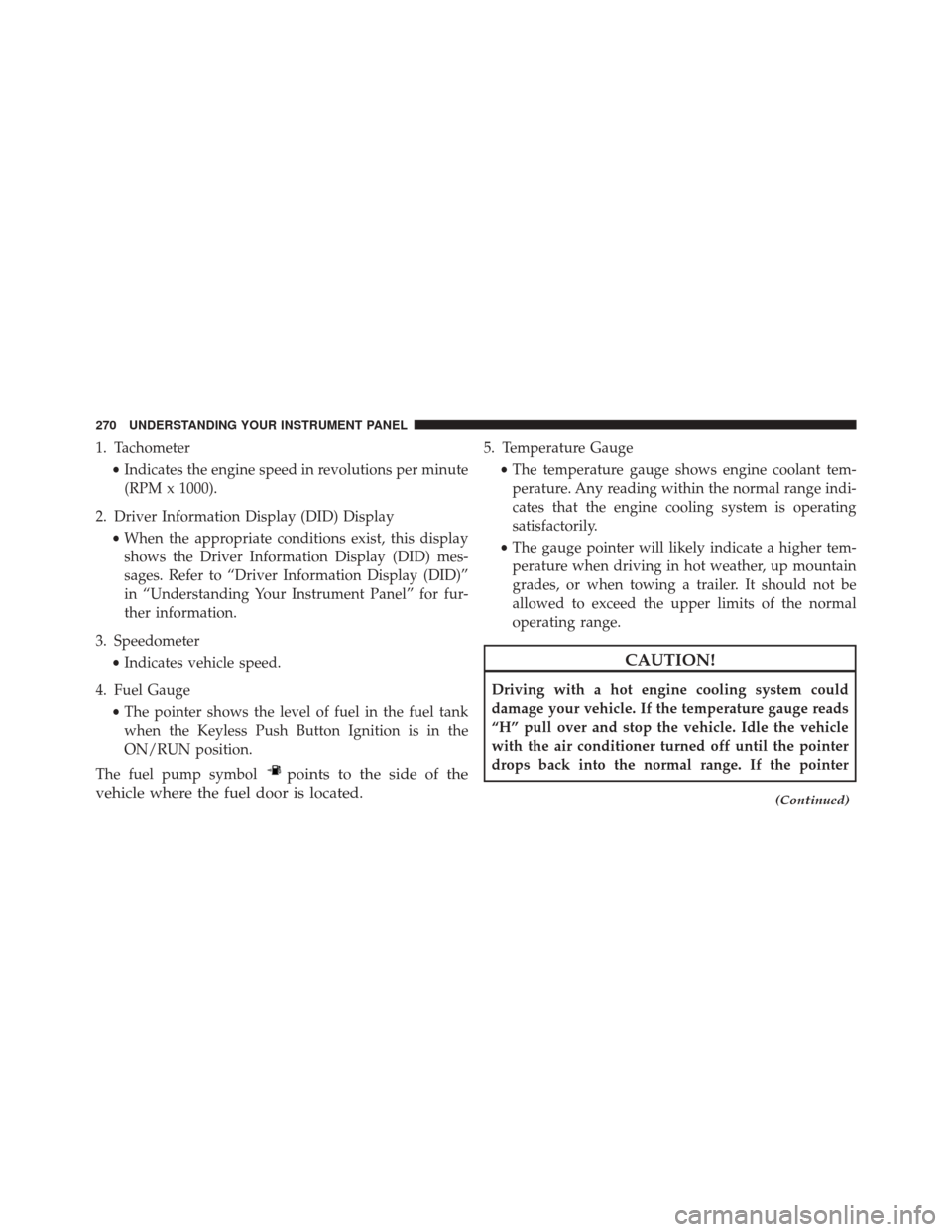

1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Driver Information Display (DID) Display •When the appropriate conditions exist, this display
shows the Driver Information Display (DID) mes-
sages. Refer to “Driver Information Display (DID)”
in “Understanding Your Instrument Panel” for fur-
ther information.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the Keyless Push Button Ignition is in the
ON/RUN position.
The fuel pump symbol
points to the side of the
vehicle where the fuel door is located.
5. Temperature Gauge
•The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.
• The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
(Continued)
270 UNDERSTANDING YOUR INSTRUMENT PANEL
