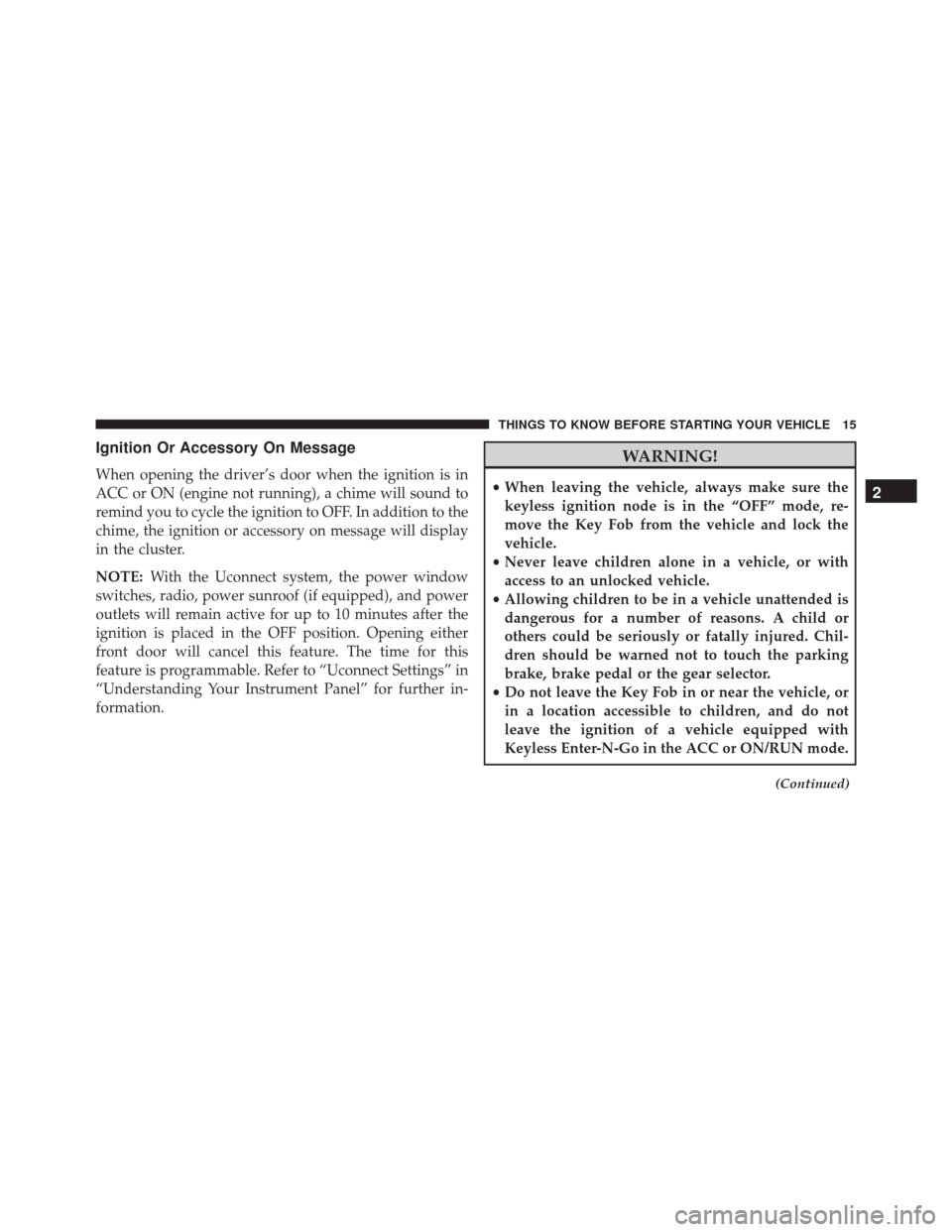

Ignition Or Accessory On Message
When opening the driver’s door when the ignition is in
ACC or ON (engine not running), a chime will sound to
remind you to cycle the ignition to OFF. In addition to the
chime, the ignition or accessory on message will display
in the cluster.
NOTE:With the Uconnect system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is placed in the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.
WARNING!
• When leaving the vehicle, always make sure the
keyless ignition node is in the “OFF” mode, re-
move the Key Fob from the vehicle and lock the
vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Vehicle in PARK
• Doors closed
• Hood closed
• Trunk closed
• Hazard switch off
• Brake switch inactive (brake pedal not pushed)
• Battery at an acceptable charge level
• RKE panic button not pushed
• System not disabled from previous remote start event
• Vehicle Security Alarm not active
• Ignition in OFF position
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious in-
jury or death when inhaled.
• Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Messages on Your Instrument
Cluster Display
The following messages will display in the instrument
cluster if the vehicle fails to remote start or exits remote
start prematurely:
• Remote Start Aborted — Door Open
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the REMOTE START button one time or
allow the engine to run for the entire 15-minute cycle.
NOTE:
To avoid unintentional shutdowns, the system will
disable the one time push of the REMOTE START button for
two seconds after receiving a valid Remote Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of 15-minute cycle, push and release the
UNLOCK button on the RKE transmitter to unlock the
doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
push and release the START/STOP button (vehicles
equipped with Keyless Enter-N-Go).
NOTE: The message Remote Start Active Push Start
Button (vehicles equipped with Keyless Enter-N-Go)
will display in the instrument cluster until you push the
START button.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

TRUNK LOCK AND RELEASE
The trunk lid can be released from inside the vehicle by
pushing the TRUNK RELEASE button located on the
instrument panel to the left of the steering wheel.NOTE:
The transmission must be in PARK before the
button will operate.
The trunk lid can be released from outside the vehicle by
pushing the TRUNK button on the Remote Keyless Entry
(RKE) transmitter twice within five seconds or by using
the external release switch located on the underside of
the decklid overhang. The release feature will function
only when the vehicle is in the unlock condition.
With the ignition in the ON/RUN position, the Trunk
Open symbol will display in the instrument cluster
indicating that the trunk is open. The EVIC/DID display
will reappear once the trunk is closed.
With the ignition in the OFF position, the Trunk Open
symbol will display until the trunk is closed.
Refer to “Keyless Enter-N-Go” in this section for more
information on trunk operation with the Passive Entry
feature.
Trunk Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45

▫ToTurnOff......................... .188
▫ To Resume ......................... .188
▫ To Vary The Speed Setting ...............189
▫ Setting The Following Distance In ACC ......191
▫ Overtake Aid ....................... .195
▫ ACC Operation At Stop .................195
▫ Adaptive Cruise Control (ACC) Menu .......196
▫ Display Warnings And Maintenance ........197
▫ Precautions While Driving With ACC .......200
▫ General Information ....................204
▫ Normal (Fixed Speed) Electronic Speed
Control Mode ....................... .205
 FORWARD COLLISION WARNING (FCW) WITH
MITIGATION — IF EQUIPPED ............209▫
Forward Collision Warning (FCW) With
Mitigation Operation ...................209
▫ Turning FCW ON Or OFF ...............211
▫ Changing FCW And Active Braking Status. . . .212
▫ FCW Limited Warning ..................213
▫ Service FCW Warning ..................213
 LANESENSE — IF EQUIPPED .............214
▫ LaneSense Operation ...................214
▫ Turning LaneSense ON Or OFF ............215
▫ LaneSense Warning Message ..............216
▫ Changing LaneSense Status ..............220
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ........................ .220
▫ ParkSense Sensors .....................221
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫ParkSense Warning Display ..............221
▫ ParkSense Display .....................222
▫ Enabling And Disabling ParkSense .........226
▫ Service The ParkSense Rear Park Assist
System ............................ .227
▫ Cleaning The ParkSense System ...........227
▫ ParkSense System Usage Precautions ........227
 PARKSENSE FRONT AND REAR PARK
ASSIST — IF EQUIPPED .................229
▫ ParkSense Sensors .....................231
▫ ParkSense Warning Display ..............232
▫ ParkSense Display .....................232
▫ Enabling And Disabling ParkSense .........241
▫ Service The ParkSense Park Assist System . . . .242 ▫
Cleaning The ParkSense System ...........243
▫ ParkSense System Usage Precautions ........243
 PARKSENSE ACTIVE PARK ASSIST
SYSTEM —
IF EQUIPPED ........................ .245
▫ Enabling And Disabling The ParkSense Active
Park Assist System .....................246
▫ Parallel Parking Space Assistance
Operation/Display .....................248
▫ Perpendicular Parking Space Assistance
Operation/Display .....................258
 PARKVIEW REAR BACK UP CAMERA —
IF EQUIPPED ........................ .268
 OVERHEAD CONSOLE ..................271
▫ Front Map/Reading Lights ..............272
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

WARNING!(Continued)
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
vehicle’s electrical system or modify the antennas
on your vehicle. IF YOUR VEHICLE LOSES BAT-
TERY POWER FOR ANY REASON (INCLUDING
DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
• Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you. 9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico
DO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
• The Rearview Mirror light located between the ASSIST
and 9-1-1 buttons will continuously be illuminated
red.
• The Device Screen will display the following message
“Vehicle device requires service. Please contact your
dealer.”
• An In-Vehicle Audio message will state “Vehicle de-
vice requires service. Please contact your dealer.”
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

Manual Seat Height Adjustment — If Equipped
The driver ’s seat height can be raised or lowered by
using a lever, located on the outboard side of the seat.
Pull upward on the lever to raise the seat height or push
downward on the lever to lower the seat height.
Front Heated Seats — If Equipped
The front heated seats control buttons are located within
the Uconnect system. You can gain access to the control
buttons through the climate screen or the controls screen.
•Press the heated seat button
once to turn the HI
setting ON.
• Press the heated seat buttona second time to turn
the LO setting ON.
• Press the heated seat buttona third time to turn
the heating elements OFF.
If the HI-level setting is selected, the system will auto-
matically switch to LO-level after approximately 60 min-
utes of continuous operation. At that time, the display
will change from HI to LO, indicating the change. The
LO-level setting will turn OFF automatically after ap-
proximately 45 minutes.
Seat Height Adjustment
