2016 CHEVROLET SUBURBAN wheel alignment

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15
Vehicle Care 311
Tire Pressure MonitorSystem . . . . . . . . . . . . . . . . . . . . . . 360
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 361
Tire Inspection . . . . . . . . . . . . . . . . 364
Tire Rotation . . . . . . . . . . . . . . . . . 364
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 365
Buying New Tires . . . . . . . . . . . . . 366
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 367
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 368
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 369
Wheel Replacement . . . . . . . . . . 369
Tire Chains . . . . . . . . . . . . . . . . . . . 370
If a Tire Goes Flat . . . . . . . . . . . . 371
Tire Changing . . . . . . . . . . . . . . . . 372
Full-Size Spare Tire . . . . . . . . . . 381
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 382
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 385
Recreational VehicleTowing . . . . . . . . . . . . . . . . . . . . . . 385
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 391
Interior Care . . . . . . . . . . . . . . . . . . 395
Floor Mats . . . . . . . . . . . . . . . . . . . . 398
General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:
California Proposition
65 Warning
WARNING: Most motor vehicles,
including this one, contain and/or
emit chemicals known to the State
of California to cause cancer and
birth defects or other reproductive

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15
364 Vehicle Care
matching process is no longer
active. The TIRE LEARNING
ACTIVE message on the DIC
display screen goes off.
11. Turn the ignition switch to LOCK/OFF.
12. Set all four tires to the recommended air pressure
level as indicated on the Tire
and Loading Information label.
Tire Inspection
We recommend that the tires,
including the spare tire, if the
vehicle has one, be inspected
for signs of wear or damage at
least once a month.
Replace the tire if:
.The indicators at three or
more places around the tire
can be seen.
.There is cord or fabric
showing through the tire's
rubber.
.The tread or sidewall is
cracked, cut, or snagged
deep enough to show cord or
fabric.
.The tire has a bump, bulge,
or split.
.The tire has a puncture, cut,
or other damage that cannot
be repaired well because of
the size or location of the
damage.
Tire Rotation
Tires should be rotated every
12 000 km (7,500 mi). See
Maintenance Schedule 0401.
Tires are rotated to achieve a
uniform wear for all tires. The
first rotation is the most
important.
Anytime unusual wear is
noticed, rotate the tires as soon
as possible, check for proper tire
inflation pressure, and check for
damaged tires or wheels. If the
unusual wear continues after the rotation, check the wheel
alignment. See
When It Is Time
for New Tires 0365 andWheel
Replacement 0369.

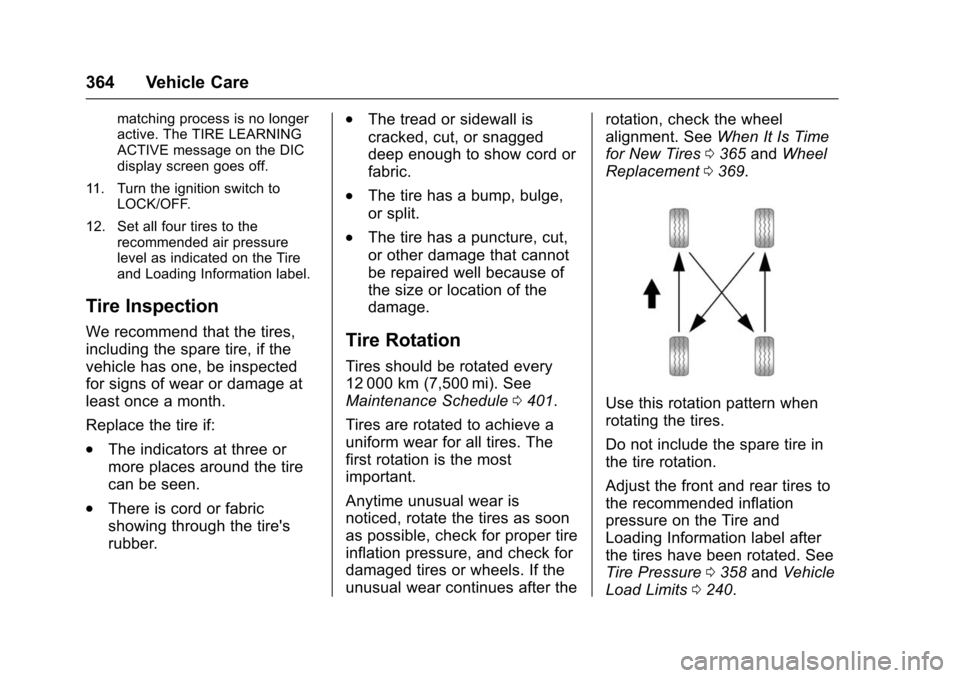

Use this rotation pattern when
rotating the tires.
Do not include the spare tire in
the tire rotation.
Adjust the front and rear tires to
the recommended inflation
pressure on the Tire and
Loading Information label after
the tires have been rotated. See
Tire Pressure 0358 and Vehicle
Load Limits 0240.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15
Vehicle Care 369
Traction
The traction grades, from
highest to lowest, are AA, A, B,
and C. Those grades represent
the tire's ability to stop on wet
pavement as measured under
controlled conditions on
specified government test
surfaces of asphalt and
concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction
tests, and does not include
acceleration, cornering,
hydroplaning, or peak traction
characteristics.
Temperature
The temperature grades are A
(the highest), B, and C,
representing the tire's resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled
conditions on a specified indoorlaboratory test wheel. Sustained
high temperature can cause the
material of the tire to degenerate
and reduce tire life, and
excessive temperature can lead
to sudden tire failure. The grade
C corresponds to a level of
performance which all
passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and
A represent higher levels of
performance on the laboratory
test wheel than the minimum
required by law. Warning: The
temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.Wheel Alignment and Tire
Balance
The tires and wheels were aligned
and balanced at the factory to
provide the longest tire life and best
overall performance. Adjustments to
wheel alignment and tire balancing
are not necessary on a regular
basis. Consider an alignment check
if there is unusual tire wear or the
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts, and
wheel nuts should be replaced.
If the wheel leaks air, replace it.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15
Service and Maintenance 409
of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires.
Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For information on how to clean and
protect the vehicle’s interior and
exterior, see
Interior Care 0395 and
Exterior Care 0391.
Wheel Alignment
Wheel alignment is critical for
ensuring that the tires deliver
optimal wear and performance.
. Signs that the alignment may
need to be adjusted include
pulling, improper vehicle
handling, or unusual tire wear.
. Your dealer has the required
equipment to ensure proper
wheel alignment.
Windshield
For safety, appearance, and the
best viewing, keep the windshield
clean and clear.
. Signs of damage include
scratches, cracks, and chips.
. Trained dealer technicians can
inspect the windshield and
recommend proper replacement
if needed. Wiper Blades
Wiper blades need to be cleaned
and kept in good condition to
provide a clear view.
.
Signs of wear include streaking,
skipping across the windshield,
and worn or split rubber.
. Trained dealer technicians can
check the wiper blades and
replace them when needed.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15
Index 451
System (cont'd)Noise Control . . . . . . . . . . . . . . . . . 333
Roof Rack . . . . . . . . . . . . . . . . . . . . 125
Systems
Driver Assistance . . . . . . . . . . . . . 280
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 140
TaillampsBulb Replacement . . . . . . . . . . . . 339
Text Telephone (TTY) Users . . . . 420
Theft-Deterrent Systems . . . . . . . . . 54 Immobilizer . . . . . . . . . . . . . . . . . . . . . 54
Third-Row Seats . . . . . . . . . . . . . . . . . 76
Throttle, Adjustable . . . . . . . . . . . . . 244
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
All-Season . . . . . . . . . . . . . . . . . . . . 352
All-Terrain . . . . . . . . . . . . . . . . . . . . 353
Buying New Tires . . . . . . . . . . . . . 366
Chains . . . . . . . . . . . . . . . . . . . . . . . . 370
Changing . . . . . . . . . . . . . . . . . . . . . 372
Designations . . . . . . . . . . . . . . . . . 354
Different Size . . . . . . . . . . . . . . . . . 367
Full-Size Spare . . . . . . . . . . . . . . . 381
If a Tire Goes Flat . . . . . . . . . . . . 371
Inspection . . . . . . . . . . . . . . . . . . . . 364
Low Profile . . . . . . . . . . . . . . . . . . . 353
Messages . . . . . . . . . . . . . . . . . . . . 169 Tires (cont'd)
Pressure . . . . . . . . . . . . . . . . . . . . . . 359
Pressure Light . . . . . . . . . . . . . . . . 151
Pressure Monitor Operation . . 361
Pressure Monitor System . . . . . 360
Rotation . . . . . . . . . . . . . . . . . . . . . . 364
Sidewall Labeling . . . . . . . . . . . . . 353
Terminology and Definitions . . 355
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 368
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 369
Wheel Replacement . . . . . . . . . . 369
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 365
Winter . . . . . . . . . . . . . . . . . . . . . . . . 352
Tow/Haul Mode . . . . . . . . . . . . . . . . . 259
Tow/Haul Mode Light . . . . . . . . . . . 149
Towing Driving Characteristics . . . . . . . . 296
Equipment . . . . . . . . . . . . . . . . . . . . 302
General Information . . . . . . . . . . 296
Recreational Vehicle . . . . . . . . . . 385
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 298
Trailer Sway Control (TSC) . . . 308
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 385 Traction
Control System (TCS)/
StabiliTrak
®Light . . . . . . . . . . . . 150
Off Light . . . . . . . . . . . . . . . . . . . . . . 150
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 267
Trademarks and License
Agreements . . . . . . . . . . . . . . . . . . . 218
Trailer Sway Control (TSC) . . . . . . . . . . 308
Towing . . . . . . . . . . . . . . . . . . . . . . . . 298
Transfer Case . . . . . . . . . . . . . . . . . . 260
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 255
Fluid, Automatic . . . . . . . . . . . . . . 318
Messages . . . . . . . . . . . . . . . . . . . . 170
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . 423
Trip Odometer . . . . . . . . . . . . . . . . . . 140
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 187
Turn Signal Bulb Replacement . . . . . . . . . . . . 339
U
Uniform Tire Quality Grading . . . 368
Universal Remote System . . . . . . 179Operation . . . . . . . . . . . . . . . . . . . . . 182
Programming . . . . . . . . . . . . . . . . . 179

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15
452 Index
UpdatesSoftware . . . . . . . . . . . . . . . . . . . . . . 198
USB Port . . . . . . . . . . . . . . . . . . . . . . . 204
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 52
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 229
Identification Number (VIN) . . . 414
Load Limits . . . . . . . . . . . . . . . . . . . 240
Messages . . . . . . . . . . . . . . . . . . . . 161
Personalization . . . . . . . . . . . . . . . 173
Reminder Messages . . . . . . . . . . 172
Remote Start . . . . . . . . . . . . . . . . . . . 43
Security . . . . . . . . . . . . . . . . . . . . . . . . 52
Towing . . . . . . . . . . . . . . . . . . . . . . . . 385
Vehicle Ahead Indicator . . . . . . . . 150
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . 358
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 428
Ventilation, Air . . . . . . . . . . . . . . . . . . 225
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Voltmeter Gauge . . . . . . . . . . . . . . . 143
W
Warning Brake System Light . . . . . . . . . . . 148
Caution and Danger . . . . . . . . . . . . . 2
Lane Departure (LDW) . . . . . . . 289
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 136
Warnings Hazard Flashers . . . . . . . . . . . . . . 187
Washer Fluid . . . . . . . . . . . . . . . . . . . 328
Messages . . . . . . . . . . . . . . . . . . . . 172
Wheels Alignment and Tire Balance . . 369
Different Size . . . . . . . . . . . . . . . . . 367
Replacement . . . . . . . . . . . . . . . . . 369
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Where to Put the Restraint . . . . . 107
Windows . . . . . . . . . . . . . . . . . . . . . . . . 59 Power . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Windshield Replacement . . . . . . . . . . . . . . . . . 336
Wiper/Washer . . . . . . . . . . . . . . . . 129
Winter
Driving . . . . . . . . . . . . . . . . . . . . . . . . 237
Winter Tires . . . . . . . . . . . . . . . . . . . . 352
Wiper Blade Replacement . . . . . . 335 Wipers
Rear Washer . . . . . . . . . . . . . . . . . 131
Wireless Charging . . . . . . . . . . . . . . 135
