360 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 361
California Proposition65 Warning . . . . . . . . . . . . . . . . . 361
California Perchlorate Materials Requirements . . . . . 362
Accessories and Modifications . . . . . . . . . . . . . . . . 362
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 363
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 363
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 364
Engine Oil . . . . . . . . . . . . . . . . . . . . 369
Engine Oil Life System . . . . . . . 372
Automatic Transmission Fluid (6 Speed Transmission) . . . . . 373
Automatic Transmission Fluid (8 Speed Transmission) . . . . . 376
Manual Transmission Fluid . . . 376
Hydraulic Clutch . . . . . . . . . . . . . . 376
Engine Air Cleaner/Filter . . . . . . 377
Cooling System . . . . . . . . . . . . . . 378
Engine Coolant . . . . . . . . . . . . . . . 379
Engine Overheating . . . . . . . . . . 382 Overheated Engine Protection
Operating Mode . . . . . . . . . . . . . 384
Engine Fan . . . . . . . . . . . . . . . . . . . 384
Power Steering Fluid (1500 Series) . . . . . . . . . . . . . . . . . . . . . . 385
Power Steering Fluid (2500/ 3500 Series) . . . . . . . . . . . . . . . . 385
Washer Fluid . . . . . . . . . . . . . . . . . 385
Brakes . . . . . . . . . . . . . . . . . . . . . . . 386
Brake Fluid . . . . . . . . . . . . . . . . . . . 387
Battery - North America . . . . . . 388
Four-Wheel Drive . . . . . . . . . . . . . 389
Front Axle . . . . . . . . . . . . . . . . . . . . 390
Rear Axle . . . . . . . . . . . . . . . . . . . . 390
Noise Control System . . . . . . . . 392
Starter Switch Check . . . . . . . . . 393
Automatic Transmission Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 393
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . 393
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 394
Wiper Blade Replacement . . . . 394
Glass Replacement . . . . . . . . . . 395
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 395
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 395 Halogen Bulbs . . . . . . . . . . . . . . . . 395
High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . 395
LED Lighting . . . . . . . . . . . . . . . . . 396
Headlamps, Front Turn Signal, Sidemarker, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 396
Fog Lamps . . . . . . . . . . . . . . . . . . . 396
Taillamps (Chassis Cab Models) . . . . . . . . . . . . . . . . . . . . . 397
Taillamps, Turn Signal, Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 397
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . 398
Replacement Bulbs . . . . . . . . . . . 399
Electrical System
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . 399
Electrical System Overload . . . 399
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 400
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 400
Instrument Panel Fuse Block (Right) . . . . . . . . . . . . . . . . . . . . . . 403
Instrument Panel Fuse Block (Left) . . . . . . . . . . . . . . . . . 405

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159338) - 2016 - crc - 10/21/15
Vehicle Care 361
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 407
All-Season Tires . . . . . . . . . . . . . . 408
Winter Tires . . . . . . . . . . . . . . . . . . 408
Low-Profile Tires . . . . . . . . . . . . . 409
All-Terrain Tires . . . . . . . . . . . . . . . 409
Tire Sidewall Labeling . . . . . . . . 409
Tire Designations . . . . . . . . . . . . . 412
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 413
Tire Pressure . . . . . . . . . . . . . . . . . 416
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . 417
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 417
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 418
Tire Inspection . . . . . . . . . . . . . . . . 422
Tire Rotation . . . . . . . . . . . . . . . . . 422
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 424
Buying New Tires . . . . . . . . . . . . . 425
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 427
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 427
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 429
Wheel Replacement . . . . . . . . . . 429
Tire Chains . . . . . . . . . . . . . . . . . . . 430
If a Tire Goes Flat . . . . . . . . . . . . 431 Tire Changing . . . . . . . . . . . . . . . . 432
Full-Size Spare Tire . . . . . . . . . . 441
Jump Starting
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . 442
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 447
Recreational VehicleTowing . . . . . . . . . . . . . . . . . . . . . . 447
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 452
Interior Care . . . . . . . . . . . . . . . . . . 457
Floor Mats . . . . . . . . . . . . . . . . . . . . 460
General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:
California Proposition
65 Warning
WARNING: Most motor vehicles,
including this one, contain and/or
emit chemicals known to the State
of California to cause cancer and
birth defects or other reproductive

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159338) - 2016 - crc - 10/21/15

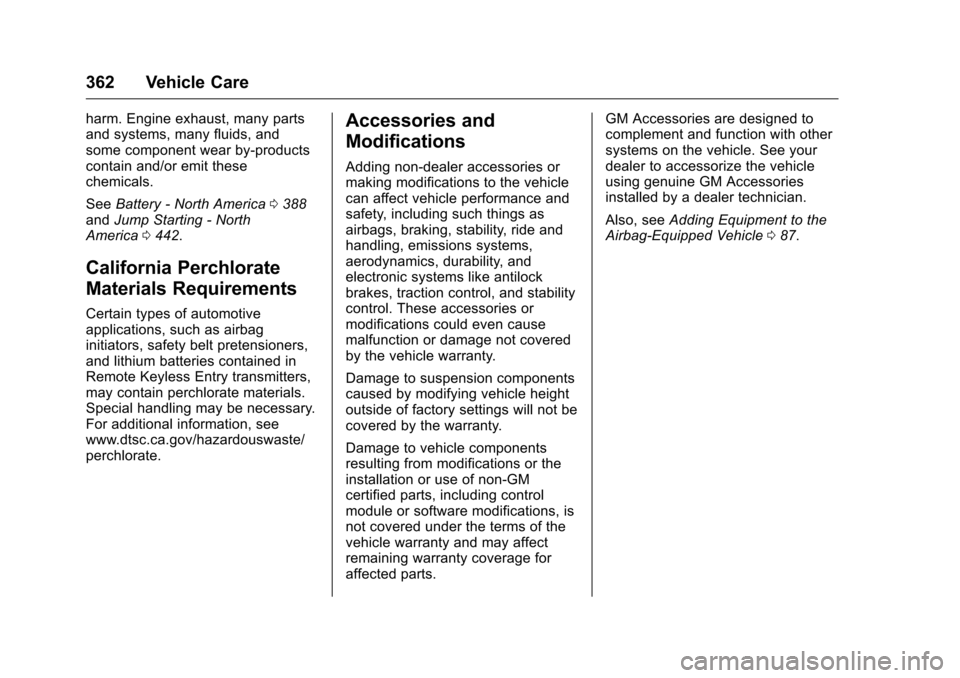

362 Vehicle Care
harm. Engine exhaust, many parts
and systems, many fluids, and
some component wear by-products
contain and/or emit these
chemicals.
SeeBattery - North America 0388
and Jump Starting - North
America 0442.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, safety belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.
Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts. GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 087.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159338) - 2016 - crc - 10/21/15

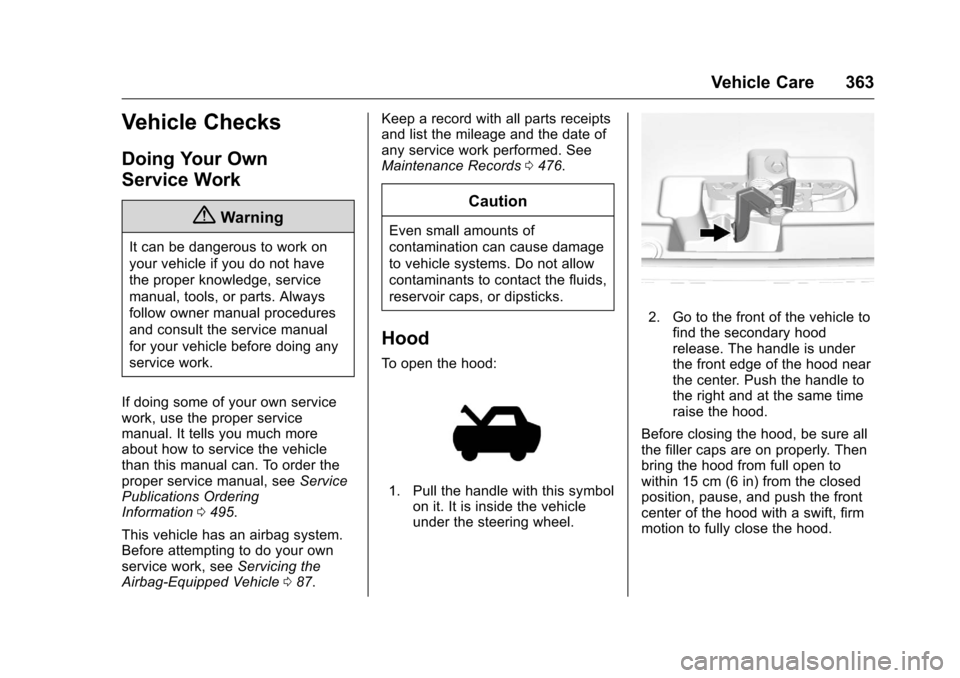

Vehicle Care 363
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see Service
Publications Ordering
Information 0495.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle 087. Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records
0476.
Caution
Even small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.
Hood
To open the hood:
1. Pull the handle with this symbol
on it. It is inside the vehicle
under the steering wheel.
2. Go to the front of the vehicle tofind the secondary hood
release. The handle is under
the front edge of the hood near
the center. Push the handle to
the right and at the same time
raise the hood.
Before closing the hood, be sure all
the filler caps are on properly. Then
bring the hood from full open to
within 15 cm (6 in) from the closed
position, pause, and push the front
center of the hood with a swift, firm
motion to fully close the hood.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159338) - 2016 - crc - 10/21/15
364 Vehicle Care

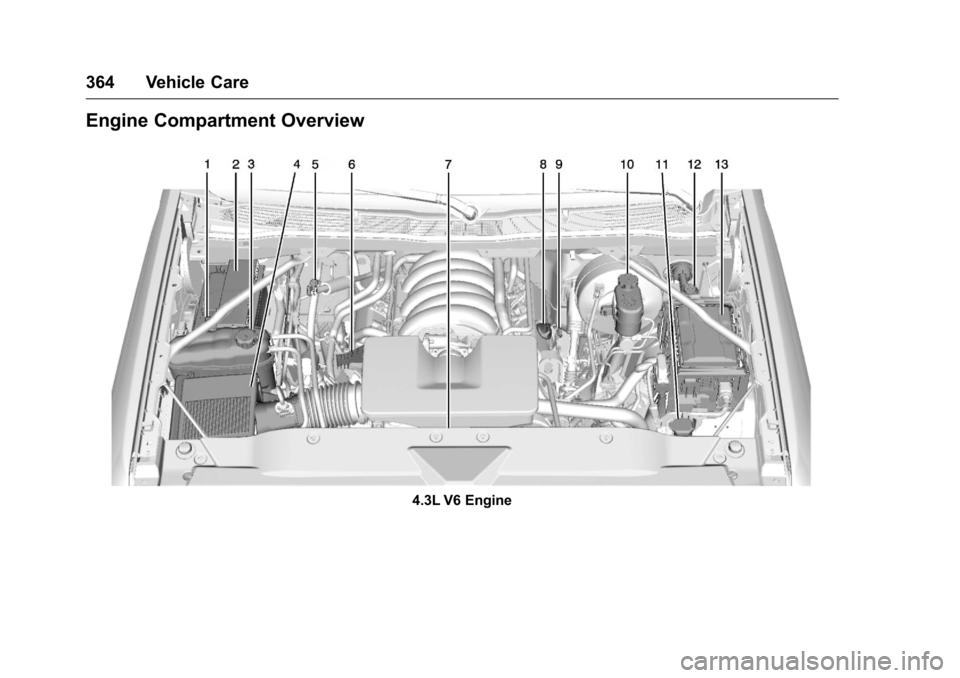

Engine Compartment Overview
4.3L V6 Engine

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159338) - 2016 - crc - 10/21/15

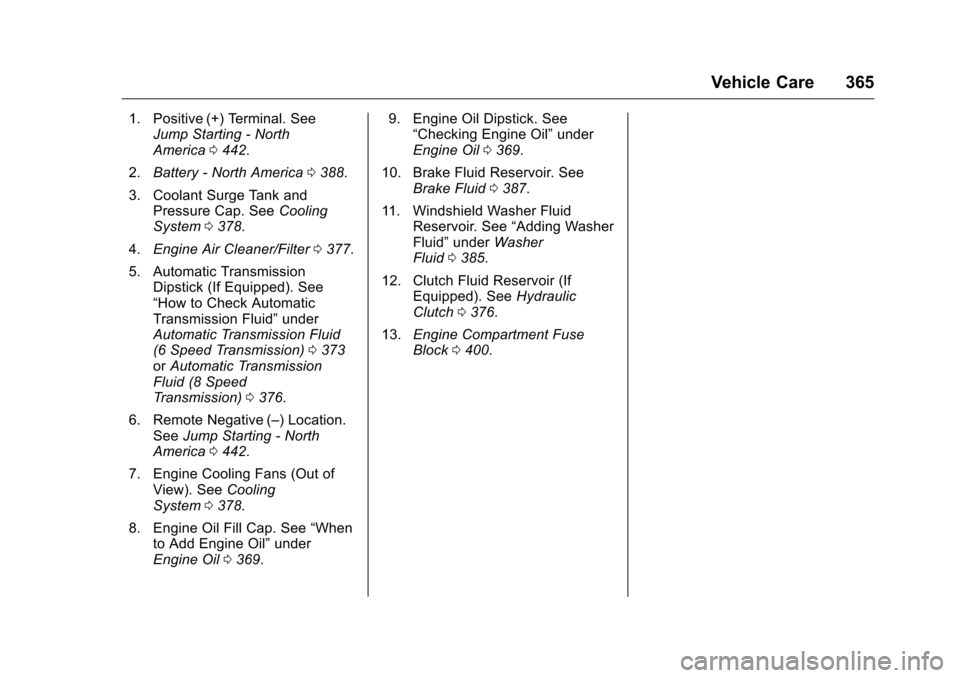

Vehicle Care 365
1. Positive (+) Terminal. SeeJump Starting - North
America 0442.
2. Battery - North America 0388.
3. Coolant Surge Tank and Pressure Cap. See Cooling
System 0378.
4. Engine Air Cleaner/Filter 0377.
5. Automatic Transmission Dipstick (If Equipped). See
“How to Check Automatic
Transmission Fluid” under
Automatic Transmission Fluid
(6 Speed Transmission) 0373
or Automatic Transmission
Fluid (8 Speed
Transmission) 0376.
6. Remote Negative (–) Location. See Jump Starting - North
America 0442.
7. Engine Cooling Fans (Out of View). See Cooling
System 0378.
8. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil 0369. 9. Engine Oil Dipstick. See
“Checking Engine Oil” under
Engine Oil 0369.
10. Brake Fluid Reservoir. See Brake Fluid 0387.
11. Windshield Washer Fluid Reservoir. See “Adding Washer
Fluid” under Washer
Fluid 0385.
12. Clutch Fluid Reservoir (If Equipped). See Hydraulic
Clutch 0376.
13. Engine Compartment Fuse
Block 0400.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159338) - 2016 - crc - 10/21/15
366 Vehicle Care

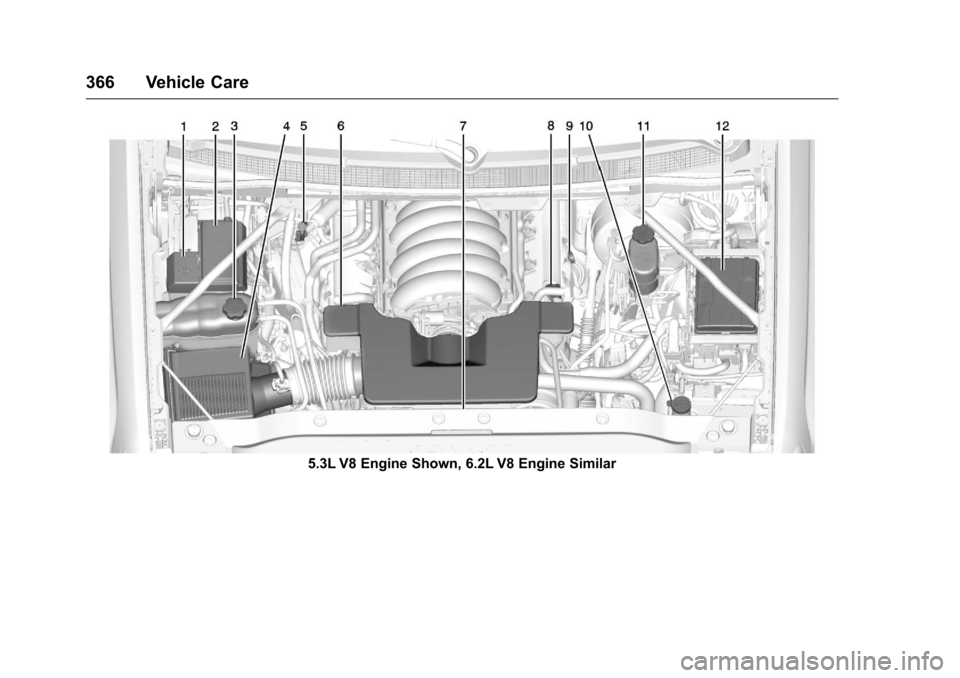

5.3L V8 Engine Shown, 6.2L V8 Engine Similar

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159338) - 2016 - crc - 10/21/15
Vehicle Care 367
1. Positive (+) Terminal. SeeJump Starting - North
America 0442.
2. Battery - North America 0388.
3. Coolant Surge Tank and Pressure Cap. See Cooling
System 0378.
4. Engine Air Cleaner/Filter 0377.
5. Automatic Transmission Dipstick (If Equipped). See
“How to Check Automatic
Transmission Fluid” under
Automatic Transmission Fluid
(6 Speed Transmission) 0373
or Automatic Transmission
Fluid (8 Speed
Transmission) 0376.

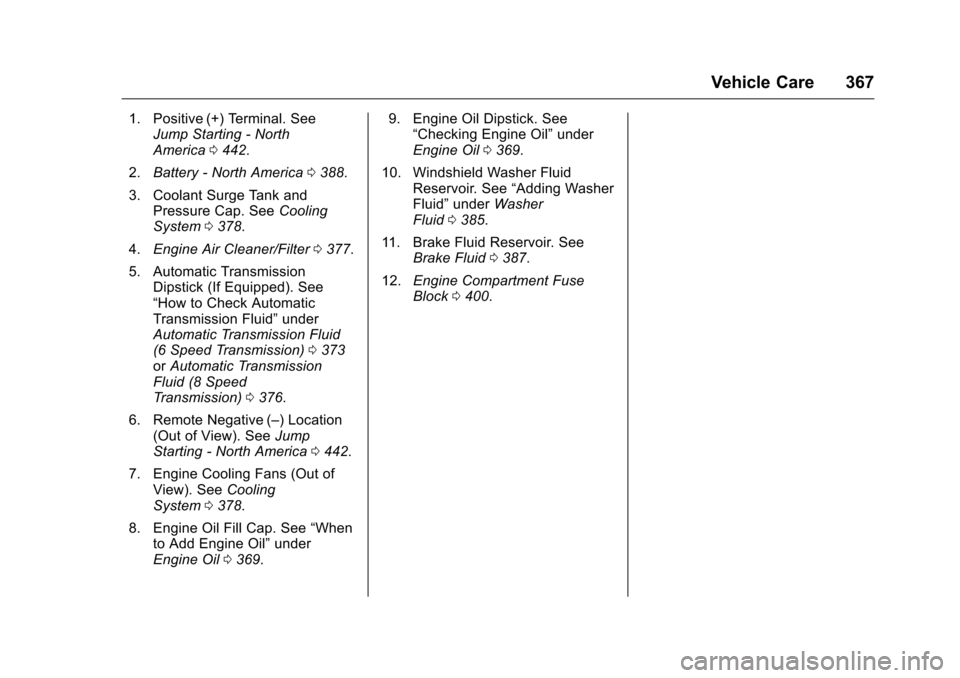

6. Remote Negative (–) Location (Out of View). See Jump
Starting - North America 0442.
7. Engine Cooling Fans (Out of View). See Cooling
System 0378.
8. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil 0369. 9. Engine Oil Dipstick. See
“Checking Engine Oil” under
Engine Oil 0369.
10. Windshield Washer Fluid Reservoir. See “Adding Washer
Fluid” under Washer
Fluid 0385.
11. Brake Fluid Reservoir. See Brake Fluid 0387.
12. Engine Compartment Fuse
Block 0400.
