2016 CHEVROLET MALIBU Owners Manual

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

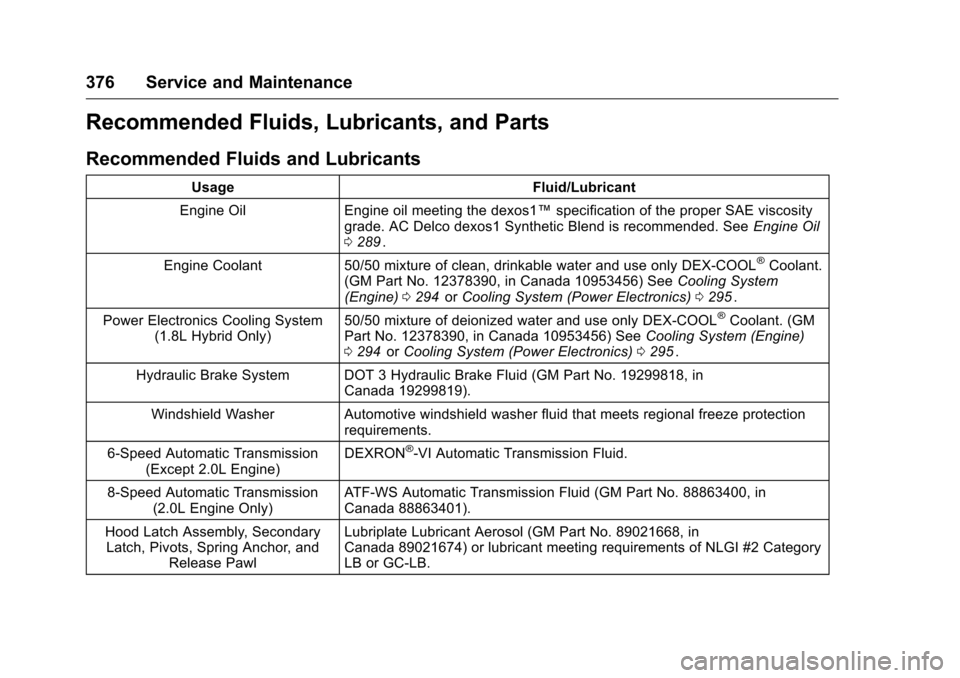

376 Service and Maintenance
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil Engine oil meeting the dexos1™ specification of the proper SAE viscosity
grade. AC Delco dexos1 Synthetic Blend is recommended. See Engine Oil
0 289
ii.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant.
(GM Part No. 12378390, in Canada 10953456) See Cooling System
(Engine) 0294
iior Cooling System (Power Electronics) 0295ii.
Power Electronics Cooling System (1.8L Hybrid Only) 50/50 mixture of deionized water and use only DEX-COOL
®Coolant. (GM
Part No. 12378390, in Canada 10953456) See Cooling System (Engine)
0 294
iior Cooling System (Power Electronics) 0295ii.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818, in Canada 19299819).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
6-Speed Automatic Transmission (Except 2.0L Engine) DEXRON
®-VI Automatic Transmission Fluid.
8-Speed Automatic Transmission (2.0L Engine Only) ATF-WS Automatic Transmission Fluid (GM Part No. 88863400, in
Canada 88863401).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and
Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668, in
Canada 89021674) or lubricant meeting requirements of NLGI #2 Category
LB or GC-LB.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

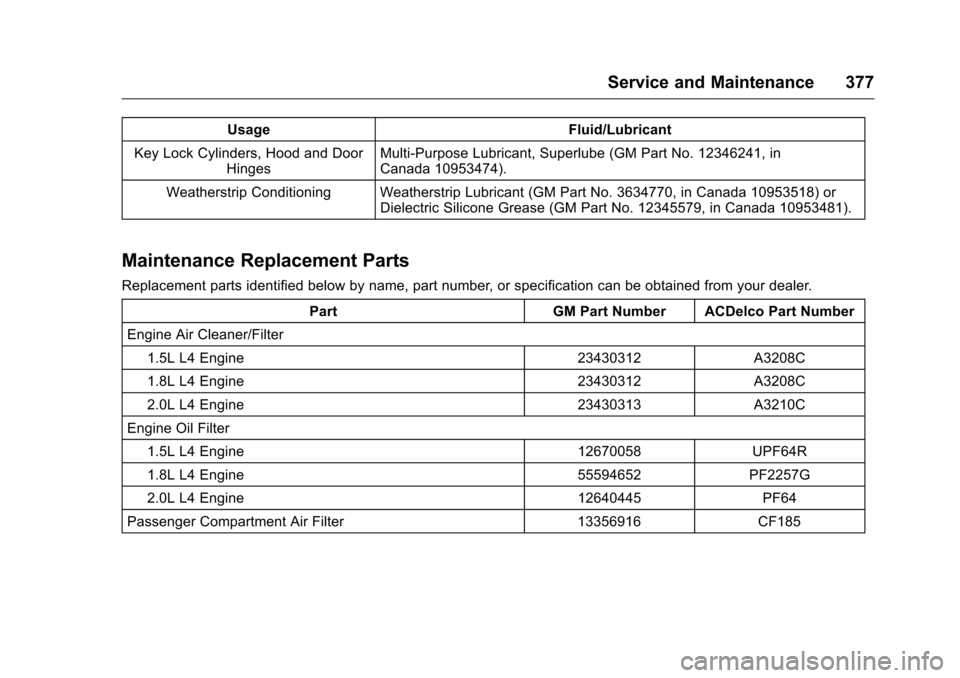

Service and Maintenance 377
UsageFluid/Lubricant
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or Dielectric Silicone Grease (GM Part No. 12345579, in Canada 10953481).
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 1.5L L4 Engine 23430312 A3208C
1.8L L4 Engine 23430312 A3208C
2.0L L4 Engine 23430313 A3210C
Engine Oil Filter 1.5L L4 Engine 12670058 UPF64R
1.8L L4 Engine 55594652 PF2257G
2.0L L4 Engine 12640445 PF64
Passenger Compartment Air Filter 13356916 CF185

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

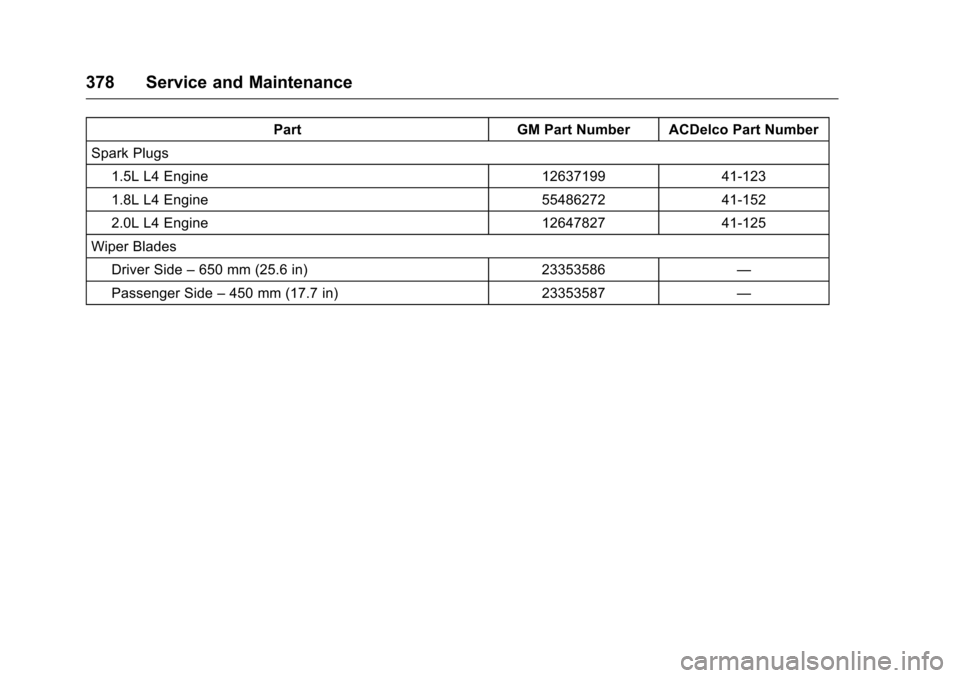

378 Service and Maintenance
PartGM Part Number ACDelco Part Number
Spark Plugs 1.5L L4 Engine 1263719941-123
1.8L L4 Engine 5548627241-152
2.0L L4 Engine 1264782741-125
Wiper Blades
Driver Side –650 mm (25.6 in) 23353586—
Passenger Side –450 mm (17.7 in) 23353587—

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

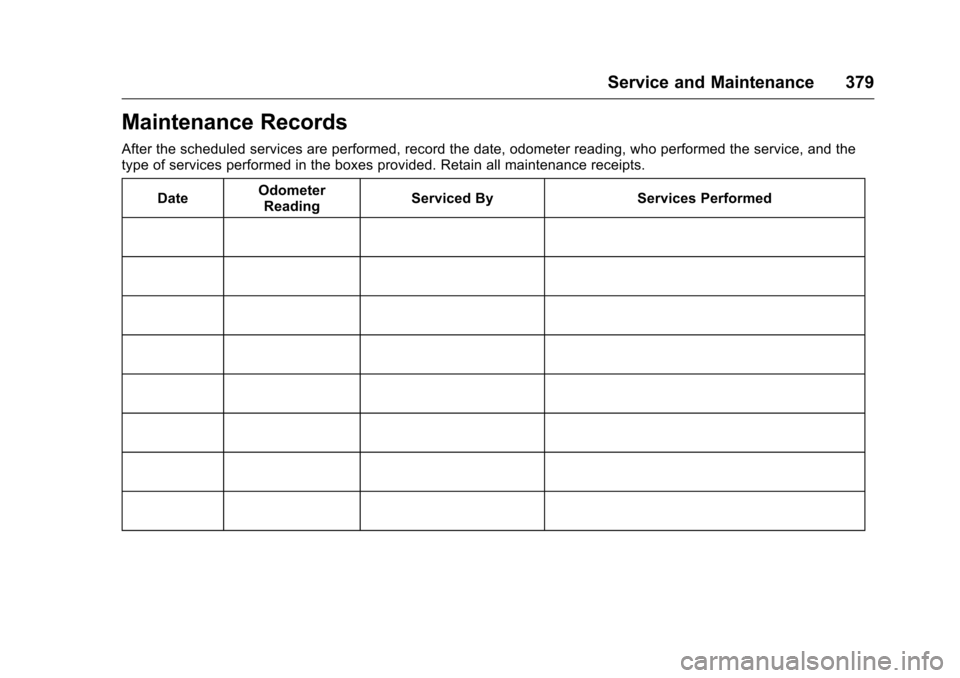

Service and Maintenance 379
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

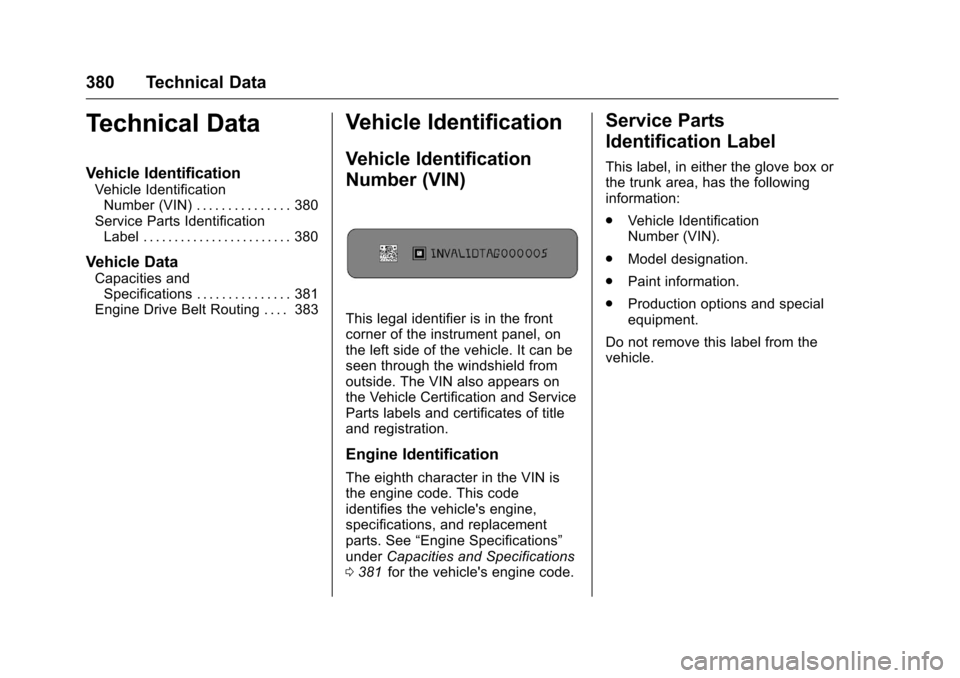

380 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 380
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 380
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 381
Engine Drive Belt Routing . . . . 383
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 381
iifor the vehicle's engine code.
Service Parts
Identification Label
This label, in either the glove box or
the trunk area, has the following
information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

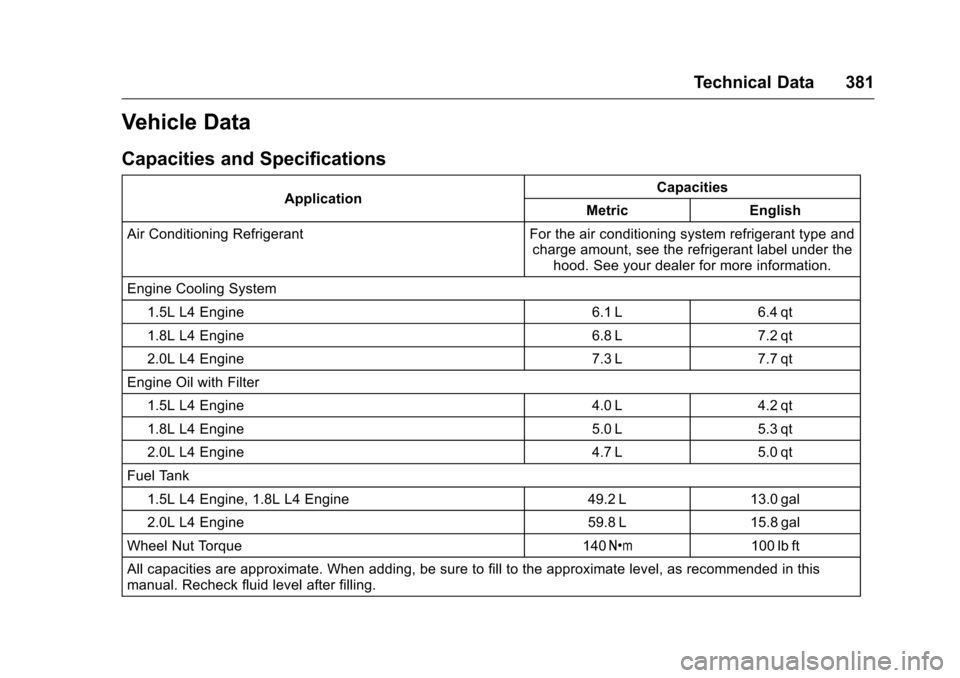

Technical Data 381
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System 1.5L L4 Engine 6.1 L 6.4 qt
1.8L L4 Engine 6.8 L 7.2 qt
2.0L L4 Engine 7.3 L 7.7 qt
Engine Oil with Filter 1.5L L4 Engine 4.0 L 4.2 qt
1.8L L4 Engine 5.0 L 5.3 qt
2.0L L4 Engine 4.7 L 5.0 qt
Fuel Tank 1.5L L4 Engine, 1.8L L4 Engine 49.2 L 13.0 gal
2.0L L4 Engine 59.8 L 15.8 gal
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

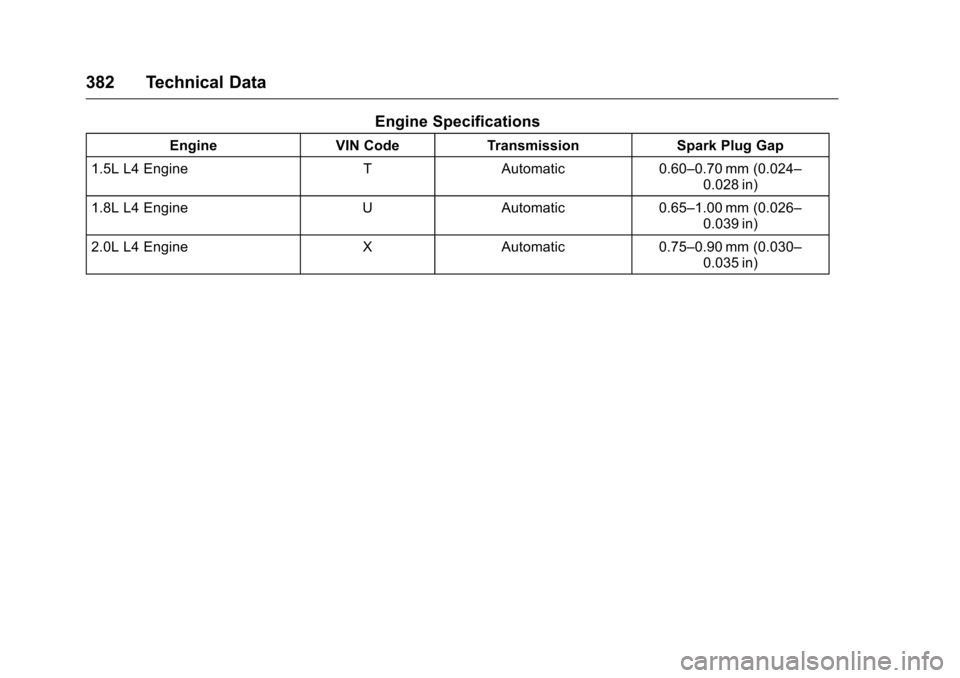

382 Technical Data
Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
1.5L L4 Engine TAutomatic 0.60–0.70 mm (0.024–
0.028 in)
1.8L L4 Engine UAutomatic 0.65–1.00 mm (0.026–
0.039 in)
2.0L L4 Engine XAutomatic 0.75–0.90 mm (0.030–
0.035 in)

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

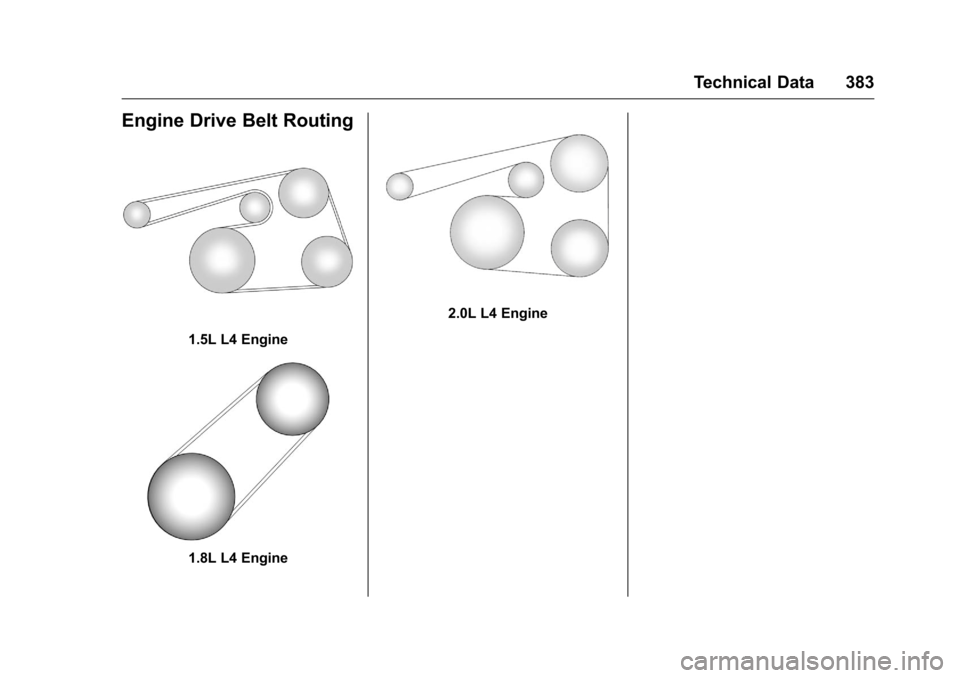

Technical Data 383
Engine Drive Belt Routing
1.5L L4 Engine
1.8L L4 Engine
2.0L L4 Engine
