2016 CHEVROLET CRUZE LIMITED center console

Chevrolet Cruze Limited Owner Manual (GMNA-Localizing-U.S./Canada-
9282844) - 2016 - crc - 9/3/15

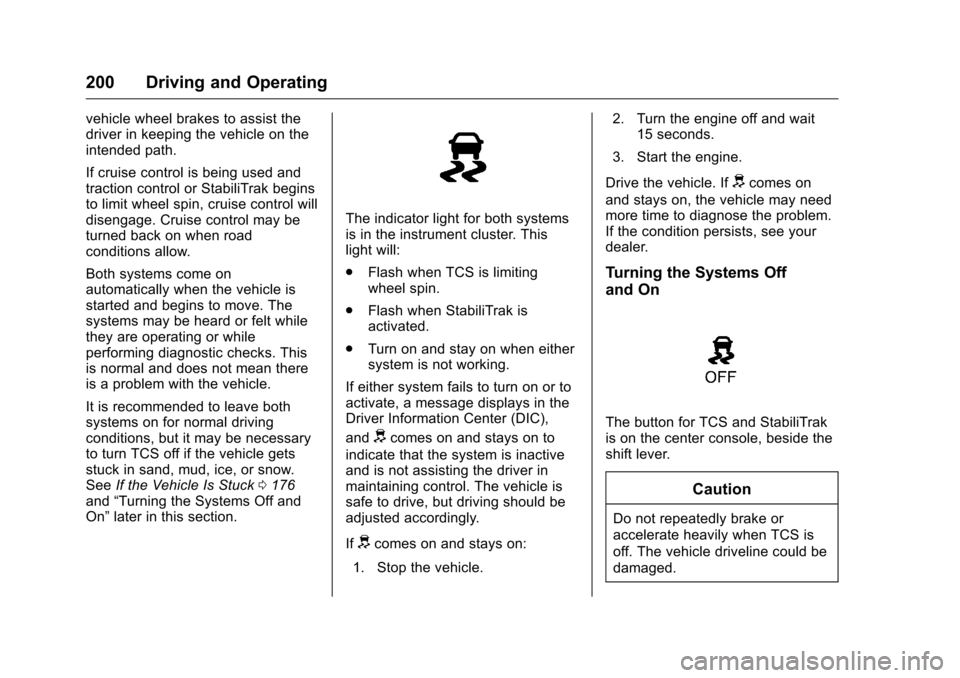

200 Driving and Operating
vehicle wheel brakes to assist the
driver in keeping the vehicle on the
intended path.
If cruise control is being used and
traction control or StabiliTrak begins
to limit wheel spin, cruise control will
disengage. Cruise control may be
turned back on when road
conditions allow.
Both systems come on
automatically when the vehicle is
started and begins to move. The
systems may be heard or felt while
they are operating or while
performing diagnostic checks. This
is normal and does not mean there
is a problem with the vehicle.
It is recommended to leave both
systems on for normal driving
conditions, but it may be necessary
to turn TCS off if the vehicle gets
stuck in sand, mud, ice, or snow.
SeeIf the Vehicle Is Stuck 0176
iiand “Turning the Systems Off and
On” later in this section.
The indicator light for both systems
is in the instrument cluster. This
light will:
.
Flash when TCS is limiting
wheel spin.
. Flash when StabiliTrak is
activated.
. Turn on and stay on when either
system is not working.
If either system fails to turn on or to
activate, a message displays in the
Driver Information Center (DIC),
and
dcomes on and stays on to
indicate that the system is inactive
and is not assisting the driver in
maintaining control. The vehicle is
safe to drive, but driving should be
adjusted accordingly.
If
dcomes on and stays on:
1. Stop the vehicle. 2. Turn the engine off and wait
15 seconds.
3. Start the engine.
Drive the vehicle. If
dcomes on
and stays on, the vehicle may need
more time to diagnose the problem.
If the condition persists, see your
dealer.
Turning the Systems Off
and On
The button for TCS and StabiliTrak
is on the center console, beside the
shift lever.
Caution
Do not repeatedly brake or
accelerate heavily when TCS is
off. The vehicle driveline could be
damaged.

Chevrolet Cruze Limited Owner Manual (GMNA-Localizing-U.S./Canada-
9282844) - 2016 - crc - 9/3/15
Index 347
Audio PlayersCD . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Automatic Climate Control System . . . . . . . 165
Door Locks . . . . . . . . . . . . . . . . . . . . . 35
Headlamp System . . . . . . . . . . . . 129
Transmission . . . . . . . . . . . . . . . . . 192
Transmission Fluid . . . . . . . . . . . 230
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 194
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 242
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . 147
B
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 133
Power Protection . . . . . . . . . . . . . 133
Voltage and Charging Messages . . . . . . . . . . . . . . . . . . . .115
Battery - North America . . . . 241, 290
Blade Replacement, Wiper . . . . . 243
Bluetooth Overview . . . . . . . . . . . 149, 151, 154
Brake System Warning Light . . . . . . . . 106 Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Antilock . . . . . . . . . . . . . . . . . . . . . . . 197
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 199
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Parking . . . . . . . . . . . . . . . . . . . . . . . 198
System Messages . . . . . . . . . . . . .116
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 172
Break-In, New Vehicle . . . . . . . . . . 181
Bulb Replacement . . . . . . . . . . . . . . 249
Halogen Bulbs . . . . . . . . . . . . . . . . 244
Headlamp Aiming . . . . . . . . . . . . . 244
Headlamps . . . . . . . . . . . . . . . . . . . 244
Headlamps, Front TurnSignal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 244
License Plate Lamps . . . . . . . . . 248
Taillamps, Turn Signal,
Sidemarker, Stoplamps,
and Backup Lamps . . . . . . . . . . 246
Buying New Tires . . . . . . . . . . . . . . . 270
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 96
California Fuel Requirements . . . . . . . . . . . 210 California (cont'd)
Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 220
California
Proposition
65 Warning . . . . . . . . . .220, 241, 290
Camera Rear Vision (RVC) . . . . . . . . . . . . 203
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 321
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 191
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Winter Driving . . . . . . . . . . . . . . . . 175
Caution, Danger, and Warning . . . . 3
CD Player . . . . . . . . . . . . . . . . . . . . . . 145
Center Console Storage . . . . . . . . . 91
Chains, Tire . . . . . . . . . . . . . . . . . . . . 274
Charging System Light . . . . . . . . . 104
Check Ignition Transmission Lock . . . 242
Malfunction IndicatorEngine Light . . . . . . . . . . . . . . . . 104
Child Restraints Infants and Young Children . . . . . 73
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 78

Chevrolet Cruze Limited Owner Manual (GMNA-Localizing-U.S./Canada-
9282844) - 2016 - crc - 9/3/15
Index 355
Steering (cont'd)Wheel Controls . . . . . . . . . . . . . . . . . 94
Stoplamps and Back-Up Lamps Bulb Replacement . . . . . . . . . . . . 246
Storage Areas Center Console . . . . . . . . . . . . . . . . . 91
Glove Box . . . . . . . . . . . . . . . . . . . . . . 91
Storage Compartments . . . . . . . . . . 91
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . 282
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 176
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 45
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Infotainment . . . . . . . . . . . . . 134, 335
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 101
TaillampsBulb Replacement . . . . . . . . . . . . 246
Text Telephone (TTY) Users . . . . 326
Theft-Deterrent Systems . . . . . . . . . 40 Immobilizer . . . . . . . . . . . . . . . . . . . . . 40
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255 All-Season . . . . . . . . . . . . . . . . . . . . 256
Buying New Tires . . . . . . . . . . . . . 270
Chains . . . . . . . . . . . . . . . . . . . . . . . . 274 Tires (cont'd)
Changing . . . . . . . . . . . . . . . . . . . . . 283
Compact Spare . . . . . . . . . . . . . . . 289
Designations . . . . . . . . . . . . . . . . . 259
Different Size . . . . . . . . . . . . . . . . . 271
If a Tire Goes Flat . . . . . . . . . . . . 274
Inspection . . . . . . . . . . . . . . . . . . . . 267
Low Profile . . . . . . . . . . . . . . . . . . . 257
Messages . . . . . . . . . . . . . . . . . . . . 120
Pressure Light . . . . . . . . . . . . . . . . 109
Pressure Monitor Operation . . 264
Pressure Monitor System . . . . . 263
Rotation . . . . . . . . . . . . . . . . . . . . . . 268
Sealant and
Compressor Kit . . . . . . . . . . . . . 276
Sealant and Compressor Kit, Storing . . . . . . . . . . . . . . . . . . 282
Sidewall Labeling . . . . . . . . . . . . . 257
Terminology and Definitions . . 260
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 271
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 273
Wheel Replacement . . . . . . . . . . 273
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 269
Winter . . . . . . . . . . . . . . . . . . . . . . . . 256 Towing
Driving Characteristics . . . . . . . . 212
Equipment . . . . . . . . . . . . . . . . . . . . 217
General Information . . . . . . . . . . 212
Recreational Vehicle . . . . . . . . . . 293
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 215
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 293
Traction Control System (TCS)/StabiliTrak
®Light . . . . . . . . . . . . 108
Off Light . . . . . . . . . . . . . . . . . . . . . . 108
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 199
Trademarks and License Agreements . . . . . . . . . . . . . . . . . . . 159
Trailer
Towing . . . . . . . . . . . . . . . . . . . . . . . . 215
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 192
Fluid, Automatic . . . . . . . . . . . . . . 230
Fluid, Manual . . . . . . . . . . . . . . . . . 230
Messages . . . . . . . . . . . . . . . . . . . . 121
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . 329
Trip Odometer . . . . . . . . . . . . . . . . . . 101
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . . . 130
