2016 CHEVROLET CITY EXPRESS CARGO VAN Owners Manual

Black plate (28,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
9-28 Driving and Operating
Warning (Continued)
This is not a malfunction.
Restart the engine after
driving onto a stable surface.
.If wheels or tires other than
the recommended ones are
used, the TCS and ESC
systems may not operate
properly and the
dindicator
may flash or the
dindicator
light may illuminate.
.The TCS and ESC systems
are not a substitute for winter
tires or tire chains on a snow
covered road.
Cruise Control
{Warning
Cruise control can be dangerous
where you cannot drive safely at
a steady speed. Do not use
cruise control on winding roads or
in heavy traffic.
Cruise control can be dangerous
on slippery roads. On such roads,
fast changes in tire traction can
cause excessive wheel slip, and
you could lose control. Do not use
cruise control on slippery roads.
If equipped with cruise control, a
speed of about 48 km/h (30 mph) or
more can be maintained without
keeping your foot on the
accelerator. Cruise control does not
work at speeds below about
48 km/h (30 mph).
If the brakes are applied, cruise
control disengages.
CRUISE ON/OFF: Press to turn
cruise control on or off. The white
indicator comes on in the instrument
cluster when cruise control is
turned on.
ACCEL/RES (Accelerate/
Resume): If there is a set speed in
memory, press briefly to resume to a
previously set speed, or press and
hold to accelerate. If cruise control
is already active, use to increase
vehicle speed.

Black plate (29,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Driving and Operating 9-29
COAST/SET:Press briefly to set
the speed and activate cruise
control, or press and hold to
decelerate. If cruise control is
already active, use to decrease
vehicle speed.
CANCEL: Press to disengage
cruise control without erasing the
set speed from memory.
Setting Cruise Control
If the CRUISE ON/OFF button is on
when not in use, the COAST/SET or
ACCEL/RES button could get
pressed and go into cruise when not
desired. Keep the CRUISE ON/OFF
button off when cruise is not
being used.
1. Press CRUISE ON/OFF to turn the cruise system on.
2. Get up to the desired speed.
3. Press and release COAST/SET. The desired set speed briefly
appears in the instrument
cluster. 4. Remove your foot from the
accelerator.
Resuming a Set Speed
If the cruise control is set at a
desired speed and then the brakes
are applied, the cruise control is
disengaged without erasing the set
speed from memory.
Once the vehicle speed reaches
about 48 km/h (30 mph) or more,
briefly press ACCEL/RES. The
vehicle returns to the previous set
speed.
Increasing Speed While Using
Cruise Control
If the cruise control system is
already activated:
.Press and hold ACCEL/RES
until the desired speed is
reached, then release it.
.To increase vehicle speed in
small increments, briefly press
ACCEL/RES. For each press,
the vehicle goes about 1.6 km/h
(1 mph) faster. Reducing Speed While Using
Cruise Control
If the cruise control system is
already activated:
.Press and hold COAST/SET
until the desired lower speed is
reached, then release it.
.To decrease the vehicle speed in
small increments, briefly press
COAST/SET. For each press,
the vehicle goes about 1.6 km/h
(1 mph) slower.
Passing Another Vehicle While
Using Cruise Control
Use the accelerator pedal to
increase the vehicle speed. When
you take your foot off the pedal, the
vehicle will slow down to the
previous set cruise speed. While
pressing the accelerator pedal or
shortly following the release to
override cruise control, briefly
pressing COAST/SET will result in
cruise set to the current vehicle
speed.

Black plate (30,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
9-30 Driving and Operating
Ending Cruise Control
There are four ways to end cruise
control:
.Step lightly on the brake pedal.
.Press CANCEL.
.Shift the transmission to
N (Neutral).
.To turn off cruise control, press
CRUISE ON/OFF.
Erasing Speed Memory
The cruise control set speed is
erased from memory if CRUISE ON/
OFF is pressed or if the vehicle is
turned off.
Driver Assistance
Systems
Parking Assist
{Warning
.Always turn and look back
before backing up. The RPA
is not a substitute for proper
backing procedures. (Continued)
Warning (Continued)
.Read and understand the
limitations of the rear parking
assist system as contained in
this section. Inclement
weather may affect the
function of the RPA; this may
include reduced performance
or a false activation.
.This system is not designed
to prevent contact with small
or moving objects.
.The system is designed as a
aid to the driver in detecting
large stationary objects to
help avoid damaging the
vehicle. The system will not
detect small objects below
the bumper, and may not
detect objects close to the
bumper or on the ground.
.If your vehicle sustains
damage to the rear bumper
fascia, leaving it misaligned(Continued)

Black plate (31,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Driving and Operating 9-31
Warning (Continued)
or bent, the sensing zone
may be altered causing
inaccurate measurement of
obstacles or false alarms.
The Rear Parking Assist (RPA)
sounds a tone to warn the driver of
obstacles near the rear bumper
when the shift lever is in
R (Reverse). The system may not
detect objects at speeds above
5 km/h (3 mph) and may not detect
certain angular or moving objects.
The RPA detects objects up to 1.8 m
(5.9 ft) from the rear bumper with a
decreased coverage area at the
outer corners of the bumper. As you
move closer to the obstacle, the rate
of the tone increases. When the
obstacle is less than 25 cm (10 in)
away, the tone will sound
continuously. If the RPA detects a
stationary or receding object further
than 25 cm (10 in) from the side of
the vehicle, the tone will sound for only three seconds. Once the
system detects an object
approaching, the tone will sound
again.
The RPA automatically turns on
when the shift lever is placed in
R (Reverse) and the ignition switch
is in ON. The RPA OFF switch on
the instrument panel allows the
driver to turn the RPA on and off. To
turn the RPA off, the ignition switch
must be placed in ON. An indicator
light on the switch will illuminate
when the system is turned off. If the
indicator light illuminates when the
RPA is not turned off, it may indicate
a malfunction in the RPA.
Keep the RPA sensors, located on
the rear bumper, free from snow,
ice, and large accumulations of dirt.
Do not clean the sensors with sharp
objects. If the sensors are covered,
it will affect the accuracy of
the RPA.
Rear Vision
Camera (RVC)
When the shift lever is shifted into
R (Reverse), the display shows the
view to the rear of the vehicle.
{Warning
.Failure to follow the warnings
and instructions for proper
use of the Rear Vision
Camera (RVC) could result in
serious injury or death.
.The RVC is a convenience
but it is not a substitute for
proper backing. Always turn
and look out the windows,
and check mirrors to be sure
that it is safe to move before
operating the vehicle. Always
back up slowly.
.The system is designed as an
aid to the driver in showing
large stationary objects
(Continued)

Black plate (32,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
9-32 Driving and Operating
Warning (Continued)
directly behind the vehicle, to
help avoid damaging the
vehicle.
.The system cannot
completely eliminate blind
spots and may not show
every object.
.Underneath the bumper and
the corner areas of the
bumper cannot be viewed on
the RVC display because of
its monitoring range limitation.
The system will not show
small objects below the
bumper, and may not show
objects close to the bumper
or on the ground.
.Objects viewed on the RVC
display differ from actual
distance because a
wide-angle lens is used.(Continued)
Warning (Continued)
.Objects on the RVC display
will appear visually opposite
than when viewed in the
rearview and outside mirrors.
.Make sure that the back
doors are securely closed
when backing up.
.Do no put anything on the
rearview camera. The
rearview camera is installed
on the back door.
.When washing the vehicle
with high pressure water, be
sure not to spray it around
the camera. Otherwise, water
may enter the camera unit
causing water condensation
on the lens, a malfunction,
fire, or an electric shock.
.Do not strike the camera. It is
a precision instrument.
Otherwise, it may malfunction
or cause damage resulting in
a fire or an electric shock.
{Caution
There is a plastic cover over the
camera. Do not scratch the cover
when cleaning dirt or snow from
the cover.
How to Read the Displayed Lines
1. Vehicle Body Line
2. 0.5 m (1.5 ft)
3. 1 m (3 ft)
4. 2 m (7 ft)
5. 3 m (10 ft)

Black plate (33,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Driving and Operating 9-33
Guidelines indicating the vehicle
width and distance to objects with
reference to the vehicle body line
are shown on the RVC display.
The guidelines can be turned on or
off. When the shift lever is in
R (Reverse), press the CAMERA
button to switch the guidelines on
and off. When the shift lever is in
any other position, press the
CAMERA button and then touch the
Show Guidelines key to switch the
guidelines on and off.
Difference Between Predicted
and Actual Distances
The distance guideline and the
vehicle width guideline should be
used as a reference only when the
vehicle is on a level, paved surface.
The distance viewed on the display
is for reference only and may be
different than the actual distance
between the vehicle and displayed

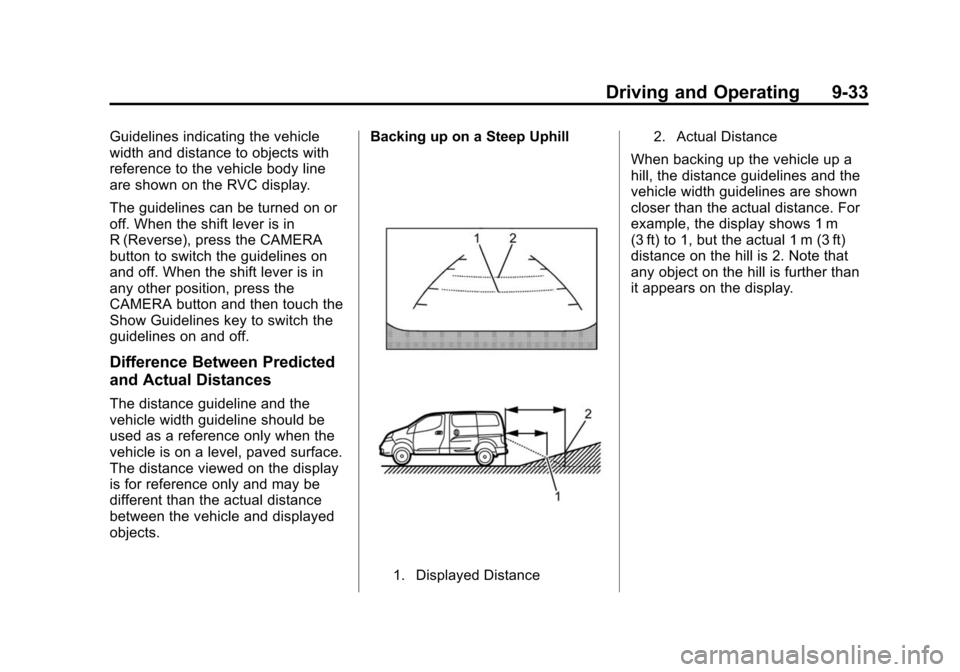

objects.Backing up on a Steep Uphill
1. Displayed Distance 2. Actual Distance
When backing up the vehicle up a
hill, the distance guidelines and the
vehicle width guidelines are shown
closer than the actual distance. For
example, the display shows 1 m
(3 ft) to 1, but the actual 1 m (3 ft)
distance on the hill is 2. Note that
any object on the hill is further than
it appears on the display.

Black plate (34,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
9-34 Driving and Operating

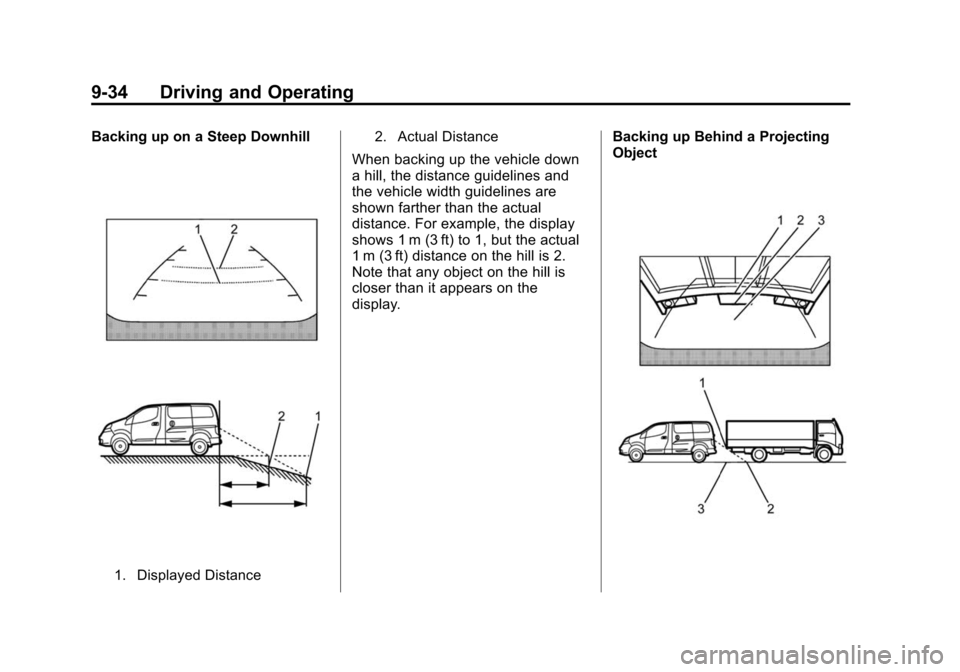

Backing up on a Steep Downhill
1. Displayed Distance2. Actual Distance
When backing up the vehicle down
a hill, the distance guidelines and
the vehicle width guidelines are
shown farther than the actual
distance. For example, the display
shows 1 m (3 ft) to 1, but the actual
1 m (3 ft) distance on the hill is 2.
Note that any object on the hill is
closer than it appears on the
display.
Backing up Behind a Projecting
Object

Black plate (35,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
Driving and Operating 9-35
1. Object
2. Displayed Distance to Object
3. Actual Distance to Object
The position 1 is shown farther than
the position 2 in the display.
However, the position 1 is actually
at the same distance as the position
3. The vehicle may hit the object
when backing up to the position 3 if
the object projects over the actual
backing up course.
Adjusting the Screen
The procedure for adjusting the
display settings of the screen differs
depending on the type of screen
present on the vehicle.
For vehicles without Navigation
System:
1. Firmly apply the brake and placethe shift lever in R (Reverse).
2. Press the ENTER/SETTING button.
3. The screen will display the Brightness settings. 4. Turn the TUNE/SCROLL knob to
adjust the setting up or down.
5. Press the ENTER/SETTING button again to display the
Contrast settings.
6. Turn the TUNE/SCROLL knob to adjust the setting up or down.
7. Press the ENTER/SETTING button to complete the
adjustment.
Do not adjust the display settings of
the RVC while the vehicle is
moving.
For vehicles with Navigation
System:
1. Firmly apply the brake and place the shift lever in R (Reverse).
2. Press the
Bbutton on the
control panel.
3. The screen will display the Night settings.
4. Turn the TUNE/SCROLL knob to adjust the setting up or down. 5. Press the
Bbutton again to
access the Auto settings.
6. Turn the TUNE/SCROLL knob to adjust the setting up or down.
Do not adjust the display settings of
the RVC while the vehicle is
moving.
Operating Tips
{Caution
.Do not use alcohol, benzine
or thinner to clean the
camera. This will cause
discoloration. To clean the
camera, wipe with a cloth
dampened with a diluted mild
cleaning agent and then wipe
with a dry cloth.
.Do not damage the camera
as the monitor screen may be
adversely affected.
