2016 CHEVROLET CITY EXPRESS CARGO VAN Owners Manual

Black plate (2,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
1-2 In Brief
Instrument Panel

Black plate (3,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-3
1.Air Vents on page 8-3.
2. Turn Signal Lever. See Turn and
Lane-Change Signals on
page 6-3.
3. Instrument Cluster on page 5-7.
4. Cruise Control on page 9-28 (If
Equipped).
5. Windshield Wiper/Washer on
page 5-2.
6. Rear Window Defogger and Heated Mirror Button (if
Equipped). See Climate Control
Systems on page 8-1 and
Heated Mirrors on page 2-13.
7. Infotainment on page 7-1.
8. Traction Control/Electronic
Stability Control on page 9-25.
9. Power Mirrors on page 2-13 (If
Equipped).
10. Fuses and Circuit Breakers on
page 10-25. 11. Fuel Door Release. See
Filling
the Tank on page 9-39.
Hood Release. See Hood on
page 10-5.
12. Steering Wheel Controls on
page 5-2 (If Equipped).
13. Ignition Positions on
page 9-14.
14. Parking Assist on page 9-30 (If
Equipped).
15. Hazard Warning Flashers on
page 6-2.
16. Shift Lever. See Continuously
Variable Transmission (CVT)
on page 9-18.
17. Passenger Airbag Status
Indicator on page 5-10.
18. Climate Control Systems on
page 8-1.Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
If equipped, the RKE transmitter is
used to remotely lock and unlock
the doors from up to 10 m (33 ft)
away from the vehicle.

Black plate (4,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
1-4 In Brief
Keyless Access
Q:Press to lock all doors.
The hazard warning flashers flash
twice and the horn chirps once to
indicate all doors are locked.
If a door is open and
Qis pressed,
the doors will lock but the horn will
not beep and the hazard warning
flashers will not flash. The horn may
or may not beep. See “Silencing the
Horn Sound Feature” underRemote
Keyless Entry (RKE) System
Operation on page 2-3.
K: Press once to unlock the driver
door. The hazard warning flashers
flash once if all doors are closed
with the ignition switch in any
position except ON.
The interior lamp comes on and the
lamp timer activates for 30 seconds
when the interior lamp switch is in
the DOOR position with the ignition
switch in any position except ON.
The interior lamp can be
immediately turned off by inserting
the key into the ignition switch and
placing the ignition switch in ON or
START, by locking the doors with
the RKE transmitter, by pressing the
door switch, or by pressing OFF on
the interior lamp switch.
Press
Kagain within five seconds
to unlock all remaining doors. The
hazard warning flashers flash once
if all doors are completely closed. When
Kis pressed, all doors will
automatically lock within one minute
unless a door is opened, the ignition
switch is turned from OFF to ON,
or
Qis pressed.
7: Press and hold7to sound the
panic alarm. Press any button on
the RKE transmitter to cancel the
panic alarm.
See Keys on page 2-1 andRemote
Keyless Entry (RKE) System
Operation on page 2-3.
Door Locks
Manual Door Locks
Lock and unlock the door from the
outside using the key or the Remote
Keyless Entry (RKE) transmitter,
if equipped. From the inside, slide
the manual lever on the door
forward to lock and rearward to
unlock.
See Door Locks on page 2-5.

Black plate (5,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-5
Power Door Locks
On the front doors, pressQorKon
the power door lock switch to lock or
unlock the doors.
See Power Door Locks on page 2-7.
Windows
Power Windows
The power window controls (1) are
on the front doors. The driver door
also has a control (2) to operate the
front passenger window. Press or pull up on the switch to
lower or raise the window.
Express-Up/Down
If equipped, the front windows have
an express feature that allows the
window to be raised or lowered
without holding the switch. Press or
pull the switch fully and release it to
activate the express feature.
This mode can be canceled by
briefly pressing or pulling the switch.
See
Power Windows on page 2-14.
Seat Adjustment
Seat Adjustment
To adjust the seat:
1. Lift the bar to unlock the seat.
2. Slide the seat to the desired
position and release the bar.
3. Try to move the seat back and forth to be sure the seat is
locked in place.

Black plate (6,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14

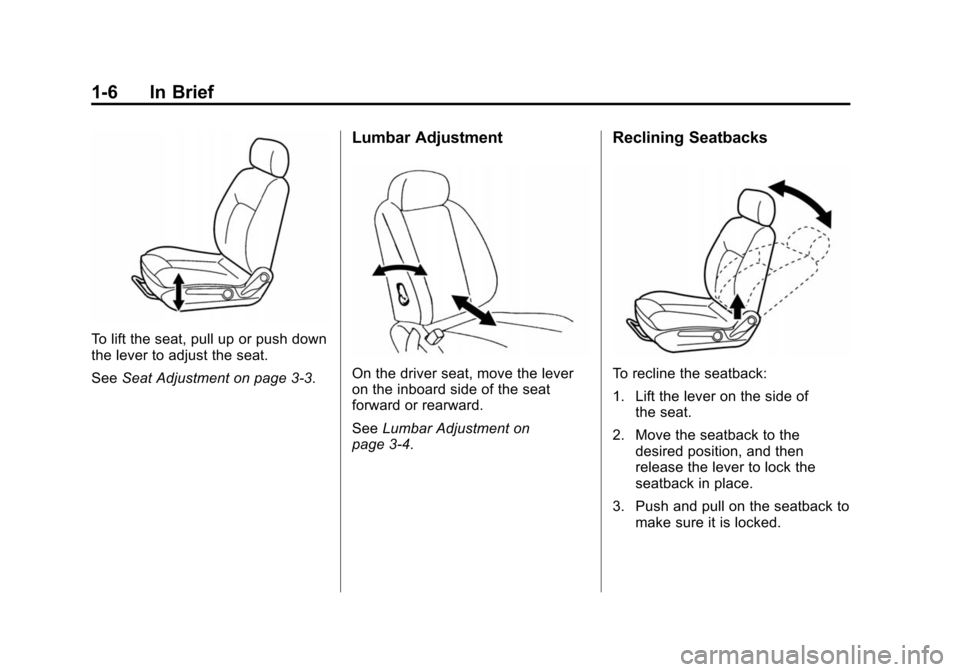

1-6 In Brief
To lift the seat, pull up or push down
the lever to adjust the seat.
SeeSeat Adjustment on page 3-3.
Lumbar Adjustment
On the driver seat, move the lever
on the inboard side of the seat
forward or rearward.
SeeLumbar Adjustment on
page 3-4.
Reclining Seatbacks
To recline the seatback:
1. Lift the lever on the side of
the seat.
2. Move the seatback to the desired position, and then
release the lever to lock the
seatback in place.
3. Push and pull on the seatback to make sure it is locked.

Black plate (7,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-7
To return the seatback to the upright
position:
1. Lift the lever fully withoutapplying pressure to the
seatback, and the seatback will
return to the upright position.
2. Push and pull on the seatback to make sure it is locked.
See Reclining Seatbacks on
page 3-4.
Folding Seatback
The front passenger seatback may
fold flat.
To fold the seatback:
1. Lower the head restraint all the way. See Head Restraints on
page 3-2.
2. Move the seat as far back as possible. See Seat Adjustment
on page 3-3.3. Lift the lever fully and fold the seatback forward until it
disengages.4. Lift the latch on the inboard sideof the seatback to release
the seat.

Black plate (8,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
1-8 In Brief
5. Fold the seatback flat over theseat cushion.
To raise the seatback:
1. Raise the seatback and push it rearward.
2. Pull up on the recline lever and lean the seatback to the upright
seating position. See Reclining
Seatbacks on page 3-4.
3. Push and pull on the seatback to make sure it is locked in place.
See Folding Seatback on page 3-6.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
SeeHead Restraints on page 3-2
and Seat Adjustment on page 3-3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3-8.
.How to Wear Safety Belts
Properly on page 3-9.
.Lap-Shoulder Belt on page 3-10.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3-38.

Black plate (9,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-9
Passenger Sensing
System
The passenger sensing system will
turn off the front outboard
passenger frontal airbag under
certain conditions. No other airbag
is affected by the passenger
sensing system. SeePassenger
Sensing System on page 3-22.
The passenger airbag status
indicator is under the climate
controls and is visible when the vehicle is started. See
Passenger
Airbag Status Indicator on
page 5-10.
Mirror Adjustment
Interior Mirror
Adjust the rearview mirror for a clear
view of the area behind your
vehicle.
Push the tab forward for daytime
use and pull it rearward for
nighttime use to avoid glare of the
headlamps from behind.
See Manual Rearview Mirror on
page 2-13.
Exterior Mirrors
If equipped with manual outside
mirrors, adjust by pressing up,
down, left, or right on the mirror to
have a clear view of objects
behind you.
If equipped with power outside
mirrors, adjust by selecting the left
or right mirror (1) and then use the
control pad (2) to move each mirror
to the desired position. See Power
Mirrors on page 2-13.
Interior Lighting
The dome lamp and reading lamps
are in the overhead console.
