Vehicle Care 263
Engine Compartment
Fuse Block
To open the fuse block cover, press
the clips at the front and back and
rotate the cover up to the side.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the
covers on any electrical
component.
Engine Compartment Fuse Block
A fuse puller is in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Mini
Fuses Amps Usage
1 15A Engine control module/
Switched
power
2 7.5A Emissions
3 –Empty
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Vehicle Care 265
Mini
Fuses Amps Usage
41 10A Right high-beam
headlamp
46 –Empty
47 –Empty
49 –Empty
50 10A Run/Crank/ Rear vision
camera/
Accessory
power module/
Tire pressure
monitoring
module
51 7.5A Run/Crank for ABS/Aero
Shutter/VITM
52 5A Engine control module/
Transmission
control module/
Run/Crank Mini
Fuses Amps Usage
53 7.5A Traction power inverter
module/Run/
Crank
54 7.5A Run/Crank/ Fuel system
control module/
Air conditioning
control module/
On board
charger/
Instrument
cluster/
Automatic
occupant
sensing/Mirrors
J-Case Fuses Amps Usage
16 –Empty
18 30A Rear defogger/ Lower grid
19 30A Front power window
20 –Empty J-Case
Fuses Amps Usage
21 30A Antilock brake system
electronic
control unit
23 –Empty
27 –Empty
28 –Empty
29 30A Front wipers
30 60A Antilock brake system motor
42 30A Right engine cooling fan
43 30A Front wipers
44 40A Charger
45 –Empty
48 30A Left engine cooling fan 1
Mini Relays Usage 3 Powertrain
4 Heated mirrors/Rear defogger
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
266 Vehicle Care
Mini Relays Usage7 Empty
9 Empty
11 Empty
12 Empty
13 Empty
14 Run/Crank
Micro
Relays Usage
1 Empty
2 Empty
6 Empty
8 Empty
10 Empty
Ultra Micro Relays Usage
5 EmptyInstrument Panel Fuse
Block (Left Side)
The left instrument panel fuse block
is on the left side end of the
instrument panel, behind the end
cap. To access the fuses, insert a
plastic tool between the end panel
and the instrument panel, and
carefully release the end cap
retaining clips. When all clips are
released, remove the panel.
To reinstall the door, insert the
forward edge hook feature, and
press around the edges of the end
cap to reengage all of the clips.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15

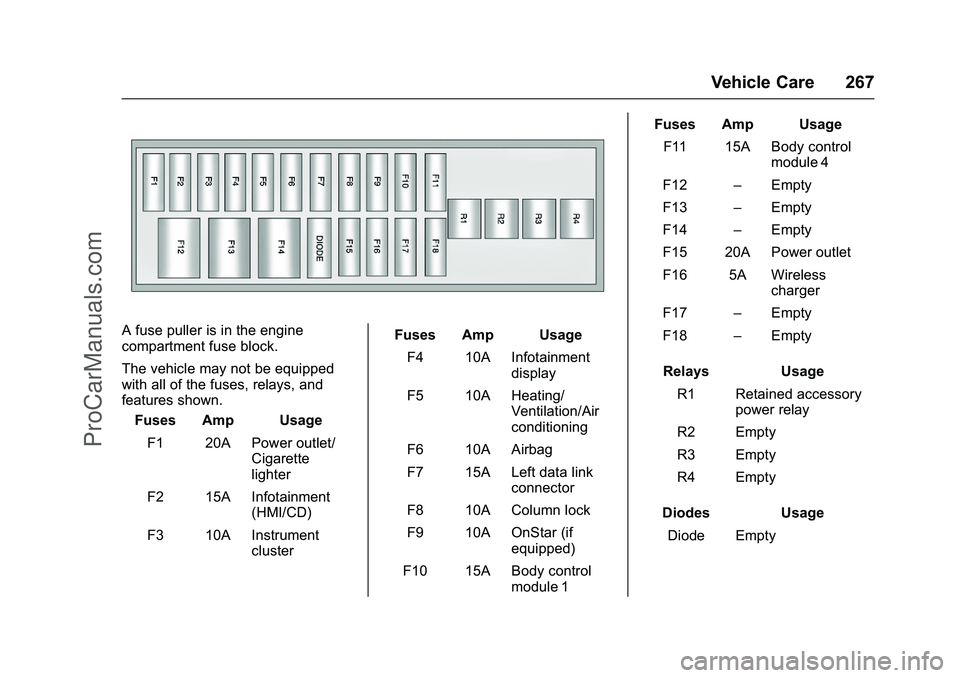

Vehicle Care 267
A fuse puller is in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Amp Usage
F1 20A Power outlet/ Cigarette
lighter
F2 15A Infotainment (HMI/CD)
F3 10A Instrument cluster Fuses Amp Usage
F4 10A Infotainment display
F5 10A Heating/ Ventilation/Air
conditioning
F6 10A Airbag
F7 15A Left data link connector
F8 10A Column lock
F9 10A OnStar (if equipped)
F10 15A Body control module 1 Fuses Amp Usage
F11 15A Body control module 4
F12 –Empty
F13 –Empty
F14 –Empty
F15 20A Power outlet
F16 5A Wireless charger
F17 –Empty
F18 –Empty
Relays Usage R1 Retained accessory power relay
R2 Empty
R3 Empty
R4 Empty
Diodes Usage Diode Empty
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
268 Vehicle Care
Instrument Panel Fuse
Block (Right Side)
The right instrument panel fuse
block is on the right side end of the
instrument panel, behind the end
cap. To access the fuses, insert a
plastic tool between the end panel
and the instrument panel, and
carefully release the end cap
retaining clips. When all clips are
released, remove the panel.
To reinstall the door, insert the
forward edge hook feature, and
press around the edges of the end
cap to reengage all of the clips.
A fuse puller is in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Amps Usage
F1 2A Steering wheel switch
F2 10A Auto headlamp leveling
F3 10A Motorized cupholder
F4 15A Body control module 3 Fuses Amps Usage
F5 7.5A Body control module 2
F6 15A Tilt/Telescoping column
F7 7.5A Body control module 6
F8 15A Body control module 7
F9 –Empty
F10 15A Right data link connector
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Vehicle Care 269
Fuses Amps UsageF11 7.5A Universal remote system/
Lane departure
warning/Rain
sensor
F12 30A Blower motor
F13 –Empty
F14 –Empty
F15 –Empty
F16 10A Glove box
F17 –Empty
F18 –Empty
Relays Usage R1 Empty
R2 Glove box relay
R3 Empty
R4 Empty
Diodes Usage DIODE EmptyRear Compartment Fuse
Block
There are two rear compartment
fuse blocks, located on the left side
of the trunk behind a cover.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
270 Vehicle Care
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Amps Usage
F1 –Empty
F2 15A Fuel system control module
F3 5A Passive entry/ Passive start 1
F4 15A Heated seat 1 Fuses Amps Usage
F5 2A Regulated voltage control
F6 10A Fuel/ Evaporative
leak check
module
F7 15A Accessory power module
cooling fan Fuses Amps Usage
F8 30A Amplifier
F9 –Empty
F10 5A Side blind zone assist/
Front and rear
parking assist
F11 15A Horn
F12 –Empty
F13 30A Electric parking brake
F14 30A Rear defogger
F15 –Empty
F16 10A Trunk release
F17 –Empty
F18 –Empty
Relays Usage R1 Rear defogger
R2 Trunk release
R3 Empty
R4 Empty
R5 Empty
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Vehicle Care 271
RelaysUsage
R6 Empty
R7/R8 Horn
Diodes Usage
DIODE Empty
Fuses Amps Usage F1 –Empty
F2 15A Radio
F3 10A Pedestrian protection
F4 10A CDC
F5 10A Memory seat module
F6 –Empty
F7 10A Mirror/Window/ Seat switch Fuses Amps Usage
F8 20A Passive entry/ Passive start 2
F9 15A Heated seat 2
F10 –Empty
F11 –Empty
F12 30A Driver power seat
F13 30A Passenger power seat
F14 –Empty
F15 –Empty
F16 –Empty
