2016 BMW 5 SERIES GRAN TURISMO Owner's Manual

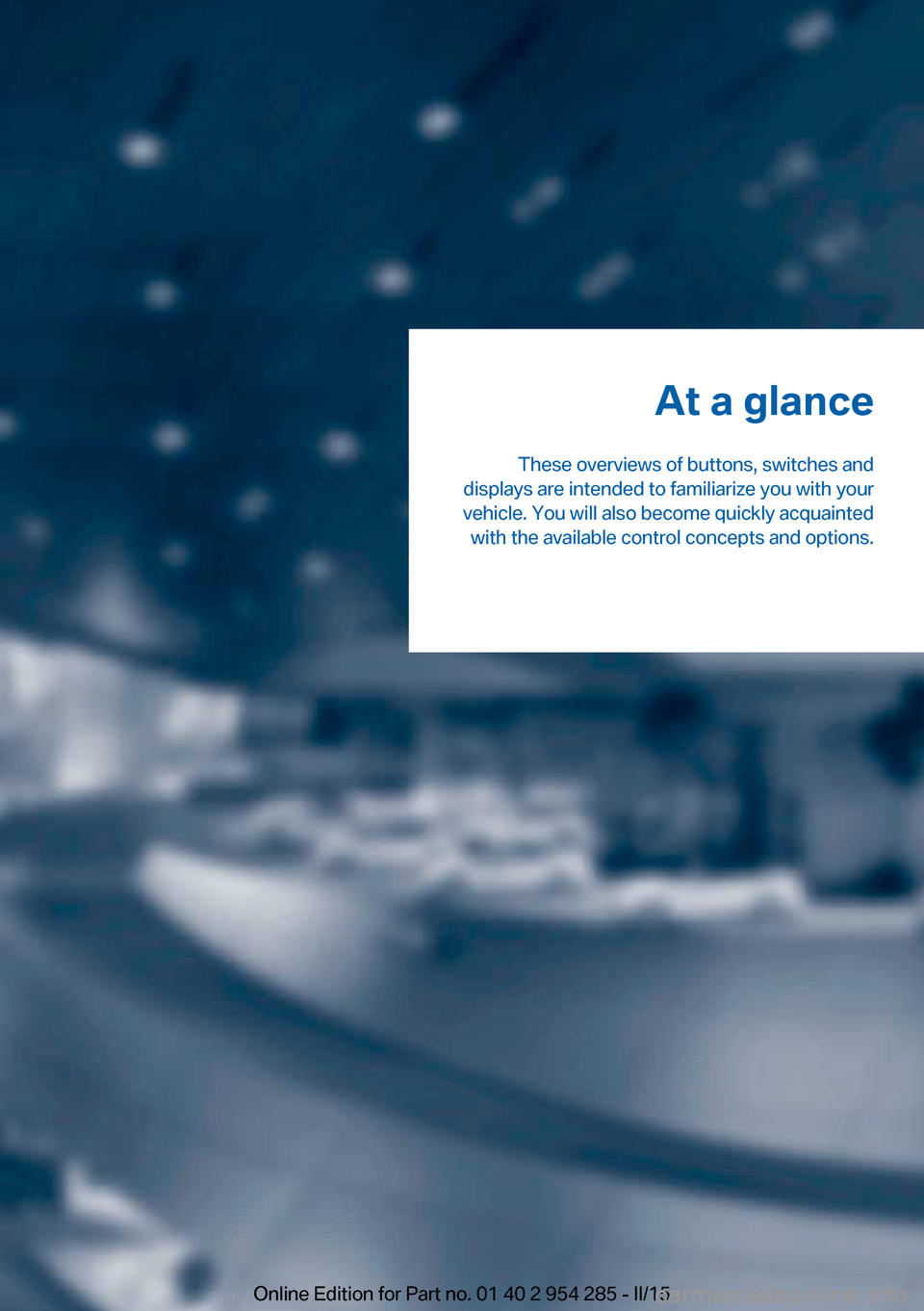

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 954 285 - II/15

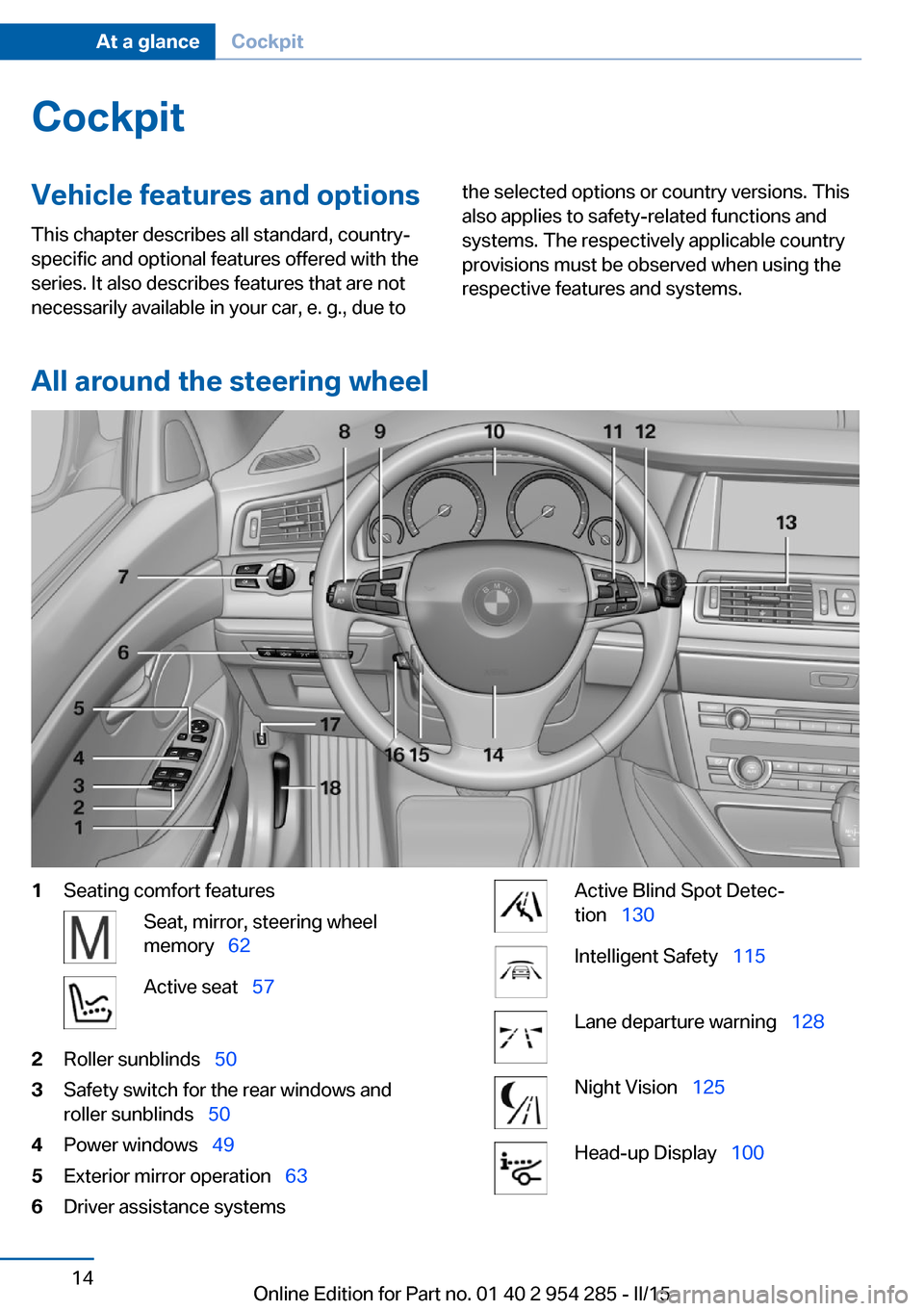

CockpitVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due tothe selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
All around the steering wheel
1Seating comfort featuresSeat, mirror, steering wheel
memory   62Active seat   572Roller sunblinds   503Safety switch for the rear windows and
roller sunblinds   504Power windows   495Exterior mirror operation   636Driver assistance systemsActive Blind Spot Detec‐
tion   130Intelligent Safety   115Lane departure warning   128Night Vision  125Head-up Display   100Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 954 285 - II/15

7LightsFront fog lights  105Parking lights  102Low beams  102Automatic headlight con‐
trol   103
Daytime running lights   103
Adaptive Light Control   103
High-beam Assistant   104Instrument lighting  1058Steering column stalk, leftTurn signal  77High beams, head‐
light flasher   77High-beam Assistant   104Roadside parking lights   103On-board computer  969Steering wheel buttons, leftStore speed   150,  144Resume speed    150,  145Increase distance   145Cruise control rocker switch    150  14410Instrument cluster   8411Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  26Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   9612Steering column stalk, rightWiper  78Rain sensor   79Clean the windshields and head‐
lights   7813Start/stop the engine and switch
the ignition on/off   71Auto Start/Stop function   7114Horn, total area15Steering wheel heating  6516Adjust the steering wheel   65Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 954 285 - II/15

17Open the tailgate  4018Unlocking the hood

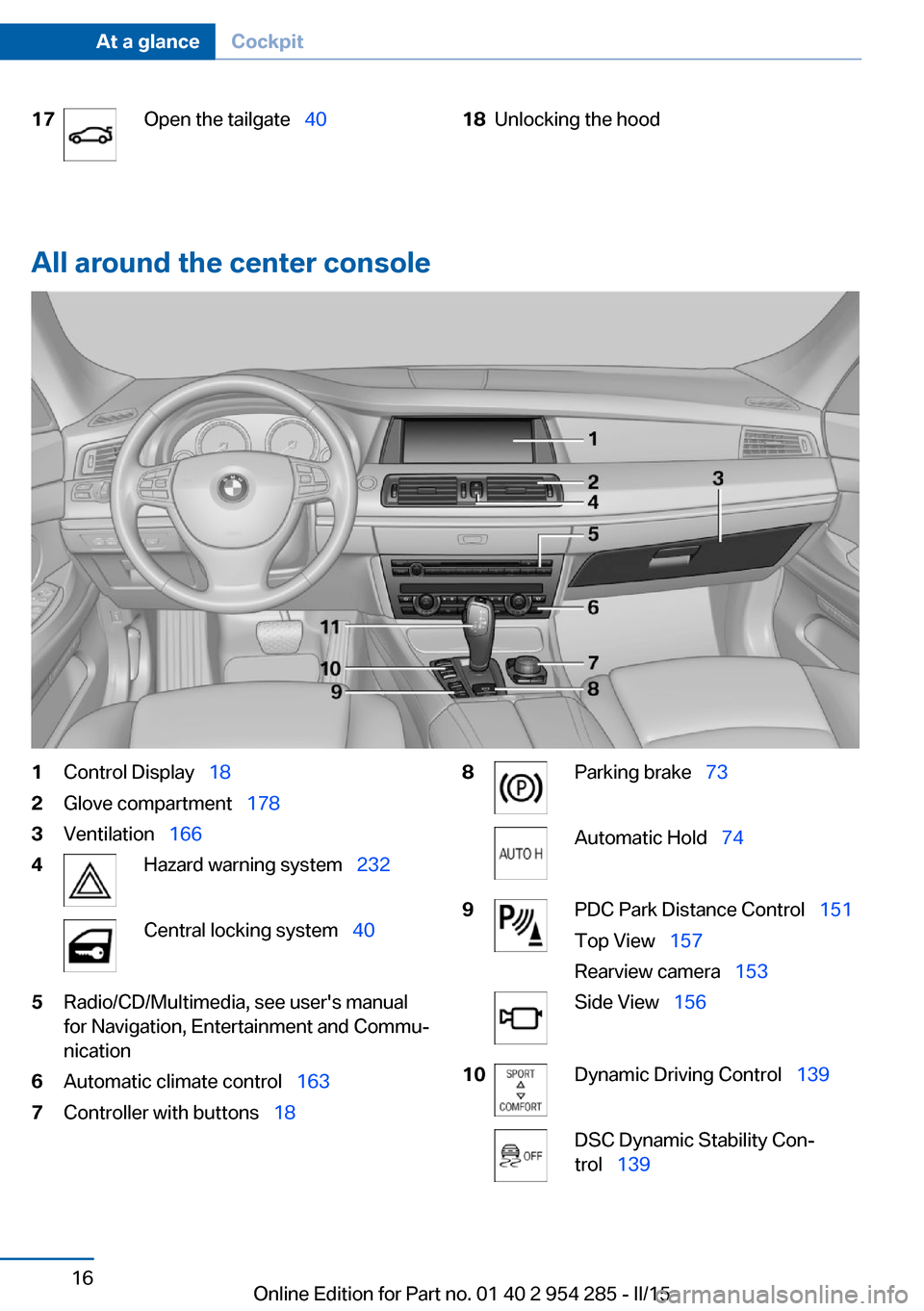

All around the center console
1Control Display  182Glove compartment   1783Ventilation  1664Hazard warning system   232Central locking system  405Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication6Automatic climate control   1637Controller with buttons  188Parking brake  73Automatic Hold   749PDC Park Distance Control   151
Top View   157
Rearview camera   153Side View  15610Dynamic Driving Control   139DSC Dynamic Stability Con‐
trol   139Seite 16At a glanceCockpit16
Online Edition for Part no. 01 40 2 954 285 - II/15

11Transmission selector lever

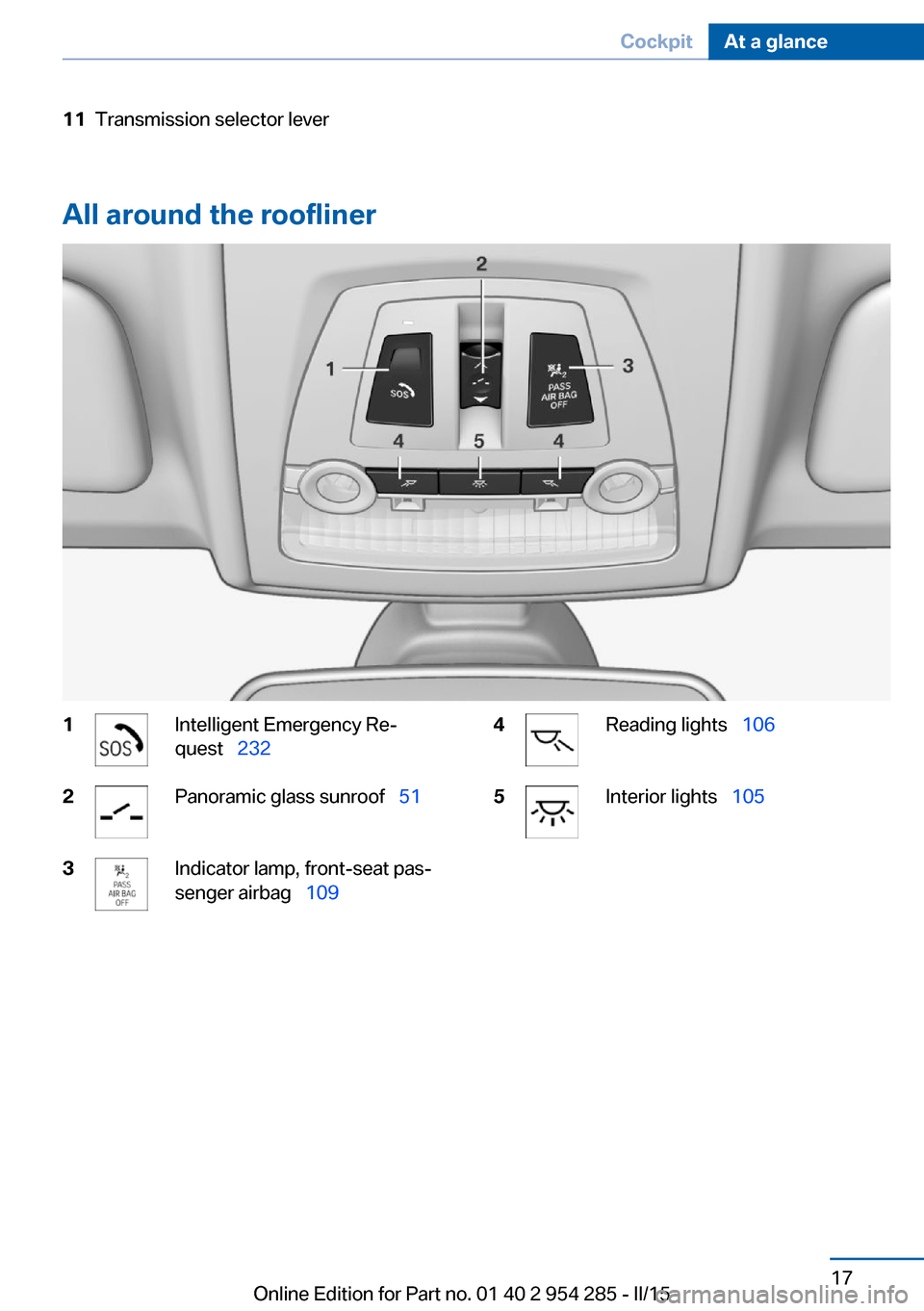

All around the roofliner
1Intelligent Emergency Re‐
quest   2322Panoramic glass sunroof   513Indicator lamp, front-seat pas‐
senger airbag   1094Reading lights   1065Interior lights  105Seite 17CockpitAt a glance17
Online Edition for Part no. 01 40 2 954 285 - II/15

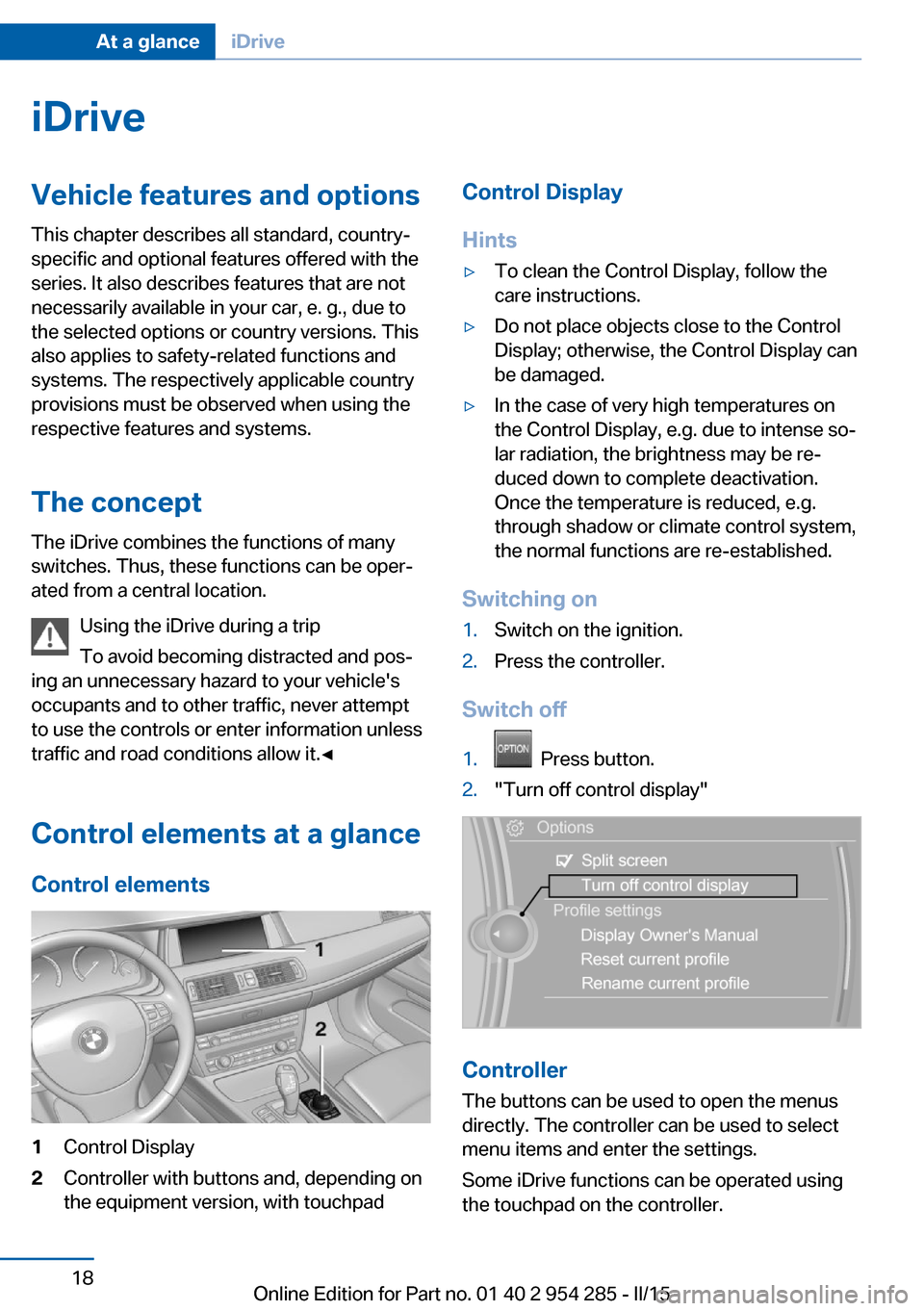

iDriveVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
The concept
The iDrive combines the functions of many
switches. Thus, these functions can be oper‐
ated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other traffic, never attempt
to use the controls or enter information unless
traffic and road conditions allow it.◀
Control elements at a glanceControl elements1Control Display2Controller with buttons and, depending on
the equipment version, with touchpadControl Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.▷In the case of very high temperatures on
the Control Display, e.g. due to intense so‐
lar radiation, the brightness may be re‐
duced down to complete deactivation.
Once the temperature is reduced, e.g.
through shadow or climate control system,
the normal functions are re-established.
Switching on
1.Switch on the ignition.2.Press the controller.
Switch off
1. Press button.2."Turn off control display"
Controller
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and enter the settings.
Some iDrive functions can be operated using
the touchpad on the controller.
Seite 18At a glanceiDrive18
Online Edition for Part no. 01 40 2 954 285 - II/15

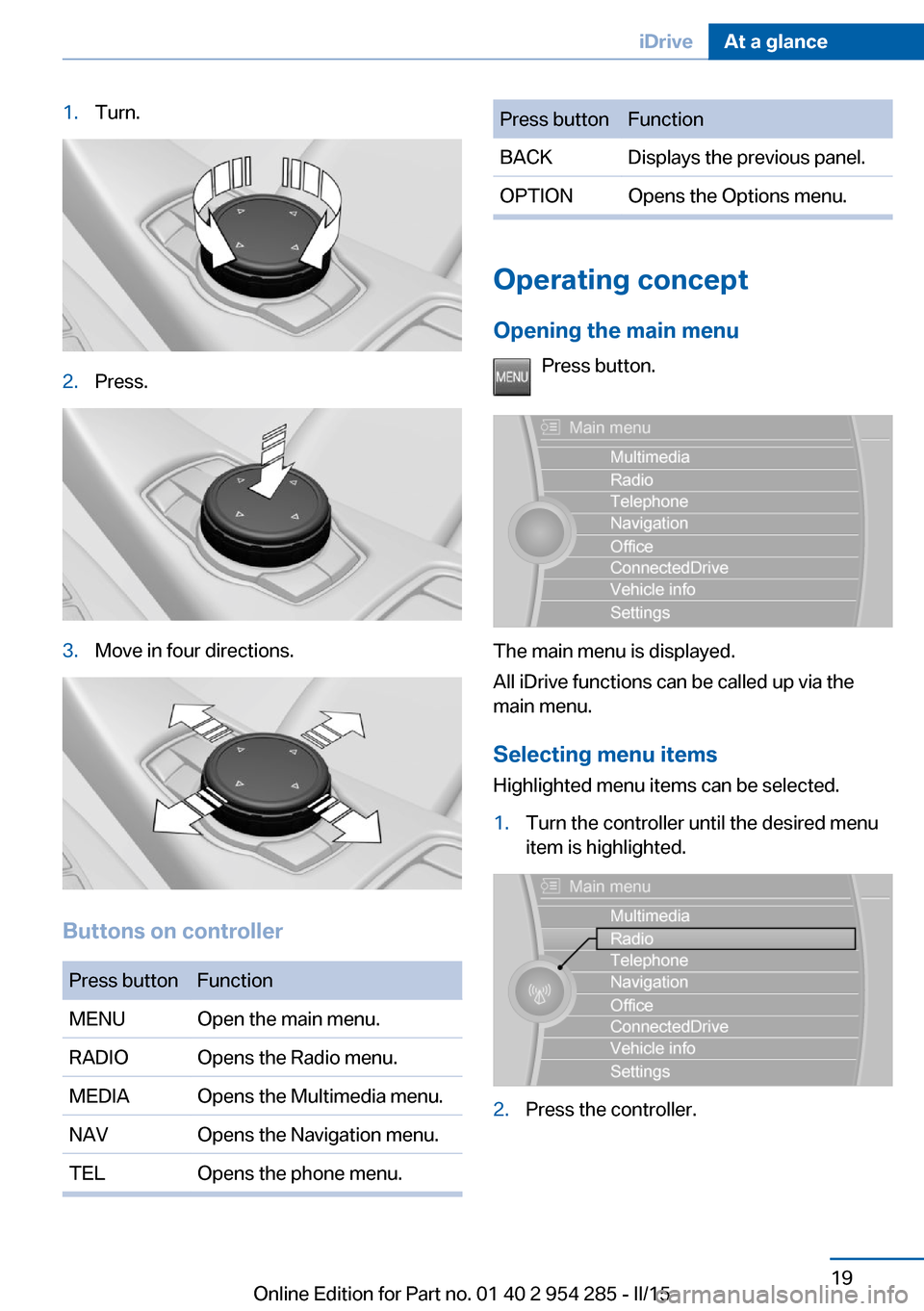

1.Turn.2.Press.3.Move in four directions.
Buttons on controller
Press buttonFunctionMENUOpen the main menu.RADIOOpens the Radio menu.MEDIAOpens the Multimedia menu.NAVOpens the Navigation menu.TELOpens the phone menu.Press buttonFunctionBACKDisplays the previous panel.OPTIONOpens the Options menu.
Operating concept
Opening the main menu Press button.
The main menu is displayed.
All iDrive functions can be called up via the
main menu.
Selecting menu items
Highlighted menu items can be selected.
1.Turn the controller until the desired menu
item is highlighted.2.Press the controller.Seite 19iDriveAt a glance19
Online Edition for Part no. 01 40 2 954 285 - II/15

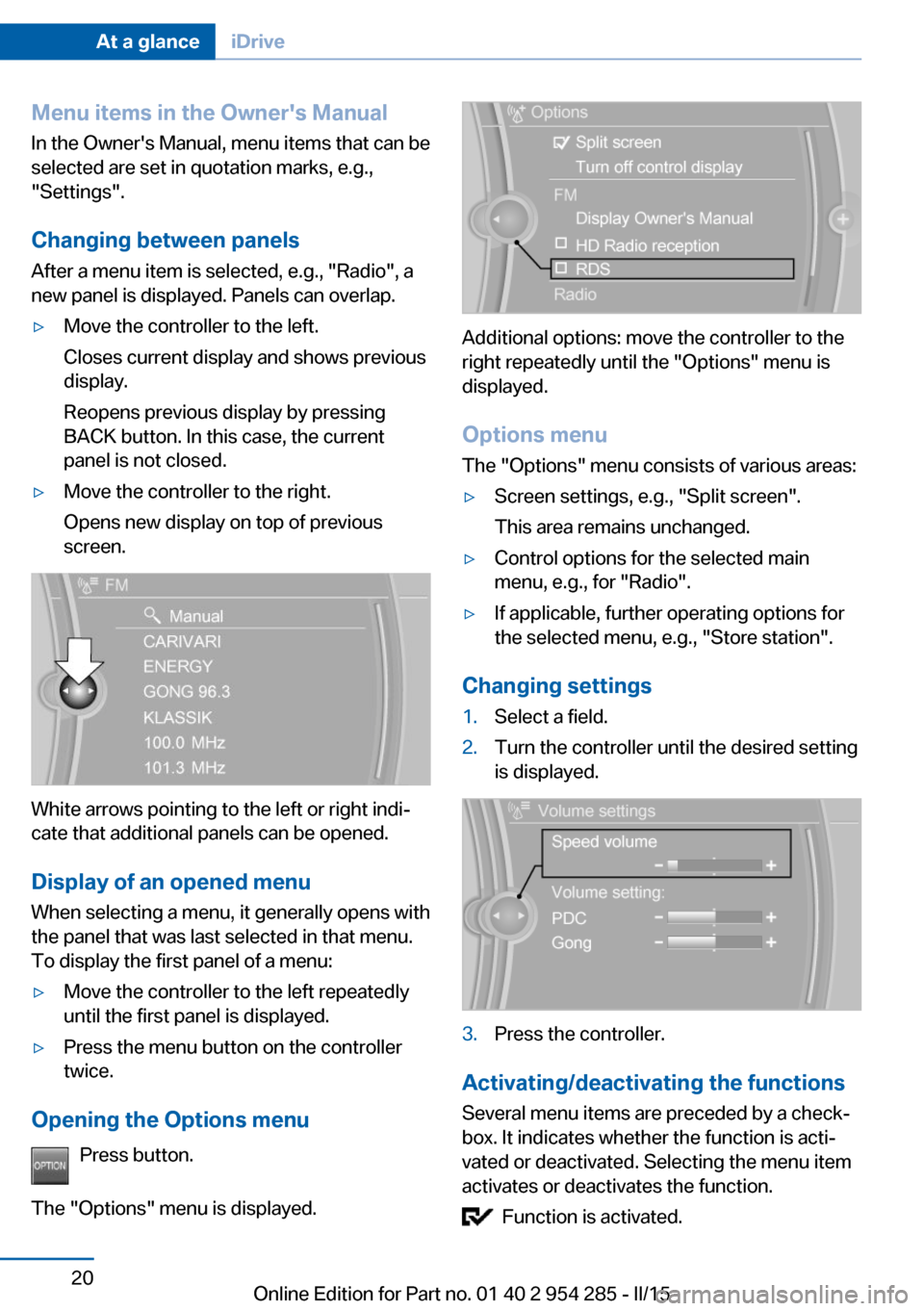

Menu items in the Owner's ManualIn the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.,
"Settings".
Changing between panels
After a menu item is selected, e.g., "Radio", a
new panel is displayed. Panels can overlap.▷Move the controller to the left.
Closes current display and shows previous
display.
Reopens previous display by pressing
BACK button. In this case, the current
panel is not closed.▷Move the controller to the right.
Opens new display on top of previous
screen.
White arrows pointing to the left or right indi‐
cate that additional panels can be opened.
Display of an opened menu
When selecting a menu, it generally opens with
the panel that was last selected in that menu.
To display the first panel of a menu:
▷Move the controller to the left repeatedly
until the first panel is displayed.▷Press the menu button on the controller
twice.
Opening the Options menu
Press button.
The "Options" menu is displayed.
Additional options: move the controller to the
right repeatedly until the "Options" menu is
displayed.
Options menu The "Options" menu consists of various areas:
▷Screen settings, e.g., "Split screen".
This area remains unchanged.▷Control options for the selected main
menu, e.g., for "Radio".▷If applicable, further operating options for
the selected menu, e.g., "Store station".
Changing settings
1.Select a field.2.Turn the controller until the desired setting
is displayed.3.Press the controller.
Activating/deactivating the functions
Several menu items are preceded by a check‐
box. It indicates whether the function is acti‐
vated or deactivated. Selecting the menu item
activates or deactivates the function.
Function is activated.
Seite 20At a glanceiDrive20
