2016 AUDI TT COUPE ESP

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
-Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier.
- Always move
the front passenger seat into
the rearmost position of the passenger
seat's fore and aft adjustment range, and
as far away from the airbag as possible be­
fore installing the child restraint.
- Always make sure that nothing prevents
the front passenger's seat from being
moved
to the rearmost position in its fore
and aft adjustment range.
- Always make
sure that the backrest is in
the upright position.
- Never place or use any
electrica l dev ice
(such as a laptop,
CD player, electron ic
games device, power inverter or seat heat­
er for child seats) on the front passenger
seat ifthe dev ice is connected to the 12-
volt socket or the cigarette lighter socket.
- If a
seat heater has been retrofitted or
otherwise added to the front passenger
seat, never install any child restraint sys­
tem on this seat.
- Make
sure that there are no wet objects
(such as a wet towel) and no water or oth­
er liqu ids on the front passenger seat
cushion.
- Never place objects on
the seat (such as a
laptop,
CD p layer, electronic games de­
vice, power inverter or seat heater for
child
seats). These may influence the elec­
trical capacitance measured by the capaci­
tive passenger detection system and can
also fly
around in an accident and cause
serious
personal injury.
- Always buckle
the child safety seat firmly in
place even if a child
is not sitting in it. A
loose child
safety seat can fly around during
a
sudden stop or in a collision.
- Always read
and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used c::> page 180, Safety belts,
c::> page 188, Airbag system and
c::>page 212, Child safety.
Child safety
A WARNING
f=
To reduce the risk of serious injury, make sure
that th e PASSENGER AIR BAG OFF light
comes on and stays on whenever a child re­
straint is installed on the front passenger seat
and the ignit io n is switched on.
- Take
the child restra int off the front passen­
ger seat and install it prope rly at one of the
rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on.
- Have
the airbag system inspected by your
authorized Audi dealer immed iately.
Secure unused safety belts on the rear seat
Fig. 165 Schematic overview : keep unused safety belts
away from ch
ildren in child safety seats. -outer rear safety
belt,
If a child safety seat is used on the rear bench,
especially with
LATCH universal lower anchorag­
es, the unused safety belts must be sec ured so
that the child in the c hild restraint cannot reach
them c::> .&..
-Fasten the unused safety belt behind the child
seat and let the belt retractor wind up the safe­
ty belt webbing.
A WARNING
A child in a chi ld safety seat installed with the
LATCH lower anchorages or with the s tandard
safety belt or a child in a booster seat on the
rear seat could play with unused rear seat
safety belts and become entangled. This
could cause
the child serious personal injury
and even death.
-Always secure unused rear seat safety belts
out of reach of children in child seats such
217

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
..... I.Cl U"I
..... I.Cl .....
Booster seats and safety belts
Properly used booster seats can help protect
children weighing between about 40 lbs and
80 lbs (18 kg and 36 kg) who are less than 4 ft 9
in (57 in/1.45 m) tall.
Fig. 169 Rear seat; chil d properly restrained in a booster
seat
The vehicle's safety belts alone will not fit most
children until they are at least 4 ft 9 in (57 in/
1.45 m) tall and weigh about 80 lbs (36 kg).
Booster
seats raise these children up so that the
safety belt will pass properly over the stronger
parts of their bodies and the safety belt can help
protect them in a crash.
.. Do not use the convertible locking retractor
when using the vehicle's safety belt to restrain
a child on a
booster seat.
.. The shoulder belt must lie as close to the cen­
ter of the child's collar bone as possible and
must lie flat and snug on the upper body. It
must never lie across the throat or neck. The
lap
belt must lie across the pelvis and never
across
the stomach or abdomen. Make sure the
belt lies flat and snug. Pull on the belt to tight­
en if necessary .
.. Secure unused safety belts on the rear seat
~page 217.
Children up to at least 8 years old (over 40 lbs or
18 kg) are best protected in child safety seats de­
signed for their age and weight. Experts say that
the skeletal structure, particularly the pelvis, of
these children is not fully developed, and they
must not use the vehicle safety belts without a
suitable child restraint.
Child safety
It is usually best to put these children in appro­
priate booster seats. Be sure the booster seat
meets all applicable safety standards.
Booster seats raise the seating position of the
child and reposition both the lap and shoulder
parts of the safety belt so that they pass across
the child's body in the right places. The routing of
the belt over the child's body is very important
for the child's protection, whether or not a boos­
ter seat is used . Children age 12 and under must
always ride in the rear seat.
Never use the lap belt portion of the vehicle's
safety belt alone to restrain any child, regardless
of how big the child is. Always remember that
children do not have the pronounced pelvic struc­
ture required for the proper function of lap belt
portion of the vehicle's three point lap and
shoulder belts. The child's safety absolutely re­
quires
that a lap belt portion of the safety belt be
fastened snugly and as low as possible around
the pelvis. Never let the lap belt portion of the
safety belt pass over the child's stomach or abdo­
men.
In a crash, airbags must inflate within a blink of
an eye and with considerable force. In order to do
its job, the airbag needs room to inflate so that it
will be there to protect the occupant as the occu­
pant moves forward into the airbag .
A vehicle
occupant who is out of position and too
close to the airbag gets in the way of an inflating
airbag.
When an occupant is too close , he or she
will be struck violently and will receive serious or
possibly even fatal injury.
In
order for the airbag to offer protection, it is
important that all vehicle occupants, especially
any children,
who must be in the front seat be­
cause
of exceptional circumstances, be properly
restrained and as far away from the airbag as
possible. By keeping room between the child's
body
and the front of the passenger compart­
ment, the airbag can inflate completely and pro­
vide
supplemental protection in certain frontal
collisions .
221

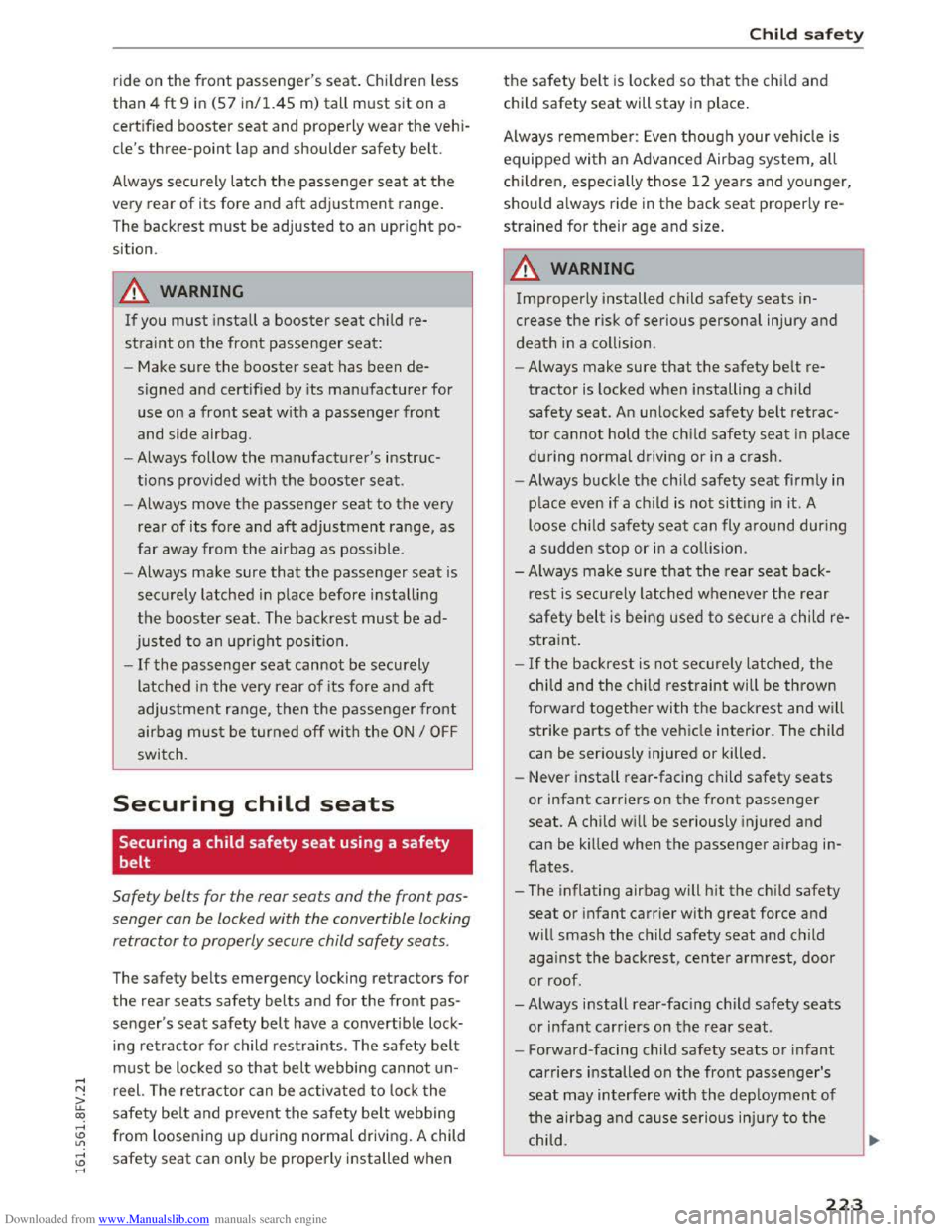

Downloaded from www.Manualslib.com manuals search engine ride on the front passenger's seat. Children less
than 4 ft 9 in (57 in/1.45 m) tall must sit on a
certified booster seat and properly wear the veh i­
cle's three-point lap and shoulder safety belt.
Always
securely latch the passenger seat at the
very rear of its fore and aft adjustment range.
The backrest must be adjusted to an upright po­
sition .
A WARNING
If you must install a booster seat child re­
straint on the front passenger seat:
-Make sure the booster seat has been de­
signed and certified by its manufacturer for
use on a front seat with a passenger front
and side airbag.
- Always follow
the manufacturer's instruc­
t i
ons prov ided with the booster seat.
-Always move the passenger seat to the very
rear of its fore and aft adjustment range, as
far away from the airbag as possible .
- Always
make sure that the passenger seat is
securely latched in place before installing
the booster seat. The backrest must be ad­
justed to an uprig ht position.
-If the passenger seat cannot be securely
latched in the very rear of its fore and aft
adjustment range, then the passenger front
airbag must be turned off with the ON I OFF
switch.
Securing child seats
Securing a child safety seat using a safety
belt
Safety belts for the rear seats and the front pas­
senger can be Locked with the convertible Locking
retractor to properly secure child safety seats.
The safety belts emergency locking retractors for
the rear seats safety belts and for the front pas­
senger's seat safety belt have a convertible lock­
i ng
retractor for child restraints. The safety belt
must be locked so that belt webbing cannot un­
reel. The
retractor can be activated to lock the
safety belt and prevent the safety belt webbing
from loosening up during normal driving. A child
safety seat can only be properly installed when
Child safety
the safety belt is locked so that the chi ld and
child safety seat will stay in place .
Always
remember : Even though your veh icle is
equipped with an Advanced Airbag system, all
children, especia lly those 12 years and younger,
should a lways ride in the back seat properly re­
strained for their age and size.
A WARNING
Improperly installed child safety seats in­
crease the risk of serious personal injury and
death in a collision.
-
- Always make sure that the safety be lt re­
tractor is locked when installing a child
safety seat. An unlocked safety belt retrac­
tor cannot hold the child safety seat in place
du ring
normal d riving or in a c rash.
-Always buckle the child safety seat firmly in
place even if a ch ild is not sitting in it. A
loose child
safety seat can fly around during
a
sudden stop or in a co llision.
- Always
make sure that the rear seat back­
rest is secu rely latched whenever the rear
safety belt is being used to secure a child re­
straint.
-
If the backrest is not secu rely latched, the
chi ld and t he child restraint will be thrown
forward together with the backrest and will
strike parts of the vehicle interior. The child
can
be seriously injured or killed.
- Never
install rear-facing child safety seats
or infant carriers on the front passenger
seat. A child w ill be seriously injured and
can be killed when the passenger a irbag in­
f lates.
- The inflating airbag will hit the ch ild safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
-Always install rear-fac ing ch ild safety seats
or infant carriers on the rear seat.
- Forward-facing child
safety seats or infant
carriers installed on the front passenger's
seat may interfere with the deployment of
the airbag and ca use serious injury to the
child.
223

Downloaded from www.Manualslib.com manuals search engine Child safety
-It is safer to install a forward-facing child
safety seat on the rear seat.
-Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used c'.) page 212. Special precautions
apply when installing a child safety seat on
the front passenger seat c'.) page 189, Child
restraints on the front seot -some impor­
tant things to know.
..&_WARNING
....
Always take special precautions if you must
install a forward or rearward-facing child re­
straint on the front passenger's seat in excep ­
tional situations:
- W
henever a forward or rearwa rd-facing
chi ld r
estraint is installed on the front pas­
senger seat, the PASSENGER AIR BAG OFF
ligh t must come on and stay on whenever
the ignition is switched on.
-
If the PASSENGER AIR BAG OFF light does
not come on and stay on, perform the
checks described c'.) page 199, Monitoring
the Advanced Airbag System.
-Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on whenever
the ignition is switched on.
-
Improper installation of child restraints can
reduce their effectiveness or even prevent
them from providing any protection.
-An improperly installed child restraint can
interfere with the airbag as it deploys and
seriously injure
or even kill the child .
-Always carefu lly follow the manufacturer's
instructions prov ided with the child safety
seat or carrier.
- After checking
to make sure that the child
restraint is properly installed, make certain
that the child restraint is correctly recog­
nized by the capacitive passenger detection
system in the front passenger seat and that
the PASSENGER AIR BAG OFF light signals
the correct front passenger frontal airbag
status.
224
-
..&. WARNING
Forward-facing child restraints:
-Always make sure the forward-facing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Never
put the forward-facing child restraint
up, against or very near the instrument pan­
el.
-Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the for­
ward-facing child restraint. The backrest
m ust be adjusted to an upr ight position.
- M ake
sure that the PASSENGER AIR BAG
OFF light comes on and stays on all the time
whenever the ign ition is switched on.
..&_WARNING
Rearward-facing child restraints:
-A ch ild in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured
and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
-The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
-Always be especia lly careful if you must in­
stall a rearward facing child safety seat on
the front passenger seat in exceptiona l cir­
cumstances.
- Make
sure that the PASSENGER AIR BAG
OFF light comes on and stays on all the time
whenever the ignition is switched on.
-If the PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall the rear-facing child safety seat in a
rear seating position and have the airbag
system inspected by your Audi dealer.

Downloaded from www.Manualslib.com manuals search engine ..... N
a: CX)
.....
"' U"I
.....
"' .....
-Never attach two child restraint systems to
one tether strap or tether anchorage.
- Never
attach a tether strap to a tie-down
hook
in the luggage compartment.
- Never use child restraint tether anchorages
to secure safety belts or other kinds of occu­
pant restraints.
-Never secure or attach any luggage or other
items to the LATCH lower anchorages or to
the tether anchors.
-If you must install a rearward facing child
safety seat on the front passenger seat be­
cause
of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immed iately install
the rear-fac ing child safety seat in a rear
seat ing position and have the airbag system
inspected by your Audi dealer.
Installing the upper tether strap on the
anchorage
Fig. 175 Tether strap: proper ro u ting and mounting
F ig .
176 Tether strap: proper ro u ting and mounting
Installing the tether strap
• Release or deploy the tether strap on the child
restra i
nt according to the child restraint manu­
facturer's instructions.
C hild safety
• Guide the upper tether strap into the rear cargo
area ~fig. 176.
... Slide the tether strap hook over the anchor
bracket.
• Pull on the tether strap hook so that the spring
catch
of the hook engages.
"'T ighten the tether strap firm ly following the
child restraint manufacturer's instructions .
Releasing the tether s tr ap
"'Loosen the tension following the child restraint
manufacturer's instructions.
"' Depress the spring catch on the hook and re­
lease it from the anchorage.
CD Note
If you leave the child restra int with the tether
strap firmly installed for several days, this
could leave a mark on the upholstery on the
seat cushion and backrest in the area where
the tether strap was installed . The upholstery
would also be
permanently stretched around
the tether strap . This applies especially to
leather seats.
Using tether straps on rearward-facing
child restraints
Currently, few rear-facing child restraint systems
come with a tether. Please read and heed the
child restraint system manufacturer's instru c­
t i
ons carefully to determine how to properly in­
stall the tether .
.&. WARNING ~
A child in a rearward -facing child safety seat
installed on the front passenger seat will be
seriously injured and can
be killed if the front
airbag inflates -even with an Advanced Airbag
System.
- The inflating airbag will hit
the ch ild safety
seat or infant carrier with great force and
will
smash the child safety seat and child
against the backrest, center armrest, or
door .
-
If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
229

Downloaded from www.Manualslib.com manuals search engine Checking and Filling
Fuel
Gasoline grade
The correct gasoline grade is stated on the inside
of the fuel filler door.
The vehicle is equipped with a catalytic converter
and must only be driven with unleaded gasoline.
Audi recommends using TOP TIER Detergent Gas­
oline. Additional information on TOP TIER Deter­
gent Gasoline can be found on the official web­
site (www.toptiergas.com).
The individual gasoline grades are differentiated
by octane ratings. This value is given with (R+M)/
2 equating to AKI or in RON.
The following headings match the corresponding
sticker in the fuel filler door.
UNLEADED FUEL ONLY MIN. (R+M)/2 87
Regular I MIN. RON 91 Regular
Use regular gasoline with minimum 87 AKI I
91 RON ~CD.
The maximum engine power is only reached if
p r
emium gasoline 91AKII95 RON is used.
UNLEADED FUEL ONLY PREMIUM MIN. (R
+M)/2 91 I SUPER MIN. RON 95
Using premium gasoline with minimum 91 AKI I
95 RON is recommended.
If premium gasoline is not available, you can also
use regular gasoline 87 AKI I 91 RON. However
this does reduce the engine power slightly.
CD Note
-Fill ing the tank just one time with leaded
fuel or other metallic additives will cause
permanent deterioration to the catalytic
converter function.
-When gasoline with an octane rating that is
too low is used, high speeds or heavy engine
load
can lead to engine damage.
Checking and Filling
{!) Tips
The vehicle can be filled with fuel that has a
higher octane rating than what is required by
the engine.
Blended gasoline
Use of gasoline containing alcohol or MTBE
(methyl tertiary butyl ether)
You may use unleaded gasoline blended with al­
cohol or MTBE (commonly referred to as oxygen­
ates) ifthe blended mixture meets the fo llowing
criteria:
Blend of gasoline methanol (wood alcohol or
methyl alcohol)
-Anti-knock index must be 87 AKI or higher.
- Blend must contain no more than 3% metha-
nol.
- Blend
must contain more than 2o/o co-solvents.
Blend of gasoline and ethanol (grain alcohol or
ethyl alcohol)
-Anti-knock index must be 87 AKI or higher.
- Blend must not contain more than 15% etha-
nol.
Blend of gasoline and MTBE
-Anti-knock index must be 87 AKI or higher.
- Blend must contain not more than 15% MTBE.
Seasonally adjusted gasoline
Many gasoline grades are blended to perform es­
pecially well for winter or summer driving . Dur­
ing
seasonal change-over, we suggest that you
fill
up at busy gas stations where the seasonal
adjustment is more likely to be made i n time.
CD Note
-Methanol fuels which do not meet these re­
quirements may cause corrosion and dam­
age to plastic and rubber components in the
fuel system.
-Do not use fuels that fail to meet the speci-
fied
crit eria in this chapter. ll>
231

Downloaded from www.Manualslib.com manuals search engine Checking and Filling
-If you a re unable to determine whether or
not a particular fuel blend
meets the speci­
fications, ask your service station or its fuel
supplier.
-
Do not use fuel for which the contents can­
not be identified.
- Fuel system damage and performance prob­
lems resulting from
the use of fuels differ­
ent from those specified are not the respon­
sibility of
Audi and are not covered under
the New Vehicle or the Emission Control
System Warranties.
- If you experience a loss of fuel economy or
driveability and performance problems due
to
the use of one of these fuel blends, we
recommend
that you switch to unblended
fuel.
Gasoline additives
A major concern among many auto manufactur­
ers
is carbon deposit build-up caused by the type
of gasoline
you use .
Although gasoline grades differ from one manu­
facturer
to another, they have certain things in
common. All gasoline grades contain substances
that can cause deposits to collect on vital engine
parts, such as fuel injectors and intake valves.
Al­
though most gasoline brands include additives to
keep engine and fuel systems clean, they are not
equally effective .
Audi recommends using TOP TIER Detergent Gas­
oline.
For more information on TOP TIER Deter­
gent Gasoline, please go to the official website
(www.toptiergas .com).
After an extended period
of using inadequate
fuels, carbon deposit build-ups can rob your en­
gine of peak performance.
CD Note
Damage or malfunction due to poor fuel qual­
ity
is not covered by the Audi New Vehicle
Limited Warranty.
232
Refueling
Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind
the fuel filler flap.
If the power locking system should fail, you can
still open
the flap manually -for detailed instruc­
tions see
~page 235.
You can find the fuel tank capacity of your vehicle
in ~page 299.
The label on the inside of the fuel filler flap tells
you
the correct fuel for your vehicle. For more in­
formation about fuel specifications, see
~page 231.
Your vehicle fuel tank has an on board refuelling
vapor recovery system. This feature helps to pre­
vent fuel vapors from escaping from
the tank and
polluting
the environment while you refuel your
vehicle .
In order to fill the tank properly while
protecting
the environment, please follow this
refueling procedure carefully.
.&. WARNING
Under normal operating conditions, never car­
ry additional fuel containers in your car. Gas
canisters and other containers used to trans­
port fuel can be dangerous. Such containers,
full or empty, may leak and could cause a fire
in a collision. If you must transport fuel to
use for your lawn mower, snow blower, etc.,
be very careful and always observe local and
state laws regarding the use, transportation
and storage of such fuel containers.
Make cer­
tain the container
meets industry standards
(ANSI/ASTM F8S2 -86).
{[) Note
Never drive your vehicle until the fuel tank is
completely empty. The irregular supply
of
fuel can cause misfiring. Gasoline could enter
the exhaust system and damage the catalytic
converter.

Downloaded from www.Manualslib.com manuals search engine Checking and Filling
function of the emission control system
and could lead to damage.
@ For the sake of the environment
Even when the Emission Control System is op­
erating properly, the exhaust gas can have a
sulfur-like
exhaust gas smell under some op­
erating states. This depends on the sulfur
content of the fuel being used. Using a differ­
ent brand of fuel may help, or filling the tank
with lead-free super grade gasoline.
Engine compartment
Working in the engine compartment
Special care is required if you are working in the
engine compartment
For work in the engine compartment such as
checking and filling fluids, there is a risk of in­
jury, scald ing , accidents, and burns. For this
reason, follow all the following listed warnings
and general safety precautions. The engine
compartment is a dangerous area. ~ & .
I'
A WARNING
-Turn the engine off.
-switch the ignition off.
-
Set the parking brake.
-
Place the selector lever in the P position.
- Let
the engine cool down.
- Never
open the hood when you see that
steam or coolant drips from the engine
compartment-there is a danger of burns!
Wait unti l no steam or coolant flows out.
- Keep children away from the engine com­
partment.
- Never spill fluids on a hot engine. These flu­
ids (such
as the freeze protection contained
in the coolant) can catch fire.
- Avoid
short circuits in the electrical system,
especially the battery.
-When working in the engine compartment,
remember that the radiator fan can switch
on even
if the ignition is switched off, which
increases
the risk of personal injury.
236
- Never open the cap on the coolant expan­
sion
tank when the engine is warm. The
cooling
system is under pressure.
-To protect your face, hands, and arms from
hot steam or coolant, cover the cap with a
large cloth when opening.
-Do not remove the engine cover under any
circumstances. This increases the risk of
burns.
-
If tests need to be performed with the en­
gine running, there is additional danger due
to moving components (such as the ribbed
belt, alternator and radiator fan) and from
the high voltage ignition system.
-Do not under any circumstances give gas in­
advertently (for example, by hand from the
engine compartment) if the vehicle is sta­
tionary but the engine is running and a gear
is engaged. Otherwise the veh icle will start
to move immediately and could result in a
crash.
-
Pay attention to the following warnings list­
ed when work on the fuel system or on the
electrical equipment is required.
- Always
disconnect the vehicle battery
from the vehicle electrical system.
-Do not smoke.
-Never work near open flames.
-Always have a working fire extinguisher
nearby
- To reduce
the risk of electric shock and in­
jury, never
touch the follow ing components
when t he engine is running or is being start­
ed:
- Ignition cable
-
Other components in the electronic high
voltage ignition system
-If you must check or perform work on the
engine while it is running:
-
Set the parking brake and place the selec­
tor lever in the P (park) position first.
- Always
proceed with extreme caution so
that clothing, jewelry or long hair do not
become caught in the radiator fan, fan
belt or other moving components or do
not come into contact with hot compo-
nents. Tie back long hair before beginning .,..
