2016 AUDI TT COUPE CD player

Downloaded from www.Manualslib.com manuals search engine Voice recognition system . . . . . . . . 104
Operating . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Command overview information . . . . . . . . 105
Commands . . . . . . . . . . . . . . . . . . . . . . . . . 105
Telephone . . . . . . . . . . . . . . . . . . . . . . . . 110
Introduction . . . . . . . . . . . . . . . . . . . . . . . . 110
Connecting a telephone.......... .. ... 110
Using the telephone . . . . . . . . . . . . . . . . . 112
Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Listening to voice mail . . . . . . . . . . . . . . . . 11 6
E mergency call fu nctions . . . . . . . . . . . . . 117
Dir
ect ory ... .. ............... .. ..... 11 7
Additional settings . . . . . . . . . . . . . . . . . . 11 9
Troubleshooting . . . . . . . . . . . . . . . . . . . . .
120
Audi connect . . . . . . . . . . . . . . . . . . . . . 121
I
ntroduction . . . . . . . . . . . . . . . . . . . . . . . . 121
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Conf iguration
through myAudi . . . . . . . . . 122
Overview of Aud i connect services . . . . . . 123
W i
-Fi Hotspot . . . . . . . . . . . . . . . . . . . . . . . 126
Configur ing the data con nect ion . . . . . . . . 127
About Audi connect . . . . . . . . . . . . . . . . . . 128
Troubleshoot ing . . . . . . . . . . . . . . . . . . . . . 130
N .
. av1gatron ....................... . 13 1
Opening nav igation . . . . . . . . . . . . . . . . . . 131
E
nteri ng a destinatio n . . . . . . . . . . . . . . . . 13 2
Can celing r oute guidance . . . . . . . . . . . . . 136
C reating a home address . . . . . . . . . . . . . . 136
F avorites . . . . . . . . . . . . . . . . . . . . . . . . . . .
137
Creating directory contacts . . . . . . . . . . . . 13 7
Additional settings . . . . . . . . . . . . . . . . . . 13 7
Map... .... .. .. ............... .. .. . 139
Online map view. . . . . . . . . . . . . . . . . . . . . 142
Accessing
traffi c information . . . . . . . . . . 142
T roubleshoot ing . . . . . . . . . . . . . . . . . . . . . 14 4
Radio ............................. 145
Accessing t
he radio . . . . . . . . . . . . . . . . . . 145
Radio functions . . . . . . . . . . . . . . . . . . . . .
145
R adio menu . . . . . . . . . . . . . . . . . . . . . . . . 146
Favo rites . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 7
Additional set tings . . . . . . . . . . . . . . . . . . 147
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 14 8
Table of contents
Media .. .. .. .. .. ... .. .. ........ .. .. 149
Introdu ction . . . . . . . . . . . . . . . . . . . . . . . . 149
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Media drives . . . . . . . . . . . . . . . . . . . . . . . . 150
B luetooth audio p layer . . . . . . . . . . . . . . . 152
Wi-Fi audio player . . . . . . . . . . . . . . . . . . . 153
Online med ia . . . . . . . . . . . . . . . . . . . . . . . 154
Multimed ia connections . . . . . . . . . . . . . . 155
Supported med ia a nd file formats . . . . . . 157
Play ing me dia . . . . . . . . . . . . . . . . . . . . . . . 159
Addi tional settings . . . . . . . . . . . . . . . . . . 162
T roub leshooting . . . . . . . . . . . . . . . . . . . . . 164
System settings................. . 166
Setting the date and time . . . . . . . . . . . . . 166
MM! settings . . . . . . . . . . . . . . . . . . . . . . . 166
Connection manage r . . . . . . . . . . . . . . . . . 167
System update . . . . . . . . . . . . . . . . . . . . . . 168
Sound settings ..................... .
Volume settings .................... .
Restarting
the MM! (reset) .. .... .. .. . .
Notes on softwa re licenses
169
169
170
170
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Safe driving . . . . . .. . .. .. .. .. .. . .. . 171
B
asics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
C orrect passenge r seat ing pos itions . . . . . 172
D rive r and passenger side footwell . . . . . . 17S
Pedal
a rea . . . . . . . . . . . . . . . . . . . . . . . . . . l 7S
Stowing luggage . . . . . . . . . . . . . . . . . . . . 176
Reporting Safety Defects . . . . . . . . . . . . . . 178
Safety belts . . . . . . . . . . . . . . . . . . . . . . 180
Genera l notes . . . . . . . . . . . . . . . . . . . . . . . 180
Why safety belts? . . . . . . . . . . . . . . . . . . . 181
Safety belts . . . . . . . . . . . . . . . . . . . . . . . . 184
Safety belt tensioner . . . . . . . . . . . . . . . . . 186
Airbag system. ................... 188
Important information . . . . . . . . . . . . . . . 188
Front airbags . . . . . . . . . . . . . . . . . . . . . . . 192
Monitoring the Advanced Airbag System . 199
Knee airbags . . . . . . . . . . . . . . . . . . . . . . . . 204
3

Downloaded from www.Manualslib.com manuals search engine Voice recognition system
Function Say:
Selecting a source directly Jukebo x* I CD I D V D I SD card 1 I S D card 2 I Aud i mu sic inter-
face *
I iPod * I USB* I Bluetooth * I Wi-Fi* I Medium (XV), for
example "Jolhn's player"
Selecting audio /video files* from Media favo rite s I Artists I Album s I Genres I Tracks I Playli st s I
the Jukebox* Videos
Selecting audio files on an iPod A rt ists I Albums I Genre s I Tracks I Playlists I Compos ers I
(sou rce: Audi music interface*) Podcast s I Audio books
Navigating within a folder struc-Di rectory up I Line (XV)
t u re/list
Selecting shuffle Shuffle on I Shuffle off
Correct data input No, I meant (XV)
Close the entire command list Closing
External voice operation
Requirement:
The ignition and the MMI m use be switched on,
there must be no active phone calls and the park­
ing system and Audi speech dia log system must
not be active .
A cell
phone must be connected to the MMI
through the Handsfree profile¢ page 110.
The cell phone bei ng connected must have voice
con trol that can be controlled externally.
~Switching on : hold down the 12!:1 button on the
multifunction steering wheel* and say the de­
sired command after the external speech d ia log
begi ns.
~Resuming dialog : if necessary, press the l"l•I
button and say a new command. Or : select and
confirm Resum e speech dialog system on the
MMI control panel.
~Restarting dialog: the system remains ready to
use for a short time after ending the d ialog.
You can start a new dialog during this time.
Briefly press the 12!:1 button. Or: select and con­
firm Restart speech dialog syste m on the MMI
control panel.
~Switching off: press and ho ld the 12!:1 b utton.
Or : select and confirm Cancel o n the MMI con-
(D Tips
- Navigation messages and traffic announce­
ments* are not made duri ng a dialog.
-Th is function depends on the cell phone
used. You can obtain more information
from your cell phone ser vice provider or
from your cell phone user guide.
-AUDI AG simply provides access to control
your cell phone with voice operation and
does not take any responsibility for the con­
t
ent s and commands within the external
voi ce control.
~ t ro l panel.
a: co ,...., 109

Downloaded from www.Manualslib.com manuals search engine @ Tips
-You can find additiona l information on con­
necting your myAudi account with Twitter in
the Aud i conne ct (myAud i) operat ing man­
ual at www.audi.com/myaud i.
-
Other settings such as account, language,
Tweet security and location settings
cannot
be changed in the MMI. These changes must
be made on the Twitter website.
-
You can create individual text templates in
your myAudi account.
-
You can only connect one Twitter account
with your myAudi account.
- Audi connect makes
it possible to access
Twitter. Permanent availability cannot be
guaranteed, because that depends on Twit­
ter.
Audi connect services in navigation
Applies to: vehicles with nav igation system and Audi connect
The following Audi connect services are currently
available:
- Navigation
with online map view and Street
View
c::;. page 142.
-Point of Inte rest (POI) online search with
voice recognition (such as restaurants): plan
r oute guidance using
the MMI control panel
and
the vo ice recogn ition system 9 page 104.
-Set up destinations in your MMI using your
myAudi account or onl ine map vie w .
-
Onlin e traffic informat ion: receive up-to-the­
minute traffic info rmation about accidents,
road construction and
other incidents
¢page 143.
-Map updates : import navigation map updates
in you r MM I
using an SD card .
@ Tips
-For the Map update Audi connect service us­
ing an SD card, check the current software
version in you r vehicle and compare
it with
my.audiusa.com to see if a new version is
available.
You can also have the new naviga­
tion data installed by an Audi dealer, which
can
be done for an additiona l charge.
Audi c onne ct
- More information on map update s can be
found in the Audi connect Operating Man­
ual under my.audiusa.com.
Audi connect services in the telephone
Applies to vehicles with Audi connect
The following Audi connect services are currently
available:
- Storing contacts on
your computer using your
myAudi Accoun t and loading the contacts into
the MMI directory 9page 118.
Audi connect services in the Media menu
Applies to: vehicles with Wi·Fi audio player and Audi connect
-Wi-Fi audio player: you can access the med ia
center
through W i-Fi connected media players
(such
as smartphones) 9 page 153. The Audi
MMI connect app also offers access to Internet
radio *.
-

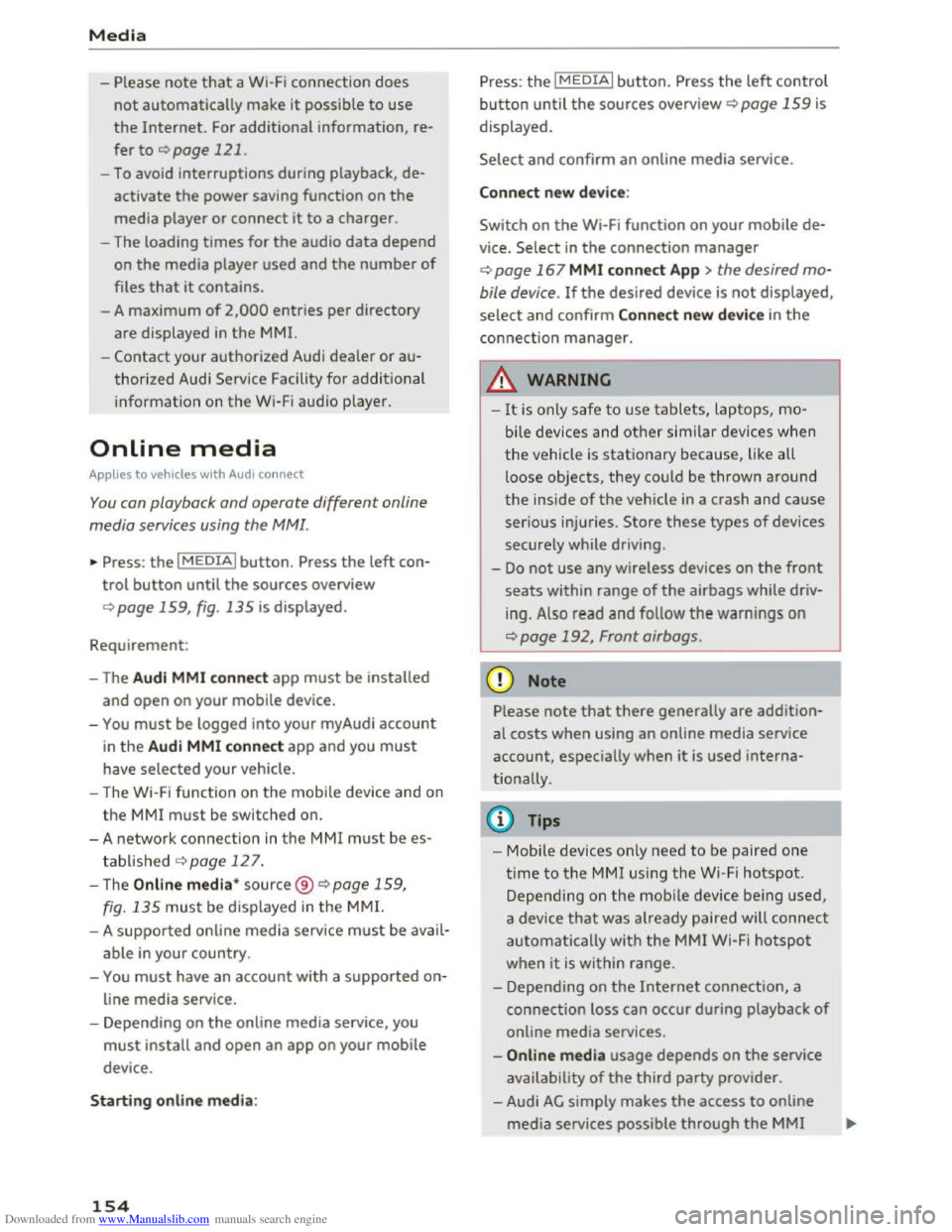

Onl ine m edia : offers access to different on line
media
ser vices and operation through the MM I
using
the Audi MMI c onnect app .
@ Tips
For more information on the Wi-Fi audio play­
er and supported devices, contact an author­
ized Audi dealer or authori zed Audi Service
Facility.
Additional options
Appl ies to vehicles with Audi connect
... Select: IMENUI button> Audi connect > right
control button.
T he
following options are available in the Audi
connect services overview:
-Log in : c::;. page 122, Logging into myAudi in the
vehicle
-Connecti on manage r: 9 page 167, Connection
manager
125

Downloaded from www.Manualslib.com manuals search engine Media
Requirement: the playlist must be open. See
¢page 161.
-Selecting a track: select the track that is cur­
rently playing. Select: right control button>
Copy to Jukebox> This track or Entire album
or This artist.
Requirement: a video file must be playing .
- Select:
right control button > Copy to Jukebox.
The copying
process begins. The status of the
copying process is shown in the MM!.
-Hiding the importing process: select and con­
firm
Continue copying in background. The im­
porting process is hidden .
-
Canceling the importing process: select and
confirm Cancel copying: Or : remove the source
that is being imported. Files already copied re­
main.
When importing, the audio files are automatical­
ly sorted into the media center categories based
on the stored additional information
¢ page 160. The copie d video files are stored in
the media center under the Videos category.
CD Note
Do not import audio/video files when the en­
gine is turned off because this will drain the
vehicle battery.
Tips
-Tracks from audio CDs cannot be impo rted
to the Jukebox for legal reasons.
- Files that have already been imported are
automatically recognized and cannot be
copied to the Jukebox again.
-
It is not possible to play audio/video* files
in
the CD/DVD* drive while importing them.
-The Jukebox does not provide an export
function due to legal reasons.
-Files or tracks without stored additional in­
formation are listed as Unknown. Audi rec­
ommends adding additional information
(such as ID3 tags) to audio files.
-
Reset the Jukebox to the factory default set­
tings when selling your vehicle ¢ page 166.
152
Bluetooth audio player
Applies to: vehicles with Bluetooth
With the Bluetooth audio player, you can play
music wirelessly from your Bluetooth-capab/e
device (such as a cell phone) through the MM!.
Requirement: th e vehicle must be stationary and
the Bluetooth function on your Bluetooth device
and the Bluetooth audio player¢ page 168 in
the MM! must both be switched on.
-Connecting a Bluetooth device : press the
I MEDIAi button. Press the left control button
until the sources overview is displayed. Select
and confirm Bluetooth audio player@
<=;>page 159, fig. 135.
-If necessary, select and confirm, Not connected
>Connect Bluetooth audio player. The Blu e­
tooth device search starts. Follow the instruc­
tions in the MM!.
-Select and confirm the desired Bluetooth de­
vice from the list. The MMI generates a PIN for
the connection.
-Select and confirm Yes .
-Enter the PI N for connecting on yo ur Bluetooth
devi ce. Or: if the PIN is already di splayed on
your Bluetooth device, confirm it in the Blue­
tooth device and in the MMI. The time a llowed
for entering the PIN is limited to approximately
30 seconds.
The media is started and operated through the
mobile device or the MMI, depending on the de­
vice being
used.
(!) Tips
-Check for any connection requests on your
Bluetooth device.
-
You only have to pair your device one time.
Bluetooth devices that are already paired
automatically connect to the MMI when
they are within range.
-Multiple Bluetooth audio players can be
connected to the MMI, but only one mobile
device can be acti ve.
-
Bluetooth protocols AVRCP (1.0/1.3/1.4)
and A20P are supported.

Downloaded from www.Manualslib.com manuals search engine ..... N
a:
-Note the volume setting on your Bluetooth
device. Audi recommends setting your mo­
bile device to the maximum volume when
using it as a Bluetooth audio player.
- The
supported media functions (such as
shuffle) depend on the Bluetooth device be­
ing used.
- For
more information on the supported de­
vices, visit www.audiusa.com/bluetooth or
contact your authorized Audi dealer.
Wi-Fi audio player
Applies to: vehicles with Wi·F i
Using the Wi-Fi audio player media source on the
MMI, you can connect and operate your Wi·Fi ca·
pable media player (such as a smartphone) to
wirelessly play music from your media player Ii·
brary. The media player is connected to the MMI
through the Wi-Fi hotspot. An UPnP Server opp
or an integrated UPnPIDLNA server on your me­
dia
player is required to access your media player
library. The Audi MMI connect opp also offers ac­
cess to Internet radio*.
Requirement: the Wi·Fi function on your media
player must be switched on. The Audi MMI con­
nect app or an UPnP server app is installed on
your media player or your media player has an in·
tegrated UPnP/DLNA server.
-
Connecting a media player: press the I MEDIAi
button. Press the left control button until the
sources overview c::;, page 159 is displayed. Se·
lect and confirm Wi-Fi audio player@
c::;,page 159, fig. 135.
-If necessary, select and confirm Wi-Fi turned
off> Turn on Wi-Fi to activate Wi-Fi in the
MMI. Select Wi-Fi settings, if necessary. Select
the same settings on the wireless medi a p layer
that are used for the Wi-Fi hotspot.
-
Starting the Wi-Fi audio player: start the Audi
MMI
connect app or a UPnP serve r app, or set
media permissions on you r media pla ye r. The
first song in the media cente r on your media
player will begin playing.
co ..... .....
:=: 1) Only ava ilable with the Audi MMI connect app.
Media
-Operating the media player: the media player
is operated through the MMI.
-
Starting Online radio1> : press the left control
button repeatedly until the Folders menu item
appears. Select and confirm Folders > Online
radio. Select and confirm a station from one of
the folders shown.
A WARNING
t-==
-As the driver, do not allow usage of the Wi-
Fi hotspot to distract you from driving, as
this could increase the r isk of an accident.
-It is only safe to use laptops and similar mo­
bile dev ices when the veh icle is stationary
because, like all loose objects, they could be
thrown around the inside of the vehicle in a
crash and cause serious injuries. Store these
types of devices securely while driving.
-
Do not use any wireless devices on the front
seats within range of the airbags while driv­
ing . A l
so read and follow the warnings on
c::;, page 192, Front airbags.
@Note
You are responsible for all precautions taken
fo r data protection, anti-v irus protection and
protection against loss of data on mobile de­
vices that are used to access the Internet
through the Wi-Fi hotspot.
(!) Tips
- T he Wi-Fi audio player only needs to be
paired one time to the MMI using the Wi-Fi
hotspot. Depending on the media player be·
ing used, a device that was already paired
w ill
connect automatically with the MMI Wi­
Fi hotspot when it is within range.
-The Wi-Fi connection is reconfigured when
inserting or removing the SIM card in the
SIM card reader* . There may be a temporary
interruption in audio playback, depending
on the media player.
- Also
note the instructions in the chapter
c::;, page 128, About Audi connect .
153

Downloaded from www.Manualslib.com manuals search engine Media
-Please note that a Wi-Fi connection does
not automatically make it possible to use
the Internet. For additiona l information, re­
fer to Qpage 121.
-To avoid interruptions during playback, de­
activate the power saving function on the
media player or connect
it to a charger.
- The loading times
for the audio data depend
on
the media player used and the number of
files that it contains.
- A maximum
of 2,000 entries per directory
are displayed in
the MMI.
-
Contact your authorized Audi dealer or au­
thorized Audi Service Facility for additional
information on the Wi-Fi audio player.
Online media
App lies to vehicles with Audi connect
You can playback and operate different online
media services using the MMI.
... Press: the I MEDIAi button. Press the left con­
trol button until the sources overview
Qpage 159, fig. 135 is displayed.
Requirement:
- The Audi
MMI connect app must be installed
and open on your mobile device.
-
You must be logged into your myAudi account
in
the Audi MMI connect app and you must
have selected your vehicle.
- The Wi-Fi function on
the mobile device and on
the MMI must be switched on.
- A network connection in th e MM I
must be es­
tablished Q page 127.
- The Online media* source ®
Qpage 159,
fig.
135 must be displayed in the MMI.
- A supported on line media service
must be avail­
able in your country.
-
You must have an account with a supported on­
line media service.
- Depending on
the online media service, you
must install and open an app on your mobile
device.
Starting online media :
154
Press: the I MEDIAi button. Press the left control
button until the sources overview Q page 159 is
displayed.
Select and confirm an online media service.
Connect new device :
Switch on
the Wi-Fi function on your mobile de­
vice. Select in the connection manager
Q page 167 MMI connect App > the desired mo­
bile device. If the desired device is not displayed,
select and
confirm Connect new device in the
connection manager.
_&. WARNING
-It is on ly safe to use tablets, laptops, mo­
bile devices and other similar devices when
the vehicle is stationary because, like all
loose objects, they could be thrown around
the inside of the vehicle in a crash and cause
serious injuries. Store these types of devices
securely while driving .
-
-Do not use any wireless devices on the front
seats within range of the airbags while driv­
ing. Also re ad and follow the warnings on
Qpage 192, Front airbags.
CD Note
Please note that there generally are addition­
al costs when using an online media service
account, especially when
it is used interna­
tionally.
@ Tips
-Mobile devices only need to be paired one
time to the MMI using the Wi-Fi hotspot.
Depending on
the mobile device being used,
a device
that was already paired will connect
automa tically
with the MMI Wi-Fi hotspot
when it is within range.
- Depending on
the Internet connection, a
connection loss can occur during playback
of
online media services.
- Online media usage depends on
the service
availability
of the third party provider.
- Audi
AG simply makes the access to online
media services possible through the
MMI

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
and does not take any responsi bility for the
contents of the online media services .
- Also
note the ins truc tion s in the chapter
c:> page 128, About Audi connect .
-Depending on the mobile device bei ng used ,
i
nter ruptio ns in the media p lay back can oc­
cur.
To avoid interruptions when usin g a
mobile device, do not lock the screen on
your mobile device and keep the Audi MMI
connect app in the foreground.
-Contact your a uth o rized Audi dealer or au­
thorized Audi Service Facility for additional
information about online media.
Multimedia connections
USB adapter for Audi music interface or
USB charging port
Depending on the vehicle equipment, you con
connect
your mobile devices (such as a smort­
phone or MP3 player) to the Audi music interface
or a USB charging port using a special USB
adapter.
Fig. 1 3 2 Audi USB ada pters
(!) USB adapter for devices with a micro USB con­
nection
@ US B adapter for devi ces with an Ap ple Light­
ning con nection
@ USB adapter for devi ces wit h an Apple Dock
connector
You can p urchase the USB adapter from an a u­
thorized A udi dealer or at specialty stores.
Use th e USB adapter for the Audi music interface
c:> page 155-
Media
Q) Note
Hand le the USB adapter carefully . Do not al­
low it to be pinched.
Audi music interface
Applies to: vehicles with Aud i music interface
Connect your mobile devices to the Audi music
interface
to be able to operate it through the
MM! and charge the battery.
Fig. 133 Connecti ng mobile dev ices
The Aud i m us ic interface is loc ated in the front
storage compartment in the c enter c o nsole@
c:>page 6, fig. 2.
-Connecting a mobile device using a USB
adapter: connect the applicable USB adapter*
@c:> fig. 133 t o the port on the Audi music in ­
t
erface@ and then c o nne ct the ada p ter to the
mobile dev ice(!) (s uc h a s an iPod).
-Charging a mobile device using a USB adapter:
w h
en yo u co nnect a mobile device to the Audi
m us ic
interfac e @ using the applicable USB
adapter*@c:> fig. 133, the battery will auto­
matically ch
arge.
-
Disconnecting a mobile device from the Audi
music interface: remove the USB adapter@
c:> fig. 133 from the Audi music interface.
-Disconnecting mobile devices with an Apple
Dock connector*: remove the App le Dock con­
nector from the App le device with the release
tabs® pressed inc:> page 155, fig. 132.
The media are started and operated through the
mobile device or th e MMI, depending on t he de­
vice being used c:>page 159.
Connecting two mobile devices: if two m obile
devices (for
example iPo d and smartphone) are ..,..
155

Downloaded from www.Manualslib.com manuals search engine Media
connected at the same time, then both devices
can be used as playback sources.
You can connect mobile devices using the analog
AUX port.
-Connect ing a mobile device to the AUX input:
connect the cable® Q fig . 133 to the AUX in­
put@ on the Audi music interface and then to
the mobile device @ (such as an MP3 player or
smartphone).
-Disconnecting a mobile device from the AUX
input: remove the cable® Q fig. 133 from the
Audi music interface.
-Operation : select and confirm the External au­
dio player source @ Q page 159, fig. 135. The
med ia are started and operated through the
mobile
device @Q fig. 133.
A WARNING r--·
Driving requires your complete and undivided
attention.
As the driver, you have complete
responsibility
for safety in traffic. Never oper­
ate mobile devices while driving, because
this
increases the risk of an accident.
(D Note
-Remove the connector from the Audi music
interface carefully so
it is not damaged.
-
Use a USB extension cable to connec t devi­
ces that have an integrated USB connector
(such
as a USB stick) to prevent damage to
your USB device and the Audi music inter­
face.
- E
xtremely high or low temperatures that
can occur inside vehicles can damage mobile
devices
and/or impair their performance.
Never leave mobile devices in
the vehicle in
extremely high or
low temperatures.
Tips
-Do not use an additional adapter or USB ex­
tension cable to connect mobile devices to
156
the Audi music interface that already have a
cable or
that must be connected with a USB
adapter (Q page 155). They may impair the
functionality.
-
You can purchase the AUX connector cable
from an authorized Audi dealer or at spe­
cialty stores .
- Functionality
is not guaranteed for mobile
devices
that do not meet the USB 2.0 speci ­
fication.
-
USB hubs are not supported.
- Some
iPod versions, such as the iPod shuf-
fle, cannot be connected
to the USB adapte r
for devices with Apple Dock connector *.
Connect these devices using a AUX connec­
tor cable.
- Video playback through the Audi music in­
terface
is only supported if the connected
device
is r ecognized as a USB storage device
(for example a USB stick). Apple devices and
MTP devices (such as smartphones) are not
recognized as USB storage devices.
-
iPod/iPhone/iPad malfunctions also affect
the operation of the MM!. Reset your iPod/
i P hone/iPad
if this happens .
- For i
mportant information on operating
your
iPod/iPhone/iPad, refer to the user
guide
for that device. Audi recommends up­
dating
the iPod/iPhone/iPad software to the
latest version .
- For more
information about the Audi music
in terface and supported devices, check
the
Audi database for mobile devices at
www. aud
iusa.com/bluetooth or contact an
authorized Audi dealer or
authorized Audi
Service Facility.
