Table of content s
Owner' s Lit e rature
5
About this Own er's Manual . . . . . . 6
Cockpi t . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cockpit overview . . . . . . . . . . . . . . . . . 8
Controls at a glance . . . . . . . . . . . . . . . . . . 8
Instruments and indicator lights 10
Instruments . . . . . . . . . . . . . . . . . . . . . . . . 10
Indicator lights . . . . . . . . . . . . . . . . . . . . . 13
On-Board Diagnostic system (OBD) . . . . . 26
Driver information system . . . . . . 28
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Boost indicator . . . . . . . . . . . . . . . . . . . . . . 30
Eff iciency program............ .... .. . 31

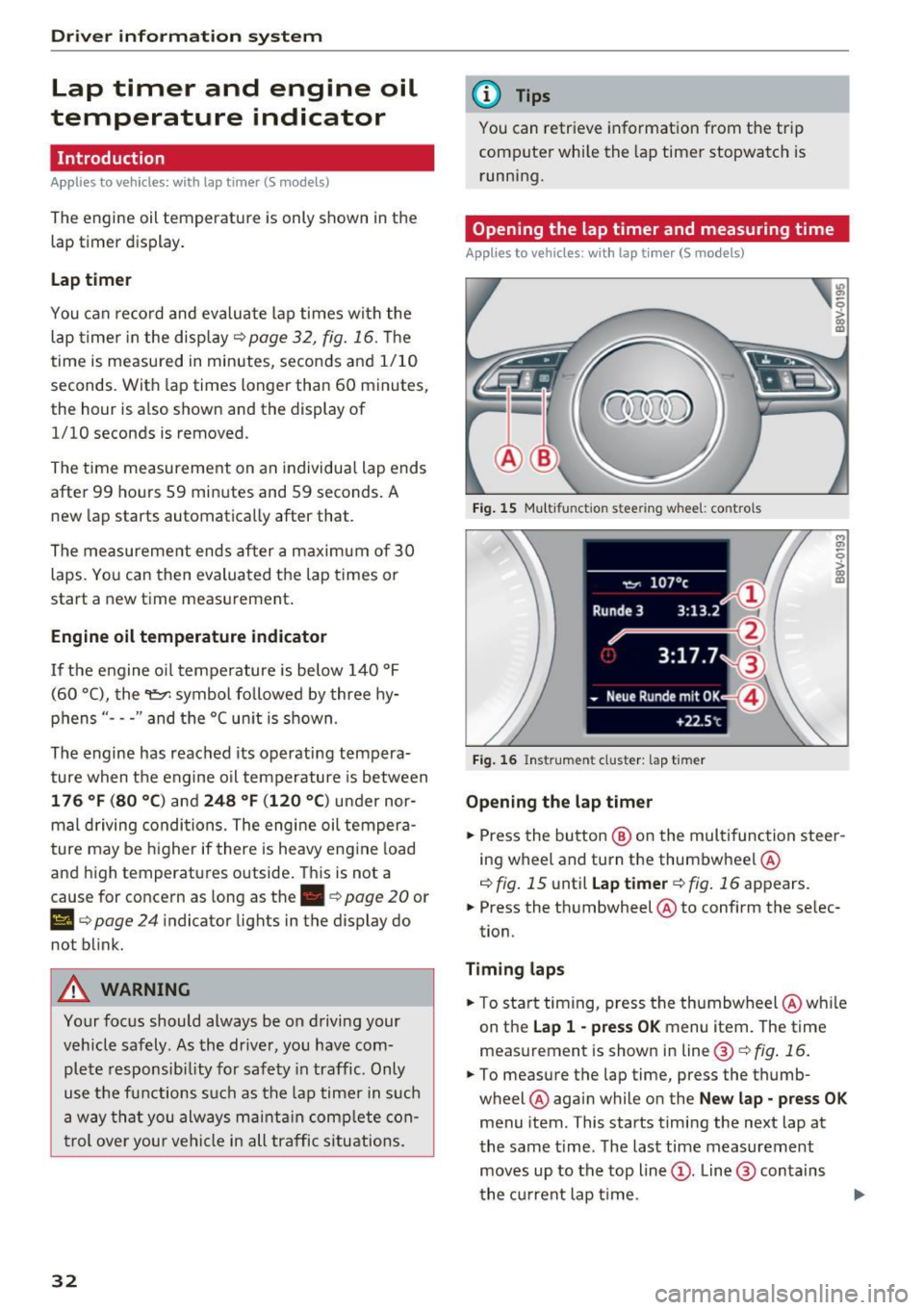

Lap t imer and engine oil temperature
indicator . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Starting and dr iving . . . . . . . . . . . . . 35
Opening and closing . . . . . . . . . . . . . 3 5
Central lock ing . . . . . . . . . . . . . . . . . . . . . . 35
L uggage compartment lid . . . . . . . . . . . . .
41
Ch ild safety lock . . . . . . . . . . . . . . . . . . . . . 4 2
Power w indows . . . . . . . . . . . . . . . . . . . . . 43
P ano rama roof . . . . . . . . . . . . . . . . . . . . . . 44
Lights and Vision . . . . . . . . . . . . . . . . . 46
E xterior lighting . . . . . . . . . . . . . . . . . . . . . 46
I nterior lighting . . . . . . . . . . . . . . . . . . . . . 49
V1s1on ... .... .. ... .. ..... ... .. .. .. .
W indshield wipers . ........... .. .. .. .
Dig ital compass . ................... .
Seats and storage ...... ... .. .. .. .
General information .............. .. .
so
52
55
57
57
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 58
H ead restra ints . . . . . . . . . . . . . . . . . . . . . 60
Cigarette lighter . . . . . . . . . . . . . . . . . . . .
6 1
Socket ... .. .. .. ... .... ...... .. .. .. . 62
S to rage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
L ugg age compartment . . . . . . . . . . . . . . . 64
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . 68
2
Warm and cold .. .. ... . .. .... ... . .
Climate contro l system . ... .. .... ... . . 70
70
Engine preheater . . . . . . . . . . . . . . . . . . . . 75
Driving ... .. .. .. .. .. ... . .. .... ... .. 77
Genera l information . . . . . . . . . . . . . . . . . 77
Econom ica l and environmenta lly-friendly
driv ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . .
79
Start ing and stopp ing the eng ine
(vehicles with a n ignit io n loc k) . . . . . . . . . 80
Start ing and stopp ing the eng ine
(vehicles with a convenience key) . . . . . . .
82
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 84
E lectromechanical parking brake . . . . . . . 85
Hill ho ld . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Automatic transmission . . . . . . . . . 89
S tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
e-tron .. .. .. .. .... .. .. .. .. .... .. ... 98
Pl ug-i n hybrid drive . . . . . . . . . . . . . . . . . . 98
Refueling . . . . . . . . . . . . . . . . . . . . . . . . . .
109
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Charging at public charging stations . . . . 112
Charging the battery with the Aud i e-tron
charg ing system .. ... ...... ....... ...
112
Ind icator lights and messages . . . . . . . . . 121
Vehicle cha rging connecto r eme rgency
r elease . . . . . . . . . . . . . . . . . . . . . . . . . . . .
121
Charging uni t cover emergency release . . 1 2 1
Climate contro l . . . . . . . . . . . . . . . . . . . . . 122
Audi connect e-tron services
Trailer mode .... .. .. . .. ..... ... . .
Driving with a trai le r .. ... .. ..... ... . .
Trailer mode notes . ... .. . ... .... ... . .
124
127
127
128
Driver a ssi stance . . . . . . . . . . . . . . . . . 130
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
E lectronic speed limiter . . . . . . . . . . . . . . . 130
Speed warning system . . . . . . . . . . . . . . . . 130
Cruise control system . . . . . . . . . . . . . . . . 130
Audi adaptive cruise contro l . . . . . . . . . . . 132
Audi pre sense . . . . . . . . . . . . . . . . . . . . . . 139
Genera l information . . . . . . . . . . . . . . . . . 139
Audi pre sense basic. . . . . . . . . . . . . . . . . . 139
Audi pre sense front . . . . . . . . . . . . . . . . . 140

Instruments and indicator lights
IJ® Priority 1 (h igh prior ity)
. © Refer to red indicator
lights
m@ Pr ior ity 2 (medium priority)
II ©
Refer to yellow indicator lights
fm ® Priority 3 (low prio rity)
These are informative ind icator
-- © lights
Red indicator lights
,---=---------~--~:--­
Central indicator light (note addi-
or
or
14
tional informat io n in the instru-
ment cluster display) ©
¢ page 13, fig. 6
Brake system ./
¢page 18
Canada models:
Brake system./
¢page 18
USA models:
Electromechanical parking brake
¢page 19
Canada models:
Electromechanical parking brake
¢page 19
Cooling system
¢page20
Engine oil pressure
¢page20
or
or
or
or Alternato
r
¢page20
Front safety be lt
¢ page 21
Steering./
¢page 162
Steering lock
¢page 21
Engine start system
¢page 21
Engine stop wh ile driving
¢ page 21
Transmission malfunction
¢page 95
Adaptive cruise contro l*./
¢page 134
e-tron: system warning*
¢page 101
e-tron: charging system*
¢page 121

,....,
N
0 > co ,...., -If the indicator light and the message appear
when the vehicle is stationary or after switch­
ing the ignition on,
check if you can release the
parking brake .
If you cannot release the park­
ing brake, see your authorized Audi dealer or
authorized Audi Service Facility . If you can re ­
lease the parking brake and the message still
appears , see an authorized Audi dealer or au­
thorized Audi Service Facility immediately to
have the malfunction corrected.
- If the indicator light and message appear
while
driving ,
the hill start assist or emergency brak­
ing function may be malfunctioning. It may not
be possible to set the parking brake or release
it once it has been set. Do not park your vehicle
on hills and see an authorized Audi dealer or
authorized Audi Service Facility for assistance.
(USA models): If the
1111 and EiJ warning lights
turn on together, take your vehicle to an author­
ized Audi dealer or authorized Audi Service Facili­
ty immediately to have the brake pads inspected
¢page 22.
There is also a warning tone when the lights turn
on.
A WARNING
- Read and follow the warnings in
¢ page 236, Working in the engine com­
partment before opening the hood and
checking the brake fluid level.
- If the brake system indicator light does not
turn off or it turns on while driving, the
brake fluid level in the reservoir is too low,
and this increases the risk of an accident.
Stop the vehicle and do not continue driv­
ing. See an authorized Audi dealer or au­
thorized Audi Service Facility for assistance.
- If the brake system indicator light turns on
together with the ABS and ESC indicator
lights, the ABS/ESC regulating function may
be malfunctioning. Functions that stabilize
the vehicle are no longer available. This
could cause the rear of the vehicle to
swerve, which increases the risk that the ve­
hicle will slide. Do not continue driving. See
an authorized Audi dealer or authorized
Audi Service Facility for assistance.
Instruments and indicator lights
PARK!<®>/~ Electromechanical parking
brake
If the - (USA models) I. (Canada models)
indicator light turns on, the parking brake was
set.
- (USA models) /. (Canada models) Cau­
tion: Vehicle parked too steep
If the indicator light blinks and the message ap­
pears, there is not enough braking power to se­
cure the vehicle. The brakes have overheated. The
vehicle could roll away even on a small incline.
-(USA models) /. (Canada models)
Please press brake pedal to release parking
brake
To release the parking brake, press the brake
pedal and press the~ button at the same time,
or start driving with hill start assist
¢page 87,
Starting from a stop.
Iii Parking brake!
There is a malfunction in the parking brake. Drive
to an authorized Audi dealer or authorized Audi
Service Facility immediately to have the malfunc ­
tion corrected.
Iii Parking brake: Limited functionality!
There is a malfunction in the parking brake. Drive
to an authorized Audi dealer or authorized Audi
Service Facility immediately to have the malfunc­
tion corrected.
!it]:jJ:j:J:13~ (USA models) / [§'J (Canada models)
Please release parking brake.
Release the parking brake if this message ap­
pears.
lt1:j:t:j:J;1:0 (USA models) / [§] (Canada models)
Parking brake auto release unavailable
If this message appears, press the brake pedal
first and then release the parking brake.
IZ1:j:t:j:(;13~ (USA models) I [§'J (Canada models)
Caution: Vehicle parked too steep
IIJ,,
19

Instruments and indicator lights
If the indicator light blinks and the message ap­
pears, there is not enough braking power to se­
cure the vehicle. The brakes have overheated. The
veh icle could roll away even on a small incline.
11J;J:t :);J;1:0 (USA models) / ¢@'A Parking b rake is applied
If this message appears, press the brake pedal
first and then release the parking brake if neces­
sary .
{D) Tips
For additional information on the parking
brake, refer to¢
page 85.
-L Cooling system
• Switch off engine and check coolant level!
• Park vehicle and check coolant level!
The coolant level is too low.
Do not continue driving and switch the engine
off.
Plug-in hybrid drive *: refer to
c!;> page 108.
Check the coolant leve l¢ page 244.
- If the coolant level is too low, add coolant
¢
page 245. Only cont inue driving once the in­
dicator light turns off.
• Coolant temperature too high! Let engine
run with vehicle stationary
Let the engine run at idle for a few minutes to
coo l off, until the indicator light turns off.
- If the indicator light does not turn off, do not
continue driving the vehicle. See an authorized
Audi dealer or authorized A udi Service Faci lity
for assistance.
A WARNING
- Never open the hood if you can see or hear
steam or coolant escaping from the engine
compartment. This inc reases the risk of
burns. Wait until you no longer see or hea r
steam or coolant escaping.
- The engine compartment in any veh icle can
be a dangerous area. Stop the engine and
20
allow it to cool befo re working in the engine
compartment. Always follow the informa­
tion found in ¢
page 236, Working in the
engine compartment .
Cl) Note
Do not continue driving if the . indicator
light turns on -this increases the risk of en­
gine damage.
"l=7: Engine oil pressure
• Switch off engine! Oil pressure too low
Stop the engine and do not continue driving.
Check the eng ine oil level¢
page 242.
-If the eng ine oi l level is too low, add engine oil
¢
page 240. Only continue driving once the in­
dicator light turns off .
- If the engine oi l level is correct and the indica­
tor ligh t still turns on, turn the engine off and
do not cont inue driving. See an authorized Aud i
dea ler or authorized Audi Service Facility for as­
sistance .
(D Tips
The oil pressure warning is not an oil level in­
dicator. Always check the oil level regularly.
D Alternator/battery
• Alternator fault : battery is not being charg­
ed
There is a ma lfunction in the a lternator or the ve­
hicle electrical system.
Drive to an authorized A udi dealer or authorized
Audi Service Facility immediate ly. Because the ve­
hicle battery is dra ining, turn off all unnecessary
electrical equ ipment such as the MMI. See your
authorized Aud i dealer or authorized Audi Serv ice
Facil ity if the battery cha rge level is too low.
(•) Low battery charge: Battery will be charged
while driving
The starting ability may be impaired .
If this message turns off after a litt le whi le, t he
battery ch a rged enough while driv ing.
liJJ,

,....,
N
0 > co ,...., If the message does not turn off, have and a u­
thor ized Audi dealer or authorized A udi Se rvice
Faci lity repa ir t he malfunction.
ii !f Safety systems
The II (USA models)/ m (Canada mode ls) indi ­
cato r light monito rs the safety systems.
Safety system
If the fl (U SA mode ls)/ El (Canada models) i n­
d icator light tu rns on or blin ks, t he re is a ma l­
f u nction in a safety system.
Dr ive to an autho rize d Aud i dea le r o r a uth orized
Au di Service Facility immediately to have t he
malfunct ion corrected .
&_ WARNING
Have the safety systems ins pecte d imme di­
ately. Othe rw ise, there is a risk that the sys­
tems may not activat e duri ng a collision ,
w hich i ncreases the ris k of serious injury or
d eath.
-
4'-Front safety belt
The . indic a tor light stays o n until th e dr ive r's
a nd fr ont passenger 's safe ty be lt s are buckled.
Above a cert ain sp eed, t here w ill als o be a w ar n­
ing tone.
(1) Tips
For add itio na l i nfo rma tion o n safety be lts, re ­
f e r t o<>
pa ge 1 76.
~- Steering lock
• Do not drive vehicle: steering defective
Th ere is a m alfunc tion in the elec tronic s tee ring
lock. You can not turn t he igni tion o n.
Do
not tow your vehicle b eca use it ca nnot be
st eered . Se e an au thor ized A udi dealer or au tho r­
iz ed A udi Se rvi ce Fa cilit y for assis ta nc e.
1!\11 Steering lock: system fault! Please contact
Service
Instruments and ind icator lights
T he re is a ma lf u n ct ion in the e lectron ic s teeri ng
l ock .
Dr ive to an a uth oriz ed A udi dealer or au tho riz ed
A udi Se rvice Faci lity immed iately to h ave the
malfu nction corrected.
A WARNING
D o not tow you r vehicle when there is a mal­
f u nction in t he electron ic s teer ing lock - t his
i nc reases the risk of an acc ident.
=e Engine start system
• Engine start system malfunction. Please
contact Service
Do not switch the ignition off beca use you may
not be able to switch it on again.
Dr ive to an authorized A udi dealer or au tho rize d
Au di Service Fac ility immed iate ly to have the
malfu nction corrected.
l3 Engine start system malfunction. Please
contact Service
-
T he re i s a m alfu n cti on in the e ngine sta rting sys­
tem.
- Veh icles with ignition lock
c::> page 80, Auto ­
matic start malfunction
- Veh icles wit h co nvenience key c::> page 83, Au -
tomatic start malfunction
Drive to an authorized A udi dealer or authorized
Audi Se rvice Fac ility immed iate ly to have the
malfu nction corrected .
~ Engine
• Engine stopped : brake servo and power
steering not possible
The re is a ma lfunction in the engine or in the fuel
s u pply system .
More force is needed to steer and b rake the mov­
i ng vehicle when the engi ne is stopped. If the ve­
hicle is rolling, t ry to br ing it to a stop off to t he
s ide from mov ing traffic . See an author ized A udi
deal er or author ized A udi S ervice Fac ility for as-
s istance. .,..
21

Instrumen ts and ind icator ligh ts
still control all wiper functions that are
independent of the rain sensor.
Drive to an a uthorized Aud i dea ler or authorized
Aud i Serv ice Facility immediately to have the
malfunction corrected .
; Adaptive dampers
Applies to vehicles: with Audi drive select
R Suspen sion : sys tem f ault!
There is an adaptive damper ma lf u nction.
Drive to an authorized Aud i dealer or authorized
Aud i Serv ice Facility immediately to have the
malfunct io n corrected.
¢¢ Turn signals
I f the . or
DI indicator ligh t bl inks, a turn s ig­
na l is turned on. If both i ndicator lights are blink­
i n g, the emergency flashers are on .
I n an indicato r light blinks twice as fast as usua l
then a blinker bulb has failed. Care fully drive to
an author ized Audi dealer or authorized Audi
Serv ice Facility immediately to have the malfunc­
tion corrected.
(D Tips
For more information on the turn signals, re­
fe r to~
page 48.
On-Board Diagnostic
system (OBD)
System indicator light (MIL)
The system indicator light (M IL)
¢4 in the instru­
ment cluster is part of the On Board Diagnostic
System (080 II).
The warning/indicator light turns on when the ig­ nition is switched on and turns off once the en­
gine is started and is running in id le at a stable
speed. This indicates that the MIL is functioning
correctly.
If the light doe s not turn off after starting th e
engine or turns on whi le driving, this may indi­
cate there is a malfunct ion in the engine. If the
26
indicator tu rns on, the cata lytic conve rter may be
damaged.
D rive with reduced engine performan ce (avoid
high speeds for extended per iods of t ime and/o r
fast acceleration) and have the ma lfunction cor ­
rected. See an authorized Audi dealer or author­
i zed Audi Service Facility .
The ind icator may turn on if the e lectro nic speed
li miter is faulty . For add itiona l information, refer
to
c::> page 130, Electronic speed limiter.
The MIL may a lso turn on if the fuel filler cap is
not clo sed corre ctly
c::> page 230.
On-Board Diagnostics
F ig. 7 Locat ion of Data Link Connector (DLC)
On-Board Diagnostics mon itors the components
of your emission con trol system. Each monitored
component in your engine system has been as­
s igned a code . In case o f a malfunction, the com­
ponent will be identified and the fault stored as a
code in the contro l module memory.
The M IL light m ay also illum inate if there is a
l eak in the on -boa rd fuel vapor recovery sys tem .
If the light illuminates after a refuelling, stop
the veh icle and make sure the fuel filler cap is
properly closed
c::> page 230.
In orde r to make an accu rate diagnosis, the s to r­
ed data can only be d isplayed using special d iag­
nostic equipment (generic scan tool for 080) .
In orde r to co nnect the special d iagnost ic equ ip­
ment, push the plug into the Data Link Connector
(DLC). The DLC is located to the r ight of the hood
release
c::> fig. 7. II>

Driver information system
Lap timer and engine oil
temperature indicator
Introduction
Applies to vehicles: with lap timer (S models)
The engine oil temperature is only shown in the
lap timer display.
Lap timer
You can record and evaluate lap times with the
lap timer in the display
i=:,page 32, fig. 16. Th e
time is measured in minutes, seconds and
1/10
seconds . With lap times longer than 60 minutes,
the hour is also shown and the display of
1/10 seconds is removed.
The time measurement on an individua l lap ends
after
99 hours 59 minutes and 59 seconds. A
new lap starts automatically after that .
The measurement ends after a maximum of
30
laps. You can then evaluated the lap times or
start a new time measurement .
Engine oil temperature indicator
I f the engine o il temperature is below
140 °F
(60 °C), the 'l=:1: symbol followed by three hy­
phens"- --" and the °C un it is shown .
The engine has reached its operating tempera­
ture when the engine oil temperature is between
176 °f (80 °C) and 248 °f (120 °C) under nor­
mal d riving conditions. The engine oil tempera­
ture may be higher if there is heavy eng ine load
and high temperatures outside. This is not a
cause for concern as long as the .¢
page 20 or
Ill i=:,page 24 indicator lights in the display do
not blink.
A WARNING
Your focus should always be on driving your
vehicle safely . As the driver, you have com­
plete responsibility for safety in traffic . Only
use the functions such as the lap timer in such
a way that you always maintain complete con­
trol over your vehicle in all traffic s ituations.
32
.
@ Tips
You can retrieve information from the trip
computer while the lap timer stopwatch is
running.
Opening the lap timer and measuring time
Applies to vehicles: with lap timer (S models)
Fig. 15 Multi functio n stee ring whee l: co ntro ls
Fig. 16 Instrumen t cluster: lap timer
Opening the lap timer
M 0,
0
> g;:
.. Press the button @ on the multifunction steer­
ing wheel and turn the thumbwheel
®
i=:, fig. 15 until Lap timer ¢ fig. 16 appears.
.. Press the thumbwheel
® to confirm the selec­
tion.
Timing laps
.. To start timing, press the thumbwheel @while
on the
Lap 1 - press OK menu item. The time
measurement is shown in line @¢
fig. 16.
.. To measure the lap time, press the thumb­
wheel
® again while on the New lap· press OK
menu item. This starts timing the next lap at
the same time . The last time measurement
moves up to the top line@. Line @ contains
the current lap t ime .

,....,
N
0 > co ,...., Opening and closing
Central locking
Key set
Fig. 18 Your vehicle key set
The key set contains two remote control keys or
conven ience keys*. To fold the key out and back
in place, press the release button¢
fig. 18
-arrow-.
Remote control key or convenience key
The convenience key* is a vehicle remote control
key with special functions¢
page 38, Locking
and unlocking with the convenience key
and
¢ page 82, Starting and stopping the engine
(vehicles with a convenience key).
With the remote control key, you can lock and
unlock the vehicle centrally and start the engine.
Number of keys
You can check the number of keys assigned to
your vehicle in the MMI. This a llows you to make
sure you have received all of the keys when you purchase a used vehicle. Select: the
I MENU I but­
ton
> Car> Systems* control button > Program­
med keys .
Replacing a key
If a key is lost, see an authorized Audi dealer or
authorized Audi Service Facility. Have
this key de­
activated.
It is important to bring all keys with
you . If a key is lost, you should report it to your
insurance company.
Immobilizer
The immobilizer prevents unauthorized use of
the vehicle. The vehicle may not start if another
Opening and closing
radio device such as a key for another vehicle or a
transponder is located on the key ring.
Data in the remote control key or
convenience key
While driving, service and maintenance-relevant
data is continuous ly stored on your remote con­
tro l key or conven ience key*. Your Audi service
advisor can read out this data and tell you about
the work your vehicle needs.
A WARNING
-- Always take the vehicle key with you when
leaving the vehicle, even for a short period
of time. This applies particularly when chil­
dren remain in the vehicle. Otherwise the
children could start the engine or operate
electrica l equipment such as power win­
dows .
- Do not remove the key from the ignition
lock until the vehicle has come to a com­
p lete stop. Otherwise, the steering lock
could engage sudden ly and increase the risk
of an accident.
(D Tips
The operation o f the remote control key can
be temporarily disrupted by interference from
transmitters in the vicinity of the vehicle
working in the same frequency range (for ex­
ample, a cell phone or radio equipment).
Central locking system description
You can lock and unlock the vehicle centrally.
There are different ways, depending on vehicle
equipment:
- Remote control key
c:> page 3 7,
- Lock cylinder on the driver's door c:>page 39,
or
- Sensors in the front door handles on vehicles
with a convenience key*
c:> page 38,
- Central locking switch inside c:> page 39.
Selective unlocking
•
The doors and luggage compa rtment lid will lock
when they close. You can set in the MMI whether ..,.
35
