0 > co ,...., smash the child seat and child against the
backrest, center armrest, door or roof.
- Always install rear-facing child seats on the
rear seat.
- If you must install a rearward facing child
seat on the front passenger seat because of
exceptional circumstances and the
PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately install the rear­
facing child seat in a rear seating position
and have the airbag system inspected by
your Audi dealer.
A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds or by be­
ing pushed into you as the airbag inflates.
- Never hold things in your hands or on your
lap when the vehicle is in use.
- Never transport items on or in the area of
the front passenger seat . Objects could
move into the area of the front airbags dur­
ing braking or other sudden maneuvers and
become dangerous projectiles that can
cause serious personal injury if the airbags
inflate.
- Never place or attach accessories or other objects (such as cup holders, telephone
brackets, large, heavy or bulky objects) on
the doors, over or near the area marked "AIRBAG" on the steering wheel, instru­
ment panel, seat backrests or between
those areas and yourself. These objects
could cause injury in a crash, especially
when the airbags inflate.
- Never recline the front passenger's seat to
transport objects. Items can also move into
the area of the side airbag or the front air­ bag during braking or in a sudden maneu­
ver. Objects near the airbags can become
projectiles and cause injury, particularly
when the seat is reclined.
- Never place or transport objects on the front passenger seat. Objects on the front passenger seat could cause the capacitive
sensor in the seat to signal to airbag system
Airbag system
that the seat is occupied by a person when it
in fact is not, or that the person on the seat
is heavier than he or she actually is. The
change in electric capacitance because of
such objects can cause the passenger front
airbag to be turned on when it should be
off, or can cause the airbag to work in a way
that is different from the way it would have
worked without objects on the seat.
- Always make sure that there is nothing on
the front passenger seat that will cause the
capacitive passenger detection system in
the seat to signal to the Airbag System that
the seat is occupied by a person when it is not, or to signal that it is occupied by some­
one who is heavier than the person actually
sitting on the seat. The presence of an ob­
ject could cause the passenger front airbag to be turned on when it should be off, or
could cause the airbag to work in a way that is different from the way it would have
worked without the object on the seat.
_LD. WARNING
The fine dust created when airbags deploy can cause breathing problems for people with a
history of asthma or other breathing condi­
tions.
- To reduce the risk of breathing problems,
those with asthma or other respiratory con­
ditions should get fresh air right away by
getting out of the vehicle or opening win­
dows or doors.
- If you are in a collision in which airbags de­ ploy, wash your hands and face with mild
soap and water before eating .
- Be careful not to get the dust into your eyes,
or into any cuts or scratches.
- If the residue should get into your eyes, flush them with water .
195

Airbag system
Monitoring the
Advanced Airbag System
:~ (USA models ) / !f (Canad a model s)
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni ­
toring indicator light and the
PASSENGER AIR
BAG OFF
light.
The Advanced Airbag System as we ll as the side
airbags and side c urtain airbags with ejection
mitigation features (including the e lectroni c con­
trol unit, sensors and system wiring) are all
monitored continuously to make sure that they
are funct ioning prope rly whenever the ignition is
on . Eve ry t ime yo u tur n on the igni tion, the air­
bag sys tem ind icator light
II (USA models)/ m
(Ca nada models) will come on for a few seconds
(func tion chec k).
The system must be inspected when the
indicator light
ffl (USA models) / fll
(Canada model s):
- does not come on w hen the ignition is switched
on,
- does not go out a few seconds after you have
switched on the ign ition, or
- comes on wh ile driving .
I f an a irbag system ma lf u nction is detected, the
indicator light wi ll first sta rt flash ing to catch the
d river's atte ntion and then stay on co ntin uous ly
to serve as a constant reminder to have the sys­
tem inspected immed iate ly.
I f a malfunction occurs that turns the front air­
bag on the passenge r side off, the
PASSENGER
AIR BAG OFF
ligh t will come on and stay on
wheneve r th e ignition is on .
.&_ WARNING
An airbag system that is not f unct io ning prop­
er ly cannot provide supplemental protection
in a frontal crash.
- If the airbag indicato r light ¢
page 21
comes when the vehicle is being used, have
t h e system inspected immediate ly by your
autho rized Aud i dealer . It is possible that
196
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
PASSENGER AIR BAG OFF light
Fig . 166 Center co nsole: passenger a irbag off warning
light
The PAS SENG ER AI R BAG OFF light is located in
the center of the instrument panel ¢
fig. 166.
The PASSENGER AIR BAG OFF light will come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been turned off by the electronic contro l unit . If the b ulb for the
PASSENGER AIR BAG OFF light b urns out, the
a irbag indicato r light
II (USA models)/ m
(Canada mode ls) wi ll come on to signa l a mal­
funct io n in t he Advanced Ai rbag System. A l­
though the burned -out bulb wi ll not change the
way the front passenger's frontal airbag works, it
will no longer be possible to use the
PASSENGER
AIR BAG OFF
light to make sure that the airbag
on/off status is correct for the occupant on the
front passenger seat . Have the airbag system in ­
spected immed iately by yo ur authorized Audi
dealer .
The PASSENGER AIR BAG OFF light will blink
for about 5 seconds when:
-the ignition is sw itched on and
- the capacitive passenger detection system,
which switches the front seat passenger's fron ­
tal Advanced Airbag on and off, detects a
change in the status of the front passenger
seat.
As soon as the
PASSENGER AIR BAG OFF light
stops blinking, always make sure that the airbag
status (on or off) as shown by the
PASSENGER
AIR BAG OFF
light is proper for the age, size and IJJ,,

Airbag syste m
must be performed by qualified workshops
only. Make sure that any airbag service ac­
tion is entered in your Aud i Warranty
&
Maintena nce booklet under AIRBAG RE­
PLACEMENT RECORD.
- For safety reasons in severe accidents, the
alternator and starter are separated from
the vehicle battery with a pyrotechn ic circuit
in terrupter.
- Work on the pyrotechnic circuit interrupt­
er must only be performed by a qualified
technicians who have the experience, in­
formation and special tools necessary to
perform the work safely.
- If the vehicle or the circuit interrupter is
scrapped, all applicab le safety precautions
must be followed .
@ For the sake of the environment
Undeployed airbag modu les and pretension ­
ers might be classified as Perch lorate Materi­
al -special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate . When the veh icle o r parts of the re­
stra int system including airbag modules and
safety belts w it h pretensioners are scrapped,
all applicable laws and regu lations must be
observed. Your authorized Audi dealer is fa­
m iliar with these requirements and we recom ­
mend that you have your dealer perform this
serv ice for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced A irbag System
pe rforms in a crash. For e xamp le, using t ire -r im
comb inations no t approved by Audi, lowering t he
veh icle, chang ing the stiffness o f the suspe nsio n,
i n cluding the springs, suspension struts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
electronic contro l unit . Some suspens ion changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in c rashes in w hich it would not deploy if
the changes had not been made. Other ki nds of
200
changes may reduce the force levels measured by
the sensors and prevent the airbag from deploy­
i ng when it should .
_& WARNING
Changing the vehicle's suspension including
use of unapproved tire-rim comb inations can
change Advanced Airbag performance and in­
crease the r isk of serious personal injury in a
crash .
- Never install suspension components that do not have the same performance charac­
ter istics as the components origina lly instal­
led on your vehicle.
- Never use tire-r im combinations that have
not been approved by Aud i.
Knee airbags
Description of knee airbags
Applies to vehicles: with knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front seat
occupants .
Fig . 16 7 D river 's knee a irbag
The driver knee airbag is in the instrument panel
u nderneath the s teer ing whee l¢
fig. 167, the
airbag fo r the passenger is at about the same
height in the i nstr ument panel underneath the
glove compa rtment.
The knee airbag offers add itiona l protect ion to
the d river's and passenge r's knees and uppe r and
l ower thigh areas a nd sup plements the p rotec­
t ion prov ided by the safety belts .
If the front airbags deploy, the knee a irbags also
deploy in fron tal coll is ions when t he deployment ..,_

,....,
N
0 > co ,...., The side airbags are located in the sides of the
front seat backrests¢
fig. 169 and the rear back­
rest facing the doors.
The s ide airbags installed for the front seating
positions have been designed and certified to
he lp reduce the risk of injury that can be caused
by airbags when they inflate, part icular ly when
the occupant sitt ing next to it is not seated prop­
erly. The s ide airbag for the front passenger seat
can be used with properly insta lled child re­
stra ints . Please be sure to read the important in­
formation and warnings whenever using a child rest raint in a ve hicle: Safety belts ¢
page 176,
Airbag system ¢page 184, Child s afety
¢ page 209.
The side airbag system basically con sists of:
-the e lectron ic control modu le and externa l side
impact sensors
- the two airbags located in the sides of the front
backrests and the two airbags* located in the
rear backrest
- the a irbag warning light in the instrument clus-
ter .
T he airbag system is monitored electronically to
make certain that it is functioning properly at all
times. Each time you switch on the ign ition, the
airbag system indicato r light will come on for a
few seconds (self diagnostics).
The s ide airbag system supplements the safety
belts and can help to reduce the risk of injury to
the dr iver 's, front and rear passenger's upper tor ­
so on the side of the veh icle that is struck in a
side coll is ion . T he a irbag dep loys only i n side im­
pacts and o nly when the vehi cle acceleration reg­
i stered by the cont rol un it is h igh enough .
If this
rate is below the refe rence value programmed in­
to the cont rol unit, the side airbags wi ll not be
triggered , even thoug h the car may be bad ly
damaged as a result of the collision. It is not pos ­
sib le to define an airbag tr igger ing range that
will cover every possib le ang le of impact, s ince
the circumsta nces wi ll vary considerably between
one collision and another . Important fac to rs in­
clude, for example, the nature (hard or soft) of
the impact ing object, the angle of impact, vehicle
Airb ag sys tem
speed, etc. ¢ page 204, Important safety in­
structions on the side airbag system .
Aside from the ir no rm al safety funct io n, safety
belts work to he lp keep the dr iver o r front pas­
senger in posi tion in the event o f a side co llision
so that the side airbags can provide protectio n.
T he airbag system is
not a substi tute for you r
sa fety belt. Ra ther, i t is par t of the ove rall occ u­
pant restraint system in your vehicle . Always re­
member that the side airbag system can only
help to protect you if you are wear ing you r safety
belt and wear ing it properly . This is another rea ­
son why you should a lways wear your safety
belts, not just because the law requires you to do
so ¢
page 176, General notes .
It is important to remember that while the sup­
plementa l side airbag system is designed to re­
duce the likelihood of ser ious injuries, other i nju ­
ries, for example, swelling, bru is ing, friction
burns and m ino r abras ions can also be assoc iated
with deployed s ide airbags. Remember too, s ide
airbags will deploy only once and only in certa in
ki nds of accidents -your safety belts are always
there to offer p rotection .
Vehicle damage, repair costs o r even the lack of
vehicle damage a re not necess aril y an ind ic a tion
of over-sens it ive or fa iled airbag ac tiva tion . In
some collisions, both front and side airbags may
inflate. Remember too, that airbags wi ll dep loy
only once and only in certain kinds of collisions -
your safety belts are always there to offer protec­
t ion in those accidents in which airbags are not
supposed to deploy or when they have already deployed .
The side airbag system will not deploy :
-when the ignit ion is switched off
- in side co llisions when the acceleration meas -
ured by the sensor is too low
- in front-end collisions
- in rear -end co llisions
- in rollovers .
In some types of accidents the front a irbags, side
curtain airbags and side a irbags may be triggered
togethe r. .,..
203

.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
-Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
- Objects between you and the airbag can in­
crease the risk of injury in an accident by in­
terfering with the way the airbag unfolds or by being pushed into you as the airbag in­
flates.
- Never place or attach accessories or other
objects (such as cup holders, telephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause injury
when the supplemental side airbag de­ ploys .
- Never carry any objects or pets in the de­
ployment space between them and the
airbags or allow children or other passen­
gers to travel in this position.
-Always use the built-in coat hooks only for
lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that may interfere with side airbag deployment
and can cause personal injury in an accident.
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an authorized
Audi dealership.
- Damage (cracks, deep scratches etc.) to the
original seat covers or to the seam in the
area of the side airbag module must always
be repaired immediately by an authorized
Audi dealer.
- If children are seated improperly, their risk
of injury increases in the case of an accident
Q page 209, Child safety.
- Never attempt to modify any components of
the airbag system in any way.
- In a side collision, side airbags will not func­
tion properly if sensors cannot correctly measure increasing air pressure inside the
Airbag system
doors when air escapes through larger, un­
closed openings in the door panel.
- Never drive with interior door trim panels
removed.
- Never drive when parts have been re­
moved from the inside door panel and the
openings they leave have not been proper­
ly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers or
othe r equipment is installed in the inside
door panels.
- Always have work on the doors done by an
authorized Audi dealer or qualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc­
cupants.
Fig. 171 Sid e curta in airbags, driver's side : sid e curta in air­
bag locat ion (example)
The side curtain airbags are located on both sides
of the interior above the front and rear side win­
dows
Q fig. 171 . They are identified by the word
"AIRBAG" on the windshield frame and the cen­
ter roof pillar.
The side curtain airbags contain features that
provide ejection mitigation to help prevent vehi-
cle occupants or parts of their bodies from being
completely or partially ejected from the vehicle ..,.
205

Airbag syste m
interior in certain side impacts and vehicle
rollovers.
The s ide curta in a irbag system supplements the
safety belts and can he lp to reduce the r is k of in­
jury for occupants' heads and upper torso on the
side of the vehicle that is struck in a side co lli­
sion. The side curtain airbag inflates in side im­
pacts and on ly when the vehicle acceleration reg­
istered by the control unit is h igh enough . If this
rate is below the reference value programmed in ­
to the control un it, the side curta in a irbag w ill
not be triggered, even though the car may be
badly damaged as a result of the collision.
It is
not possib le to define an airbag trigger ing range
that will cover every poss ible angle of impact,
since the circumstances will vary considerab ly be ­
tween one collision and another . Important fac­
tors incl ude, for example, the nature (hard or
soft) of the impacting object, the ang le of im­
pact, vehicle speed, etc .
q page 207, How side
curtain airbags work .
Aside from their normal safety function, safety
be lts work to help keep the driver or front pas­
senger in posit ion in the event of a collision so
that the side curtain airbags can provide protec­
tion .
The airbag system is not a substitute for your safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle . Always re ­
membe r th at the airbag system can only help to
protect you if you a re wearing your safety belt
and wear ing it properly . T his is anothe r reason
why you should a lways wear your safety belts,
not just because the law requires you to do so
q page 176, General notes.
It is important to remember that whi le the s ide
curtai n airbag system is des igned to he lp red uce
the likelihood of serious injuries, other injuries,
for example, swe lling, b ruising, friction burns
and minor abrasions can also be assoc iated with
these airbags upon deployment . Remember too,
these airbags will deploy only once and only in
certa in kinds of acc idents -your safety be lts are
always there to offer protection .
206
The side curtain airbag system basically
consists of :
-The e lectronic cont ro l mod ule and externa l side
impact sensors
- The side curtain airbags above the front and
rear side windows with ejection mitigat ion fea­
tures
- The ai rbag indicator light in the instrument
panel
The airbag system is mon itored e lectron ica lly to
make certain it is functioning properly at all
times. Each t ime you switch on the ignition, the
airbag system ind icator light will come on for a
few seconds (se lf diagnostics) .
The side curtain airbag is not activated:
-if the ignition is switched off,
- in side collisions whe n the accele ration meas -
ured by the sensor is too low,
- in rea r-end co llisions .
.&_ WARNING
-Safety belts and the air bag system will only
provide protect ion when occupants are in
the proper seating position
q page 58,
Front seats.
- I f the airbag ind icator light q page 21
comes when the vehicle is being used, have
the system inspected immediately by your
author ized Audi dealer. It is possib le that
the airbag will inflate when it is not sup­
posed to, or wi ll not inflate when it should.

Tires and wheels
the vehicle placard or tire inflation pressure la­
bel, you should determine the proper tire
inflation pressure for those tires).
As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS) that illuminates a low tire pressure tell­
tale when one or more of your tires is significant­ ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure . Driving on a signifi­
cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop­
ping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists .
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly .
272
· If the Tire Pressure Monitoring System
indicator appears
Applies to vehicles: with tire pressure monitoring system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Fig. 206 Instrument cl uster: i ndic ator lig ht with message
Using the ABS sensors, the tire pressure monitor­
ing system compares the tire tread circumfer­
ence and vibration characteristics of the individu ­
al tires . If the pressure changes in one or more
tires , this is indicated in the instrument cluster
display with an indicator light
Rt] and a message
¢fig. 206. If only one tire is affected, the loca­
tion of that tire will be indicated. The message
turns off after a few minutes. You can display the
message again¢
page 30.
The tire pressures must be stored in the menu
display again each time the pressures change
(switching between partial and full load pres­
sure) or after changing or replacing a tire on your
vehicle
¢ page 273. The tire pressure monitor­
ing system only monitors the tire pressure you
have stored . You can find the recommended tire
pressures for your vehicle on the label on the
driver's door pillar¢
page 263.
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if:
- If the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- The tire was replaced or the tire pressure
changed and it was not stored again
¢page 273.
-the spare tire is installed.

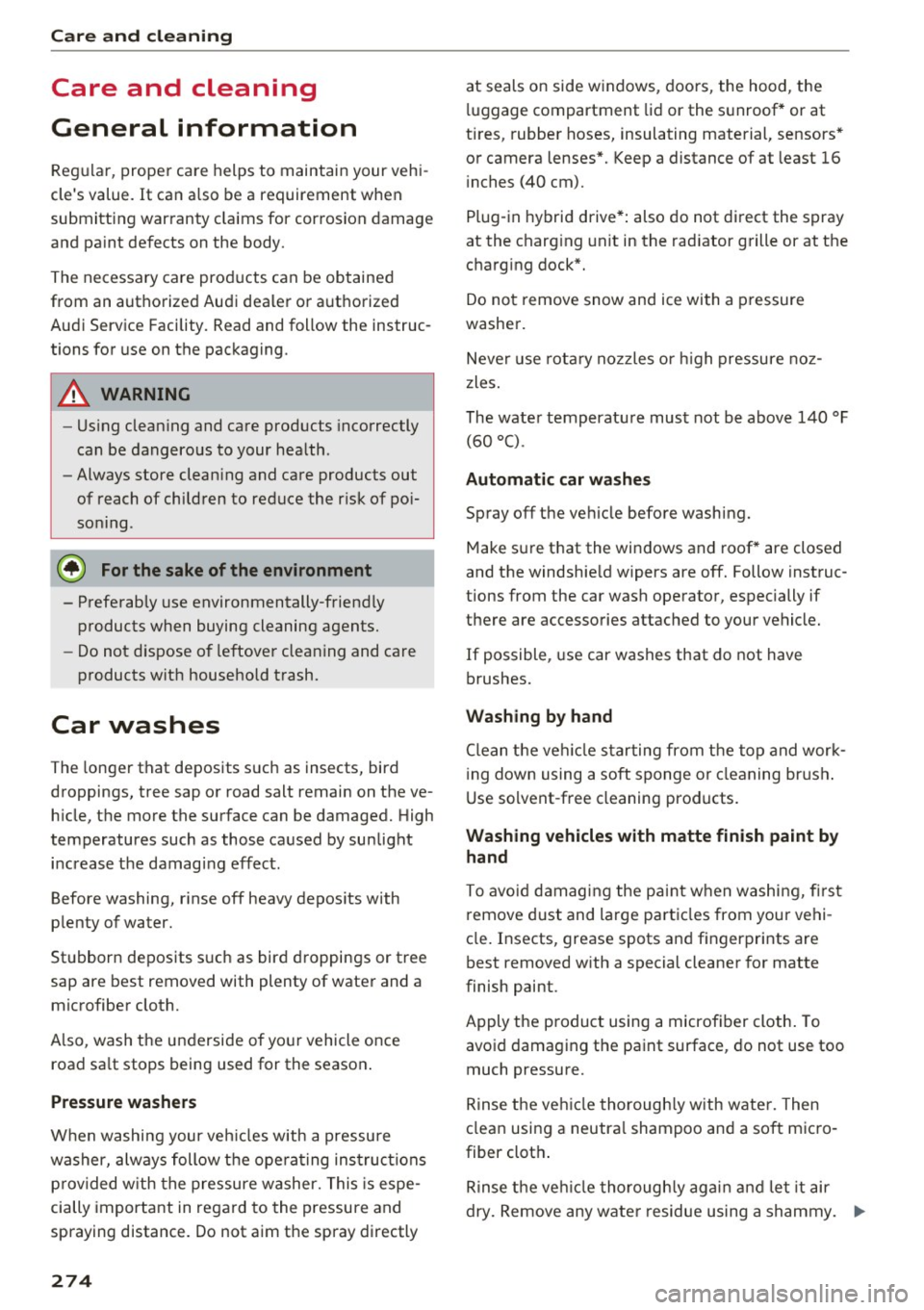

Care and cleaning
Care and cleaning
General information
Regular, prope r care helps to maintain your vehi ­
cle's value.
It can a lso be a requirement when
submitting war ranty claims for cor rosion damage
and pa int defects on the body.
The necessary care prod ucts can be obtained
from an autho rized Audi deale r or authorized
Aud i Service Facility. Read and follow the instruc­
tions for use on the packaging.
A WARNING
- Using clean ing and care products incorrectly
can be dangero us to your hea lth .
- Always store clean ing and care products out
of reach of children to reduce the r isk of po i­
so ning .
@ For the sake of the environment
- Preferably use environmentally-friendly
products when buying cleaning agents.
- Do not dispose of leftove r clean ing and care
products with household t rash.
Car washes
The longer that deposits s uch as insects, bird
droppings, tree sap or road salt remain on the ve­ h icle, the more the surface can be damaged. High
temperatures such as those caused by sunlight
i n crease the damag ing effect .
Before washing, r inse off heavy deposits with
p lenty of water.
St ubb orn deposits such as bird droppings or tree
sap are best removed with plenty of wate r and a
microfiber cloth.
Also, wash the underside of yo ur vehicle once
road sa lt stops being used for the season .
Pressure washers
When washing your veh icles with a pressure
washer, always follow t he ope ra ti ng ins tructions
p rovided w ith the pressure washer. This is espe­
cially important in regard to the pressure and
spraying distance . Do not aim the spray directly
274
at seals on side windows, doors, the hood, the
lug gage compartment lid or the sunroof* or at
t ir es, rubbe r hoses, insulating material, sensors*
or camera lenses*. Keep a distance of at least 16
i nches (40 cm).
Plug -in hybrid drive*: also do not direct the spray
at the charg ing unit in the rad iator g rille or at the
charg ing dock*.
Do not remove snow and ice with a pressure
washer.
Neve r use rot ary no zzles or high pressure noz­
z les.
The wate r temperatu re must not be above 140 °F
(60 °() .
Automatic car washes
Spray off the veh icle before washing.
Make sure that the windows and roof* are closed
and the windshie ld wipers are off. Follow instruc ­
tions from the car wash operato r, especially if
there are accesso ries attached to your vehicle.
If possible, use car washes that do not have
brushes.
Washing by hand
Clean the ve hicle starting from the top and work­
i ng down using a soft sponge or clea ning brus h.
Use solvent-free cleaning products.
Washing vehicles with matte finish paint by
hand
To avo id damaging the paint w hen washing, fi rst
remove dust and large pa rticles from your vehi­
cle. Insects, grease spots and f ingerprints are
best removed w ith a special cleaner for matte
finish paint.
Apply t he product using a microf iber cloth. To
avo id damaging the paint surface, do not use too
much pressure.
Rinse the ve hicle thoroughly with wate r. Then
clean using a neutra l shampoo and a soft micro ­
fiber clot h.
Rinse the vehicle thorough ly again and le t i t air
dry. Remove any water residue using a sham my. ..,..
