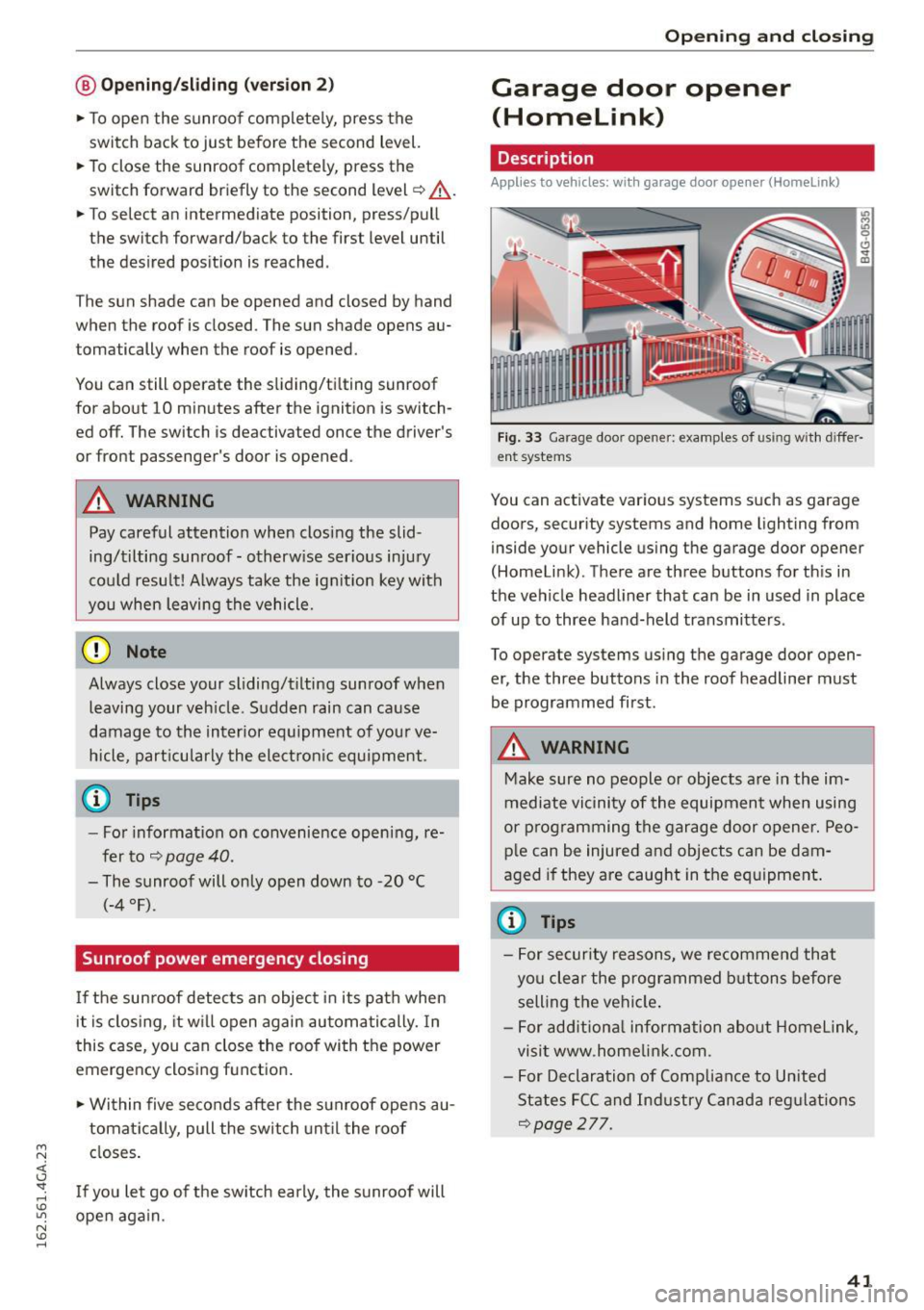

@ Ope ning /sliding ( versi on 2)
• To ope n the sunroof complete ly, press the
switch back to just before the second level.
• To close the sunroof completely, press the
switch forward briefly to the second level¢&, .
• To select an intermediate position, press/pull
the switch forward/back to the first level until
the desired position is reached .
The sun shade can be opened and closed by hand
when the roof is closed . The sun shade opens au­
tomatically when the roof is opened.
You can still operate the s liding/ti lting sunroof
for about 10 minutes after the ignition is switch­
ed off. The switch is deactivated once the driver's
or front passenger's door is opened .
A WARNING
Pay careful attention when closing the slid­
ing/tilting sunroof -otherw ise ser ious injury
cou ld resu lt! Always take the ignition key with
you when leaving the vehicle.
0 Note
Always close your sliding/t ilting sunroof when
leaving your veh icle. Sudden rain can ca use
damage to the interior eq uipment o f your ve­
hicle, part icularly the elect ron ic equipment.
a) Tips
- Fo r information on convenie nce opening, re­
fer to¢
page 40.
- The sunroof will only open down to -20 °C
(-4 °F).
Sunroof power emergency closing
If the sun roof detec ts an object in its path when
it is clos ing, it w il l open again automatically. In
this case, you can close the roo f with the power
emergency closing fu nct io n.
• Wi thin five se cond s after the sunroof opens au­
tomat ica lly, pull the switch unt il the roof
closes .
I f you le t go of the sw itch early, the s unroof will
ope n again.
Open ing and clo sing
Garage door opener
(Homelink)
Description
Applies to veh icles: w ith garage door opener (Homelink)
Fig. 33 Garage door opener: examples of using wit h differ·
ent systems
You can activate various systems such as garage
doors, security systems and home lighting from
inside your vehicle using the garage door opener
(Homeli nk). There are three buttons fo r th is in
the vehicle headliner that can be in used in place
of up to three hand-held transmitters .
To operate systems using the garage door open­
er, the three buttons in the roof headliner must
be programmed first .
A WARNING
-Make sure no people or objects a re in the im-
mediate vicinity of the equipment when using
or p rog ramming the garage door opener. Peo­
p le can be injured and objects can be dam­
aged if they are caught in the eq uipment .
(¼} Tips
-For security reasons, we recomme nd that
yo u cle ar the programmed buttons before
selling t he vehi cle.
- For add itiona l information about Homelink,
visi t www .home link.com.
- For Declaration of Comp liance to United
States FC C and In dustry Canada reg ulations
¢page 277.
41

Opening and closing
Programming buttons
Applies to vehicles: with garage door opener (Homelink)
Fig . 34 Hea dlin er: Control panel
You can program both fixed code and rolling code
systems us ing this procedu re .
P rogramming /rep rogramming butt ons
• Switc h the ignition on.
• Press and ho ld the button in the headliner that
you wou ld like to program for at least 10 sec­
onds. Or
• Select :
~ IC~A~ R~ I funct io n button> (Car )* systems
control button > Vehicle setting s> garage door
opener > Program garage door op ener .
• Fo llow the in struc tions in the Infota inment sys-
t em.
Deleting button programming
The programmed buttons cannot be deleted indi ­
vidua lly, they must be de leted all at once . Rep ro­
g ram the b uttons if necessa ry .
• Se lect : the
ICA RI function button > (Car }* sys­
tems
control button > Vehicle sett ings > Ga­
rage door op ener > Clear program s etting s>
Yes .
Displaying the version /status /country code
• Se lect : ICAR I funct ion button> (Car )* systems
control butt on > Vehicle sett ings > Garage
door opener > Ver sion information .
(D Tips
The ga rage doo r opener may need to be
synchronized with the system motor aft er the
programm ing . Fo llow th e manufacture rs in­
struc tio ns for do in g th is.
42
Operation
Applies to vehicles: with garage door opener (Homelink)
Req uirements The bu tton in the roof hea dliner
mu st be p rog rammed
~page 42 a nd t he ve hicle
mus t be w ithin range of the sys tem, such as the
garage door .
• Press the b utton to open the g arage doo r. T he
L E D @ ¢
page 4 2, fig. 3 4 blinks or tur ns on .
• Press t he b utton ag ain to open the garage door.
(1) Tips
T o open or close the gar age door, do not p ress
the bu tton l onge r ten seconds o r th e g arage
d oor opener wi ll swi tch to programming
mode.

Airbag syste m
to help provide this additiona l protection, the
side curtain airbag must inflate within the blink
of an eye at very high speed and with great force .
The side curtain airbag could injure you if your seating position is not p roper or upright or if
items are located in the area where the supp le ­
mental side curta in a irbag inflates . Th is applies
especia lly to children
c::> page 167 .
Although they a re not a soft pillow, side curtain
airbags can "cushion" the impact and in this way
they can help to reduce the risk of injury to the
head and the upper part of the body.
A fine dust may develop when the airbag deploys.
This is quite normal and does not mean there is a
fire in the veh icle .
Important safety instructions on the side
curtain airbag system
Airbags are only supplemental restraints . Always
properly wear safety belts and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety be lts and airbags
do their job to provide supp lemental p rotection.
,& WARNING
Improperly wear ing safe ty belts and imp roper
seating positions increase the risk of serious
perso nal injury and death whenever a vehicle
is being used.
- Never let occ upants p lace any parts of their
bodies in the area from which the side cur­
ta in a irbag inflate.
- Always make sure that the side curtain air­
bags can inflate witho ut interference .
- Use the built-in coat hooks only for lig ht­
weight clothing. Never leave any heavy or
sharp-edged objects in the pockets that may
interfere with airbag deployment and can
cause personal injury in a co llision.
- Never use hangers to hang clothes on the hooks.
- Only use factory- insta lled sun shades or, if
shades installed after the vehicle leaves the
factory, use on ly genu ine Audi su n shades.
166
- Never swing the sun visors over to the s ide
w indows if things such as pens, garage door
openers, hands-free speakers, etc. are at­
tached to the sun v isors. They could come
loose and cause serious injury if the side cur­
tain airbag inflates.
- A deploying airbag inflates in a fraction of a second and with great force.
- Never attach objects to the cover or in the
deployment zone of a s ide curtain airbag .
- The a irbag deployment zones must be kept
clear at al l times. Make sure there are no ob­
jects, pets, or other persons in the space be­
tween any vehicle occupant and any a irbag
at anyti me.
- Do not attach any accesso ries to the doors.
,& WARNING
- The a irbag system can deploy on ly once. If
the airbag has been t rigge red, the system
m ust be repl aced by an aut ho rized Aud i
dea le r o r qualified wor kshop.
- Always have wor k involving the side cu rtain
ai rbag system, removal and installation o f
the airbag componen ts, or other rep air s per ­
formed by a qualified dea le rship . Othe rwise
the airbag system may not work correctly .
- Never attempt to mod ify any components of
the airbag system in any way .

Fuses
Driver side cockpit fuse
assignment
Fig. 212 Driver's side of the cockpit : fuse pa nel w it h plastic
cl ip
Fuse panel @ (black)
No. Equipment
Electromechanical power steer ing, trailer
1 hitch, ionizer, switch strip, seat heating
(rear), electromechanica l park ing brake
Horn, climate control system, Gateway,
2 automatic dimming interior rearview mir-
ror
4 Parking aid, headlight range adjustment
5 Dynamic steering, Electronic Stabilization
Control (ESC)
6 Headlights
7 Adaptive cru
ise control
8 Front passenger's seat sensors, airbag
9 Gateway
10 E
ngine sound, night vision assist, garage
door opener (Homelink), parking aid
11 Video camera image processing
12 Headlights
13 Steering col umn switch module
14 Terminal 15 (luggage compartment)
262
Fuse panel @ (black)
15 Terminal 15 (engine compartment)
16 Starter
Fuse panel @ (brown)
No . Equipment
1 Infotainment
2 Infotainment
3 Front passenger
's seat
5 Airbag, Electron
ic Stabilization Control
(ESC)
6 Anti -theft alarm system
7 Electromechanical parking brake
8 Inter
ior lights
9 Windshie
ld video camera heating , light/
rain sensor
10 Lumbar support (driver's seat)
11 Driver's seat
12 Electronic stabilization control
13 Horn
14 Headlights
15 Front seat heating
16 Dynamic steering
Fuse panel © (red)
No. Equipment
1 Clutch pedal
2 Fuel pump
3 Brake light sensor
4 AdBlue (diesel engine)/engine acoustics
5 Rear door
6 Front
door
7 Electronic stabilization control
8 Windshield wiper motor
9 Headlight washer system
10 Interior lighting, climate control system
11 Headlights
12 Sunroof

M N <( (.J
'SI: ,...., \!) 1.1'1
N \!) ,....,
means that you risk both a substantia l reduction
in the operational safety of your vehicle and an
increased wear of vehicle parts~.& .
Author ized Audi dealers w ill perform this work in
a professiona l and competent manner or , in spe­
cial cases, refer you to a professional company
that spec ializes in such modifications.
A WARNING
Improper repairs and modifications can
change the way vehicle systems work and
cause damage to the veh icle and ser ious per ­
sonal injury .
If emergency repairs must be performed e lse­
where, have the veh icle examined by an au­
thorized Audi dealer as soon as possib le .
Declaration of
Compliance, Telecommu­ nication and Electronic
Systems
Radio Frequency Devices and Radiocommunica­
tion Equipment User Manual Notice.
T he manufacturer is not responsible for any radio
or TV interference caused by unauthorized modi­
fications to this equipment.
De vices
The fo llow ing devices each comply w ith FCC Part
15.19, FCC 15.21 and RSS-Gen Issue
1:
- Adaptive cruise control*
- Audi side assist*
- Cell phone package*
- Convenience key*
- Electronic immob ilizer
- Garage door opener (Home link)*
- Remote contro l key
FCC Part 15.19
This device complies with part 15 of the FCC
Rules . Operation is subject to the following two
conditions :
Co nsum er information
(1) This device may not cause harm ful interfe r­
ence , and
(2) this device must ac cept any inte rfe rence re­
ce ived, in clu ding in terference that may cause un­
desired operation.
FCC Part 15.21
CAUT ION:
Changes or mod ificat ions not expressly approved
by the party responsible for compliance could
vo id the user's authori ty to ope rate the equ ip­
me nt.
RSS-Gen Is sue 1
Operation is subject to the follow ing two condi­
tions:
(1) this device may not ca use interference, and
(2) this devi ce must ac cep t any inte rference , in­
clud ing interference that may cause undesired
operation of the device .
277

Date display . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Daytime running lights . . . . . . . . . . . . . . . . . . 43
Declaration of compliance Adaptive cruise control .... .. .. .. .. .. .
277
A d' .d . u I s1 e assist . .. .... .... . .... .. .. . 277
Cell phone package ........ ... ... ... . 277
Convenience key ............. .. .... . . 277
Electronic immobilize r ..... .. .. .. .. .. . 277
Garage door opener (HomeLink) . .. .. .. . 277
Remote control key . . . . . . . . . . . . . . . . . . 277
Defective light bulb warning
Indicator light . . . . . . . . . . . . . . . . . . . . . . .
21
Defrosting (windows)
Four- zone automatic climate control . . . . .
72
Three-zone climate control . . . . . . . . . . . . . 69
DEF (instrument cluster) . . . . . . . . . . . . . . . . 26
Determining correct load limit . . . . . . . . . .
247
Diesel
Indicator light . . . . . . . . . . . . . . . . . . . . . . .
20
Prewarming . . . . . . . . . . . . . . . . . . . . . . . . . 75
Diesel fuel... .. .............. ... .... .
211
Diesel particulate filter . . . . . . . . . . . . . . . . 198
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Dimming the rearview mirror . . . . . . . . . . . . 48
Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Door/rear lid warning
23
Doors Ch ild safety lock . . . . . . . . . . . . . . . . . . . . . . 39
Driver information system . . . . . . . . . . . . . . . 23
CD/radio display . . . . . . . . . . . . . . . . . . . . . . 23
Door/rear lid warning . . . . . . . . . . . . . . . . . 23
Efficiency program . . . . . . . . . . . . . . . . . . . . 25
Exterior temperature display . . . . . . . . . . . 23
On-board computer . . . . . . . . . . . . . . . . . . .
24
Service interval disp lay . . . . . . . . . . . . . . . . 26
Driver seating position . . . . . . . . . . . . . . . . .
127
drive select
adaptive air suspension/spor t . . . . . . . . . .
101
Adaptive dampers . . . . . . . . . . . . . . . . . . . 101
Curve light . . . . . . . . . . . . . . . . . . . . . . . . . 101
Engine sound . . . . . . . . . . . . . . . . . . . . . . . 101
Safety belt tensioner . . . . . . . . . . . . . . . . . 101
Sport different ial . . . . . . . . . . . . . . . . . . . . 101
M N Drive select . . . . . . . . . . . . . . . . . . . . . . . . . . 101 <(
~ Driving economically . . . . . . . . . . . . . . . . . . 198 ,....,
~ Driving safely . . . . . . . . . . . . . . . . . . . . . . . . 126
~ Driving through water . . . . . . . . . . . . . . . . . 196
Index
Driving time
Duplicate key . . . . . . . . . . . . . . . . . . . . . . . . . . 24
30
Dust filter
refer to Pollutant filter . . . . . . . . . . . . . . . . 68
Dynamic steering
Indicator light
E
192
Easy seat entry . . . . . . . . . . . . . . . . . . . . . . . . 75
Economy tips (efficiency program) . . . . . . . . 25
Efficiency program . . . . . . . . . . . . . . . . . . . . . 25
Electromechanical parking brake
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .
78
Releasing and closing . . . . . . . . . . . . . . . . . 78
Warning/indicator lights . . . . . . . . . . . . . . . 15
Electromechanical steering . . . . . . . . . . . . . 192
Indicator light . . . . . . . . . . . . . . . . . . . . . . 192
Electronic differential lock
Indicator light . . . . . . . . . . . . . . . . . . . . . . .
18
Electronic Differential Lock . . . . . . . . . . . . . 188
Electronic differential lock (EDL)
Warning/ind icator lights . . . . . . . . . . . . . . .
19
Electronic immobilizer . . . . . . . . . . . . . . . . . . 31
Electronic power control (EPC)
warning/indicator light . . . . . . . . . . . . . . . .
20
Electronic speed limiter . . . . . . . . . . . . . . . . . 29
Electronic stabilization control
Indicator light . . . . . . . . . . . . . . . . . . . . . . .
18
Electronic Stabilization Control . . . . . . . . . . 188
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . 189
Emergency actuation
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Emergency flasher . . . . . . . . . . . . . . . . . . . . . 46
Warning/indicator lights . . . . . . . . . . . . . . . 22
Emergency operation Emergency braking function (parking brake) .7.9
Fuel filler door . . . . . . . . . . . . . . . . . . . . . .
214
Luggage compartment lid . . . . . . . . . . . . . . 38
Selector lever . . . . . . . . . . . . . . . . . . . . . . .
113
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Emergency starting . . . . . . . . . . . . . . . . . . . 265
Energy management . . . . . . . . . . . . . . . . . .
194
Engine
Compartment . . . . . . . . . . . . . . . . . . . . . . .
220
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Prewarming . . . . . . . . . . . . . . . . . . . . . . . . . 75
281

M N <( (.J
'SI: ,...., \!) 1.1'1
N \!) ,....,
Octane rating ....................... 210
Recommendation ............ ... .. ... 210
Refuelling . ... .............. ... .. .. . 212
Saving fuel . . . . . . . . . . . . . . . . . . . . . . . . . 198
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . 272
F ueling
Fuel filler door emergency release . . . . . . 214
Fue l gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fu ses
Assignment . . . . . . . . . . . . . . . . . . . . . . . . 262
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . 261
G
Garage door opener (Homelink) . . . . . . . . . . 41
Garment hooks . . . . . . . . . . . . . . . . . . . . . . . . 60
Gauges Engine coolant temperature . . . . . . . . . . . . 10
General illustration . . . . . . . . . . . . . . . . . . . . . 8
Generator (warning/indicator lights) . . . . . . 16
Glossary of ti re and loading terminology .. 235
Glove compartment (cooled) . . . . . . . . . . . . . 60
Glow plug system
Indica tor light . . . . . . . . . . . . . . . . . . . . . . . 20
Gross Vehicle Weight Rating (GVWR) . . . . . 271
H
H ead -up display . . . . . . . . . . . . . . . . . . . . . . . 27
Headlight Assistt. .. ... ...... ............. ... .. 44
Headlight range control system . . . . . . . . . . 43
H eadlights
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Headlight range control . . . . . . . . . . . . . . . 22
Headlight range control system . . . . . . . . . 43
Washer reservoir . . . . . . . . . . . . . . . . . . . . 231
Washer system . . . . . . . . . . . . . . . . . . . . . . . 49
H ead restraints . . . . . . . . . . . . . . . . . . . . . . . 129
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
H eated
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 47
Rear window (four-zone automatic climate
control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Rear window (three-zone climate control) . 70
Index
Seats (four-zone automatic climate control) .7.2
Seats(three-zone climate control) . . . . . . . 70
Washer nozzles . . . . . . . . . . . . . . . . . . . . . . 49
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Heavy clothing and safety belts . . . . . . . . . . 137
High beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
High voltage warning label . . . . . . . . . . . . . 271
Hill descent control . . . . . . . . . . . . . . . . . . . 110
Homelink (garage door opener) . . . . . . . . . . 41
Hood (release lever) . . . . . . . . . . . . . . . . . . . 218
Hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How are child restraint system anchors relat-
ed to child safety . . . . . . . . . . . . . . . . . . . . . 180
How many airbags does my vehicle have? . . 150
How safety belt pretens ioners work 141
I
Ignition
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 17
Switching on/off . . . . . . . . . . . . . . . . . . . . . 7S
Imbalance (wheels) . . . . . . . . . . . . . . . . . . . 241
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Important things to do before driving . . . . 126
Improperly worn safety belts . . . . . . . . . . . . 141
Ind icator lights .. .. ............. .. .... . 11
also refer to Warning/ind icator lights . . . . 11
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . . 173
Inflation pressure (tires) . . . . . . . . . . . . . . . 243
Inspection interval . . . . . . . . . . . . . . . . . . . . . 26
Installing child safety seats Safety belts . . . . . . . . . . . . . . . . . . . . . . . . 177
Installing the upper tether strap on the an­
chorage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Instrument cluster . . . . . . . . . . . . . . . . . . . . . 10
Indicator lights . . . . . . . . . . . . . . . . . . . . . . 11
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjust ing illumination . . . . . . . . . . . . . . . . . 47
Instruments and controls General illustration . . . . . . . . . . . . . . . . . . . . 8
Interior lighting
Ambient lighting . . . . . . . . . . . . . . . . . . . . . 46
Front and rear . . . . . . . . . . . . . . . . . . . . . . . 46
Intermittent (w indshield w ipers) . . . . . . . . . 49
283
