e-tron
Power meter overview
Applies to vehicles: with plug-in hybrid drive
The power meter shows the status of the plug-in hybrid drive and the availability of the plug-in hybrid
system .
Fig. 88 Power m ete r overview
When opening the driver's door, the charge level
is shown in the inst rument cl uster when the igni­
tion is sw itched on, or the cha rge level and the
rema ining charge time for the high-vo ltage bat­
tery is displayed when charg ing .
The power mete r is located in the instrument
cluster in place of the tachomete r. A d igital tach­
omete r can be d isplayed in the driver info rmation
sys tem
¢ page 29 .
The power mete r gives feedback about the part ic­
u lar accelerator pedal position and shows the
current demand
(%) for electricity or fue l regard­
less of which engine is active.
An economical dr iv ing and recupe ration range is
shown in g reen
¢ page 104, Energy recovery (re­
cuperation) .
A driving range that is not economi­
cal is shown i n orange . In add ition, the batte ry
status provides information about the high -vo lt ­
age battery charge status.
(D Vehi cle no t drive ready (OFF)
@ Recuperation (CHARGE)
® Veh icle dr ive ready (READY)
@ E ff ic ient driving w ith electric moto r
and/or gasoline engine (E FFIC IEN­
CY)
® E conom ic driving wh ile the electric
moto r or gaso line engine is in the
partia l powe r range
® Driving in fu ll power range
(J) 100% output
@ Boos ting -the e lec tric mo tor as­
sists the gaso line engine (BOOS T)
® High-voltage battery charge level
@ T he EV mode is ac tive o r EV mode is
current ly not ava ilable
@ Speed limit for electric driving in EV
mode (80 mph/ 130 km/h)
Indicator lights and messages
Applies to vehicles: wit h plug-in hybrid drive
Also note the ind icator lights in ¢ page 13.
The gasoline engine is act ive when the Ill indica ­
tor light t urns on.
• Drive system : sy stem fault! Safely park vehi­
cle
T he re is a ma lfunction in the plug- in hybrid sys­
tem. The br ake booster and the power steer ing
may stop working . Stop the vehi cle immed iate ly
or as soon as possible. Park the ve hicle in a sa fe
place outdoors that is not near bu ildings, roof ..,_
101

e-tron
overhangs, carports or similar structures . Switch
the ignition
off. Have the problem corrected by
an author ized Audi dealer or authorized A udi
Serv ice Facility .
• Elec tric s ystem: o verheated. Safel y park ve­
hicle and check coo lant
The coolan t leve l is too low or the coolant tem ­
pera ture is too high .
S top the vehicle in the outdoo rs as soon as it is
safe ly possible . Switch the ignition off.
Read the important safety precautions ¢.&.
in
Coolant on page 109 and check the coolant level
¢page 108.
If the coolant level is OK, the malfunction may be
caused by the system overheating . Let the vehi­
cle's electric drive system cool down for some
time .
If the message turns
off after cooling down and
sw itching the ign ition back on, you ca n continue
driving. Contact an author ized Audi dealer or au­
thor ized A udi Se rvice Facility immed iate ly to have
the ma lf u nction co rrected.
If the indicator lig ht stays on, contact an author­
ized A ud i dealer or authorized Aud i Serv ice Faci li­
ty .
Bil Drive system : sys tem fault! Pleas e contact
work shop
There is a malfunction in the plug-in hybrid sys ­
tem. Drive to an authorized Audi dealer or au­
thor ized Audi Service Facility immediate ly to have
the ma lfunction corrected .
II Drive sy stem: system fault! Restart not po s·
sible. Ple ase contact wo rkshop
There is a mal func tion in the plug -in hybrid sys­
tem . Do not open the engine compartment lid .
Drive to an a uth orized Aud i dea le r or authorized
Aud i Serv ice Facility immediately to have the
malfunct io n corrected.
II Batter y temperature too low . Engine start
not possible . See owner's manual
The outside temperature is too low. The vehicle
can no longer start at temperat ures below -18 °F
102
(- 28 °C) . Contact your author ized Audi dealer or
autho rized Audi Service Facility.
POWER LIMIT Warning! Limited power
If the indicator l ight turns on and this message
appears , there may be an engine cont rol mal­
funct ion. The
(m ind icator light in t he instr u­
ment clus ter a lso turns on. The e ng ine o utput is
reduced. Dr ive to an a utho rized Audi dea ler or
autho rized Audi Service Facility immedia tely to
have the malfunction corrected.
II e -tron mode : EV curr ently unavailable
This message appears w hen the 1-,$ 1 button is
pressed and the conditions for e lectric drive
mode are no t me t.
IIJ Vehicle sound: malfunction! Pedestrians
cannot h ear vehicle. P lease contact Service
if the indicator light t urns on and this message
appears, pedestrians and bicyclists can no longer
hear the vehicle when it is driving in electric
mode. Turn off the veh icle and switch to dr iv ing
with the gasoline e ngine . To activate the gasoli ne
engine, select the
Charge batt ery mode
¢page 103 with the kl"I button. Drive to a n au­
tho rized Audi dea le r or a uthorized Audi Service
Facility immediate ly to have the malfunction cor ­
rected.
Range display
Applies to vehicles: wit h pl ug-in hy brid drive
Fig. 89 Ins trument cluster example image: range disp lay
The range can be d isplayed in the on -board com­
p uter ¢
page 29.
Depend ing o n the selected p lug-in hybrid mode,
the d isp lay disp lays the follow ing informa tion:
Ill>

,....,
N
0 > co ,...., @ electric motor range or combined total range
@ gasoline engine range
© electric motor range
(D Tips
The values given are based on the latest con­
sumption values.
Plug-in hybrid mode
Applies to vehicles: with plug- in hybrid drive
You can select between one electric mode and
three hybrid modes.
dV Electric mode (EV mode)
EV mode is electric driving only.
EV mode is active at the beginning of every drive
depending on the operating status. The LED in
the
!<=I'! button turns on. The. indicator light al­
so turns on in the instr ument cluster display. The
gasoline engine stays switched off as long as the
battery charge level and climate conditions allow
it .
You can drive with only electric power at speeds
up to approximately 80 mph (130 km/h).
Hybrid modes
The electric motor and the gasoline engine work
efficiently together in every hybrid mode.
OQ!t Hybrid: the battery charge is used as much as
possible when this mode is switched on. This
mode is best suited for long distances.
O\Q!J Hold battery: the high-voltage battery charge
level is conserved as much as possible.
•& Charge battery: the high-voltage battery will
charge if the charge level permits it. This causes
an increase in fuel consumption.
@ Tips
-Applies to "Hold battery" and "Charge bat­
tery": the battery charge level can also de­
crease depending on the driving style.
- If you select the sport driving mode S when
in EV mode, the Hold battery mode is auto­
matically selected. You can select the EV
e-tron
mode again with the 1.:.1•! button
r:!;> page 104.
- if the la• I r:!;> page 104 button is pressed
while in sport driving mode S, the transmis­
sion switches automatically to normal mode
0.
Conditions for electric driving
Applies to vehicles: wit h plug-in hybrid drive
The EV mode can only be switched on if the fol­
lowing conditions are met:
- The cha rge level of the high-voltage battery
must be suff icient.
- The temperatu re of the high-voltage battery
must be adequate (outside temperatures not
below approximately 14°F / -10°C and not
above 104°F / 40°C)
- The speed must not be higher than approxi-
mately 80 mph (130 km/h).
- Kick-down must not be activated.
- The sport drive mode
S must not be selected.
EV mode is switched off if one or more of the
conditions are not met. The gasoline engine will
start automatically. The
E] ind icator light turns
on as a message in the instrument cluster. The
LED in the
l d• I button and the B indicator light
turn off.
Electric drive mode will not continue automati­
cally. Reactivate the EV mode
r:!;> page 104.
(D Tips
It may be necessary for the gasoline engine to
run longer for technical reasons, such as
when condensation accumulates in the en­
gine. Driving exclusively in electric mode is
not possible in this phase.
103

e-tron
Setting plug-in hybrid drive modes
Applies to vehicles: w ith p lug -in hybrid drive
Fig. 90 Center console : but ton &
You can change modes when the vehicle is sta­
tionary or while driving. If the vehicle operating
conditions will not allow you to set the mode manually, the last active mode is se lected .
.,. Press the
laV I button repeatedly until the de­
sired mode is displayed in the instrument clus­
ter . Or :
.,. Select the mode in the MMI
n: press the
I MENU I function button> Car > Systems con­
trol button >
e-tron mode and select the de­
s ir ed mode .
The active mode is displayed the first time the
14 "1
button is pressed .
Plug-in hybrid functions
Applies to veh icles: with p lug -in hybrid drive
The functions described below activate automati­
cally depending on the driving style.
Full acceleration (boost)
The boost funct ion is act ivated by pressing the
accelerator pedal farther down (kick-down). The
l) Not availa ble in a ll Info ta inm en t sy ste m s.
104
vehicle is powered by both the gasoline eng ine
and the e lectric motor when in fu ll acce leration.
Boost is only ava ilable for a short time because it
uses a large amount of energy. Availability de ­
pends on the high-voltage battery charge level.
Coasting
The gasoline engine switches off and disengages
at speeds up to approximate ly 112 mph
(180 km/h) if the acce lerator pedal is not press­
ed and the D position is selected. Driving conser­
vatively like this can reduce fuel consumption .
Energy recovery (recuperation)
When braking, the electric motor will act as a
generator creating electric energy that is then
stored in the high-voltage battery . This also oc­
curs when the vehicle is coasting or driving down­
hill.
If the brakes are applied early and evenly, the electric motor w ill brake the vehicle @
¢page 101 , fig. 88. By doing this , a large
amount of the kinetic energy is recovered and
may be stored as e lectric energy in the high -volt ­
age battery . The conventional brakes are also ac­
tivated when the brakes are pressed very hard.
The strength of recuperation can depend on the
following factors:
- If you are in tiptronic mode
Q page 94 . Or
- If the sport driving mode 5 was selected.
The ene rgy recovery is shown in the energy flow
i ndica tor in the in str ument cluster display
¢page 106 .

e-tron
Energy flow indicator
Applies to veh icles: w ith p lug -in hybrid drive
Fig . 91 Instrument cluster: e nergy flow indicator
The energy f low indi cator can be disp layed in the
on-board com puter and in the M MI
1>.
The image is animated in the MMI 1>.
Image in the instrument cluster display
.,. Se lect the On-board compute r tab c> page 29.
Component Color
CD Gasoline engine orange
gray
@ High-voltage battery
Green
Green
(animated i n the
MMI al )
gray
@ motion ar row Gree
n
o range
green-orange
@ mot ion ar row Gree n
@ Disp lay of electric power
availability
•> Not available in a ll Infotainmen t systems .
ll Not available in all Infota inmen t sys tems .
106
Fig. 92 MMI*: energy flow i nd icato r
.,. Select the Ene rgy flow indi cator .
Image in the MMI display1
)
.,. Select in the MMI: I MENU ! button> Car.
Meaning
The gasoline engine is runn ing
The gasoline engine is off High-voltage battery charge level
H ig h-voltage battery is ch arging
Vehicle is not in dr ive ready mode
Elect ric d riving
D riving w ith the gasol ine engine
Driving wit h the gaso line engine and electric mo-
tor (boost)
Recupe ration
Refer to
c> page 107, Electric power availability
display

.... N
0 > CX)
rl I.Cl U"I

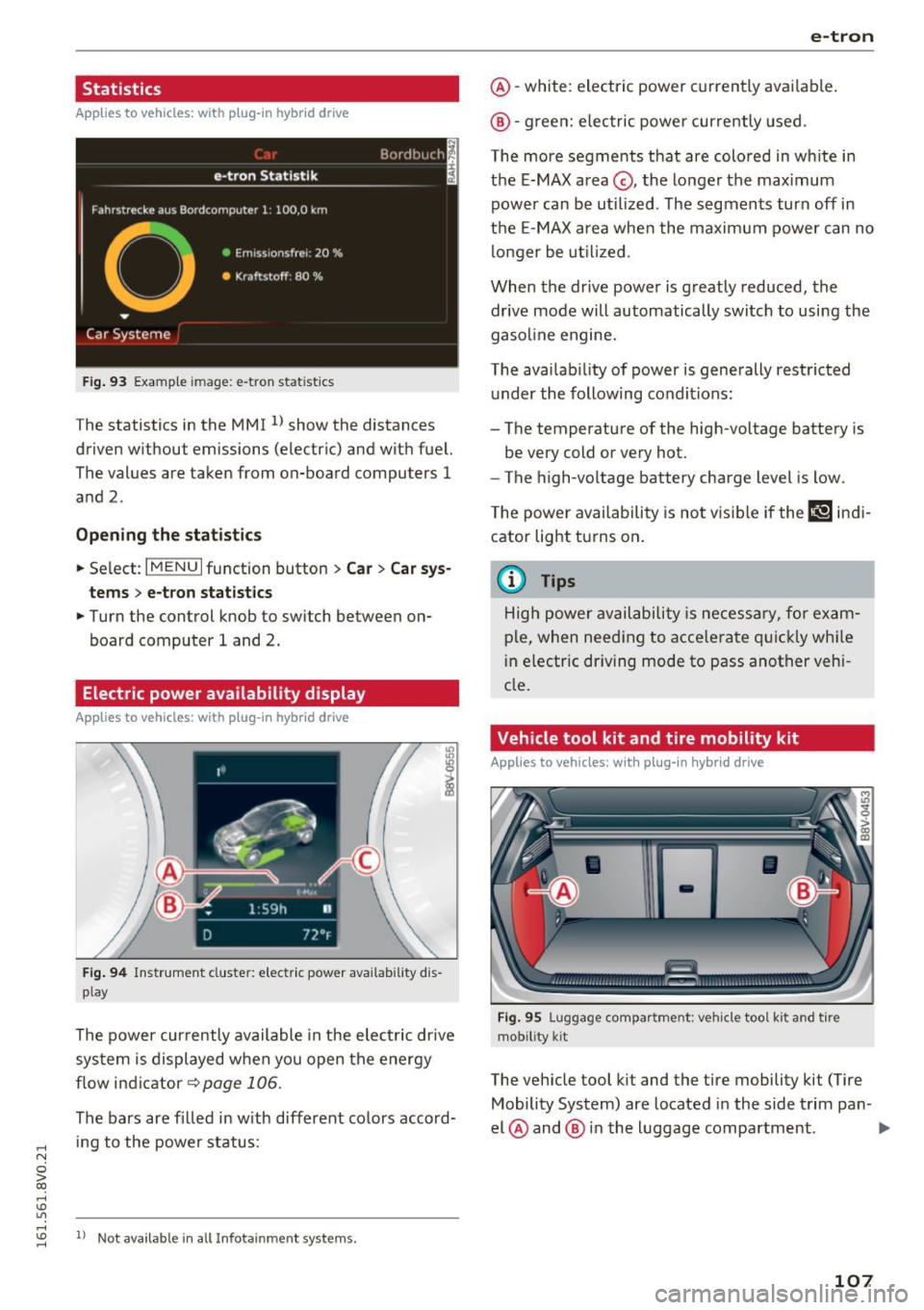

Statistics
Applies to vehicles: with plug-in hybrid drive
Fig. 93 Example image: e-tron stat istics
The statistics in the MMI l) show the distances
driven without emissions (electric) and with fuel.
The values are taken from on-board computers 1
and 2 .
Opening the statistics
.. Select: I MENU I function button >Car> Car sys­
tems
> e-tron statistics
.. Turn the control knob to switch between on­
board computer 1 and 2.
Electric power availability display
Applies to vehicles: with plug-in hybrid drive
Fig. 94 Instrument cluster; electric power availability dis­
p lay
The power currently available in the electric drive
system is displayed when you open the energy
flow indicator
r=> page 106.
The bars are filled in with different colors accord­
ing to the power status :
rl
~ 1> Not available in all Infotainment syste ms.
e-tron
@ -white: electric power currently available.
@ -green: electric power currently used .
The more segments that are colored in white in
the E-MAX area
0, the longer the maximum
power can be utilized . The segments turn off in
the E-MAX area when the maximum power can no
longer be utilized.
When the drive power is greatly reduced, the
drive mode will automatically switch to using the
gasoline engine.
The availability of power is generally restricted under the following conditions:
- The temperature of the high-voltage battery is
be very cold or very hot.
- The high-voltage battery charge level is low.
The power availability is not visible if the&] indi­
cator light turns on .
(D Tips
High power availability is necessary, for exam­
ple, when needing to accelerate quickly while
in electric driving mode to pass another vehi­
cle.
Vehicle tool kit and tire mobility kit
Applies to vehicles: with plug-in hybrid drive
Fig. 95 Luggage compartment: vehicle tool kit and tire
mo bility kit
The vehicle tool kit and the tire mobility kit (Tire
Mobility System) are located in the side trim pan-
el @ and @ in the luggage compartment. .,.
107

.... N
0 > CX)
rl I.Cl U"I ,....,
I.Cl ....
-Never transport the Audi e-tron charging
system or the special charg ing cab le* unse ­
cured.
- Store the Audi e-tron charging system or
the spec ial charging cable* in the storage
bag in the luggage compartment.
- Always transport the storage bag in the lug­
gage compartment and never in the passen­ ger compartment (for example the seats or
in front of them).
Charging overview
App lies to vehicles: with plug-in hybrid drive
Fig. 106 Charging system: control un it
Fig. 107 Radiator grille: ve hicle charging port a nd button
modu le
The charg ing unit is located behind the Audi r ings
on the front of the vehicle .
@
~ button/LED
® Display field
© Arrow buttons
@ !OK ! button
(D Charging timer button
@ Status LED
@ Immed iate charging button
e-tron
T he meaning of the different status displays for
the charging system and the vehicle can be found
u nder ¢ page 118, Status displays.
_& WARNING
-
There is an error in the control unit if the LED
@ is red . Disconnect the control unit from the
power supply. Refer to th is chapter
¢ page 118, Status displays.
@ Tips
- The device runs a self-test after power has
been restored to the control unit.
- You can activate a PIN for the control unit qpage 120.
- The vehicle cannot be started if a charging connector is connected.
Before charging
Applies to vehicles: with pl ug-in hybrid drive
Fig. 108 Radiator grille: open ing the c harging uni t cover
Fig. 10 9 Radiator grille: charging port cap
.. Unlock the vehicle if necessa ry¢ page 35.
.. Make sure that the selector lever is in the P po­
sition and drive ready mode is switched off
qpage 100.
"' Turn the lock until it is vertical to open the cov -
er on the charging un it qfig. 108. ..,.
115

e-tron
"'Slide the cover carefully to the side if necessa­
ry.
"' Remove the lock on the charging port
<=>fig . 109.
"'Insert power plug @ or© into the socket
<=>page 112, fig . 100.
"'Plug the vehicle charging connector ©
<=> page 112, fig . 100 into the vehicle charging
port <=>
fig. 109. The charging process starts au­
tomat ically if no charging timer is set.
(D Tips
Remove ice and snow from the cover using a
hand brush and solvent-free deicing spray.
Charging
App lies to veh icles: w ith plug- in hybrid drive
You can switch between the immediate charging
@ and charging timer(!) options during the
charging process if a charging timer is set. Press
the desired button to do this.
You have different charging options.
Immediate charging
To start the charging process immediately, press
the button @<=>page
115, fig. 107. The LED in
the button turns on.
Setting the charging timer
You can put a time delay on charging using the
charging timer in the MMI
l) You can set two dif­
ferent t imers.
"'If a timer was already set, press the button
(D
<=>page 115, fig . 107. The LED in the button
turns on .
"'To set a charging timer, press:
IM ENUI function
button
> Car> Car systems > Charging & e­
tron mode> Timer selection> Change timer.
"' Select Single timer or Repeat timer.
"' Set the time , date or day of the week.
"' You can activate climate control while charging
with the charging timer by selecting
Air condi ­
tioner
with the control knob. A./ appears in the
box . This activation is independent from the
l) Not availa ble in all Info ta inm en t system s.
116
MMI settings in the climate control menu
qpoge 122.
"' Press the ~I B_A_C_K~I button.
"' To activate the desired timer, confirm the set­
ting with the control knob. A./ appears in the
box.
Power save mode
Power save mode is automatically switched on
when the control unit has not been operated for
more than one minute. The
LED @<=>page 115,
fig. 106
stays on . All other displays turn off.
"' To switch power save mode on or off , press the
button
~ @ ¢page 115, fig. 106.
Power save mode ends automatically when the
vehicle charging connector is plugged into the ve­
hicle .
The high-voltage battery is charging when the
LED @blinks.
(D Tips
- Th e high-voltage battery also charges in
power save mode.
- If the charging process is in progress, it will
not be interrupted when power save mode
switches on.
- T he charging process can be interrupted at
any t ime. Press the active button on the ve­
hicle to do this
<=>page 115, fig. 107.
- The climate control output while charging
depends on the capacity of the electrical
connection. Additional information on cli­
mate control can be found under
<=> page 122.
'
-Air conditioning and heating is electric if
you select climate control using the charg­ ing timer. This may also be used in confined
spaces such as garages.
Setting the charging power level
App lies to vehicles: wit h pl ug-in hybr id drive
The control unit automatically recognizes the
voltage and the available current strength. You .,.
