2016 Alfa Romeo 4C service schedule

button down to go back to the
standard screen without saving.
Warnings volume
(Adjusting the failure/
warning buzzer volume)
With this function the volume of the
buzzer which accompanies the display
of failure/warning can be adjusted
according to 8 levels.
To set the desired volume proceed as
follows:
press button SET/briefly. The
volume “level” set previously flashes on
the display;
press theorbutton to make
the adjustment;
briefly press the SET/button to
go back to the menu screen or hold the
button down to go back to the
standard screen without saving.
Belt reminder (Buzzer
reactivation for SBR
indication)
(for versions/markets, where provided)
This function can be displayed only
after a dedicated Alfa Romeo
Dealership has deactivated the SBR
system (see "SBR system" paragraph in
the "Safety" chapter).
Service (Scheduled
servicing)
Using this function you can display
information about the mileage intervals
for vehicle servicing.
To consult this information, proceed as
follows:
press button SET/briefly. The
display shows the service interval in
kilometres (km) or miles (mi) according
to the previous setting (see the "Unit of
measurement (Setting the unit of
measurement)" paragraph);
briefly press the SET/button to
go back to the menu screen or hold the
button down to go back to the
standard screen.
IMPORTANT The “Scheduled Servicing
Plan” includes car maintenance at fixed
intervals, refer to the "Maintenance and
care" chapter. The "Service" function is
automatically displayed, along with the
warning light coming on, with key at
MAR-ON - starting from 2,000 km (or
equivalent value in miles) before these
deadlines and is activated again every
200 km (or equivalent value in miles).
Below 200 km servicing indications are
more frequent. The indication will
appear in kilometres or miles according
to the "Unit of measurement" settings.
In addition, when the vehicle mileage is
close to a scheduled servicing ("service
coupon"), and the key is turned to
MAR-ON, the
warning light willappear on the display along with the
word "Service" and followed by the
number of kilometres or miles left
before vehicle servicing. Contact a
dedicated Alfa Romeo Dealership. The
operations in the “Scheduled Servicing
Plan” will be performed and the
message will be reset.
Passenger airbags
(Activation/Deactivation
of passenger's side
front airbag)
This function is used to activate/
deactivate the front passenger's airbag.
Proceed as follows:
press the SET/button and, after
the message (Bag pass: Off) (to
deactivate) or (Bag pass: On) (to
activate) is displayed by pressing
buttons "
"or"", press the SET/
button again;
a confirmation request message will
appear on the display;
by pressing theorbuttons
select "Yes" (to confirm activation/
deactivation) or "No" (to cancel);
press the SET/button briefly, a
message confirming the selection will
be displayed and you will go back to
the menu screen, or hold the button
down to go back to the standard
screen without saving. The warning
light
in the instrument panel
switches on.
64
KNOWING THE INSTRUMENT PANEL

Warning lights on
displayWhat it means What to do
amberEXTERIOR LIGHTS FAILURE
The symbol and corresponding message appear on the
display if a fault is detected in one of the following lights:
daytime running lights (DRL)
side lights
dipped beam headlights
direction indicators
rear fog lights
reversing lights
number plate lights.
The fault relating to these lights may be caused by: one
or more blown fuses, one or more blown bulbs or a
broken electrical connection.Check, and if necessary replace the fuses involved, in
accordance with the "Fuse replacement" paragraph in
the "In an emergency" chapter; if this does not resolve
the fault, check, and if necessary replace, the bulbs
involved, in accordance with the "External bulb
replacement" paragraph in the "In an emergency"
chapter.
Should this operation also fail to resolve the fault,
contact the dedicated Alfa Romeo Dealership, for a
comprehensive check of the electrical system.
amberSERVICE (SCHEDULED SERVICING)
The digital warning light
is automatically displayed,
along with a dedicated message, with key at MAR,
2,000 km (or equivalent value in miles) before the
following scheduled servicing interval and is activated
again every 200 km (or equivalent value in miles).Contact a dedicated Alfa Romeo Dealership. The
operations in the “Scheduled Servicing Plan” will be
performed and the message will be reset.
79

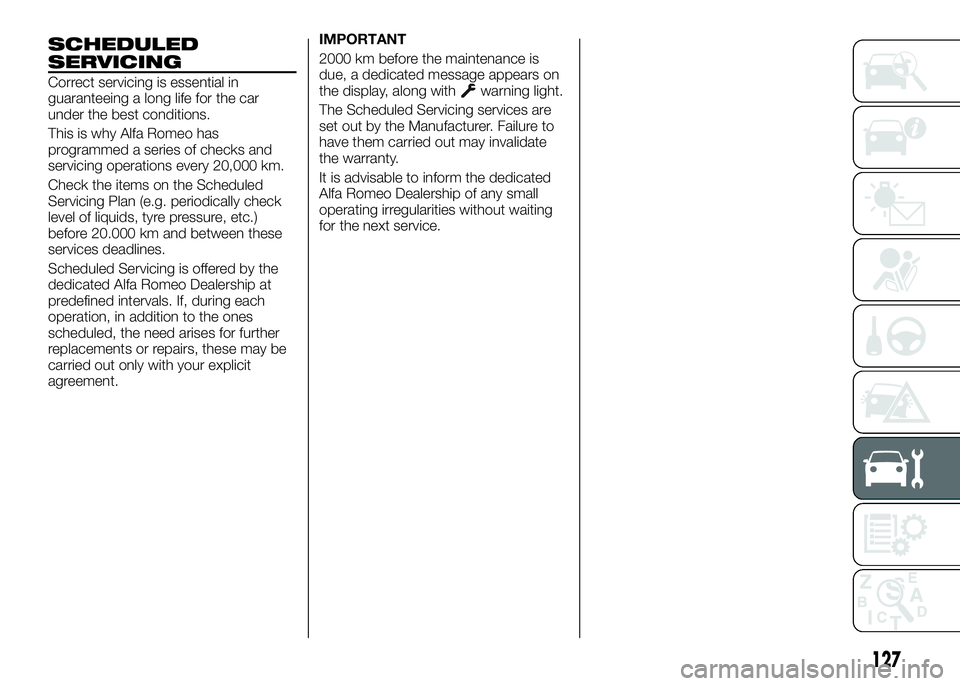

SCHEDULED
SERVICING
Correct servicing is essential in
guaranteeing a long life for the car
under the best conditions.
This is why Alfa Romeo has
programmed a series of checks and
servicing operations every 20,000 km.
Check the items on the Scheduled
Servicing Plan (e.g. periodically check
level of liquids, tyre pressure, etc.)
before 20.000 km and between these
services deadlines.
Scheduled Servicing is offered by the
dedicated Alfa Romeo Dealership at
predefined intervals. If, during each
operation, in addition to the ones
scheduled, the need arises for further
replacements or repairs, these may be
carried out only with your explicit
agreement.IMPORTANT
2000 km before the maintenance is
due, a dedicated message appears on
the display, along withwarning light.
The Scheduled Servicing services are
set out by the Manufacturer. Failure to
have them carried out may invalidate
the warranty.
It is advisable to inform the dedicated
Alfa Romeo Dealership of any small
operating irregularities without waiting
for the next service.
127
