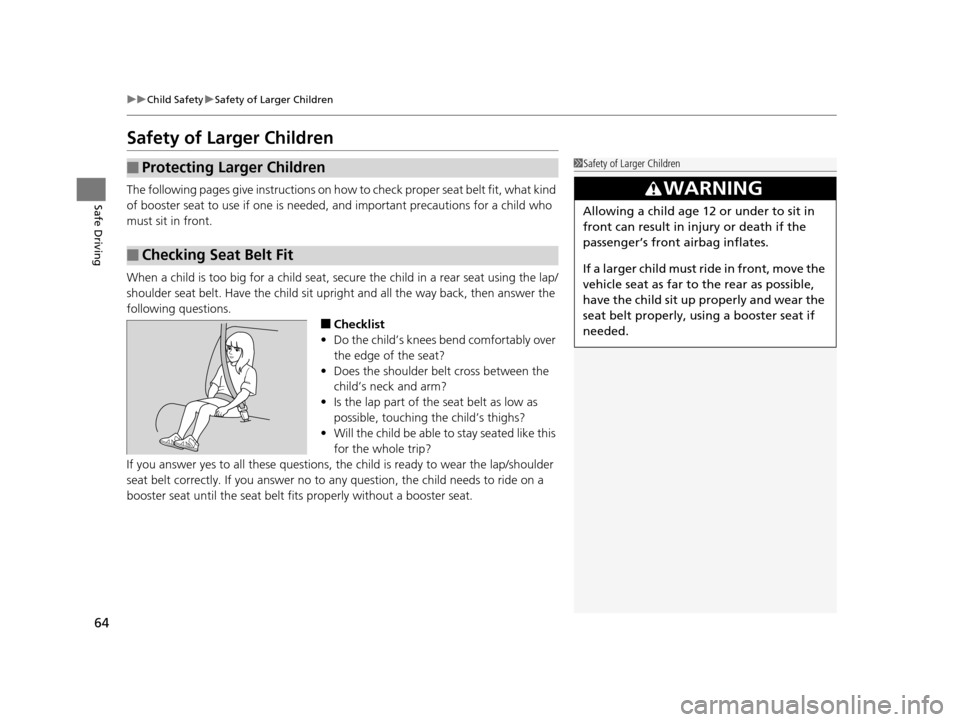

2016 Acura TLX Owner's Manual

64
uuChild Safety uSafety of Larger Children
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed , and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ri de in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
16 ACURA TLX-31TZ36100.book 64 ページ ２０１５年８月２６日　水曜日　午後１時５４分

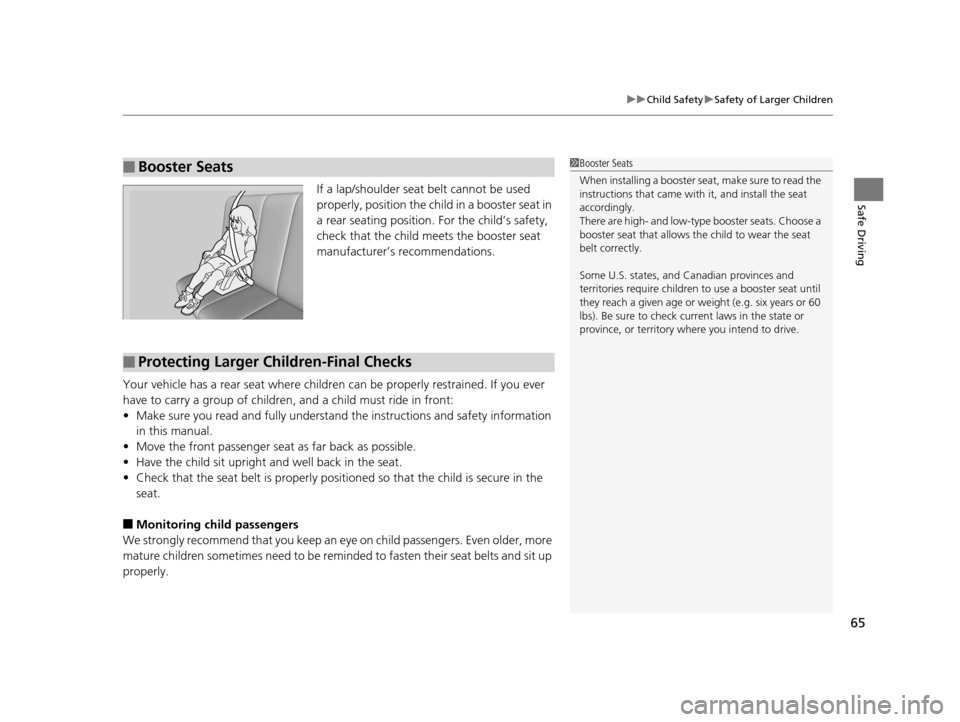

65
uuChild Safety uSafety of Larger Children
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
a rear seating position. For the child’s safety,
check that the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an ey e on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or we ight (e.g. six years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children-Final Checks
16 ACURA TLX-31TZ36100.book 65 ページ ２０１５年８月２６日　水曜日　午後１時５４分

66
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
16 ACURA TLX-31TZ36100.book 66 ページ ２０１５年８月２６日　水曜日　午後１時５４分

67
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Radiator Cap Dashboard Doorjambs
Sun Visors
U.S. models Canadian models
U.S. models only U.S. models
Canadian models
16 ACURA TLX-31TZ36100.book 67 ページ ２０１５年８月２６日　水曜日　午後１時５４分

68
16 ACURA TLX-31TZ36100.book 68 ページ ２０１５年８月２６日　水曜日　午後１時５４分

69
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 70
Multi-Information Display Warning and Information Messages ...................... 95
Gauges and Multi-Information Display .. 117
Gauges ............................................ 117
Multi-Information Display ................ 118
16 ACURA TLX-31TZ36100.book 69 ページ ２０１５年８月２６日　水曜日　午後１時５４分

70
Instrument Panel
Indicators
*1:On the left: Models with full color displayOn the right: Models wi thout full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Brake System
Indicator (Red)
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Comes on when the brake
fluid level is low.
●Comes on if there is a
problem with the brake
system.
●Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator comes
on while driving P. 513
●Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you normally
do.
●Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 513
Low Oil
Pressure
Indicator
●Comes on when you set the
power mode to ON, and goes
off when the engine starts.
●Comes on when the engine
oil pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 512
U.S.
Canada
(Red)
16 ACURA TLX-31TZ36100.book 70 ページ ２０１５年８月２６日　水曜日　午後１時５４分

71
uuIndicators u
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Electric
Parking Brake
Indicator
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Comes on when the parking
brake is applied, and goes off
when it is released.
●Blinks and the electric parking brake
system indicator comes on at the same
time - There is a problem with the electric
parking brake system. The parking brake
may not be set.
2Parking Brake P. 401
Electric
Parking Brake
System
Indicator
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.
●Comes on if there is a
problem with the electric
parking brake system.
●Comes on while driving - Avoid using the
parking brake and have your vehicle
checked by a dealer immediately.
2If the Electric Parking Brake System
Indicator Comes On P. 514
U.S.
Canada
16 ACURA TLX-31TZ36100.book 71 ページ ２０１５年８月２６日　水曜日　午後１時５４分
