2016 Acura MDX audio

185Audio
Playing an iPod®1.Open the USB cover.
2. Install the iPod® dock connector to the USB connector.■Connecting an iPod®
1 Connecting an iPod®
• Do not connect your iPod® using a hub.
• Do not use a device such as a card reader or
hard disk drive, as the device or your tracks
may be damaged.
• We recommend backing up your data before
using the device in your vehicle.
• Displayed messages ma y vary depending on
the device model a nd software version.
Your audio system ma y not work with all
software versions of these devices.
If the audio system does not recognize your
iPod®, try reconnecting it a few times or reboot
the device.
State or local laws may prohibit the operation of
handheld electronic devi ces while operating a
vehicle.
■ Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)iPod nano (1st to 7th generation) launch in 2012
iPod touch (1st to 5th generation) launch in 2012iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4s/iPhone 5/iPhone 5s/iPhone 5c
MDX_KA-31TZ58200.book 185 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

186
XX
Playing an iPod®
XSelecting iPod® Mode
Audio
Selecting iPod® Mode1.Connect the iPod® to the USB adapter cable in the console compartment.
2. Press the MENU button. (in AUDIO mode)
3. Rotate i, select Change Source . Press u.
4. Rotate i, select iPod. Press u.
2. Select Audio Source .
3. Select the iPod icon.
1Playing an iPod®
You can control an iPod® using voice
commands.
2 Voice Control Operation P. 6
2 Song By Voice
TM (SBV) P. 192
Available opera ting functions vary on models or
versions. Some functions may not be available on
the vehicle’s audio system.
If there is a problem, you may see an error
message on the audio/information screen.
2 iPod®/USB Flash Drive P. 307
Interface DialOn Demand Multi-Use Display
TM
MDX_KA-31TZ58200.book 186 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

187
XX
Playing an iPod®
XAudio Screen Control
Audio
Audio Screen ControlControl the audio system through the audio/information screen and On Demand
Multi-Use Display
TM.1.Rotate i or press u o display
the song list.
2. Rotate i, move w or y to
select a song from the list. Press
u .
X
Press MENU button to display
the menu items.2Audio Menu P. 189
1Audio Screen Control
This function may not be available depending on
models or versions.
Select r to go back to the previous screen.
Track list
Interface Dial
Continued
MDX_KA-31TZ58200.book 187 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

188
XX
Playing an iPod®
XAudio Screen Control
Audio
The following items are available:
• (Play/Pause): Plays or pauses a song file.
• cx : Select the previous or next track. Select and hold to move rapidly within a
track.
• Album bar: Select to display the album search screen.
Select c or x to search for an album.
• More : Select to display the menu item.
2
Audio Menu
P. 189
• Repeat : Repeats the current track.
• Shuffle :
Shuffle Albums : Plays all available albums in a se lected list (playlists, artists,
albums, songs, genres, or composers) in random order.
Shuffle All Songs : Plays all available files in a se lected list (playlists, artists,
albums, songs, genres, or composers) in random order.
On Demand Multi-Use Display
TM
Album Bar Album Image
Select an album
image.
Select the
album bar.
MDX_KA-31TZ58200.book 188 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

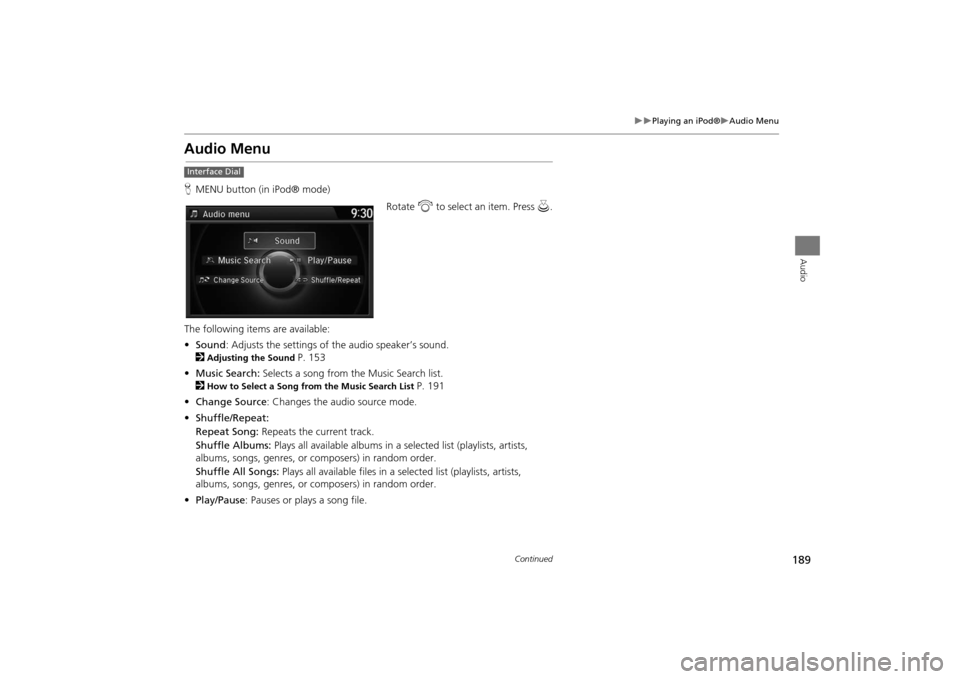

189
XX
Playing an iPod®
XAudio Menu
Audio
Audio MenuHMENU button (in iPod® mode)
Rotate i to select an item. Press u.
The following items are available:
• Sound : Adjusts the settings of the audio speaker’s sound.
2
Adjusting the Sound
P. 153
• Music Search: Selects a song from the Music Search list.
2
How to Select a Song from the Music Search List
P. 191
• Change Source : Changes the audio source mode.
• Shuffle/Repeat:
Repeat Song: Repeats the current track.
Shuffle Albums: Plays all available albums in a selected list (playlists, artists,
albums, songs, genres, or composers) in random order.
Shuffle All Songs: Plays all available files in a se lected list (playlists, artists,
albums, songs, genres, or composers) in random order.
• Play/Pause: Pauses or plays a song file.
Interface Dial
Continued
MDX_KA-31TZ58200.book 189 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

190
XX
Playing an iPod®
XAudio Menu
Audio
1.Select More.
2. Select a setting item.
The following item s are available:
• Sound: Displays the sound preferences screen.
2
Adjusting the Sound
P. 153
• Screen Settings: Displays the screen preferences screen.
2
Changing the Screen Settings
P. 88
On Demand Multi-Use Display
TM
MDX_KA-31TZ58200.book 190 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

191
XX
Playing an iPod®
XAudio Menu
Audio
HMENU button (in iPod® mode)
X Music Search
1.Move w or y to select a search
category. Press u.
2. Rotate i to select a file from the
Music Search list. Press u .
■How to Select a Song from the Music Search List
MDX_KA-31TZ58200.book 191 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

192
XX
Playing an iPod®
XSong By Voice
TM (SBV)
Audio
Song By Voice
TM
(SBV)
Use SBV to search for and play music from your HDD or iPod® using voice
commands.
HSETTINGS button
X System Settings
X Song by Voice
Rotate i to select On or Off . Press
u .
The following item s are available:
• On (factory default): Song By Voice commands are available.
• Off : Disable the feature.
■Settings Song By Voice
TM (SBV)
MDX_KA-31TZ58200.book 192 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
