2016 Abarth 500 sensor

❒press buttons+or–(with single
presses) to select the new setting for
this submenu option;
❒briefly press the MENU button
to
store the new setting and to go back
to the same submenu option
selected previously.
MENU ITEMS
Menu
This option allows you to access the
Setup menu.
Press the+or–button to select the
various Menu items.
Hold down the MENU button
to
return to the standard screen.
Lighting (Car interior
lighting adjustment)
On some versions, the instrument panel
is provided with a light sensor capable
of detecting environmental light
conditions and adjusting the brightness
of the panel accordingly.
The brightness of the instrument panel
may therefore change while travelling
following an event causing a switch
from "day" to "night" conditions (or vice
versa) in the passenger compartment
(e.g. in a tunnel, on avenues in
shadows, under flyovers, etc.). The
lighting can be adjusted in night mode
only with dipped headlights on. If the
headlights are not on, it can be
adjusted in day mode.This function is available, with the
dipped headlights on and in night-time
conditions, to adjust the brightness
of the instrument panel, control
buttons, radio and automatic climate
control displays.
On some versions, during the daytime
and with dipped headlights on, the
instrument panel, control buttons, radio
and automatic climate control displays
are set to maximum brightness.
To adjust the brightness, proceed as
follows:
❒press the MENU button
briefly to
make the display flash the previously
stored level;
❒press button+or–to adjust the
brightness level;
❒press the MENU button
briefly to
return to the menu screen or hold the
button down to return to the
standard screen without storing.
71

Speed warning (Speed
limit)
With this function it is possible to set
the car speed limit (km/h or mph); when
this limit is exceeded the driver is
alerted.
To set the desired speed limit, proceed
as follows:
❒briefly press the MENU button
:
the display will show the words
(Speed Buzzer);
❒press button+or–to select speed
limit activation ("On") or deactivation
("Off");
❒if the function is on, press+or–to
select the required speed limit and
then press MENU
to confirm.
NoteSetting is possible between 30
and 200 km/h, or 20 and 125 mph,
according to the previously set unit.
See the "Units of measurement
adjustment (Units of measurement)"
paragraph described below. The setting
will increase/decrease by five units
each time button+/–is pressed. Hold
down the button+/–to increase/
decrease the setting rapidly. Complete
the adjustment with single presses of
the button when you approach the
desired value.Press the MENU button
briefly to
return to the menu screen or hold
the button down to return to the
standard screen without storing.
To cancel the setting, proceed as
follows:
❒press the MENU button
briefly:
("On") will flash on the display;
❒press button–: ("Off") will flash on
the display;
❒press the MENU button
briefly to
return to the menu screen or hold the
button down to return to the
standard screen without storing.Headlight sensor
(Automatic
headlight/dusk sensor
sensitivity adjustment)
(for versions/markets, where provided)
This function is used to turn the
headlights on or off according to
external lighting conditions.
The dusk sensor sensitivity can be
adjusted according to 3 levels (level 1=
minimum sensitivity, level 2= average
sensitivity, level 3 = maximum
sensitivity); the greater the sensitivity
set, the lower the variation in outside
light required to activate the lights (e.g.
with setting at level 3, the headlights
switch on earlier at sunset compared to
levels 1 and 2).
Proceed as follows to set:
❒press the MENU button
briefly.
The level set previously flashes on
the display;
❒press+or–to set the value;
❒press the MENU button
briefly to
return to the menu screen or hold the
button down to return to the
standard screen without storing.
72
KNOWING THE INSTRUMENT PANEL

INSTRUMENT PANEL
LIGHTING ADJUSTMENT
(Brightness sensor)
Versions with colour display are
equipped with a brightness sensor
(fitted inside the instrument panel)
capable of detecting ambient
light conditions and adjusting the
brightness of the instrument panel
accordingly.
The behaviour of the instrument is as
follow:
❒"daytime" mode: the display can be
set to 8 levels;
❒"nighttime" mode: the display can be
set to 8 levels. The brightness of the
radio and automatic dual zone
climate control display is also
adjusted.
For adjusting, see paragraph "Menu
items" in this chapter.TRIP COMPUTER
IN BRIEF
The Trip Computer can be used to
display information on car operation
when the key is turned to MAR-ON.
This function is characterised by
two separate memories, called "Trip
A" and "Trip B", where the car's
"complete missions" (journeys) are
recorded in a reciprocally
independent manner, as well as, for
versions where provided, "Instant
info" and "Best average
consumption".
Both memories can be reset: i.e. start
of a new journey.
"Trip A" can be used to display the
values relating to:
❒Range (for versions/markets, where
provided)
❒Distance travelled A
❒Average consumption A
❒Instant consumption (for versions/
markets, where provided)
❒Average speed A
❒Trip time A (driving time)❒Reset Trip A.
"Trip B" can be used to display the
values relating to:
❒Distance travelled B
❒Average consumption B
❒Average speed B
❒Trip time B (driving time)
❒Reset Trip B.
The "Trip B" function may be disabled
(see "Activating Trip B"). "Range" and
"Instant consumption" values cannot be
reset.
"Instant info" displays the following
values (when they are not displayed in
the main screen, depending on
versions/markets):
❒Range
❒Instant consumption
"Best average consumption" displays a
screen summarising the best average
consumption (for versions/markets,
where provided). This information can
be reset.
80
KNOWING THE INSTRUMENT PANEL

Warning lights on
displayWhat it means What to do
amberEXTERIOR LIGHTS FAILURE
On some versions, the display will show the
symbol and a dedicated message if a fault is
detected in one of the following lights:
❒daytime running lights (DRL)
❒side lights
❒direction indicators
❒rear fog light
❒number plate lights.The fault may be caused by a blown bulb, a
blown protective fuse or a break in the electrical
connection.
amberASR SYSTEM
The symbol on the display flashes to indicate the
intervention of the ASR system.
amberPOSSIBLE ICE ON ROAD
The symbol is displayed when the outside
temperature falls to or below 3°C.
The display shows the dedicated message.
amberBRAKE LIGHT FAILURE
The display will show the symbol together with a
dedicated message if there is a fault in the brake
lights.
amberPARKING SENSOR FAILURE
The symbol is shown on the display together with
a dedicated message if there is a fault in the
parking sensors.
97

DASHBOARD FUSE BOX
fig. 123
DEVICE PROTECTED FUSE AMPERE
Right dipped headlight power supply F12 7,5
Left dipped headlight and headlight alignment control unit
power supplyF13 7,5
Engine compartment junction unit switch F31 5
Front, rear and luggage compartment roof lights F32 7,5
Diagnosis socket, radio, climate control, EOBD F36 10
Brake light switch, instrument panel node F37 5
Central door locking F38 15
Windscreen/rear window washer pump F43 15
Driver's side electric windows F47 20
Passenger side electric window F48 20
Parking sensor, control backlighting, electric mirrors F49 5
Airbag node F50 7,5
Radio switch,Blue&Me™, climate control system, brake
lights, clutchF51 7,5
Instrument panel node F53 5
146
IN AN EMERGENCY

ENGINE COMPARTMENT FUSE BOX
DEVICE PROTECTED FUSE AMPERE
Climate control fan F08 30
AvailableF09 15
Acoustic warnings F10 15
Engine management system (secondary loads) F11 10
Main beam headlights F14 15
Electric roof motor F15 20
Powertrain Control Module F17 10
AvailableF18 7,5
Air conditioning compressor F19 7,5
Heated rear window, mirror defrosters F20 30
Fuel pumpF21 15
Ignition coilF22 15
Powertrain Control Module F22 20
Braking system (control unit, valves) F23 20
+15 Braking system, electrical steering, yaw sensor F24 7,5
Fog lightsF30 15
AvailableF84 10
Front power socket (with or without cigar lighter) F85 15
147

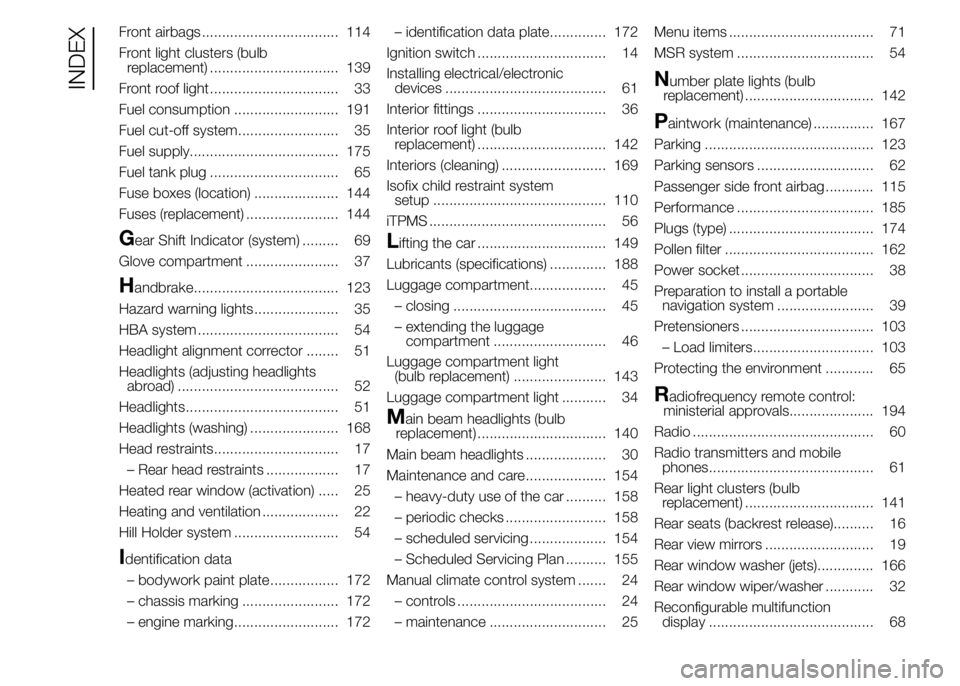

Front airbags .................................. 114
Front light clusters (bulb
replacement) ................................ 139
Front roof light ................................ 33
Fuel consumption .......................... 191
Fuel cut-off system......................... 35
Fuel supply..................................... 175
Fuel tank plug ................................ 65
Fuse boxes (location) ..................... 144
Fuses (replacement) ....................... 144
Gear Shift Indicator (system) ......... 69
Glove compartment ....................... 37
Handbrake.................................... 123
Hazard warning lights..................... 35
HBA system ................................... 54
Headlight alignment corrector ........ 51
Headlights (adjusting headlights
abroad) ........................................ 52
Headlights...................................... 51
Headlights (washing) ...................... 168
Head restraints............................... 17
– Rear head restraints .................. 17
Heated rear window (activation) ..... 25
Heating and ventilation ................... 22
Hill Holder system .......................... 54
Identification data
– bodywork paint plate ................. 172
– chassis marking ........................ 172
– engine marking.......................... 172– identification data plate.............. 172
Ignition switch ................................ 14
Installing electrical/electronic
devices ........................................ 61
Interior fittings ................................ 36
Interior roof light (bulb
replacement) ................................ 142
Interiors (cleaning) .......................... 169
Isofix child restraint system
setup ........................................... 110
iTPMS ............................................ 56
Lifting the car ................................ 149
Lubricants (specifications) .............. 188
Luggage compartment................... 45
– closing ...................................... 45
– extending the luggage
compartment ............................ 46
Luggage compartment light
(bulb replacement) ....................... 143
Luggage compartment light ........... 34
Main beam headlights (bulb
replacement) ................................ 140
Main beam headlights .................... 30
Maintenance and care.................... 154
– heavy-duty use of the car .......... 158
– periodic checks ......................... 158
– scheduled servicing ................... 154
– Scheduled Servicing Plan .......... 155
Manual climate control system ....... 24
– controls ..................................... 24
– maintenance ............................. 25Menu items .................................... 71
MSR system .................................. 54
Number plate lights (bulb
replacement) ................................ 142
Paintwork (maintenance) ............... 167
Parking .......................................... 123
Parking sensors ............................. 62
Passenger side front airbag ............ 115
Performance .................................. 185
Plugs (type) .................................... 174
Pollen filter ..................................... 162
Power socket ................................. 38
Preparation to install a portable
navigation system ........................ 39
Pretensioners ................................. 103
– Load limiters.............................. 103
Protecting the environment ............ 65
Radiofrequency remote control:
ministerial approvals..................... 194
Radio ............................................. 60
Radio transmitters and mobile
phones......................................... 61
Rear light clusters (bulb
replacement) ................................ 141
Rear seats (backrest release).......... 16
Rear view mirrors ........................... 19
Rear window washer (jets).............. 166
Rear window wiper/washer ............ 32
Reconfigurable multifunction
display ......................................... 68
INDEX

Refuelling the car ........................... 64
Replacing an exterior bulb .............. 139
Replacing an interior bulb ............... 142
Rev counter ................................... 79
Rim Protector (tyres)....................... 181
Rims and tyres ............................... 180
Roof lights...................................... 33
Roof rack/ski rack .......................... 50
Rubber hoses ................................ 165
Safety ........................................... 102
– seat belts .................................. 102
Saving fuel ..................................... 125
SBR system ................................... 102
Scheduled Servicing Plan ............... 155
Seat belts
– using the seat belts ................... 102
Seat belts (maintenance) ................ 104
Seats ............................................. 15
– Front seats ................................ 15
Sensors
– parking ...................................... 62
Side airbags (Side bags -
Window bags) .............................. 118
Side bags (front side airbags) ......... 118
Side lights/daytime running lights
(bulb replacement) ....................... 140
Snow chains .................................. 127
Snow tyres ..................................... 127
Speedometer ................................. 79
Sport front seats ............................ 16SPORT .......................................... 34
Starting the engine ......................... 122
Starting the engine ......................... 130
Steering ......................................... 179
Steering wheel ............................... 18
Storage compartment .................... 37
Storage compartment under
passenger seat ............................ 38
Sun roof ......................................... 40
Sun visors ...................................... 37
Supplies ......................................... 187
Suspension .................................... 178
Symbols......................................... 10
Technical specifications ................ 172
The keys ........................................ 11
– CODE Card ............................... 11
– Key without remote control........ 11
– Key with remote control............. 12
Third brake lights (bulb
replacement) ................................ 141
Towing the car ............................... 150
Towing trailers ................................ 126
Transmission .................................. 176
TRIP button.................................... 81
Trip Computer ................................ 80
TTC system ................................... 55
Ty r e s
– inflation pressures ..................... 183
– snow tyres................................. 182
– tyres provided ........................... 182Tyres - maintenance ....................... 164
Using the gearbox ........................ 124
Warning lights and messages ....... 83
Weights.......................................... 186
Wheel rims
– dimensions................................ 182
– wheels and tyres ....................... 164
Wheels and tyres ........................... 164
– tyre inflation pressure................. 183
Window bags (side airbags for
head protection) ........................... 118
Window cleaning............................ 32
Windows (cleaning) ........................ 168
Windscreen/rear window washer
fluid .............................................. 160
Windscreen/rear window wiper
(blades) ........................................ 165
Windscreen washer (jets) ............... 166
Windscreen wiper/washer .............. 32
