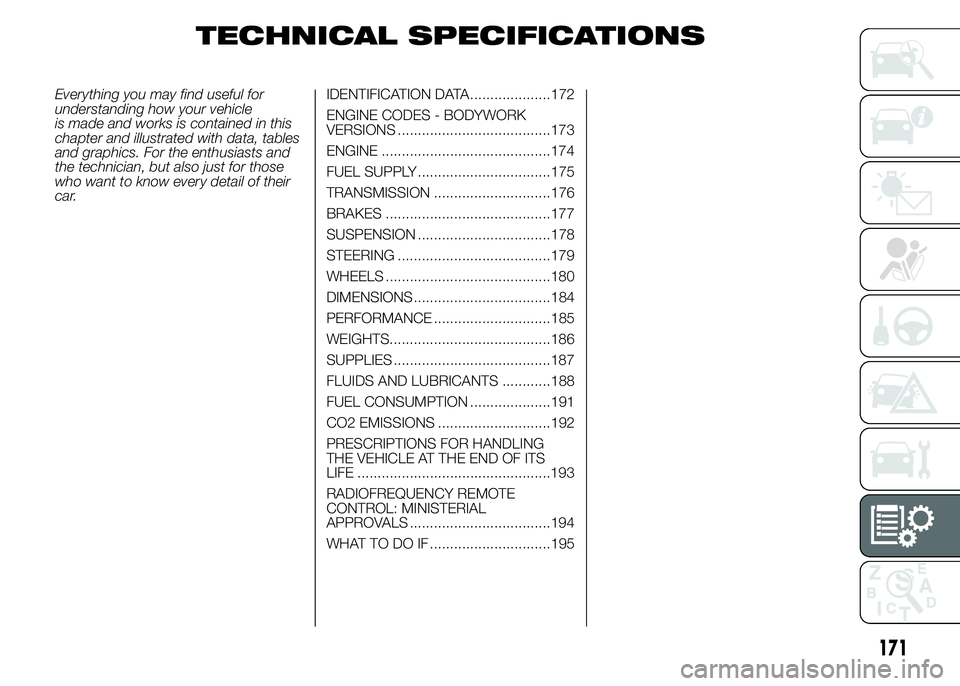

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
car.IDENTIFICATION DATA....................172
ENGINE CODES - BODYWORK
VERSIONS ......................................173
ENGINE ..........................................174
FUEL SUPPLY .................................175
TRANSMISSION .............................176
BRAKES .........................................177
SUSPENSION .................................178
STEERING ......................................179
WHEELS .........................................180
DIMENSIONS ..................................184
PERFORMANCE .............................185
WEIGHTS........................................186
SUPPLIES .......................................187
FLUIDS AND LUBRICANTS ............188
FUEL CONSUMPTION ....................191
CO2 EMISSIONS ............................192
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................193
RADIOFREQUENCY REMOTE
CONTROL: MINISTERIAL
APPROVALS ...................................194
WHAT TO DO IF ..............................195
171

IDENTIFICATION
DATA
The following identification codes are
printed and shown on the plates:
❒VIN plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
VIN PLATE
It is located on the left side of the
luggage compartment floor and it bears
the following identification data
fig. 134:
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.
FMaximum permitted weight of vehicle
fully laden plus trailer.
GMaximum permitted weight on first
axle (front).
HMaximum permitted weight on
second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
CHASSIS MARKING
It is located on the right side of the
luggage compartment floor and bears
the following data fig. 135:
❒type of vehicle;
❒chassis serial number.BODYWORK PAINT
IDENTIFICATION PLATE
The plate is applied on the external
tailgate post (left side) and it bears the
following data fig. 136:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
134AB0A0116135AB0A0118
136AB0A0117
