2015 YAMAHA XT1200Z ECO mode

INSTRUMENT AND CONTROL FUNCTIONS
3-31
3brand. Use of unleaded fuel will extend
spark plug life and reduce mainte-
nance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
EAU51152
Fuel tank
breather hose an d
overflow hoseBefore operating the motorcycle:
 Check each hose connection.
 Check each hose for cracks or
damage, and replace if necessary.
 Make sure that the end of each
hose is not blocked, and clean if
necessary.
 Make sure that the end of each
hose is positioned outside of the
cowling.
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazard s such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where ped estrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the en gine to i dle
more than a few minutes. Lon g
i d lin g can cause a b uild-up of
heat.

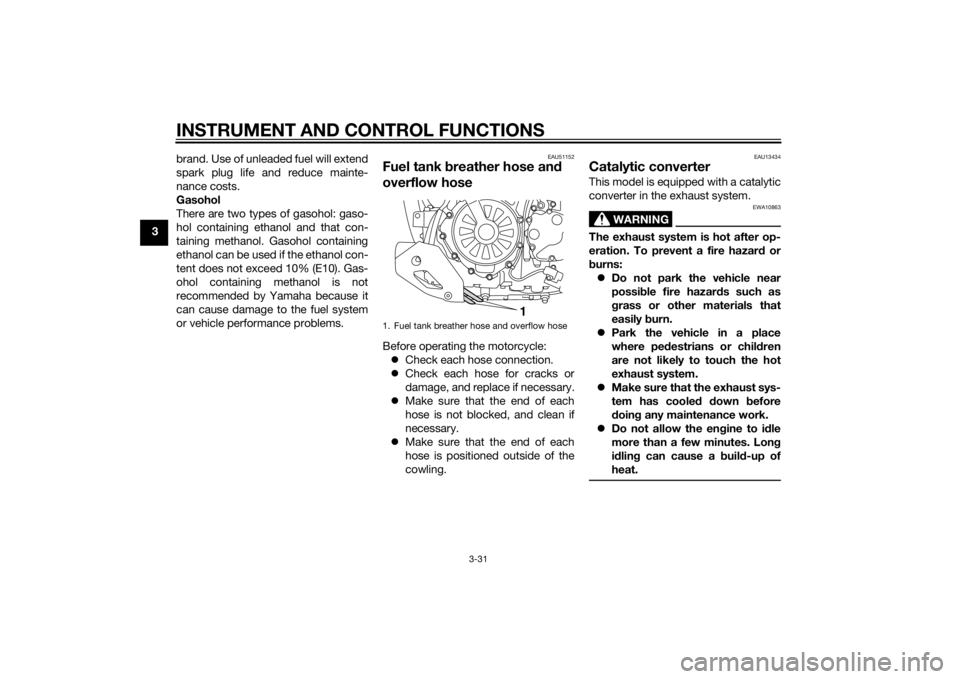

1. Fuel tank breather hose and overflow hose
1
U2BSE1E0.book Page 31 Thursday, July 31, 2014 4:31 PM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU48712
TIPThis model is equipped with:  a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the display will indicate error
code 30, but this is not a malfunc-
tion. Turn the key to “OFF” and
then to “ON” to clear the error
code. Failing to do so will prevent
the engine from starting even
though the engine will crank when
pushing the start switch.
 an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start
switch to restart the engine.
EAU54171
Startin g the en gineIn order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
 The transmission is in the neutral
position.
 The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-40 for more informa-
tion.
1. Turn the key to “ON” and make sure that the start/engine stop
switch is set to “ ”.
The following warning lights and
indicator lights should come on for
a few seconds, then go off. Oil level warning light
 Engine trouble warning light
 Traction control system indi-
cator/warning light
 Cruise control indicator lights
 Immobilizer system indicator
light
U2BSE1E0.book Page 1 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6
EAU42851
Clutch leverSince this model is equipped with a hy-
draulic clutch, adjusting the clutch le-
ver free play is not needed. However, it
is necessary to check the hydraulic
system for leakage before each ride. If
the clutch lever free play does become
excessive, and shifting becomes rough
or clutch slippage occurs, causing
poor acceleration, there may be air in
the clutch system. If there is air in the
hydraulic system, have a Yamaha deal-
er bleed the system before operating
the motorcycle.
EAU37914
Checking the brake lever free
playThere should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spon gy feelin g in the brake
lever can in dicate the presence of
air in the hy draulic system. If there is
air in the hy draulic system, have a
Yamaha dealer blee d the system be-
fore operatin g the vehicle. Air in the
hy draulic system will diminish the b
rakin g performance, which may re-
sult in loss of control an d an acci-

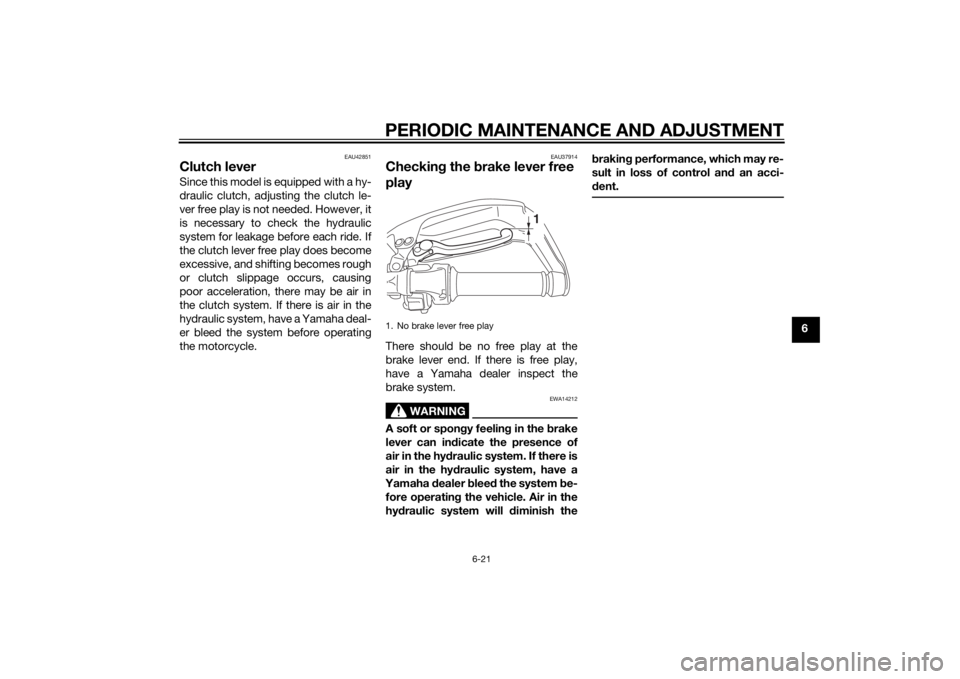

d ent.1. No brake lever free play
1
U2BSE1E0.book Page 21 Thursday, July 31, 2014 4:31 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:2250 mm (88.6 in)
Overall width:
980 mm (38.6 in)
Overall height: 1410/1470 mm (55.5/57.9 in)
Seat height: 845/870 mm (33.3/34.3 in)
Wheelbase:
1540 mm (60.6 in)
Ground clearance: 190 mm (7.48 in)
Minimum turning radius: 2700 mm (106.3 in)Wei ght:Curb weight:
257 kg (567 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Inline 2-cylinder
Displacement: 1199 cm³
Bore × stroke:
98.0 × 79.5 mm (3.86 × 3.13 in)
Compression ratio: 11.0 : 1
Starting system: Electric starter
Lubrication system:
Dry sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-40, 10W-50, 15W-40, 20W-40 or
20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:3.10 L (3.28 US qt, 2.73 Imp.qt)
With oil filter cartridge replacement:
3.40 L (3.59 US qt, 2.99 Imp.qt)Final gear oil:Type:
Yamaha genuine shaft drive gear oil SAE 80W-90 API GL-5 or SAE 80 API GL-4
Hypoid gear oil
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Coolant quantity:Coolant reservoir (up to the maximum level
mark):0.26 L (0.27 US qt, 0.23 Imp.qt)
Radiator (including all routes): 1.83 L (1.93 US qt, 1.61 Imp.qt)Air filter:Air filter element:Oil-coated paper elementFuel:Recommended fuel:
Premium unleaded gasoline (Gasohol (E10)
acceptable)
Fuel tank capacity:
23.0 L (6.08 US gal, 5.06 Imp.gal)
Fuel reserve amount: 3.9 L (1.03 US gal, 0.86 Imp.gal)Fuel injection:Throttle body:
ID mark:2BS1 00Spark plu g(s):Manufacturer/model:
NGK/CPR8EB9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:
1.466 (85/58)
Final drive: Shaft
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 20W-50SAE 20W-40SAE 15W-40SAE 10W-40SAE 10W-50
U2BSE1E0.book Page 1 Thursday, July 31, 2014 4:31 PM

SPECIFICATIONS
8-2
8
Secondary reduction ratio:2.987 (21/25 x 32/9)
Transmission type: Constant mesh 6-speed
Operation:
Left foot operation
Gear ratio: 1st:
2.769 (36/13)
2nd: 2.063 (33/16)
3rd: 1.571 (33/21)
4th:
1.250 (30/24)
5th: 1.042 (25/24)
6th: 0.929 (26/28)Chassis:Frame type:Backbone
Caster angle: 28.00 °
Trail:
126 mm (5.0 in)Front tire:Type:Tubeless
Size:
110/80R19M/C 59V
Manufacturer/model: BRIDGESTONE/BW501
Rear tire:Type:Tubeless
Size:
150/70R17M/C 69V
Manufacturer/model: BRIDGESTONE/BW502Loa din g:Maximum load:
213 kg (470 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):Loading condition:
0–90 kg (0–198 lb)
Front: 225 kPa (2.25 kgf/cm², 33 psi)
Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Loading condition: 90–213 kg (198–470 lb)
Front: 225 kPa (2.25 kgf/cm², 33 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:Spoke wheel
Rim size:
19M/C x MT2.50Rear wheel:Wheel type:Spoke wheel Rim size:
17M/C x MT4.00
Unifie d b rake system:Operation:
Activated by front brakeFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:
Single disc brake
Operation: Right foot operation
Specified brake fluid: DOT 4Front suspension:Type:Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
190 mm (7.5 in)Rear suspension:Type:Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: 190 mm (7.5 in)
U2BSE1E0.book Page 2 Thursday, July 31, 2014 4:31 PM

CONSUMER INFORMATION
9-1
9
EAU53562
Id entification num bersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442
En gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26471
Mo del la bel

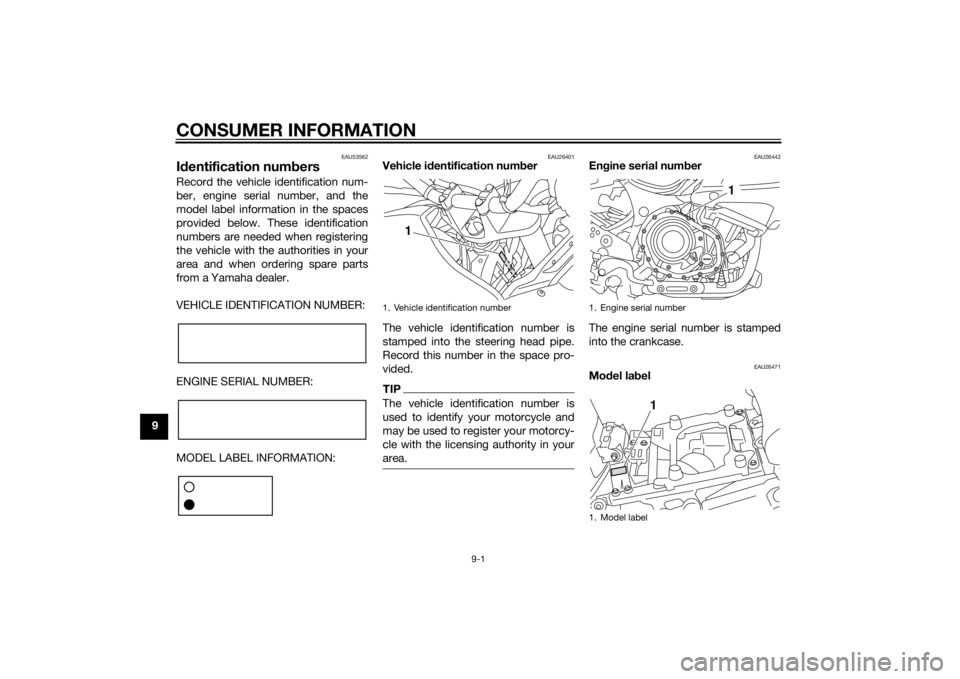

1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
U2BSE1E0.book Page 1 Thursday, July 31, 2014 4:31 PM

CONSUMER INFORMATION
9-2
9
The model label is affixed to the frame
under the rider seat. (See page 3-32.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
