DESCRIPTION
2-1
2
EAU10411
Left view
134
5
6
7
8
9
2
10

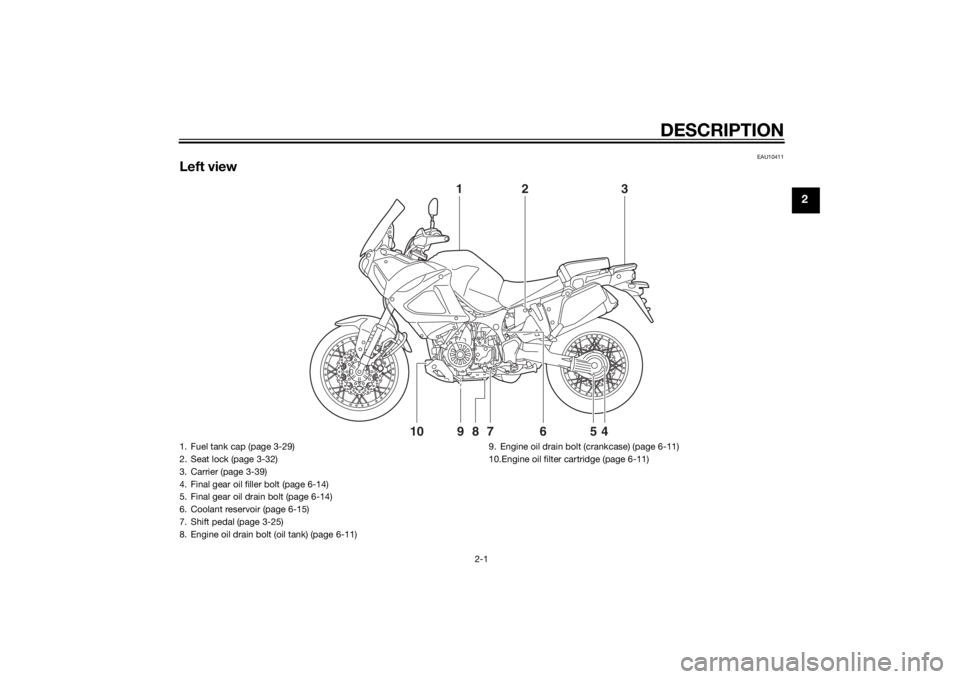

1. Fuel tank cap (page 3-29)
2. Seat lock (page 3-32)
3. Carrier (page 3-39)
4. Final gear oil filler bolt (page 6-14)
5. Final gear oil drain bolt (page 6-14)
6. Coolant reservoir (page 6-15)
7. Shift pedal (page 3-25)
8. Engine oil drain bolt (oil tank) (page 6-11) 9. Engine oil drain bolt (crankcase) (page 6-11)
10.Engine oil filter cartridge (page 6-11)
U2BSE1E0.book Page 1 Thursday, July 31, 2014 4:31 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3Information
display
There are 3 information displays. The
selected information display can be
switched by pushing the select switch.
The following items are shown in the
information displays:  an odometer display
 tripmeter displays
 a fuel reserve tripmeter display
 an estimated traveling range dis-
play
 an elapsed time display
 an air intake temperature display
 a coolant temperature display 
an average fuel consumption dis-
play
 an instantaneous fuel consump-
tion display
The items shown in each information
display can be selected.
To set or select the items shown, see
page 3-16.
Odometer display:
Tripmeter displays:“TRIP-1” and “TRIP-2” show the dis-
tance traveled since they were last set
to zero. When approximately 3.9 L (1.03 US
gal, 0.86 Imp.gal) of fuel remains in the
fuel tank, the last segment of the fuel
meter starts flashing. In addition, the
information display will automatically
change to the fuel reserve tripmeter
mode “TRIP-F” and start counting the
distance traveled from that point.
In that case, pushing the select switch
switches the display between the vari-
ous information displays in the follow-
ing order;
TRIP-F
→ Display–1 → Display–2 →
Display–3 → TRIP-F
To reset a tripmeter, use the select
switch to select the information display
that contains the tripmeter. Push the
1. Information display
2. Display–1
3. Display–2
4. Display–3
GEARN
5.0
TRIP-1 km
7.0
TRIP-2km
km
20
ODO
GEARN
11
RANGE km
12.3
FUEL AVG km/L
km/L
12.3
CRNT FUEL
GEARN
25
A.TEMP ˚C
Lo
C.TEMP ˚C
0:06
TIME TRIP
3
4
2
1
20
ODOkm
5.0
TRIP-1km
7.0
TRIP-2km
GEAR4
3.4
TRIP-F km
U2BSE1E0.book Page 13 Thursday, July 31, 2014 4:31 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
“RESET” button briefly so that the trip-
meter flashes, and then push the “RE-
SET” button again for at least 2
seconds while the tripmeter is flashing.
If you do not reset the fuel reserve trip-
meter manually, it will reset itself auto-
matically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
Estimated traveling range display:
The distance that can be traveled with
the remaining fuel in the fuel tank under
the current riding conditions is shown.
Elapsed time display:The time that has elapsed since the
key was turned to “ON” is shown. The
maximum time that can be shown is
99:59. This display is automatically reset
when the key is turned to “OFF”.
TIPThere are also “TIME–2” and “TIME–3”
elapsed time displays, but they cannot
be set to the information display. See
“Setting mode” on page 3-16 for de-
tailed information.Air intake temperature display:The air intake temperature display indi-
cates the temperature of the air drawn
into the air filter case.
This display shows the air intake tem-
perature from –9 °C to 93 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.TIP
–9 °C will be displayed even if the
air intake temperature falls below
–9 °C. 
The accuracy of the temperature
reading may be affected when rid-
ing slowly [approximately under
20 km/h (12 mi/h)] or when
stopped at traffic signals, railroad
crossings, etc.
Coolant temperature display:The coolant temperature display indi-
cates the temperature of the coolant.
The coolant temperature varies with
changes in the weather and engine
load.
If the message “Hi” flashes, stop the
vehicle, then stop the engine, and let
the engine cool. (See page 6-39.)
11
RANGE km
0:06
TIME TRIP
25
A.TEMP ˚C
Lo
C.TEMP˚C
U2BSE1E0.book Page 14 Thursday, July 31, 2014 4:31 PM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15598
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility of an acci dent or equipment damag e.
Do not operate the vehicle if you fin d any pro blem. If a pro blem cannot be corrected b y the proce dures provi ded in
this manual, have the vehicle inspecte d b y a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel • Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.
• Check fuel tank breather hose and overflow hose for obstructions, cracks or
damage, and check hose connections. 3-30, 3-31
En gine oil • Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage. 6-11
Final gear oil • Check vehicle for oil leakage. 6-14
Coolant • Check coolant level in reservoir.
• If necessary, add recommended coolant to specified level.
• Check cooling system for leakage. 6-15
Front brake • Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage. 6-22, 6-23
U2BSE1E0.book Page 1 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
21*Rear suspension re-
lay arm an
d con-
nectin g arm
pivotin g points • Check operation.
√√√√
22 En gine oil • Change.
• Check oil level and vehicle for oil
leakage. √√√√√√
23 En
gine oil filter car-
tri dge • Replace.
√√√
24 *Coolin g system • Check coolant level and vehicle
for coolant leakage. √√√√√
• Change coolant. Every 3 years
25 Final gear oil • Check oil level and vehicle for oil
leakage. √√ √
• Change. √√√
26 *Front an
d rear
b rake switches • Check operation.
√√√√√√
27 Movin
g parts an d
cab les • Lubricate.
√√√√√
28 *Throttle grip • Check operation.
• Check throttle grip free play, and
adjust if necessary.
• Lubricate cable and grip housing. √√√√√
29 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(
24000 mi)
U2BSE1E0.book Page 6 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
To chan
ge the final gear oil
1. Place an oil pan under the final gear case to collect the used oil.
2. Remove the final gear oil filler bolt, the final gear oil drain bolt and
their gasket to drain the oil from
the final gear case.
3. Install the final gear oil drain bolt and its new gasket, and then tight-
en the bolt to the specified torque. 4. Refill with the recommended final
gear oil to the brim of the filler
hole.
5. Check the oil filler bolt gasket for damage, and replace it if neces-
sary.
6. Install the oil filler bolt and its gas- ket, and then tighten the bolt to
the specified torque.
7. Check the final gear case for oil leakage. If oil is leaking, check for
the cause.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20095
To check the coolant level1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
 Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level in the
coolant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
Tightenin g torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)1. Final gear oil filler bolt
2. Final gear oil drain bolt
3. Gasket
2
3
1
Tightenin g torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommen ded final gear oil:
Yamaha genuine shaft drive gear oil
SAE 80W-90 API GL-5 or SAE 80
API GL-4 Hypoid gear oil
Oil quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Ti ghtenin g torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U2BSE1E0.book Page 15 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
63. If the coolant is at or below the
minimum level mark, remove the
reservoir cap. WARNING! Re-
move only the coolant reservoir
cap. Never attempt to remove
the ra diator cap when the en-
g ine is hot.
[EWA15162]
4. Add coolant to the maximum level
mark, and then install the reservoir
cap. NOTICE: If coolant is not
availa ble, use d istilled water or
soft tap water instea d. Do not
use har d water or salt water
since it is harmful to the en gine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possi ble, other-
wise the coolin g system will not
b e protecte d a gainst frost an d
corrosion. If water has been
a dde d to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as soon as possi
ble, otherwise the
effectiveness of the coolant will
b e re duce d.
[ECA10473]
EAU33032
Changin g the coolant
The coolant must be changed at the in-
tervals specified in the periodic main-
tenance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove the ra diator cap when the en gine is
hot.
[EWA10382]
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
2
1
3
1. Coolant reservoir cap
1
Coolant reservoir capacity (up to
the maximum level mark): 0.26 L (0.27 US qt, 0.23 Imp.qt)
U2BSE1E0.book Page 16 Thursday, July 31, 2014 4:31 PM
