2015 YAMAHA GRIZZLY 550 Owners Manual

8-13
8
2. Install the front carrier by installing the bolts
and tightening them to the specified torques.
3. Install panel A. Panel C
To remove the panel
1. Remove the seat. (See page 4-18.)
2. Remove the quick fastener screws, and then
pull the panel upward to remove it.
To install the panel1. Place the panel in the original position, and then install the quick fastener screws.
Tightening torques:
Carrier bolt (upper):34 Nm (3.4 m·kgf, 25 ft·lbf)
Carrier bolt (lower): 34 Nm (3.4 m·kgf, 25 ft·lbf)
Carrier bolt (under the fenders): 7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Panel C
2. Quick fastener screw
U2LB61E0.book Page 13 Friday, February 21, 2014 3:03 PM

8-14
82. Install the seat.
Panels D and E
To remove a panel
1. Remove panels A and C.
2. Remove the quick fastener screw and bolt, and then pull the panel upward to remove it.TIPTo ease removal of panel D, shift the drive select
lever into the reverse position.
1. Panel D
2. Quick fastener screw
1. Bolt
U2LB61E0.book Page 14 Friday, February 21, 2014 3:03 PM

8-15
8
To install a panel
1. Place the panel in the original position, and
then install the bolt and quick fastener screw.
2. Install panels A and C.
1. Panel E
2. Quick fastener screw
1. BoltU2LB61E0.book Page 15 Friday, February 21, 2014 3:03 PM

8-16
8Panels F and G
To remove a panel
1. Remove the panel bolts, footboard bolt, and
footboard nut.
2. Pull the panel downward while pushing the projection.
To install a panel
1. Place the panel in the original position.
1. Panel F
2. Footboard nut
3. Footboard bolt
4. Panel bolt
5. Projection
1. Panel G
2. Footboard nut
3. Footboard bolt
4. Panel bolt
5. Projection
U2LB61E0.book Page 16 Friday, February 21, 2014 3:03 PM

8-17
8
2. Install the bolts and nut, and then tighten them to the specified torques. Panel H
To remove the panel
1. Remove the seat. (See page 4-18.)
2. Remove the rear carrier by removing the
bolts.Tightening torques:Panel bolt:4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Footboard nut: 4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)1. Carrier bolt (under the fenders)
U2LB61E0.book Page 17 Friday, February 21, 2014 3:03 PM

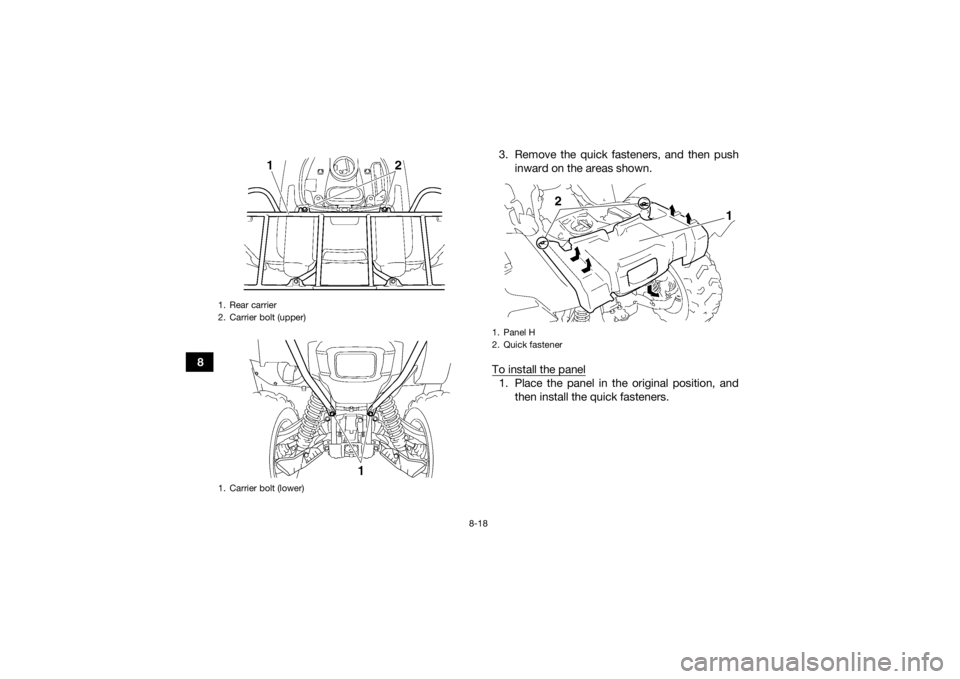

8-18
83. Remove the quick fasteners, and then push
inward on the areas shown.
To install the panel
1. Place the panel in the original position, and then install the quick fasteners.
1. Rear carrier
2. Carrier bolt (upper)
1. Carrier bolt (lower)
1. Panel H
2. Quick fastener
2
1
U2LB61E0.book Page 18 Friday, February 21, 2014 3:03 PM

8-19
8
2. Install the rear carrier by installing the bolts
and tightening them to the specified torques.
3. Install the seat.
EBU28672Removing the radiator grillsThe radiator grills can be removed to access the
radiator for cleaning.
To remove a radiator grill
Remove the quick fastener, pull the radiator grill
outward at the top, and then pull it upward.
To install a radiator grill
Place the radiator grill in its original position, and
then install the quick fastener.
Tightening torques:
Carrier bolt (upper):60 Nm (6.0 m·kgf, 43 ft·lbf)
Carrier bolt (lower): 60 Nm (6.0 m·kgf, 43 ft·lbf)
Carrier bolt (under the fenders): 7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Radiator grill
2. Quick fastener
21
U2LB61E0.book Page 19 Friday, February 21, 2014 3:03 PM

8-20
8
EBU23214Checking the spark plugThe spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the
spark plug should be removed and checked in ac-
cordance with the periodic maintenance and lubri-
cation chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug1. Remove the spark plug cap. 2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s
tool kit.
To check the spark plug 1. Check that the porcelain insulator around the center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap1
1. Spark plug wrench
U2LB61E0.book Page 20 Friday, February 21, 2014 3:03 PM
