EBU23427Differential gear oilThe differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level1. Place the ATV on a level surface.
2. Remove the differential gear oil filler bolt and its gasket, and then check the oil level in the
differential gear case. The oil level should be
at the brim of the filler hole. 3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to
raise it to the correct level.
4. Check the gasket for damage, and replace it if necessary.
5. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.

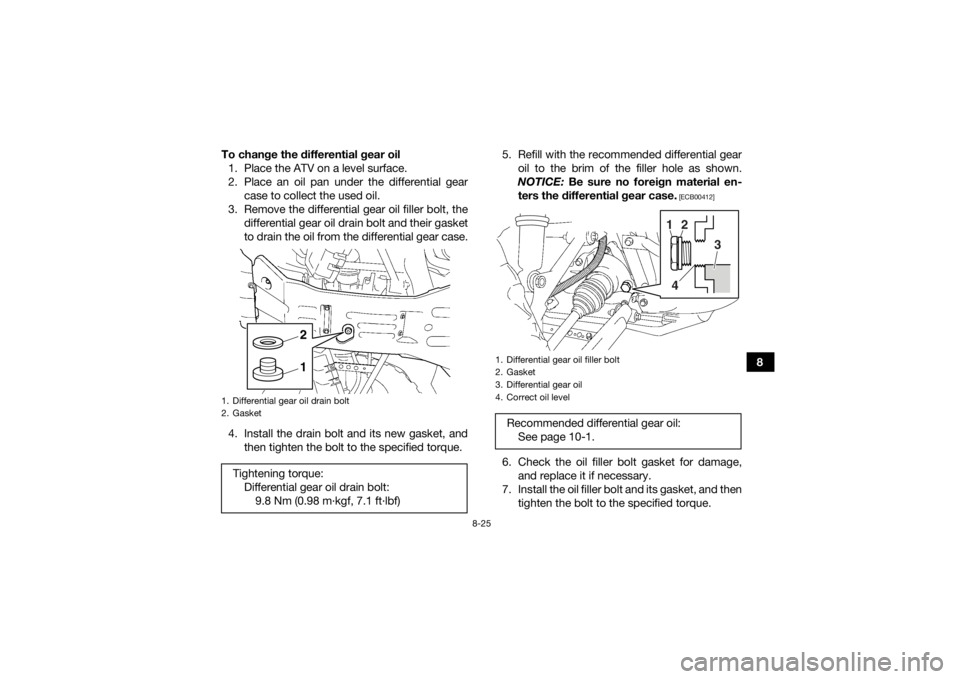

1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil levelTightening torque:Differential gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
3
4
U2LC61E0.book Page 24 Wednesday, February 26, 2014 3:56 PM

8-25
8
To change the differential gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the differential gear case to collect the used oil.
3. Remove the differential gear oil filler bolt, the differential gear oil drain bolt and their gasket
to drain the oil from the differential gear case.
4. Install the drain bolt and its new gasket, and then tighten the bolt to the specified torque. 5. Refill with the recommended differential gear
oil to the brim of the filler hole as shown.
NOTICE: Be sure no foreign material en-
ters the differential gear case.
[ECB00412]
6. Check the oil filler bolt gasket for damage, and replace it if necessary.
7. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
1. Differential gear oil drain bolt
2. GasketTightening torque:Differential gear oil drain bolt:9.8 Nm (0.98 m·kgf, 7.1 ft·lbf)
12
1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil levelRecommended differential gear oil: See page 10-1.
1
2
3
4
U2LC61E0.book Page 25 Wednesday, February 26, 2014 3:56 PM

8-26
88. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23471CoolantThe coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27127To check the coolant level1. Place the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. 2. Check the coolant level in the coolant reser- voir.
TIPThe coolant should be between the minimum and
maximum level marks. 3. If the coolant is at or below the minimum levelmark, remove panel C to access the coolant
reservoir. (See page 8-10.)
4. Remove the coolant reservoir cap, add cool- ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panel. NOTICE: If coolant is not avail-
able, use distilled water or soft tap water
instead. Do not use hard water or salt wa-
Tightening torque:
Differential gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)1. Maximum level mark
2. Minimum level mark
1
2
U2LC61E0.book Page 26 Wednesday, February 26, 2014 3:56 PM

8-29
8
9. After draining the coolant, thoroughly flush
the cooling system with clean tap water.
10. Install the coolant drain bolt and its new gas- ket, and then tighten the bolt to the specified
torque.
11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the res- ervoir to the maximum level mark, and then
install the reservoir cap. NOTICE: Mix anti- freeze with distilled water only. However, if
distilled water is not available, soft water
may be used for refilling. Do not use hard
water or salt water since they are harmful
to the engine.
[ECB00992]
13. Pour the recommended coolant into the radi-
ator until it is full.
14. Install the radiator cap, start the engine, let it idle for several minutes, and then turn it off.
15. Remove the radiator cap to check the coolant level in the radiator. If it is low, add sufficient
coolant until it reaches the top of the radiator,
and then install the radiator cap.
1. Coolant reservoir hoseTightening torque:Coolant drain bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
Antifreeze/water mixture ratio: 1:1
Recommended antifreeze: High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum
engines
Coolant quantity: Radiator capacity (including all routes):1.32 L (1.40 US qt, 1.16 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
U2LC61E0.book Page 29 Wednesday, February 26, 2014 3:56 PM

8-34
84. Insert the tailpipe into the muffler and align
the bolt holes.
5. Install the tailpipe bolts and tighten them to the specified torque.
WARNING
EWB02341Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior to
touching exhaust components. EBU23921V-belt cooling duct check hoseIf dust or water collects in the V-belt cooling duct
check hose, remove the hose and clean it.
1. Tailpipe
2. Spark arresterTightening torque:Tailpipe bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1. V-belt cooling duct check hose (left front side of ATV)
U2LC61E0.book Page 34 Wednesday, February 26, 2014 3:56 PM

8-44

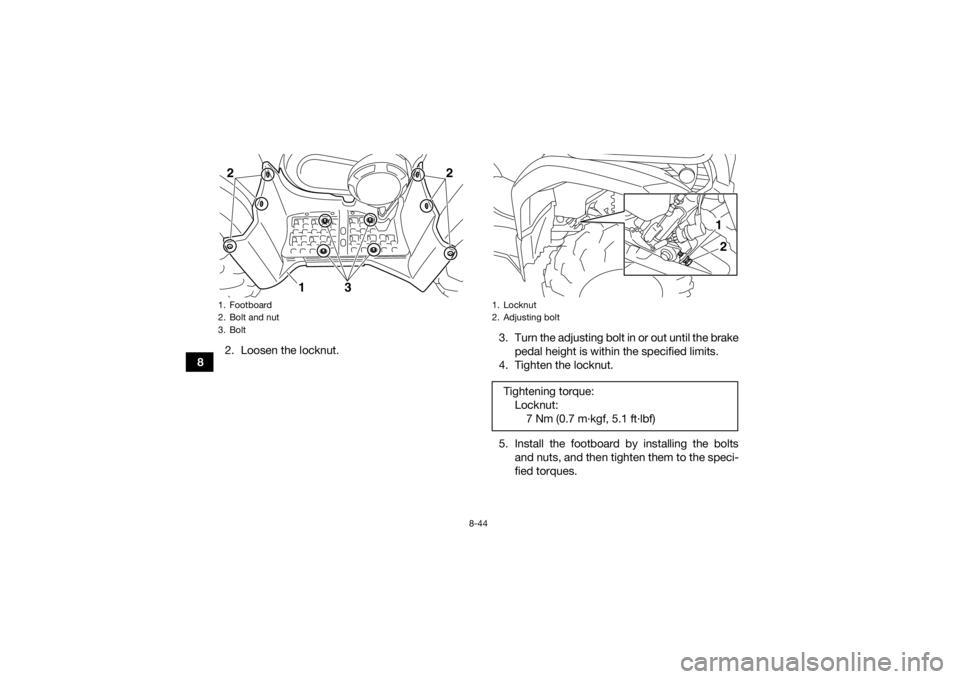

82. Loosen the locknut. 3. Turn the adjusting bolt in or out until the brake
pedal height is within the specified limits.
4. Tighten the locknut.
5. Install the footboard by installing the bolts and nuts, and then tighten them to the speci-
fied torques.
1. Footboard
2. Bolt and nut
3. Bolt22
31
1. Locknut
2. Adjusting boltTightening torque:Locknut:7 Nm (0.7 m·kgf, 5.1 ft·lbf)
21
U2LC61E0.book Page 44 Wednesday, February 26, 2014 3:56 PM

8-45
8

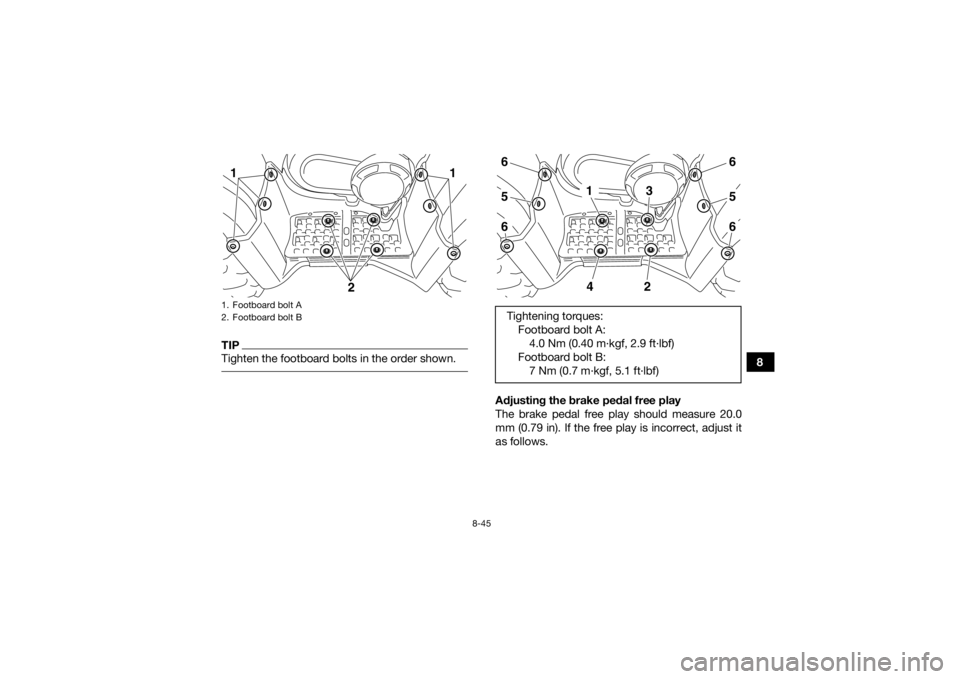

TIPTighten the footboard bolts in the order shown.
Adjusting the brake pedal free play
The brake pedal free play should measure 20.0
mm (0.79 in). If the free play is incorrect, adjust it
as follows.
1. Footboard bolt A
2. Footboard bolt B112
Tightening torques:Footboard bolt A:4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Footboard bolt B: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)656
656
2
4
3
1
U2LC61E0.book Page 45 Wednesday, February 26, 2014 3:56 PM

8-63
8
3. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified
torques.
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02281Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
1. Tapered nutTightening torques:Front wheel nut:55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear wheel nut: 55 Nm (5.5 m·kgf, 40 ft·lbf)
