Instrument operation
43
TIP:
The hour meter is selected at the Yamaha
factory.
Hour meter
The hour meter shows the total number of
hours that the engine has been running since
the watercraft was new.
TIP:
The elapsed time will be kept even if the bat-
tery terminals have been disconnected.
To switch to the hour meter from the voltme-
ter:
Push the “VOLT/HOUR” button for at least 1
second after the multifunction information
center is activated for more than 10 seconds.
The display switches to the hour meter from
the voltmeter.Voltmeter
The voltmeter shows the battery voltage.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.
If the battery voltage has dropped significant-
ly, “LO” is displayed on the voltmeter. If the
battery voltage has risen significantly, “HI” is
displayed. If “LO” or “HI” is displayed, imme-
diately return to shore and have a Yamaha
dealer service the watercraft.
To switch to the voltmeter from the hour me-
ter:
Push the “VOLT/HOUR” button for at least 1
second after the multifunction information
center is activated for more than 10 seconds.
The display switches to the voltmeter from
the hour meter.
EJU31515Fuel level meter
The fuel level meter shows the amount of fuel
remaining in the fuel tank. The amount of re-
maining fuel is shown using eight display
segments, which disappear two at a time as
the fuel level decreases.
1
Hour meter/voltmeter
1 “VOLT/HOUR” button
2 Hour meter
1
21
1“VOLT/HOUR” button
2 Vo l t m et e r
21
UF3J71E0.book Page 43 Friday, June 27, 2014 1:50 PM

Instrument operation
44
TIP:
The accuracy of the fuel level meter varies
depending on the operating conditions. Use
this function as a reference only.
EJU42342Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp.gal), the low-
est two fuel level segments, the fuel indicator,
and the “WARNING” indicator light blink, and
the buzzer sounds intermittently.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 59
for information on filling the fuel tank.)
After the fuel tank is refilled, the warning sig-
nals will be cleared when the engine is re-
started.
TIP:
Push any of the operation buttons for the
multifunction information center to stop the
buzzer.
EJU42271Oil pressure warning
If the oil pressure drops significantly, the oil
pressure warning indicator and the “WARN-
ING” indicator light blink, and the buzzer
sounds intermittently. At the same time, the
engine speed is limited.
If the oil pressure warning is activated, imme-
diately reduce the engine speed, return to
shore, and then check the engine oil level.
(See page 61 for information on checking the
engine oil level.) If the oil level is sufficient,
have a Yamaha dealer check the watercraft.
TIP:
Push any of the operation buttons for the
multifunction information center to stop the
buzzer.
EJU42371Engine overheat warning
If the engine temperature rises significantly,
the engine overheat warning indicator and
the “WARNING” indicator light blink, and the
buzzer sounds intermittently. Then, the en-
gine overheat warning indicator and the
“WARNING” indicator light stop blinking and
remain on, and the buzzer sounds continu-
1Fuel level meter
1
UF3J71E0.book Page 44 Friday, June 27, 2014 1:50 PM

Instrument operation
45
ously. At the same time, the engine speed is
limited.
If the engine overheat warning is activated,
immediately reduce the engine speed, return
to shore, and then make sure that water is
being discharged from the port (left) cooling
water pilot outlet while the engine is running.
If there is no discharge of water, stop the en-
gine, and then check the jet intake for clog-
ging. (See page 103 for information on the jet
intake.) NOTICE: If you cannot locate and
correct the cause of the overheating, con-
sult a Yamaha dealer. Continuing to oper-
ate at higher speeds could result in severe
engine damage.
[ECJ00042]
TIP:
Push any of the operation buttons for the
multifunction information center to stop the
buzzer.
EJU42281Check engine warning
If a sensor malfunction or a short circuit is de-
tected, the check engine warning indicator
and the “WARNING” indicator light blink, and
the buzzer sounds intermittently.
If the check engine warning is activated, im-
mediately reduce the engine speed, return to
shore, and have a Yamaha dealer check the
engine.
TIP:
Push any of the operation buttons for the
multifunction information center to stop the
buzzer.
EJU43170Multifunction display
The multifunction display shows various wa-
tercraft and environmental information, such
UF3J71E0.book Page 45 Friday, June 27, 2014 1:50 PM

Instrument operation
46
as the shift position and jet thrust nozzle trim
angle.
The display units of the multifunction display
are selected according to the display units of
the digital speedometer. (To change the dis-
play units, see page 41 for digital speedome-
ter display selection procedures.)
When “km/h” are selected as the display
units of the digital speedometer, values are
shown in kilometers/liters/degrees Celsius.
When “mph” are selected as the display units
of the digital speedometer, values are shown
in miles/gallons/degrees Fahrenheit.
EJU43180Shift indicator
This indicator shows the reverse gate shift
positions: “F” (forward), “N” (neutral), and “R”(reverse). (See page 32 for shifting proce-
dures.)
EJU43190Trim indicator
This indicator shows the trim angle of the jet
thrust nozzle. One of the two upper display
segments will be shown when the trim angle
is increased, and one of the two lower display
segments will be shown when the trim angle
1
Shift indicator
2 Watercraft information
3 Trim indicator
321
1“F” (Forward position)
1 “N” (Neutral position)
1 “R” (Reverse position)
1
1
1
UF3J71E0.book Page 46 Friday, June 27, 2014 1:50 PM

Instrument operation
47
is decreased. When the neutral position of
the jet thrust nozzle is selected, the middle
display segment will be shown. (See page 34
for trim angle selection procedures.)
EJU43201Watercraft information
The multifunction display shows various wa-
tercraft and environmental information. To
switch the display mode, push the “MO-
DE/RESET” button for less than 1 second.
The display mode changes in the following
order.
Compass (FX Cruiser SVHO)
This display shows the current direction of
the watercraft using the 8 major compass
points.
TIP:
The accuracy of the compass varies depend-
ing on the operating conditions. Use this
function as a reference only.
Average speed
This display shows the average speed in kilo-
meters per hour “AV KMH” or miles per hour
“AV MPH” since the measurement was start-
ed.
1Trim indicator
1 “MODE/RESET” button
1
1
UF3J71E0.book Page 47 Friday, June 27, 2014 1:50 PM

Instrument operation
48

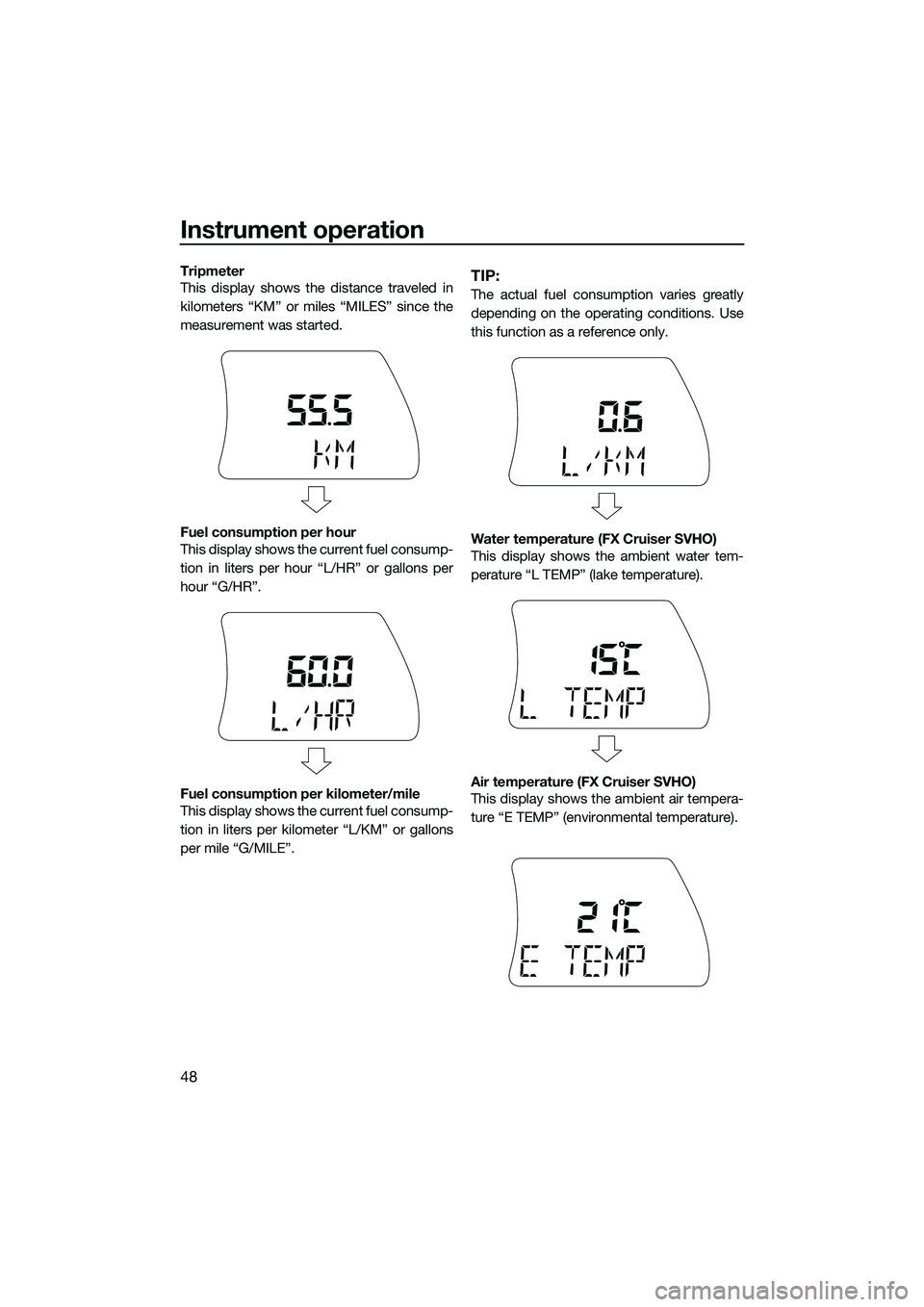

Tripmeter
This display shows the distance traveled in
kilometers “KM” or miles “MILES” since the
measurement was started.
Fuel consumption per hour
This display shows the current fuel consump-
tion in liters per hour “L/HR” or gallons per
hour “G/HR”.
Fuel consumption per kilometer/mile
This display shows the current fuel consump-
tion in liters per kilometer “L/KM” or gallons
per mile “G/MILE”.TIP:
The actual fuel consumption varies greatly
depending on the operating conditions. Use
this function as a reference only.
Water temperature (FX Cruiser SVHO)
This display shows the ambient water tem-
perature “L TEMP” (lake temperature).
Air temperature (FX Cruiser SVHO)
This display shows the ambient air tempera-
ture “E TEMP” (environmental temperature).
UF3J71E0.book Page 48 Friday, June 27, 2014 1:50 PM

Instrument operation
49
Average speed/Tripmeter modes
Average speed and distance traveled are re-
corded once the “START/STOP” button is
pushed to start the measurements, regard-
less of the current display.
TIP:
The measurements are performed only while
the engine is running.
The measurements are not saved if the en-
gine is stopped. The measurements are reset
automatically when the displays go off 25
seconds after the engine stops.
To start the measurements:
Push the “START/STOP” button for less than
1 second. The beeper sounds once and the
measurements start.
To stop the measurements:
Push the “START/STOP” button for less than
1 second while the measurements are being
recorded. The beeper sounds once and the
measurements stop.
To restart the measurements:
Push the “START/STOP” button for less than
1 second while the measurements are
stopped. The beeper sounds once and the
measurements restart.
To reset the measurements:
Push the “MODE/RESET” button for at least
2 seconds while the measurements arestopped. The beeper sounds twice and the
measurements are reset.
1
“START/STOP” button
2 “MODE/RESET” button
1
2
UF3J71E0.book Page 49 Friday, June 27, 2014 1:50 PM

Equipment operation
50
EJU40334
EquipmentEJU42203Seats
The front and rear seats are removable.
Remove the seats to access the engine com-
partment and removable watertight storage
compartment.
To remove the rear seat:
(1) Pull the rear seat latch up, and then lift upthe rear of the seat.
(2) Pull the seat rearward and remove it. To install the rear seat:
(1) Insert the projections on the front of the
seat into the stays on the deck.
(2) Push the rear of the seat down to secure- ly lock it in place.
To remove the front seat:
(1) Remove the rear seat.
(2) Pull the front seat latch up, and then lift up the rear of the seat.
1Seat latch
1
1Seat latch
1
