2015 VOLVO V60 Owner´s Manual

09 Maintenance and specifications
Vehicle care09
}}
383

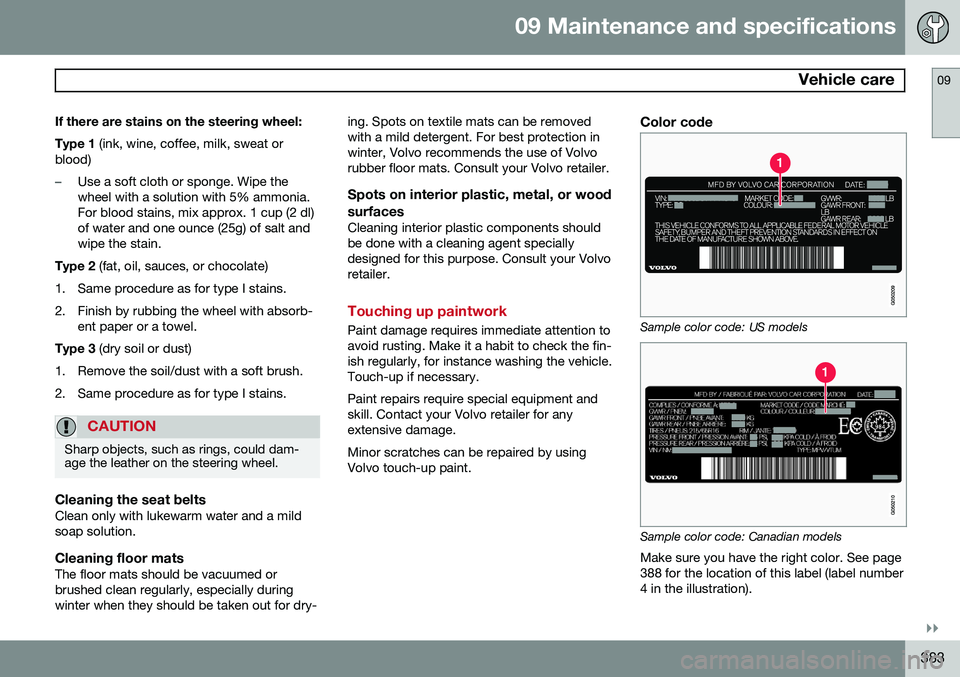

If there are stains on the steering wheel: Type 1
(ink, wine, coffee, milk, sweat or
blood)
–Use a soft cloth or sponge. Wipe the wheel with a solution with 5% ammonia.For blood stains, mix approx. 1 cup (2 dl)of water and one ounce (25g) of salt andwipe the stain.
Type 2 (fat, oil, sauces, or chocolate)
1. Same procedure as for type I stains.
2. Finish by rubbing the wheel with absorb- ent paper or a towel.
Type 3 (dry soil or dust)
1. Remove the soil/dust with a soft brush.
2. Same procedure as for type I stains.
CAUTION
Sharp objects, such as rings, could dam- age the leather on the steering wheel.
Cleaning the seat beltsClean only with lukewarm water and a mild soap solution.
Cleaning floor matsThe floor mats should be vacuumed orbrushed clean regularly, especially duringwinter when they should be taken out for dry- ing. Spots on textile mats can be removedwith a mild detergent. For best protection inwinter, Volvo recommends the use of Volvorubber floor mats. Consult your Volvo retailer.
Spots on interior plastic, metal, or wood surfaces
Cleaning interior plastic components should be done with a cleaning agent speciallydesigned for this purpose. Consult your Volvoretailer.
Touching up paintwork
Paint damage requires immediate attention to avoid rusting. Make it a habit to check the fin-ish regularly, for instance washing the vehicle.Touch-up if necessary. Paint repairs require special equipment and skill. Contact your Volvo retailer for anyextensive damage. Minor scratches can be repaired by using Volvo touch-up paint.
Color code
Sample color code: US models
Sample color code: Canadian models
Make sure you have the right color. See page 388 for the location of this label (label number4 in the illustration).

09 Maintenance and specifications
Vehicle care 09
384

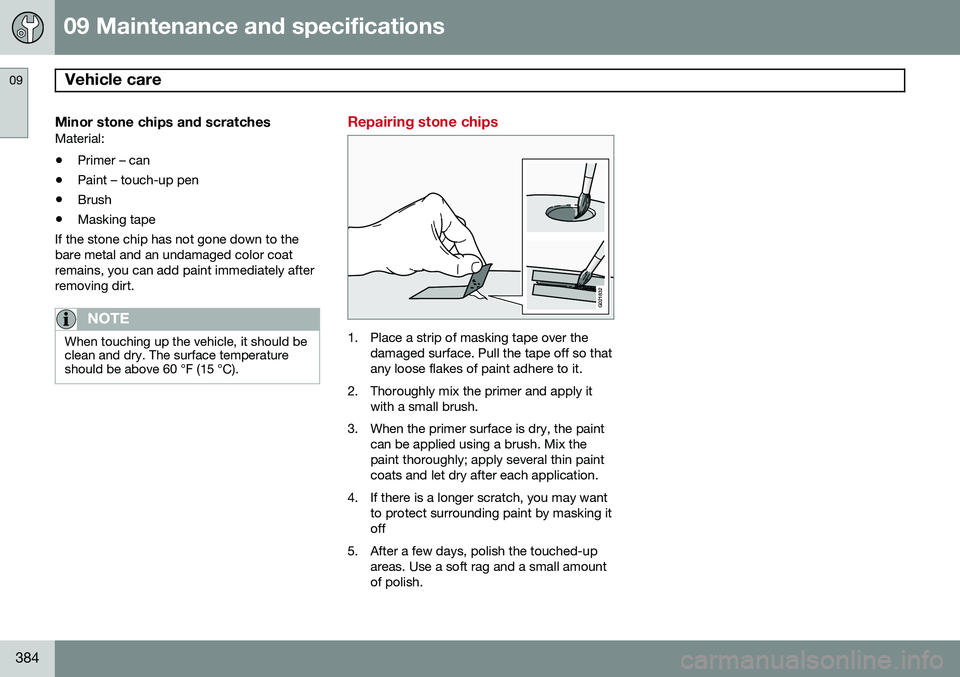

Minor stone chips and scratchesMaterial:
• Primer – can
• Paint – touch-up pen
• Brush
• Masking tape
If the stone chip has not gone down to the bare metal and an undamaged color coatremains, you can add paint immediately afterremoving dirt.
NOTE
When touching up the vehicle, it should be clean and dry. The surface temperatureshould be above 60 °F (15 °C).
Repairing stone chips
G021832
1. Place a strip of masking tape over the damaged surface. Pull the tape off so that any loose flakes of paint adhere to it.
2. Thoroughly mix the primer and apply it with a small brush.
3. When the primer surface is dry, the paint can be applied using a brush. Mix thepaint thoroughly; apply several thin paintcoats and let dry after each application.
4. If there is a longer scratch, you may want to protect surrounding paint by masking itoff
5. After a few days, polish the touched-up areas. Use a soft rag and a small amountof polish.

09 Maintenance and specifications
09
385

386

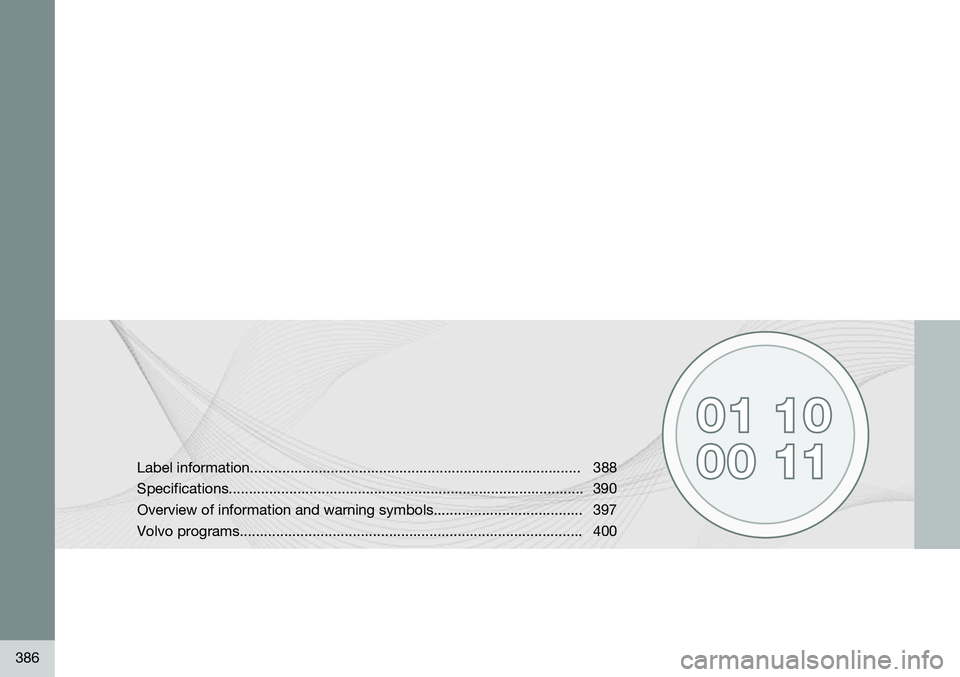

Label information.................................................................................. 388 Specifications........................................................................................ 390
Overview of information and warning symbols..................................... 397
Volvo programs..................................................................................... 400

S P E C I F I C A T I O N S

10 Specifications
Label information
10
388

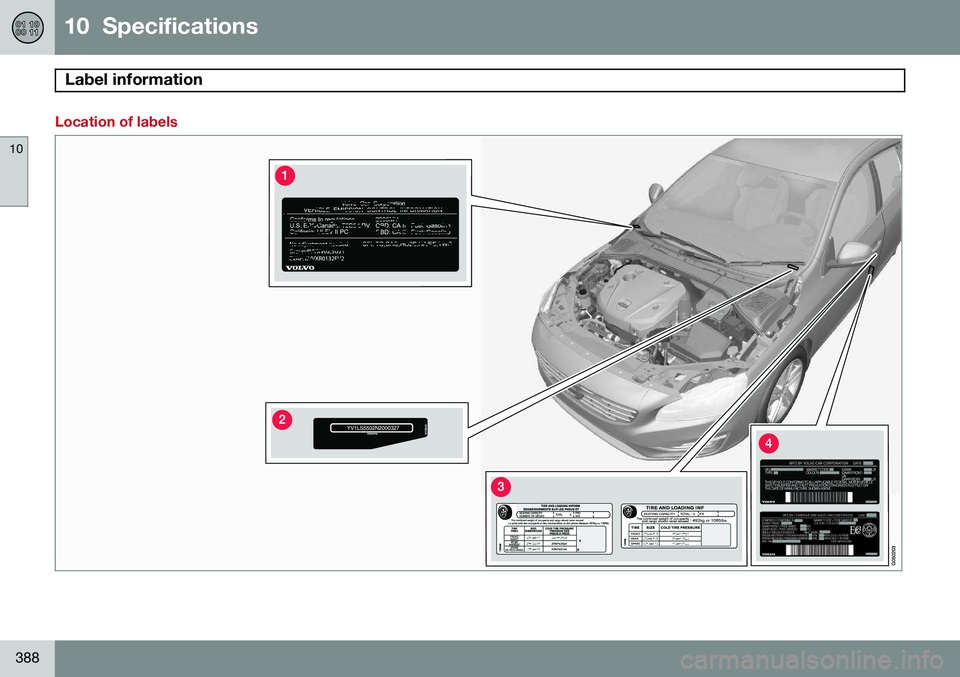

Location of labels

10 Specifications
Label information
10
389
List of labels
Vehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.
Vehicle Identification Number (VIN). The VIN plate is located on the top left surface of the dashboard. The VehicleIdentification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). This labelalso includes codes for paint color, etc.For further information regarding theseregulations, please consult your Volvoretailer. U.S. models have the upperdecal; Canadian models have the lowerone.

10 Specifications
Specifications
10
390
Dimensions–V60
Posi-tionDimensionin (mm)
AWheelbase109.3 (2776)
BLength182.5 (4635)
CLoad length, floor, seatbackdown
68.9 (1749)
DLoad length, floor38.5 (978)
EHeight58.4 (1484)
Posi-tionDimensionin (mm)
FLoad height25.9 (658)
GTrack, front62.5 (1588) A
/
62.1 (1578) B
HTrack, rear62.4 (1585)A
/
62.0 (1575) B
ILoad width, floor42.6 (1082)
Posi-
tionDimensionin (mm)
JWidth73.4 (1865)
KWidth incl. door mirrors (foldedout)
82.6 (2097)
LWidth incl. door mirrors (foldedin)
74.8 (1899)
A with 16" wheels
B with 17" wheels
