2015 VOLKSWAGEN POLO lights

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
2/32

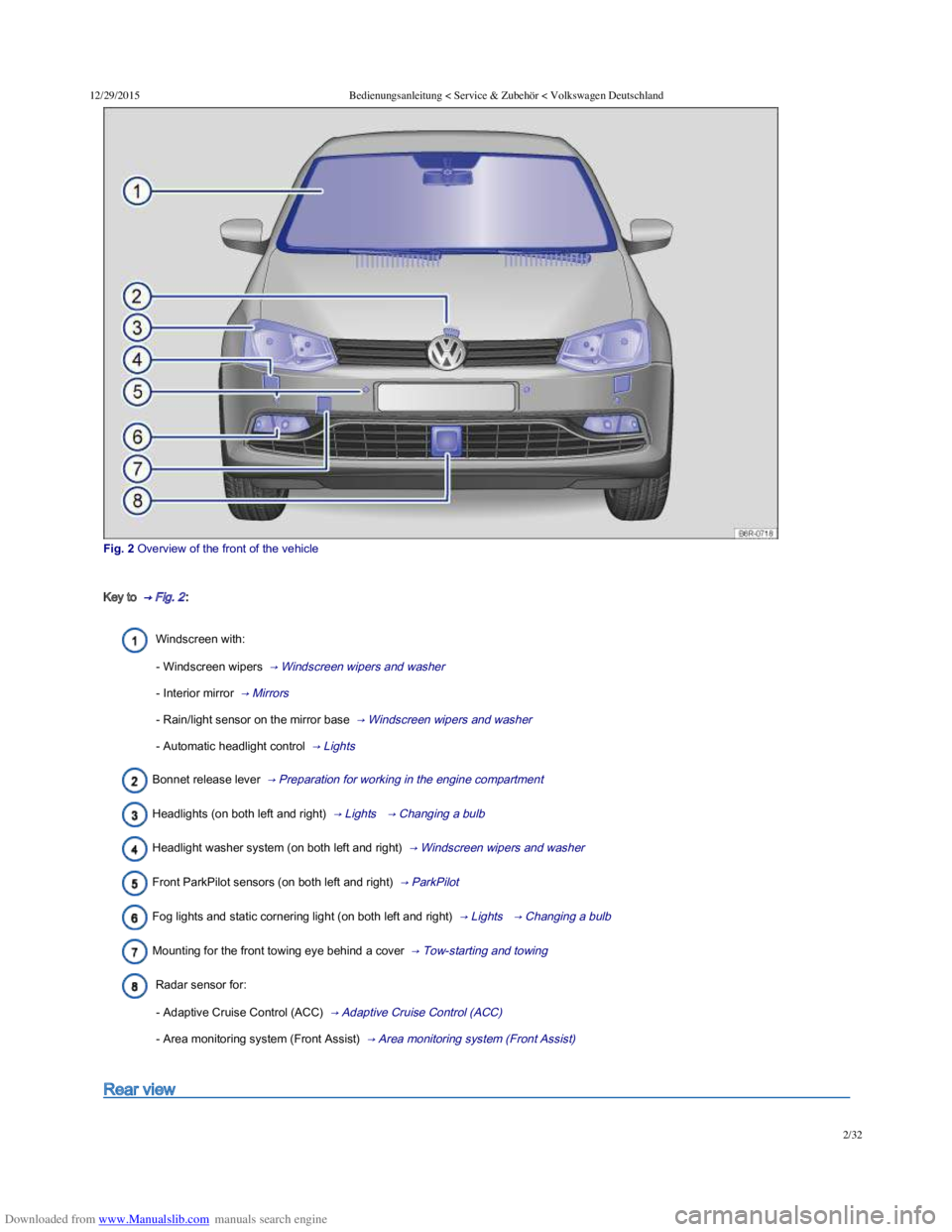

Fig. 2 Overview of the front of the vehicle
Key to  → Fig. 2 :
Windscreen with:
- Windscreen wipers  → Windscreen wipers and washer  
- Interior mirror  → Mirrors  
- Rain/light sensor on the mirror base  → Windscreen wipers and washer  
- Automatic headlight control  → Lights  
Bonnet release lever  → Preparation for working in the engine compartment  
Headlights (on both left and right)  → Lights    → Changing a bulb  
Headlight washer system (on both left and right)  → Windscreen wipers and washer  
Front ParkPilot sensors (on both left and right)  → ParkPilot  
Fog lights and static cornering light (on both left and right)  → Lights    → Changing a bulb  
Mounting for the front towing eye behind a cover  → Tow-starting and towing  
Radar sensor for:
- Adaptive Cruise Control (ACC)  → Adaptive Cruise Control (ACC)  
- Area monitoring system (Front Assist)  → Area monitoring system (Front Assist)  
Rear view

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
3/32
Fig. 3 Overview of the rear of the vehicle
Key to  → Fig. 3 :
Roof aerial  → Consumer information  
High-mounted brake light
Rear window with:
- Rear wiper  → Windscreen wipers and washer    → Caring for and cleaning the vehicle exterior  
- Rear window heating  → Heating, ventilating, cooling  
- Window aerial  → Consumer information  
Volkswagen badge, used for opening the tailgate  → Tailgate  
Rear lights (on both left and right)  → Lights    → Changing a bulb  
Reversing camera settings  → Reversing camera (Rear View)  
Number plate lighting (on both left and right)  → Changing a bulb  
Rear ParkPilot sensors (on both left and right)  → ParkPilot  
Towing bracket  → Towing a trailer  
Mounting for the rear towing eye behind a cover  → Tow-starting and towing  
Overview of the driver door
Vehicle interior

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
6/32
Light switch   → Lights  
- Daytime running lights or daytime headlights
- Automatic headlight control
- Side light and dipped beam headlights ,
- Fog lights ,
Headlight range control  → Lights  
Vent  –  –   → Heating, ventilating, cooling  
Lever  → Lights  
- For main beam headlights
- For dipped beam headlights
- For headlight flasher x
- For turn signal
- For parking lights
- With buttons for operating the cruise control system (CCS)  –   –  ,
 –  –   → Cruise Control System (CCS)   .
Instrument cluster:
- Instruments  → Instruments 
- Display  → Instruments 
- Warning and indicator lamps  → Warning and indicator lamps  
Lever for windscreen wipers and washers  → Windscreen wipers and washer  
- Windscreen wiper  –
- Interval wipe for the windscreen
- Length of intervals or sensitivity of the rain/light sensor
- Windscreen wiper switched off
- Flick wipe x
- Windscreen wipers
- Wash and wipe system for the windscreen
- Rear wiper
- Wash and wipe system for the rear window
- Control lever with buttons for operating the Volkswagen information system and the infotainment system ,
 → Volkswagen information system    → Infotainment system 
Controls on the multifunction steering wheel  → Volkswagen information system  
- Buttons for operating the cruise control system (CCS) ,  ,  ,   –   –   → Cruise Control
System (CCS)  

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
8/32
Row of switches1) with buttons for:
- Seat heating left and right /   → Seat functions  
- Traction control system (TCS)  → Braking, stopping and parking  
- Electronic stabilisation program (ESC)  → Braking, stopping and parking  
- Electronic stabilisation program sport mode (ESC Sport)  → Braking, stopping and parking  
- Start/stop system  → Pull-away assist systems  
- Rear window heating   → Heating, ventilating, cooling  
- Hazard warning lights   → In an emergency  
- Indicator lamp for the front passenger front airbag switch-off function  → Airbag system  
- ParkPilot   → ParkPilot  
- Sport Select suspension    →  Sport Select suspension  
Infotainment system (factory-fitted)
- Operating display  → Infotainment system 
- Radio ⇒ BookletRadio,
- Navigation system ⇒ BookletNavigation system,
Controls2) for:
- Heating and fresh air system  → Heating, ventilating, cooling  
- Air conditioning system (manual)  → Heating, ventilating, cooling  
- Climatronic  → Heating, ventilating, cooling  
1) Depending on the vehicle equipment level, there could be a card holder instead of 3 buttons  → Stowage areas   .
2) The symbols may differ between models.
Lower section of the centre console

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
10/32
Fig. 9 Overview of the front passenger side (left­hand drive vehicles). The controls are mirrored in right­hand drive vehicles
Key to  → Fig. 9 :
Vent  –  –   → Heating, ventilating, cooling  
Location of front passenger front airbag in the dash panel  → Airbag system  
Key-operated switch in the stowage compartment for switching off the front passenger front airbag  → Airbag system  
In the stowage compartment: button for Tyre Pressure Loss Indicator ,   → Tyre monitoring system  
Opening lever for the stowage compartment  → Stowage areas  
Stowage compartment for high-visibility waistcoat  → Stowage areas  
Symbols in the roof
SymbolMeaning
Interior lights and reading lights  → Lights  
Electric panorama sliding/tilting glass roof  → Electric panorama sliding/tilting glass roof  
Warning and indicator lamps
The warning and indicator lamps indicate various warnings  → , faults  →  or certain functions. Some warning and indicator lamps light up
when the ignition is switched on and should go out once the engine is running or the vehicle is in motion.
Depending on the vehicle's equipment level, additional text messages could appear in the display on the instrument cluster to provide further
information or to ask you to perform certain tasks  → Instruments  .
Instrument cluster

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
11/32
Depending on the vehicle equipment level, symbols may be displayed in the instrument cluster instead of warning lamps.
Signal tones are given when some warning or indicator lamps light up.
For details on indicator lamps which light up in the light switch see Chapter Lighting  → Lights   .
SymbolMeaning  → See
Do not drive on!
When this message appears, the door(s), tailgate or bonnet are open or not closed
properly.
 → Instruments 
Central warning lamp. Observe the additional information on the instrument cluster display.–
Do not drive on!
Handbrake is applied. → Braking, stopping and
parking   Do not drive on!
Brake fluid level too low or fault in the brake system.
Flashing: Do not drive on!
Coolant level too low, coolant temperature too high, or coolant system is faulty. → Coolant  
Flashing: Do not drive on!
Engine oil pressure too low. → Engine oil  
Electromechanical steering not functioning. → Steering  
Brake or take avoiding action! Collision warning from the area monitoring system (Front
Assist).
 → Area monitoring system
(Front Assist)  
Driver or front passenger seat belt not fastened. → Seat belts  
Depress the brake pedal.
Changing gear  → Changing
gear  
ACC  → Adaptive Cruise
Control (ACC)  
Fault in the alternator. → Vehicle battery  
Dual clutch gearbox DSG® overheated. → Changing gear  
Central warning lamp. Observe the additional information on the instrument cluster display.–
Brake pads worn.
Infotainment system
 → Infotainment system 
Brakes  → Braking, stopping
and parking  
Lit up: ESC fault or switched off for system-related reasons.
OR: together with ABS indicator lamp : ABS faulty.
OR: the vehicle battery has been reconnected.
Flashing: ESC/TCS is taking corrective action.
TCS switched off manually.
OR: ESC switched off manually.
OR: ESC switched on manually.
ABS faulty or not functioning.
Vehicle lighting not working partially or completely. → Changing a bulb  
Rear fog light switched on. → Lights  
Lit up or flashing: catalytic converter fault.
Starting the engine  → Starting

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
12/32
Starting the engine  → Starting
and stopping the engine  
Engine management, exhaust
gas purification  → Engine
management system and
exhaust purification system  
Lit up: glow period for a diesel engine.
Flashing: fault in engine management system (diesel engine).
Engine management system fault (Electronic Power Control).
Diesel particulate filter has become saturated with soot.

Lit up: steering reduced or the vehicle battery has been disconnected and then
reconnected. → Steering  
Flashing: steering column is twisted or is not unlocked/locked.
Tyre pressure too low or Tyre Pressure Loss Indicator faulty. → Tyre monitoring system  
Windscreen washer fluid level too low. → Windscreen wipers and
washer  
Fuel tank almost empty.
 → Filling the tank  
Water in fuel in vehicles with a diesel engine.
Lit up: engine oil level too low.
 → Engine oil  
Flashing: engine oil system fault.
Fault in airbag and belt tensioner system.
 → Airbag system   Front passenger front airbag switched off (PASSENGER AIR BAG  ).
Front passenger front airbag switched on (PASSENGER AIR BAG  ).
Adaptive Cruise Control (ACC) currently not available. → Adaptive Cruise Control
(ACC)  
Fault in Sport Select suspension. →  Sport Select suspension  
Gearbox fault. → Changing gear  

Hazard warning lights switched on. → In an emergency  
Turn signal, left or right.
 → Lights  
Trailer turn signal.
Lit up: depress the brake pedal.
Starting the engine  → Starting
and stopping the engine  
Changing gear  → Changing
gear  
Brakes  → Braking, stopping
and parking  
Flashing: the lock button in the selector lever is not engaged.
The cruise control system (CCS) is switched on. → Cruise Control System
(CCS)  
Adaptive Cruise Control (ACC) is active. → Adaptive Cruise Control
(ACC)  
Main beam is switched on or the headlight flasher is being operated. → Lights  
ACC is active. No vehicle has been detected ahead.
 → Adaptive Cruise Control
(ACC)  When displayed in white: ACC active. Vehicle detected ahead.
When displayed in grey: ACC not active. System switched on, does not regulate.
Lit up: service alert / service due. → Instruments 
 → Changing gear  

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
13/32
Flashing: fault in automatic gearbox. → Changing gear  
The start/stop system is not available. Automatic engine switch-off is active.
 → Pull-away assist systems  Start/stop system not available.
OR: the engine was started automatically.
The engine is starting.
A mobile telephone is connected via Bluetooth to the factory-fitted provision for mobile
telephone.⇒ BookletProvision for mobile
telephone,
Mobile telephone battery charge level. Only for factory-fitted provision for mobile telephone.
m/k/s296MKThe outside temperature is below +4°C (+39°F). → Instruments 
Note about information in the vehicle wallet.–
 Introduction
This chapter contains information on the following subjects:
 → Instrument overview  
 → Displays  
 → Service interval display  
Additional information and warnings:
Warning and indicator lamps  → Warning and indicator lamps  
Volkswagen information system  → Volkswagen information system  
Infotainment system  → Infotainment system 
Failure to observe illuminated warning lamps and text messages can lead to your vehicle breaking down in traffic, and can cause accident
and serious injury.
Never ignore any illuminated warning lamps or text messages.
Stop the vehicle as soon as possible and when safe to do so.
Stop the vehicle at a safe distance away from moving traffic and make sure that no part of the exhaust system can come into contact with
any inflammable material underneath the vehicle, e.g. dry grass or fuel.
Any broken-down vehicle poses an increased accident risk, both for you and for other road users. If the situation requires, switch on the
hazard warning lights and set up the warning triangle as a warning to other road users.
Before opening the bonnet, switch off the engine and allow it to cool down sufficiently.
The engine compartment of any motor vehicle is a dangerous area. Serious injuries can be sustained here  → Preparation for working in
the engine compartment   .
WARNING
Failure to observe illuminated indicator lamps and text messages can lead to your vehicle being damaged.
NOTICE
Instruments
