2015 VOLKSWAGEN POLO warning light

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
27/136
Fig. 36 In the driver door: buttons for the front and rear electric windows with one­touch opening and closing
First read and observe the introductory information and safety warnings →Introduction 
Buttons in the driver door with one-touch opening and closing
Key to  → Fig. 36 :
Buttons for the windows in the front doors.
Buttons for the windows in the rear doors.
Safety button for switching the electric childproof lock on and off.
Opening and closing windows with one-touch opening and closing
FunctionAction
OpeningPress the  button.
ClosingPull the  button.
Stopping the one-touch functionPress or pull the button for the appropriate window again.
The safety switch  → Fig. 36 ③   deactivates the electric window buttons in the rear doors. The yellow
indicator lamp in the button will light up.
The electric windows will only function when the ignition is switched on.
The windows can still be operated using the buttons several minutes after the ignition has been switched off, provided that the driver door and
front passenger door are not opened. If the vehicle key is removed from the ignition lock and the driver door is opened, all electric windows can
be opened or closed by operating and holding the corresponding window button in the driver door. After a few seconds, convenience
opening/closing is started  → Convenience opening and closing   .
Electric windows – functions
First read and observe the introductory information and safety warnings →Introduction 
One-touch opening and closing
One-touch opening and closing makes it possible to fully open and close the windows. The individual buttons do not have to be held down to do
this.
For one-touch closing: pull the button for the appropriate window up briefly into the second position.

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
34/136
The dangers of assuming an incorrect sitting position
First read and observe the introductory information and safety warnings →Introduction 
If the seat belts are not worn or are worn incorrectly, the risk of severe or fatal injuries increases. Seat belts can only provide optimal protection if
the seat belt routing is correct. Assuming an incorrect sitting position considerably impairs the level of protection provided by a seat belt. This
could lead to severe or even fatal injuries. The risk of severe or fatal injuries is especially increased when a deploying airbag strikes a vehicle
occupant who has assumed an incorrect sitting position. The driver is responsible for all occupants transported in the vehicle, especially children.
The following list contains examples of sitting positions that can be dangerous for all vehicle occupants.
Always adjust seats, seat belts and head restraints to their correct position before any journey and ensure that all passengers have fastened
their seat belt.
Push the front passenger seat as far back as possible.
Adjust the driver seat so that there is at least 25 cm between your breastbone and the hub of the steering wheel. If your physical build
makes it impossible to fulfil this requirement, you must contact a qualified workshop so they can make any necessary modifications.
Never travel with the backrest tilted far back. The further back the backrest is tilted, the greater the risk of injury caused by incorrect seat belt
routing or an incorrect sitting position.
Never travel with the backrest tilted far forwards. When a front airbag is triggered it could force the seat backrest backwards and injure
vehicle occupants on the back seats.
Adopt and maintain the greatest possible distance from the steering wheel and dash panel.
You should always sit upright with your back against the seat backrest with the front seats properly adjusted. Do not position any body part
too close where the airbags are fitted.
The risk of serious injury is increased for passengers on the rear seat if they are not sitting upright because the seat belts are incorrectly
positioned.
WARNING
Incorrect adjustment of the seats can cause accidents and serious injuries.
The seats may only be adjusted when the vehicle is stationary, or else the seat could change position unexpectedly while the vehicle is in
motion, leading to a loss of control of the vehicle. Furthermore, an incorrect seating position is adopted while adjusting the seat.
Only adjust the height and tilt of the seat or move it forwards and backwards when the area around the seat is clear.
There should be no objects in the adjustment area of the front seats.
WARNING
Cigarette lighters in the vehicle could be damaged or accidentally lit. This could lead to serious burns and other injuries.
Before adjusting the seats always make sure that there is no lighter on or near the moveable parts of the seat.
Before closing stowage areas or compartments always make sure that there is no lighter in the way.
Never stow lighters in stowage areas or compartments or on other surfaces in the vehicle. Cigarette lighters may self-ignite on high-
temperature surfaces, especially in summer.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
36/136
Fig. 40 Correct seat belt routing and head restraint adjustment
First read and observe the introductory information and safety warnings →Introduction 
The following details the correct sitting positions for the driver and passengers.
If any vehicle occupants cannot assume a correct sitting position due to their physical build, they should contact a qualified workshop to find out
about possible special modifications. The seat belts and airbags can only provide a maximum level of protection if a correct sitting position is
assumed. Volkswagen recommends using a Volkswagen dealership for this purpose.
Volkswagen recommends the following seating position for your own safety and to reduce the level of injury in the event of a sudden braking
manoeuvre or an accident:
The following applies to all vehicle occupants:
Adjust the head restraint so that its upper edge is at the same height as the top of the head, but not lower than eye level. Position the back of
your head as close to the head restraint as possible  → Fig. 39  and  → Fig. 40 .
When adjusting for short people, push the head restraint all the way down, even if the head is then underneath the top edge of the head
restraint.
For taller people, push the head restraint up as far as it will go.
Move the backrest into an upright position so that your back rests fully against it.
Keep both feet in the footwell while the vehicle is in motion.
Adjust and fasten seat belts properly  → Seat belts   .
Additional points for the driver:
Adjust the steering wheel so that the distance  → Fig. 39 Ⓐ   between the steering wheel and your breastbone is at least 25 cm and the
circumference of the steering wheel can be held at the sides with the arms slightly bent.
The steering wheel must always point towards the breastbone and not towards the face.
Adjust the driver seat so that you are able to press the pedals with your knees still slightly bent.
Adjust the height so that you can reach the highest point of the steering wheel.
Always leave both feet in the footwell, to help ensure you maintain control of the vehicle at all times.
Additional points for the front passenger:
Push the front passenger seat as far back as possible so that the airbag can provide maximum protection if it is triggered.
Mechanical controls on the front seats

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
41/136

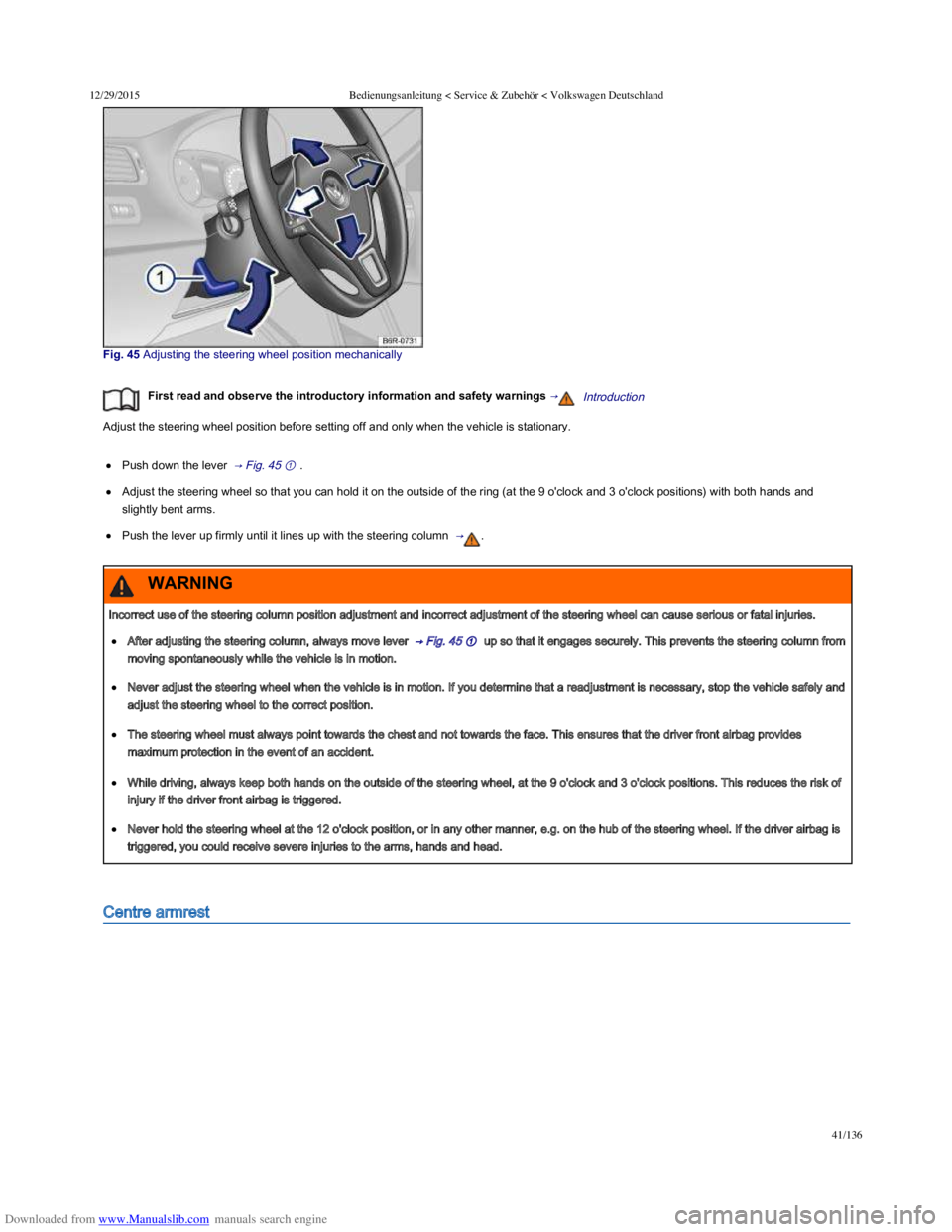

Fig. 45 Adjusting the steering wheel position mechanically
First read and observe the introductory information and safety warnings →Introduction 
Adjust the steering wheel position before setting off and only when the vehicle is stationary.
Push down the lever  → Fig. 45 ①  .
Adjust the steering wheel so that you can hold it on the outside of the ring (at the 9 o'clock and 3 o'clock positions) with both hands and
slightly bent arms.
Push the lever up firmly until it lines up with the steering column  → .
Centre armrest
Incorrect use of the steering column position adjustment and incorrect adjustment of the steering wheel can cause serious or fatal injuries.
After adjusting the steering column, always move lever  → Fig. 45 ①   up so that it engages securely. This prevents the steering column from
moving spontaneously while the vehicle is in motion.
Never adjust the steering wheel when the vehicle is in motion. If you determine that a readjustment is necessary, stop the vehicle safely and
adjust the steering wheel to the correct position.
The steering wheel must always point towards the chest and not towards the face. This ensures that the driver front airbag provides
maximum protection in the event of an accident.
While driving, always keep both hands on the outside of the steering wheel, at the 9 o'clock and 3 o'clock positions. This reduces the risk of
injury if the driver front airbag is triggered.
Never hold the steering wheel at the 12 o'clock position, or in any other manner, e.g. on the hub of the steering wheel. If the driver airbag is
triggered, you could receive severe injuries to the arms, hands and head.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
46/136
Fig. 48 Warning lamp in the instrument cluster
First read and observe the introductory information and safety warnings →Introduction 
Lights up
or flashes
Possible causeAction
The driver seat belt and, if the front passenger seat is
occupied, the front passenger seat belt are not fastened.Fasten seat belts.
OR: there are objects on the front passenger seat.Remove objects from the front passenger seat and stow them
safely.
Several warning and indicator lamps will light up briefly as a functional check when the ignition is switched on. They will go out after a few
seconds.
A signal tone will be given for a few seconds if the seat belts are not fastened as the car pulls off and reaches a speed of more than
approximately 25 km/h (15 mph), or if the seat belts are unfastened while the vehicle is in motion. The warning lamp  → Fig. 48  will also flash.
When the ignition is switched on, the warning lamp will not go out until the driver and front passenger fasten their seat belts.
Frontal collisions and the laws of physics
Fig. 49 Unbelted occupants in a vehicle heading for a brick wall
Incorrectly fastened or unfastened seat belts increase the risk of severe or fatal injuries. Seat belts will only offer the optimum level of protection
when they are fastened and used properly.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
57/136
Fig. 59 In the upper section of the centre console: indicator lamp for disabled front passenger front airbag
First read and observe the introductory information and safety warnings →Introduction 
Lit upLocationPossible causeAction
Instrument clusterFault in airbag and belt tensioner system.Go to a qualified workshop to have the system
checked immediately.
Upper section of the centre
console
Fault in the airbag system.Go to a qualified workshop to have the system
checked immediately.
Front passenger front airbag switched off.Check whether the airbag should stay switched
off.
Several warning and indicator lamps will light up briefly as a functional check when the ignition is switched on. They will go out after a few
seconds.
If the indicator lamp PASSENGER AIRBAG in the upper part centre console is not continuously lit or if it lights up together with the
indicator lamp in the instrument cluster when the front passenger front airbag is switched off, there may be a fault in the airbag system  →
 .
Description and function of the airbags
First read and observe the introductory information and safety warnings →Introduction 
The airbags can protect vehicle occupants during frontal and side collisions by reducing their movement in the direction of the collision.
When an airbag is triggered, it is inflated by a gas generator. This causes the airbag covers to break, and the airbags inflate forcefully to cover
If there is a fault in the airbag system, the airbag may not trigger correctly, may not trigger at all or may trigger unexpectedly. This can cause
severe or fatal injuries.
The airbag system should be checked by a qualified workshop as soon as possible.
Never fit a child seat to the front passenger seat or remove a child seat that is already fitted. The front passenger front airbag may trigger
during an accident in spite of the fault.
WARNING
To avoid damage to your vehicle, always observe the indicator lamps and associated warning texts.
NOTICE

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
61/136
Fold the key bit of the vehicle key all the way out  → Vehicle key set   .
Insert the open key bit into the key switch in the stowage compartment  → Fig. 62  to the second point of resistance. Around three quarters of
the key bit should be inserted in the key switch at this point  → .
Turn the vehicle key, without applying force, to the position.
Remove the vehicle key from the key switch  →  and fold the key bit away.
Close the stowage compartment on the front passenger side.
When the ignition is switched on, the indicator lamp PASSENGER AIRBAG will light up steadily in the upper section of the centre
console  → Indicator lamps   .
Enabling the front passenger front airbag
Switch off the ignition.
Open the stowage compartment on the front passenger side.
Fold the key bit of the vehicle key all the way out  → Vehicle key set   .
Insert the open key bit into the key switch in the stowage compartment  → Fig. 62  to the second point of resistance. Around three quarters of
the key bit should be inserted in the key switch at this point  → .
Turn the vehicle key, without applying force, to the position.
Remove the vehicle key from the key switch  →  and fold the key bit away.
Close the stowage compartment on the front passenger side.
Check that the PASSENGER AIRBAG    indicator lamp in the upper section of the centre console does not light up when the
ignition is switched on  → Indicator lamps   .
Ensuring that the front passenger front airbag has been deactivated
The only sure sign that the front passenger front airbag has been deactivated is when the PASSENGER AIRBAG indicator lamp is
displayed in the upper section of the centre console (   lights up yellow steadily)  → Indicator lamps   .
If the indicator lamp PASSENGER AIR BAG  in the upper section of the centre console is not lit up steadily, or if it lights up at the
same time as indicator lamp in the instrument cluster, do not attach any child restraint system to the front passenger seat for safety reasons.
The front passenger front airbag may trigger during an accident.
Do not leave the vehicle key in the key switch while driving.
Strong vibration may cause the vehicle key to turn in the key switch, which could cause the front passenger front airbag to be activated.
Untimely inflation of the front passenger front airbag could lead to serious or fatal injuries.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
63/136

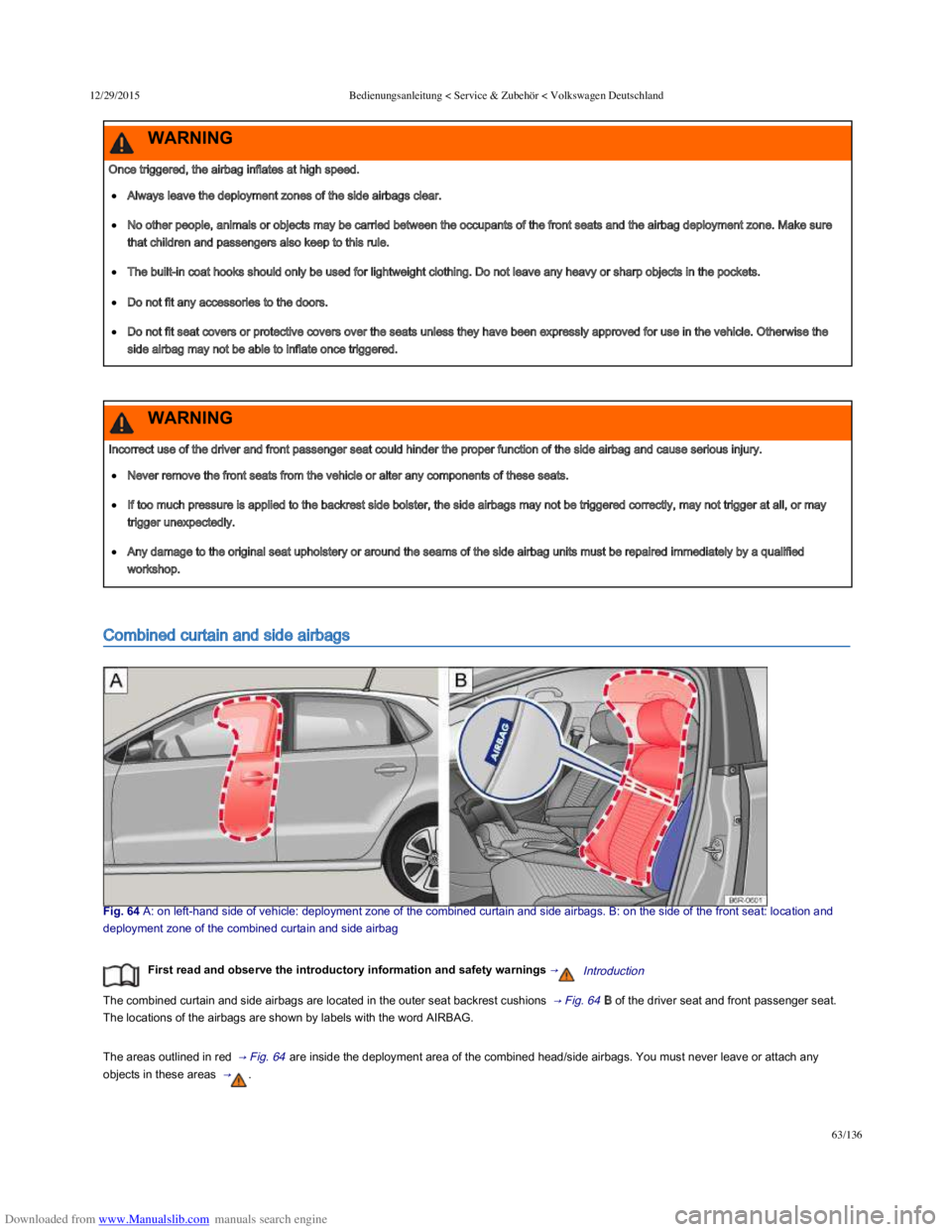

Combined curtain and side airbags
Fig. 64 A: on left­hand side of vehicle: deployment zone of the combined curtain and side airbags. B: on the side of the front seat: location and
deployment zone of the combined curtain and side airbag
First read and observe the introductory information and safety warnings →Introduction 
The combined curtain and side airbags are located in the outer seat backrest cushions  → Fig. 64  B of the driver seat and front passenger seat.
The locations of the airbags are shown by labels with the word AIRBAG.
The areas outlined in red  → Fig. 64  are inside the deployment area of the combined head/side airbags. You must never leave or attach any
objects in these areas  → .
Once triggered, the airbag inflates at high speed.
Always leave the deployment zones of the side airbags clear.
No other people, animals or objects may be carried between the occupants of the front seats and the airbag deployment zone. Make sure
that children and passengers also keep to this rule.
The built-in coat hooks should only be used for lightweight clothing. Do not leave any heavy or sharp objects in the pockets.
Do not fit any accessories to the doors.
Do not fit seat covers or protective covers over the seats unless they have been expressly approved for use in the vehicle. Otherwise the
side airbag may not be able to inflate once triggered.
WARNING
Incorrect use of the driver and front passenger seat could hinder the proper function of the side airbag and cause serious injury.
Never remove the front seats from the vehicle or alter any components of these seats.
If too much pressure is applied to the backrest side bolster, the side airbags may not be triggered correctly, may not trigger at all, or may
trigger unexpectedly.
Any damage to the original seat upholstery or around the seams of the side airbag units must be repaired immediately by a qualified
workshop.
WARNING
