2015 VOLKSWAGEN POLO warning light

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
11/136

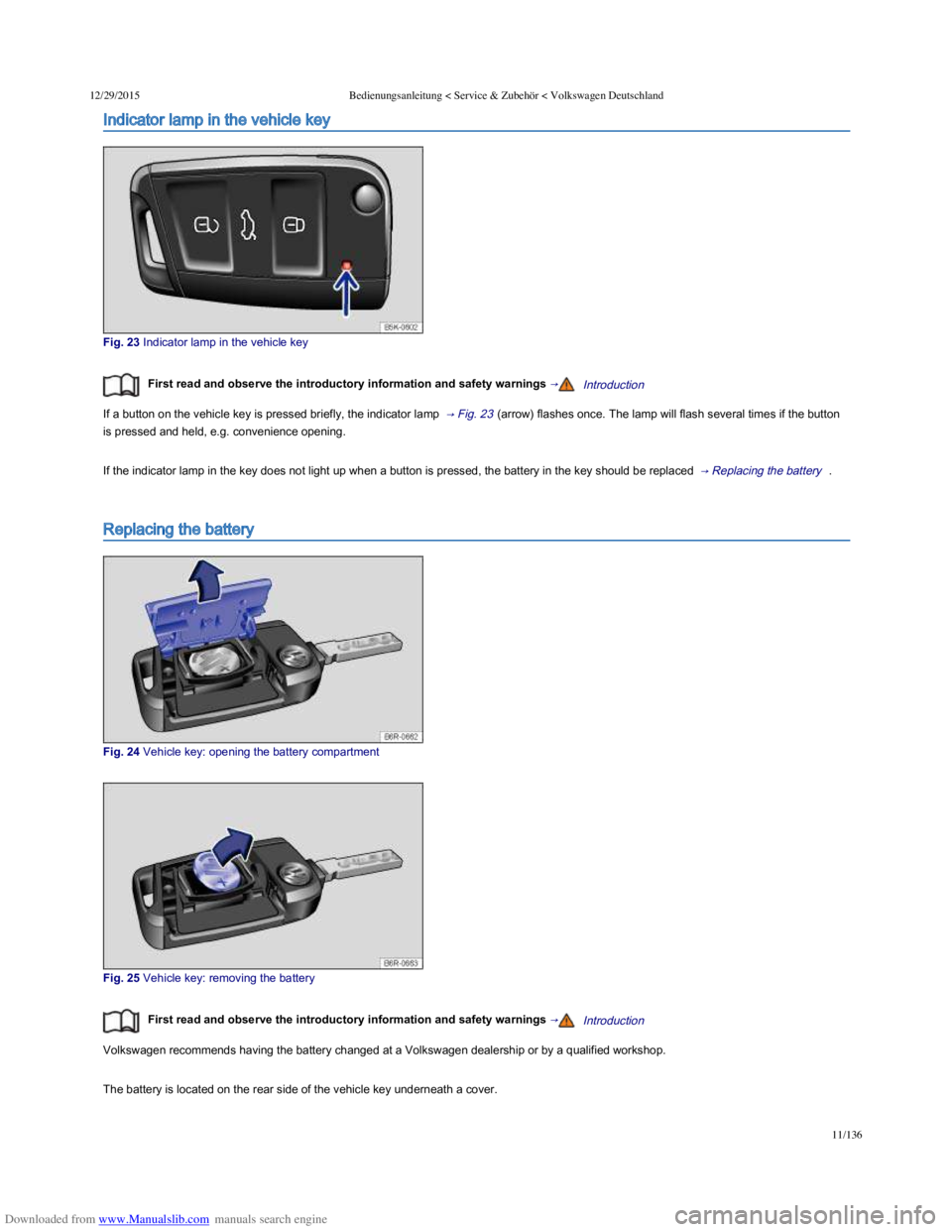

Indicator lamp in the vehicle key
Fig. 23 Indicator lamp in the vehicle key
First read and observe the introductory information and safety warnings →Introduction 
If a button on the vehicle key is pressed briefly, the indicator lamp  → Fig. 23  (arrow) flashes once. The lamp will flash several times if the button
is pressed and held, e.g. convenience opening.
If the indicator lamp in the key does not light up when a button is pressed, the battery in the key should be replaced  → Replacing the battery   .
Replacing the battery
Fig. 24 Vehicle key: opening the battery compartment
Fig. 25 Vehicle key: removing the battery
First read and observe the introductory information and safety warnings →Introduction 
Volkswagen recommends having the battery changed at a Volkswagen dealership or by a qualified workshop.
The battery is located on the rear side of the vehicle key underneath a cover.
Replacing the battery

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
13/136
Additional information and warnings:
Exterior views  → Exterior views  
Infotainment system  → Infotainment system 
Vehicle key set  → Vehicle key set  
Doors  → Doors  
Tailgate  → Tailgate  
Electric windows  → Electric windows  
Electric panorama sliding/tilting roof  → Electric panorama sliding/tilting glass roof  
Mirrors  → Mirrors  
Towing a trailer  → Towing a trailer  
Cleaning and caring for the vehicle exterior  → Caring for and cleaning the vehicle exterior  
Manual opening and closing  → Manual opening and closing  
Indicator lamp
First read and observe the introductory information and safety warnings →Introduction 
The central locking system indicator lamp is located in the driver door  → Vehicle interior  .
Depending on the vehicle equipment level, the vehicle may have an anti-theft alarm and a SAFELOCK mechanism  → SAFELOCK mechanism   .
After locking the vehicleMeaning
Without anti-theft alarmWith anti-theft alarm and
SAFELOCK mechanism
A red LED flashes for approximately 2 seconds, firstly at short
intervals and then more slowly.Vehicle is locked.Vehicle is locked and SAFELOCK is
activated.
A red LED flashes for approximately 2 seconds and then goes
out. The light starts to flash again after approximately 30
seconds.
–Vehicle is locked and SAFELOCK is
deactivated.
A red LED flashes for approximately 2 seconds in short
Improper use of the central locking system could lead to serious injury.
The central locking system locks all doors. Locking the vehicle from the inside can prevent accidental opening of the doors and unauthorised
persons from entering the vehicle. However, locked doors can delay assistance to passengers inside the vehicle in the event of an accident
or emergency.
Never leave children or people requiring assistance alone in the vehicle. All doors can be locked from the inside using the central locking
button. This may mean that people lock themselves in the vehicle. People locked in the vehicle may be subjected to very high or very low
temperatures.
Temperatures inside a locked vehicle may reach extremes of heat or cold, according to season. This can cause serious injuries and illness
or fatalities, especially to small children.
Never leave anyone inside a locked vehicle. People in the vehicle could become trapped in an emergency and may not be able to get
themselves to safety.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
14/136
intervals. The lamp will then light up without interruption for
approximately 30 seconds.
Fault in the locking system. Go
to a qualified workshop.
Fault in the locking system. Go to a qualified
workshop.
Description of the central locking system
First read and observe the introductory information and safety warnings →Introduction 
The central locking system enables you to lock or unlock all the doors, the tailgate and tank flap from one central point:
From outside the vehicle with the vehicle key  → Locking and unlocking the vehicle from the outside   .
From inside the vehicle with the central locking button  → Locking and unlocking the vehicle from the inside   .
Certain central locking functions can be activated or deactivated in the infotainment system using the button and the and
Opening and closing function buttons  → Menu and system settings (SETUP)   , or the vehicle can be taken to a qualified workshop.
The doors, the tailgate and the tank flap can be locked or unlocked manually if the vehicle key or central locking system fails  → Manual opening
and closing   .
Automatic locking (Auto Lock)
The vehicle may lock itself automatically at speeds of approximately 15 km/h (10 mph) and above  → Menu and system settings (SETUP)   . The
indicator lamp  in the central locking button will light up yellow when the vehicle is locked  → Fig. 28 .
Automatic unlocking (Auto Unlock)
In some cases, the vehicle automatically unlocks all doors and the tailgate. This will happen in any of the following situations  → Menu and system
settings (SETUP)   .
The vehicle is at a standstill and the vehicle key has been removed.
In vehicles with an automatic gearbox: the selector lever is in position P and the ignition has been switched off.
In an accident, when airbags have triggered  → Manual opening and closing   .
Automatic unlocking gives emergency response crew access to the vehicle.
If the buttons on the vehicle key  → Fig. 26  or  → Fig. 27  or one of the central locking buttons  → Fig. 28  are pressed repeatedly within a
short period of time, the central locking system will switch off briefly to prevent overloading. The vehicle is then unlocked for approximately 30
seconds. If the doors or the tailgate are not opened during this time the vehicle will lock again automatically.
Locking and unlocking the vehicle from the outside
Failure to observe the illuminated indicator lamps could lead to the vehicle being damaged.
NOTICE

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
16/136
Convenience opening and closing
See: Electric windows – Functions  → Electric windows   .
See: Function of the electric panorama sliding/tilting roof  → Electric panorama sliding/tilting glass roof   .
Depending on the mirror function set in the infotainment system, the exterior mirrors fold out again when the vehicle is unlocked using the
button  → Mirrors   .
Locking and unlocking the vehicle from the inside
Fig. 28 In the driver door: central locking button
First read and observe the introductory information and safety warnings →Introduction 
Press the  → Fig. 28  button:
Unlocks the vehicle.
Locks the vehicle.
The central locking button functions with the ignition switched on or off only when all doors are closed.
If the vehicle has been locked with the vehicle key, the central locking button does not work.
Please note the following when using the central locking button to lock the vehicle:
The indicator lamp  in the  → Fig. 28  button lights up yellow when all doors are closed and locked.
In vehicles with SAFELOCK mechanism: the SAFELOCK mechanism is not activated  → SAFELOCK mechanism   .
The anti-theft alarm will not be activated.
It is not possible to open the doors or tailgate from the outside, for instance when stopped at traffic lights.
The doors can be unlocked and opened from the inside by pulling the door release handle. The indicator lamp  in all doors switches off.
You may have to pull the door release lever more than once. The unopened doors and tailgate remain locked and cannot be opened from the
outside.
In some cases, the vehicle automatically unlocks all doors and the tailgate  → Menu and system settings (SETUP)   when:
The button is pressed  → Fig. 28 .
The vehicle comes to a standstill and the vehicle key is removed.
A vehicle door is opened depending on the menu settings in the infotainment system  → Menu and system settings (SETUP)   .
SAFELOCK mechanism

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
19/136

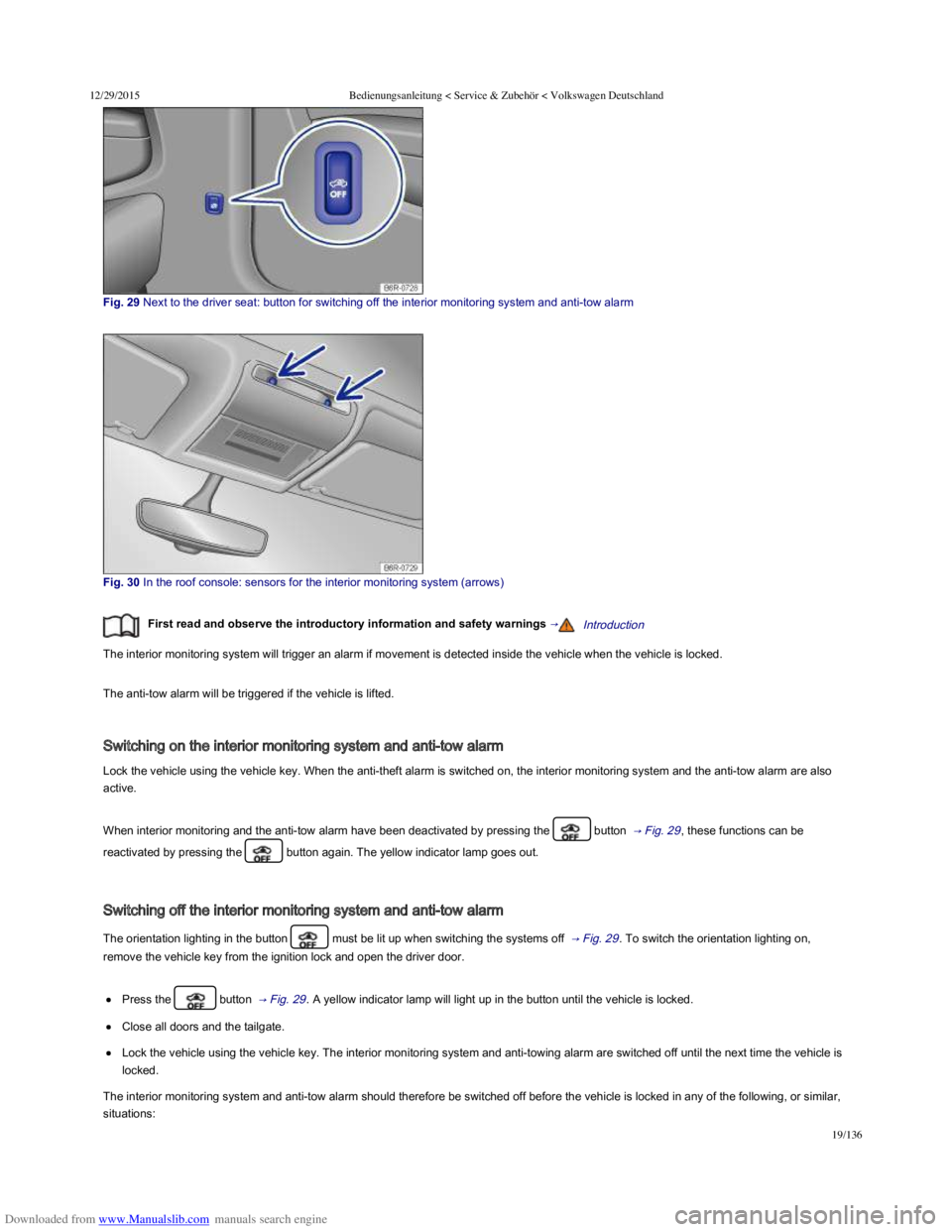

Fig. 29 Next to the driver seat: button for switching off the interior monitoring system and anti­tow alarm
Fig. 30 In the roof console: sensors for the interior monitoring system (arrows)
First read and observe the introductory information and safety warnings →Introduction 
The interior monitoring system will trigger an alarm if movement is detected inside the vehicle when the vehicle is locked.
The anti-tow alarm will be triggered if the vehicle is lifted.
Switching on the interior monitoring system and anti-tow alarm
Lock the vehicle using the vehicle key. When the anti-theft alarm is switched on, the interior monitoring system and the anti-tow alarm are also
active.
When interior monitoring and the anti-tow alarm have been deactivated by pressing the button  → Fig. 29 , these functions can be
reactivated by pressing the button again. The yellow indicator lamp goes out.
Switching off the interior monitoring system and anti-tow alarm
The orientation lighting in the button must be lit up when switching the systems off  → Fig. 29 . To switch the orientation lighting on,
remove the vehicle key from the ignition lock and open the driver door.
Press the  button  → Fig. 29 . A yellow indicator lamp will light up in the button until the vehicle is locked.
Close all doors and the tailgate.
Lock the vehicle using the vehicle key. The interior monitoring system and anti-towing alarm are switched off until the next time the vehicle is
locked.
The interior monitoring system and anti-tow alarm should therefore be switched off before the vehicle is locked in any of the following, or similar,
situations:

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
20/136
If any people or animals are to remain inside the vehicle for a short period.
If the vehicle is to be loaded onto another vehicle.
If the vehicle is being transported (e.g. on a ferry).
If the vehicle is going to be towed with one axle off the ground.
If the vehicle is to be parked in a two-storey garage.
If the vehicle is to be parked in a car wash.
Risk of false alarm
Interior monitoring can only work properly if the vehicle is completely closed. Comply with legal regulations. A false alarm can be triggered in any
of the following circumstances:
If one or more windows are fully or partly open.
If the electric panorama sliding/tilting roof is fully or partly open.
If lightweight items such as loose pieces of paper or items hung from the interior mirror (e.g. air-fresheners) are left in the vehicle.
If a mobile telephone that is left in the vehicle vibrates.
If the vehicle is being transported (e.g. on a ferry).
If the vehicle is being parked in a two-storey garage.
If the vehicle is in a car wash.
If doors or the tailgate are still open when the anti-theft alarm is activated, only the anti-theft alarm is activated. Interior monitoring and the
anti-tow alarm are not activated until all doors and the tailgate are closed.
The SAFELOCK mechanism is deactivated when the interior monitor and anti-tow alarm are switched off  → SAFELOCK mechanism   .
 Introduction
This chapter contains information on the following subjects:
 → Warning lamp  
 → Childproof lock  
Additional information and warnings:
Exterior views  → Exterior views  
Vehicle key set  → Vehicle key set  
Central locking system  → Central locking system  
Manual opening and closing  → Manual opening and closing  
Doors

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
21/136

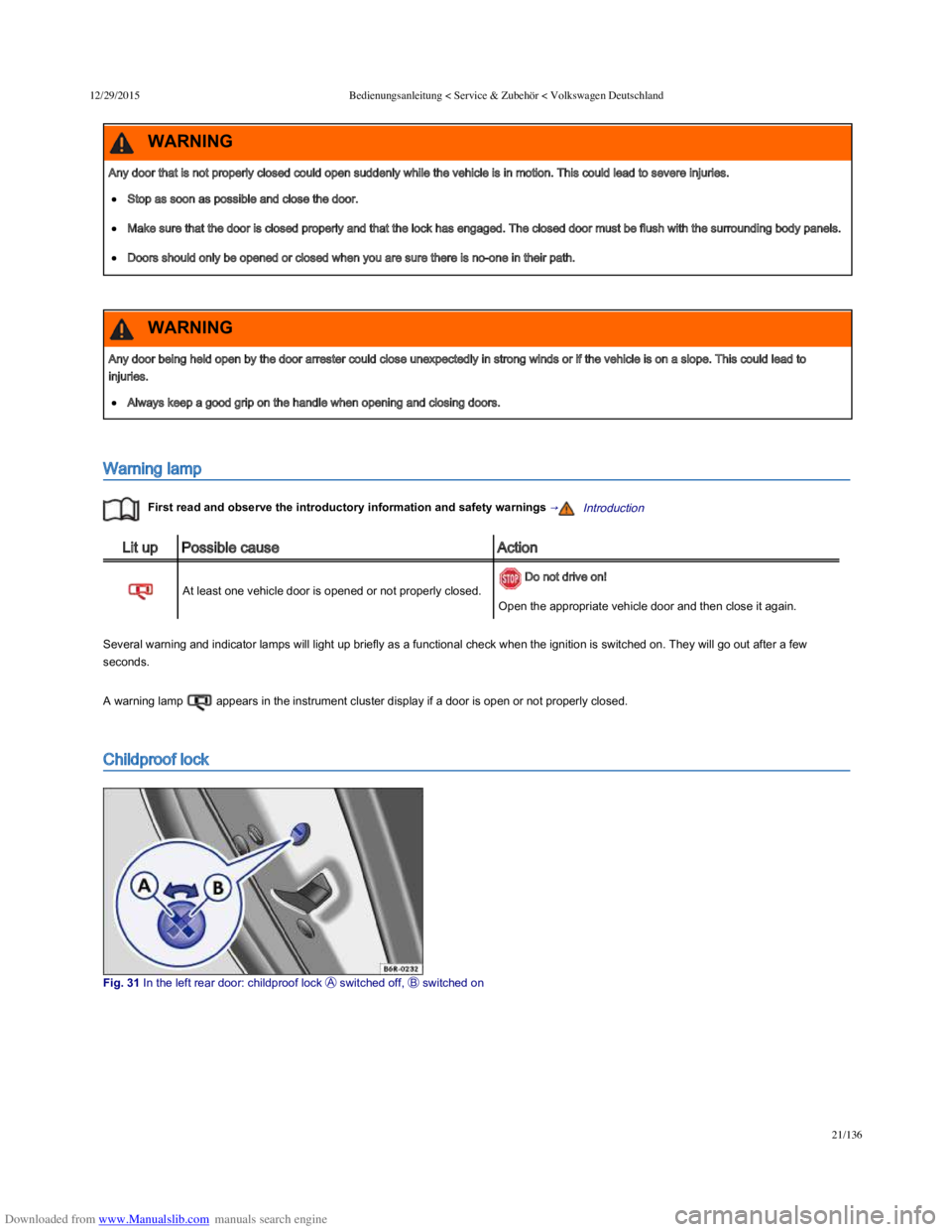

Warning lamp
First read and observe the introductory information and safety warnings →Introduction 
Lit upPossible causeAction
At least one vehicle door is opened or not properly closed.
Do not drive on!
Open the appropriate vehicle door and then close it again.
Several warning and indicator lamps will light up briefly as a functional check when the ignition is switched on. They will go out after a few
seconds.
A warning lamp appears in the instrument cluster display if a door is open or not properly closed.
Childproof lock
Fig. 31 In the left rear door: childproof lock  switched off,  switched on
Any door that is not properly closed could open suddenly while the vehicle is in motion. This could lead to severe injuries.
Stop as soon as possible and close the door.
Make sure that the door is closed properly and that the lock has engaged. The closed door must be flush with the surrounding body panels.
Doors should only be opened or closed when you are sure there is no-one in their path.
WARNING
Any door being held open by the door arrester could close unexpectedly in strong winds or if the vehicle is on a slope. This could lead to
injuries.
Always keep a good grip on the handle when opening and closing doors.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
23/136
Transporting  → Driving tips  
Manual opening and closing  → Manual opening and closing  
Warning lamp
First read and observe the introductory information and safety warnings →Introduction 
Lit upPossible causeAction
The tailgate is open or not properly closed.
Do not drive on!
Open the tailgate and close it again.
Several warning and indicator lamps will light up briefly as a functional check when the ignition is switched on. They will go out after a few
seconds.
A warning lamp appears in the instrument cluster display if the tailgate is open or not properly closed.
Incorrect and unsupervised unlocking, opening or closing of the tailgate can cause accidents and serious injuries.
Therefore the tailgate should only be opened or closed when you are sure there is no-one in its path.
Never close the tailgate by pushing it down with your hand on the window. The rear window could shatter and cause injuries.
After closing the tailgate, check to make sure that it is closed and locked correctly so that it does not open while the vehicle is in motion. The
closed tailgate must be flush with the surrounding body panels.
Always keep the tailgate closed while the vehicle is in motion so that no toxic exhaust fumes can enter the vehicle interior.
Never open the tailgate if there is a load attached to it, e.g. a rack or luggage carrier. It may also not possible to open the tailgate if there are
objects attached to it, e.g. bicycles. The additional load might cause the open tailgate to close by itself. Support the tailgate as necessary or
remove the load from the surface.
Close and lock the tailgate and all vehicle doors when the vehicle is not in use. Make sure there is no-one left in the vehicle.
Never leave children playing unattended in or around the vehicle, especially when the tailgate is open. Children could climb into the luggage
compartment and shut the tailgate, thereby trapping themselves inside. Temperatures inside a locked vehicle may reach extremes of heat or
cold, according to season. This can cause serious injuries and illness or fatalities, especially to small children.
WARNING
Before opening the tailgate, please check that there is enough space to open and close the tailgate, e.g. when towing a trailer or when in a
garage.
NOTICE
Never use the gas-filled strut or the rear spoiler (depending on the equipment level of the vehicle) to fix or hold a load. This could result in
damage preventing closure of the tailgate, or could even lead to the rear spoiler being ripped off.
NOTICE
