2015 VOLKSWAGEN GOLF GTI Owners Manual

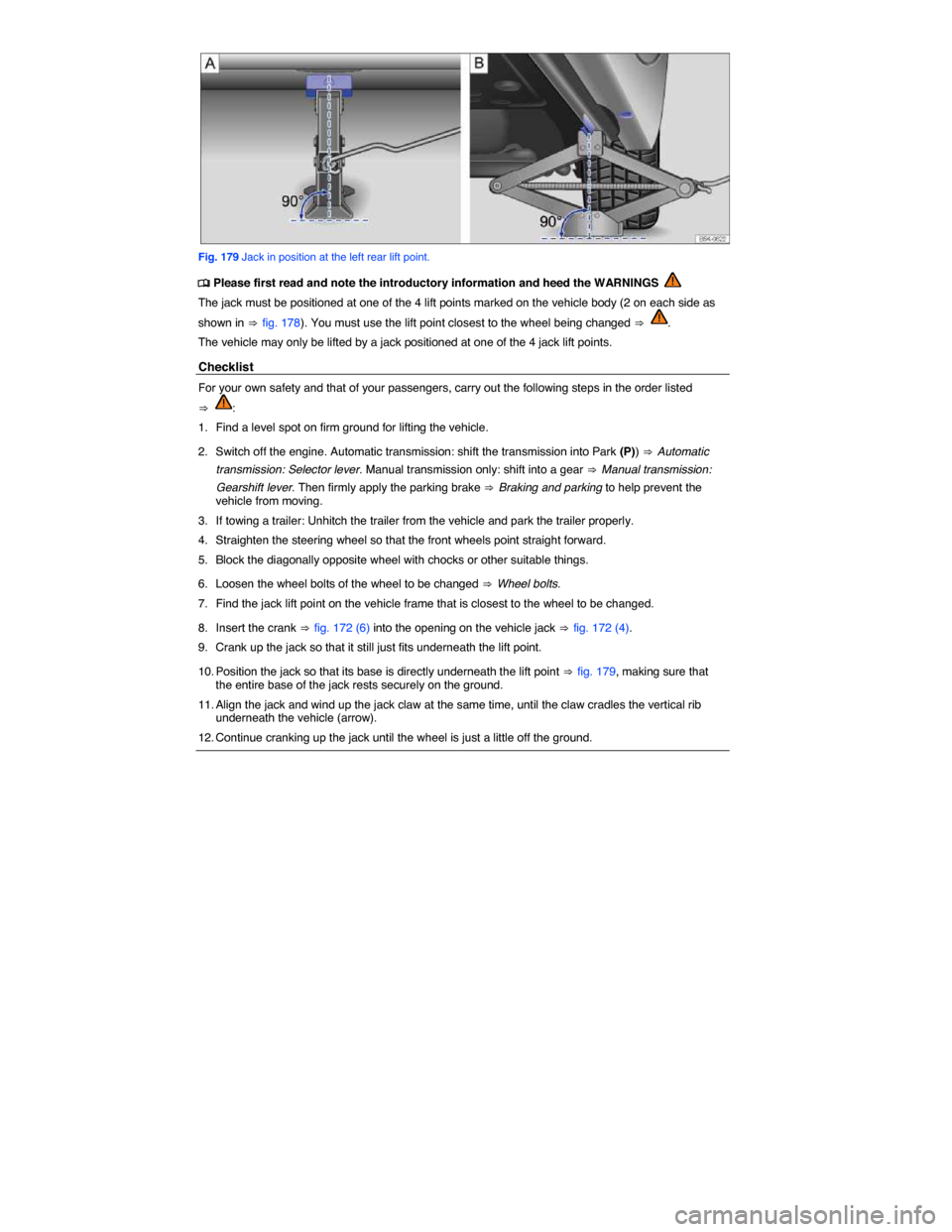

Fig. 179 Jack in position at the left rear lift point.

WARNING
Improper use of your vehicle jack can cause the vehicle to fall off the jack leading to serious personal injury. To help reduce the risk of serious personal injury:
x Use only jacks approved by Volkswagen for the vehicle. Other jacks might slip, even those approved for other Volkswagen models, but not for your vehicle.
x Always set up the jack on firm and level ground. The vehicle may slip off the jack if the jack is resting on soft or sloping ground. If necessary, place a sturdy board under the jack.
x On a hard, slippery surface (such as a tiled floor), use an anti-skid rubber mat or something similar to help prevent the jack from slipping.
x Position the jack only at the described vehicle lift points. Before you raise your vehicle, always make sure the jack claw properly grips the vertical rib under the sill so that the jack does not slip off when you are raising the vehicle .
x Never have any part of your body (such as your arm or leg) under the vehicle when it is supported by the jack. Never let other persons have any part of their body under the vehicle, either!
x If you must work under a vehicle raised on a floor jack, always make sure that the vehicle is safely supported on safety stands intended for that purpose that are strong enough to support the weight of the vehicle.
x Never lift the vehicle when it is tilted or inclined to one side or the engine is running.
x Never lift the vehicle when more than 1 tire is flat or damaged.
x Do not start the engine while the vehicle is supported by a jack. Engine vibrations may cause the vehicle to slip off the jack.
WARNING
Disregarding the safety-related checklist may lead to accidents and serious personal injuries.
x Always review and follow the checklist. Follow accepted safety practices and use common sense.

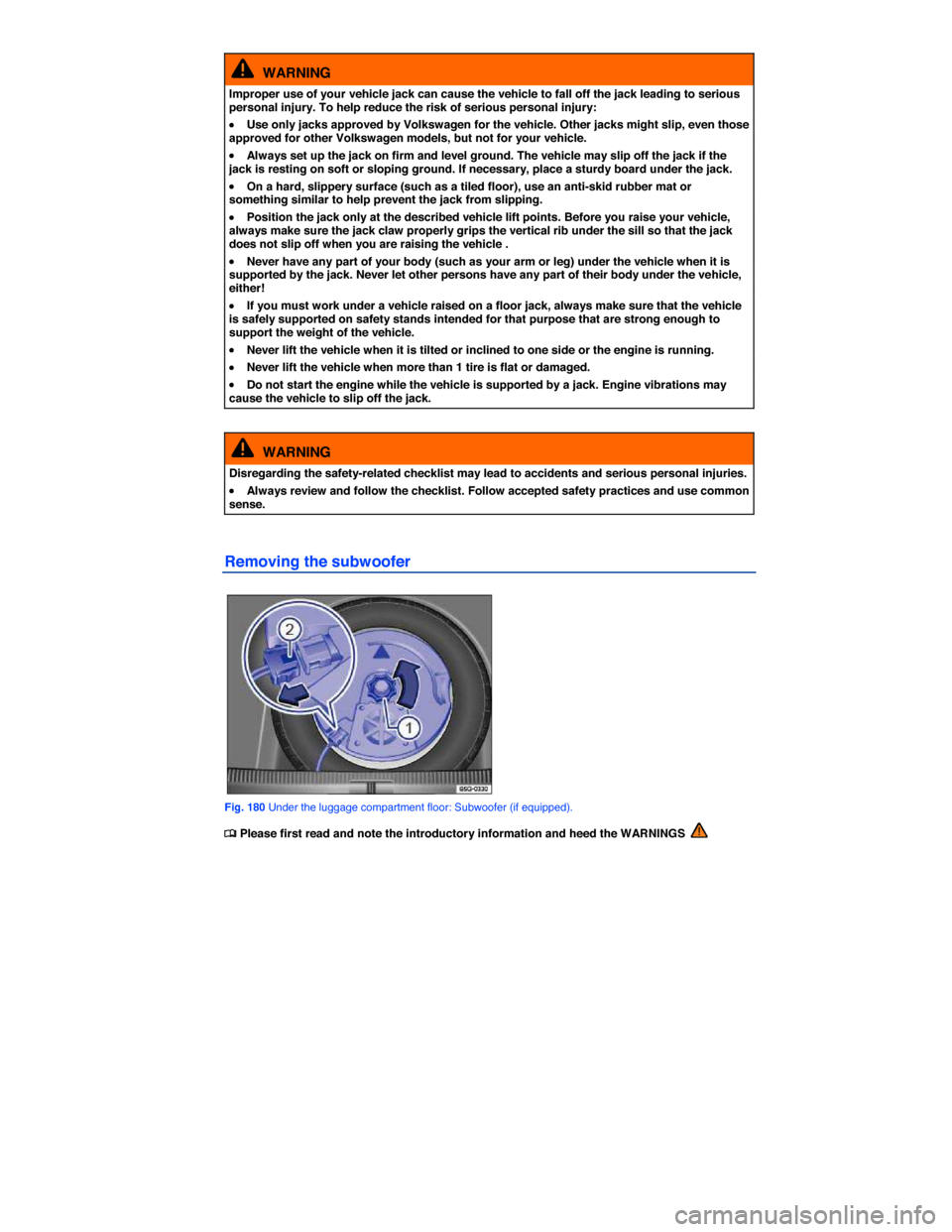

Removing the subwoofer

Fig. 180 Under the luggage compartment floor: Subwoofer (if equipped).

The subwoofer, if equipped, is located under the luggage compartment floor and must be removed to access the spare wheel.
Removing the subwoofer
Follow these steps in the order listed:
1. Raise and secure the luggage compartment floor ⇒ Storage.
2. Unscrew the handwheel ⇒ fig. 180 (1) in a counterclockwise direction (arrow).
3. To release the connector, press and hold the center tab down with one hand (2).
4. With the other hand, grasp the connector on both sides, and carefully pull the connector out of the socket in the direction of the arrow (magnified view). Put the electric cable aside.
5. Remove the subwoofer carefully and place in a clean storage location.
Reinstalling the subwoofer
1. Reinstall the subwoofer carefully back into the recess. The tip of the arrow symbol “FRONT” on the subwoofer must point toward the front of the vehicle
2. Insert the connector (2) into the socket until it clicks into place.
3. Turn the handwheel (1) clockwise to secure the subwoofer.
4. Carefully lower the luggage compartment floor back into place.
Changing a wheel

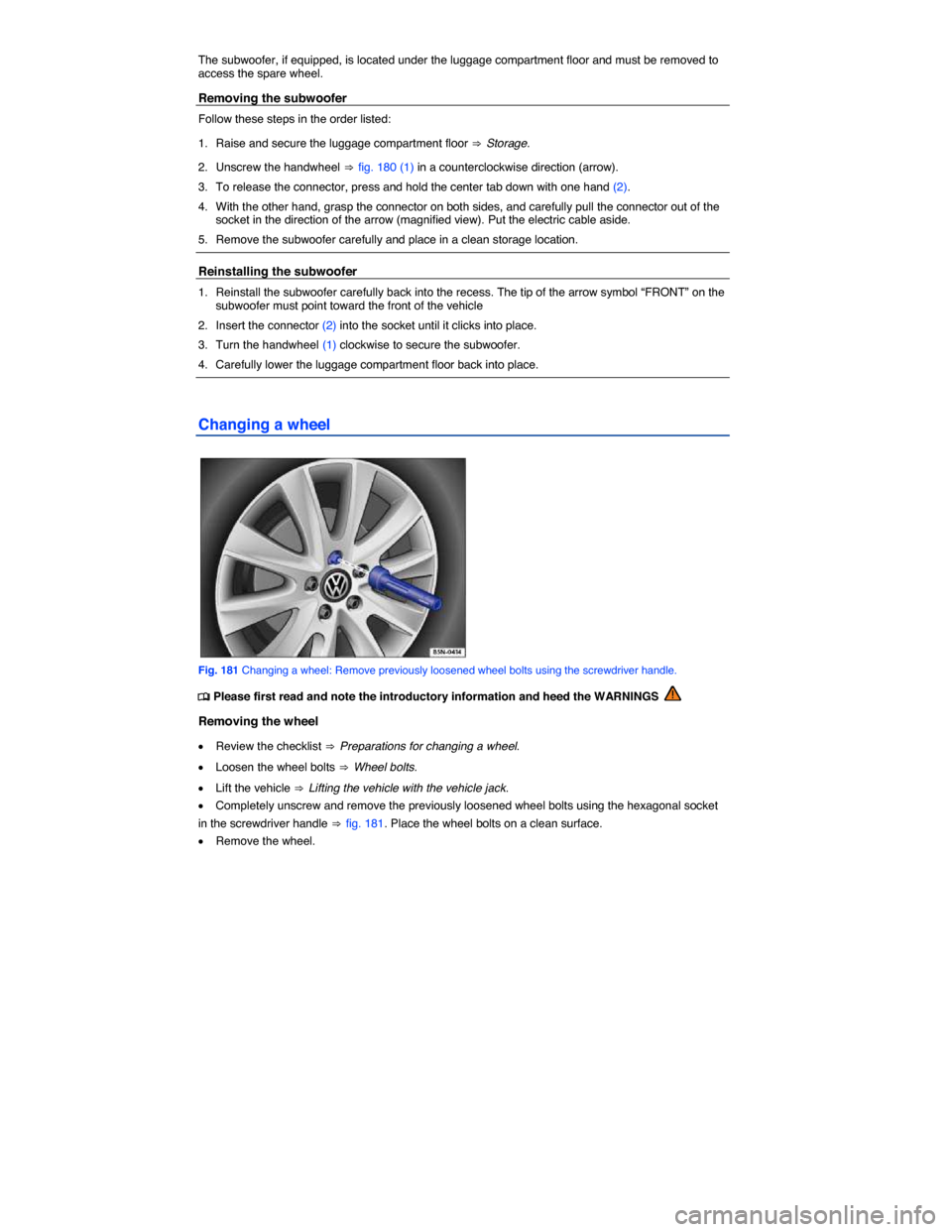

Fig. 181 Changing a wheel: Remove previously loosened wheel bolts using the screwdriver handle.

Mounting a spare or compact spare wheel
If the tire is a unidirectional tire, be sure to install it in the proper rolling direction ⇒ Tires and wheels.
x Place the spare wheel or compact spare wheel on the axle.
x Screw in the wheel bolts clockwise and tighten them slightly using the hexagonal socket in the screwdriver handle.
x Lower the vehicle with the jack.
x Use the lug wrench to firmly tighten all wheel bolts (turn clockwise) ⇒ . Do not tighten them in sequence! Tighten any wheel bolt to begin, then tighten the wheel bolt diagonally opposite the first bolt, and so forth.
x Install the wheel bolt caps, center wheel hubcap, or wheel cover, if any ⇒ Wheel trim.
WARNING
Wheel bolts that are tightened or installed improperly can come loose, causing loss of vehicle control, a crash, and serious personal injury.
x Always keep wheel bolts and threads in the wheel hub clean and free of oil and grease. The wheel bolts must turn easily and must be tightened with the right torque.
x Use the hexagonal socket in the screwdriver handle only to turn the wheel bolts when they are loose, never to loosen them or tighten them firmly.
WARNING
Improper use of a compact spare wheel can cause loss of vehicle control, a crash or other accident, and serious personal injury.
x Never use a compact spare wheel if it is damaged or worn down to the wear indicators.
x Never drive faster than 50 mph (80 km/h) with a compact spare wheel. Avoid full-throttle acceleration, heavy braking, and fast cornering!
x Never drive more than 125 miles (200 km) with a compact spare wheel that is installed on the front axle (drive axle).
x Replace the compact spare with a normal wheel and tire as soon as possible. Compact spare tires are designed for brief use only.
After changing a wheel

Fuses

Fuses in the vehicle

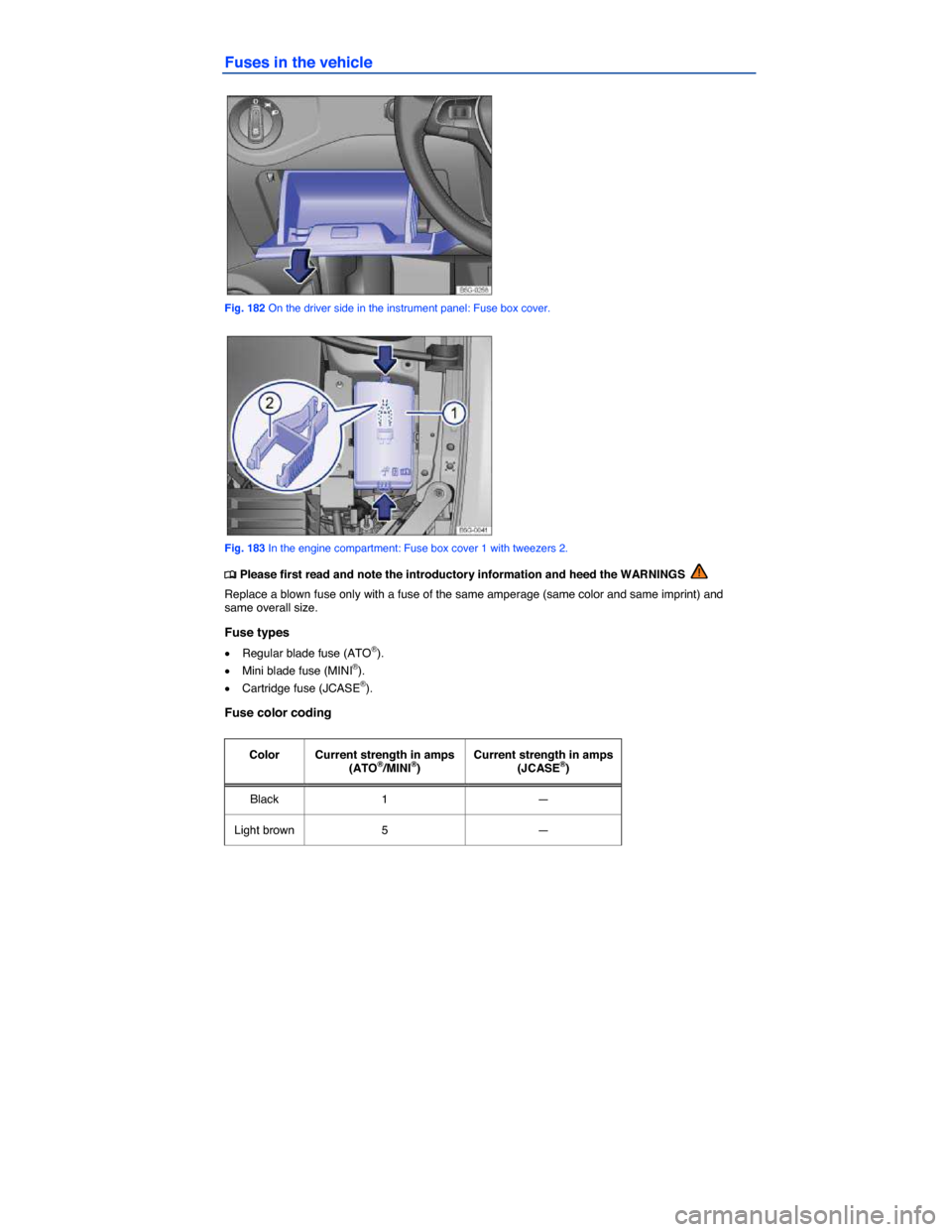

Fig. 182 On the driver side in the instrument panel: Fuse box cover.

Fig. 183 In the engine compartment: Fuse box cover 1 with tweezers 2.

Color Current strength in amps(ATO®/MINI®) Current strength in amps(JCASE®)
Brown 7.5 —
Red 10 50
Blue 15 20
Yellow 20 60
White or clear 25 —
Green 30 40
Orange 40 —
Pink 30 30

Opening the fuse box in the instrument panel
x Pull the lower part of the cover in the direction of the arrow ⇒ fig. 182 and remove the cover from the bottom. This action may require moderate force.
x To install, guide the cover from the bottom into the instrument panel and push in the direction opposite to the arrow until you can hear it latch into place.
Opening the fuse box in the engine compartment
x Open the engine hood

Replacing blown fuses

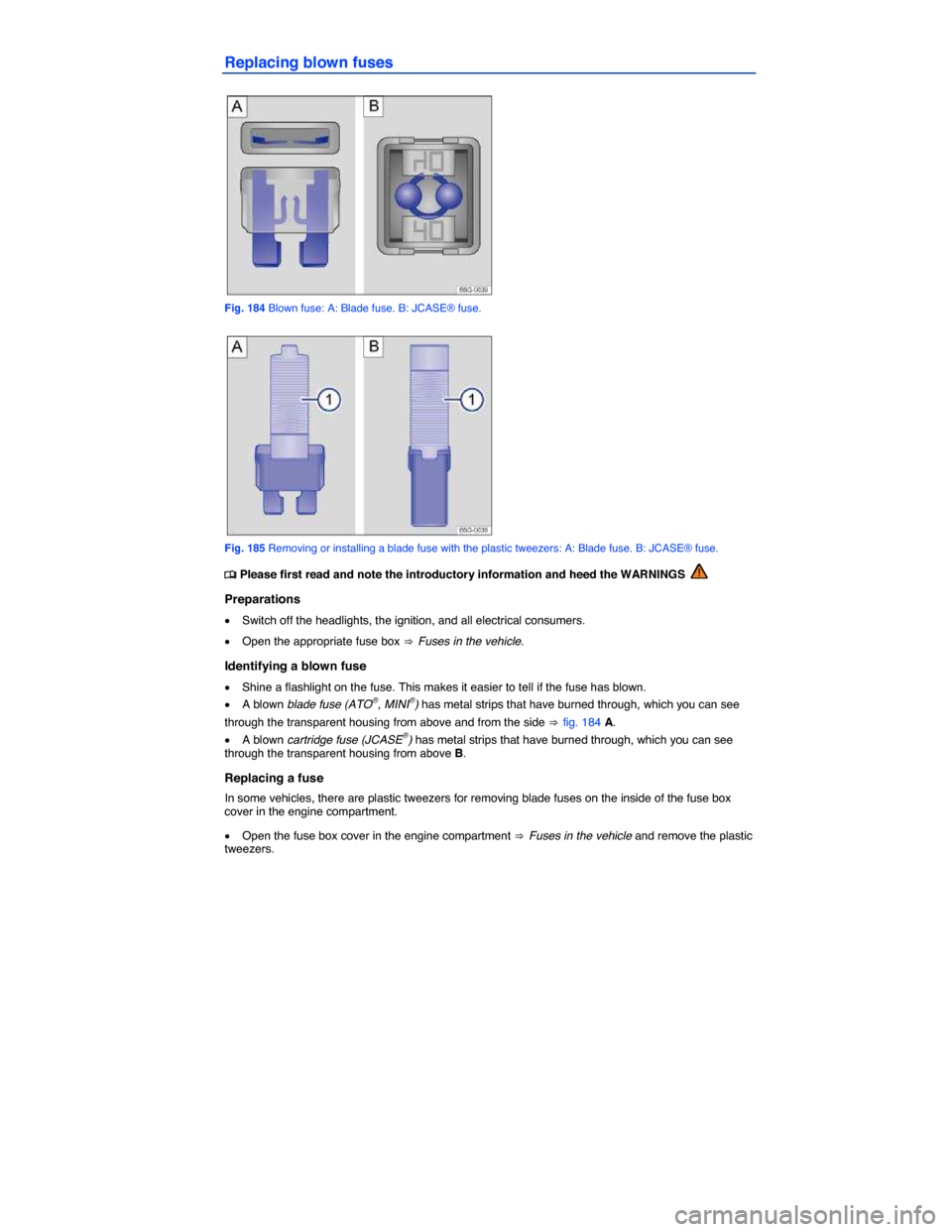

Fig. 184 Blown fuse: A: Blade fuse. B: JCASE® fuse.

Fig. 185 Removing or installing a blade fuse with the plastic tweezers: A: Blade fuse. B: JCASE® fuse.
