2015 VAUXHALL ASTRA J Owner's Manual

In brief7
3-door hatchback
To open the tailgate, push the brand
emblem at the bottom half.
Press button x on remote control to
unlock and open the tailgate. The
doors remain locked.
4-door saloon
Press button x on the remote
control for at least 2 seconds; the boot lid opens slightly.
Radio remote control 3 21, Central
locking system 3 22, Load
compartment 3 25.
Seat adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Seat position 3 39, Seat adjustment
3 39.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

8In brief
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 39, Seat adjustment
3 39, Seat folding 3 42.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 39, Seat adjustment
3 39.
Seat inclination
Lever pumping motion
up=front end higherdown=front end lower
Seat position 3 39, Seat adjustment
3 39.

In brief9
Power seat adjustment
Operate switch 1:
forwards/back‐
wards=length adjustmentupwards/down‐
wards=height adjustmentupwards/down‐
wards at front=inclination
adjustment
Operate switch 2:
forwards/
backwards at
the top=backrest adjustment
Power seat adjustment 3 43, Seat
folding 3 42.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 37.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 39, Seat belts
3 46, Airbag system 3 49.

10In briefMirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 31, Automatic anti-
dazzle interior mirror 3 32.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 30,
Electric adjustment 3 30, Folding
exterior mirrors 3 30, Heated
exterior mirrors 3 31.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 49, Ignition
positions 3 160.

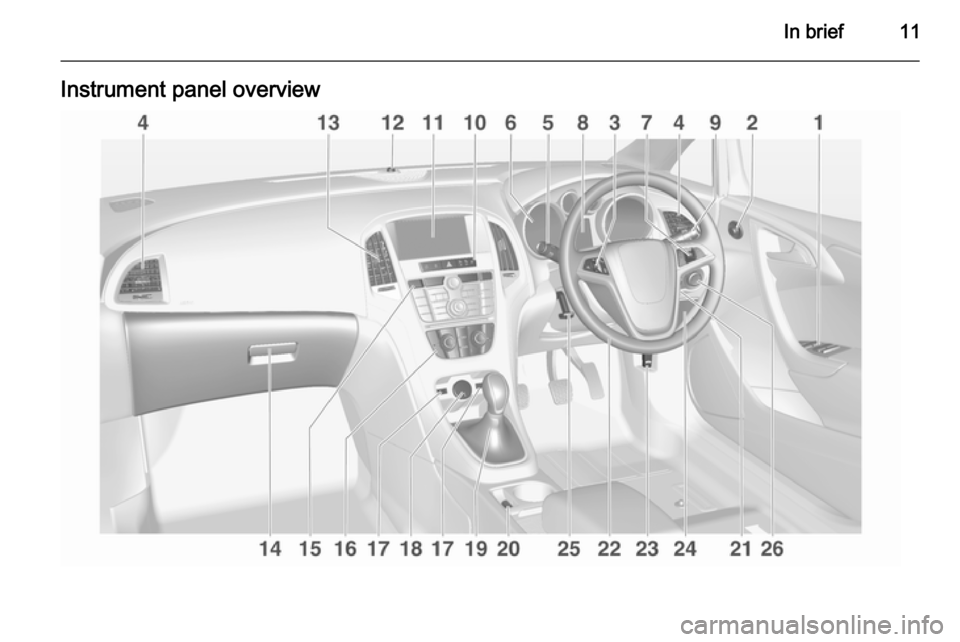

In brief11Instrument panel overview

12In brief
1Power windows .....................32
2 Exterior mirrors .....................30
3 Cruise control .....................178
Speed limiter ....................... 180
Adaptive cruise control .......181
Forward collision alert .........188
4 Side air vents ...................... 157
5 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ....................101
6 Instruments ........................ 107
7 Steering wheel controls .......99
8 Driver Information Centre .... 118
9 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................143
Exit lighting ......................... 147
Parking lights ...................... 144
Buttons for Driver
Information Centre ..............11810Sport mode ........................ 176
Central locking system ..........22
Hazard warning flashers ....143
Fuel selector ....................... 108
Control indicator for airbag
deactivation ........................ 112
Control indicator for front
passenger seat belt ...........112
Tour mode .......................... 176
11 Info-Display ........................ 123
12 Anti-theft alarm system
status LED ........................... 28
13 Centre air vents .................. 157
14 Glovebox .............................. 59
15 Sport mode ........................ 176
Tour mode .......................... 176
Traction Control system .....173
Electronic Stability Control . 174
Parking assist systems .......194Lane departure warning .....208
Eco button for stop-start
system ................................. 162
16 Climate control system ........ 149
17 AUX input, USB input ..........11
18 Power outlet ........................ 105
19 Selector lever, manual
transmission ....................... 170
Automatic transmission ......166
20 Electric parking brake .........171
21 Ignition switch with
steering wheel lock ............160
22 Horn ................................... 100
Driver airbag ........................ 49
23 Bonnet release lever ..........223
24 Storage compartment,
fuse box ............................. 252
25 Steering wheel adjustment ..99
26 Light switch ........................ 136
Headlight range
adjustment ......................... 138
Front fog lights ...................143

In brief13
Rear fog light ...................... 144
Instrument illumination .......145Exterior lighting
Turn light switch:
7=lights off8=sidelights9=low beam
Automatic light control
AUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation of
the automatic light control8=sidelights9=low beam
Fog lights
Press light switch:
>=front fog lightsr=rear fog light
Lighting 3 136.

14In brief
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 137, High
beam 3 137, Headlight flash 3 138,
Adaptive forward lighting 3 139.
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 143, Parking lights 3 144.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 143.
