2015 TOYOTA YARIS HYBRID Owners Manual

651-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52F30E
Installing child restraints
Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for the
rear outer seats. (Tags displaying
the location of the anchors are
attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
the rear outer seats.
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.

661-1. For safe use
YARIS_HV_EE_OM52F30E
■Rear-facing  Baby seat/child seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
Installing child restraints using a seat belt
1
2
3

671-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52F30E
■Forward-facing  Child seat
Remove the head restraint. ( →P. 153)
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
1
2
3
4

681-1. For safe use
YARIS_HV_EE_OM52F30E

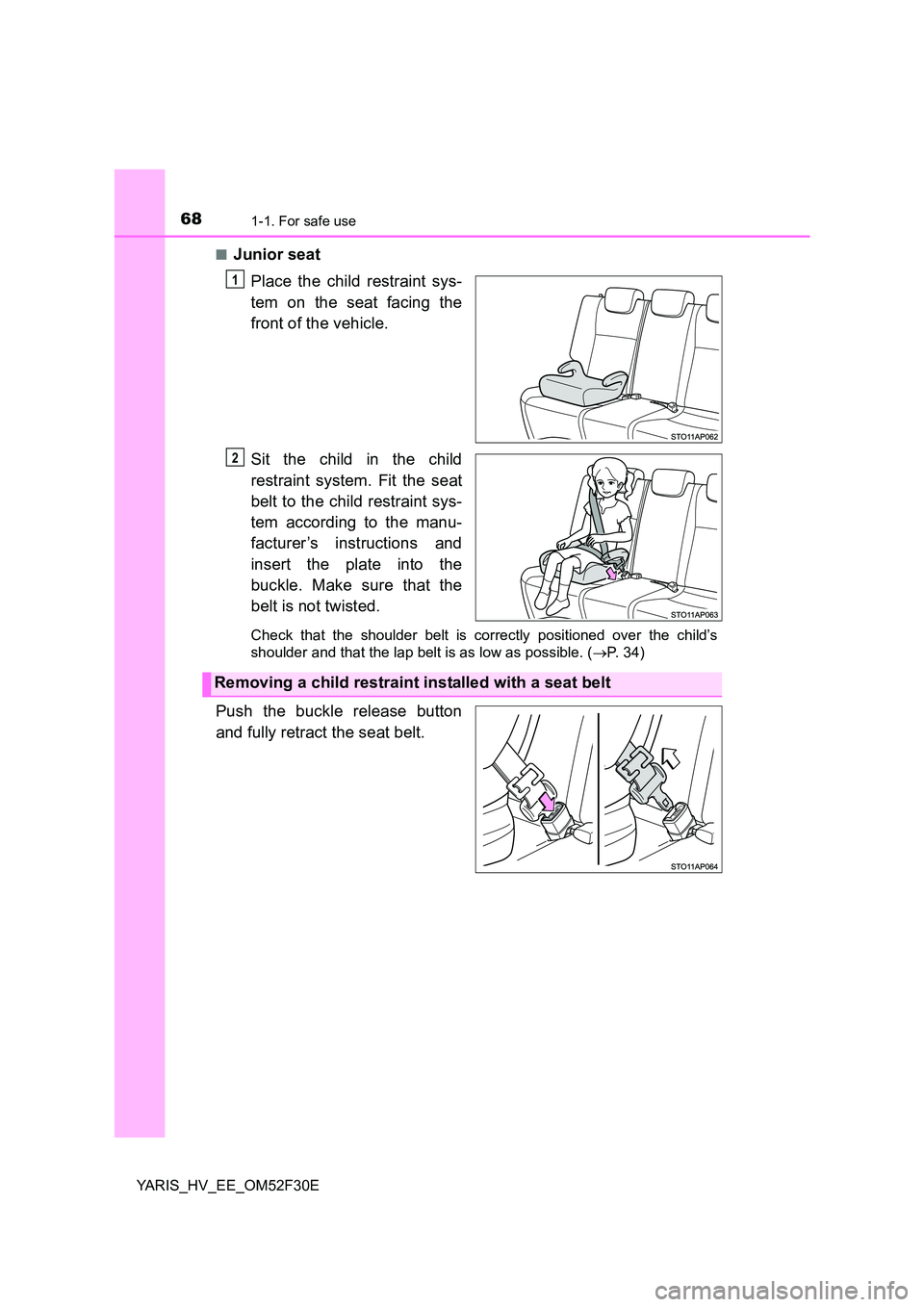

■Junior seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. ( →P. 34)
Push the buckle release button
and fully retract the seat belt.
1
2
Removing a child restraint installed with a seat belt

691-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52F30E
Remove the head restraint. (→P. 153)
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the
exclusive fixing bars.
If the child restraint has a top strap,
the top strap should be latched
onto the anchor bracket.
Installation with ISOFIX rigid anchors (ISOFIX child restraint sys-
tem)
1
2
3

701-1. For safe use
YARIS_HV_EE_OM52F30E
Vehicles with a luggage cover: Remove the luggage cover.
( →P. 301)
Remove the head restraint. ( →P. 153)
Secure the child restraint sys-
tem using the seat belt or ISO-
FIX rigid anchors.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
strap.
Make sure the top strap is securely
latched.
Vehicles with a luggage cover: Reinstall the luggage cover.
■ When installing a child restraint system using a seat belt
You need a locking clip to install the child restraint system using a seat belt.
Follow the instructions provided by the manufacturer of the system. If your
child restraint system does not provide a locking clip, you can purchase the
following item from any authorized Toyo ta dealer or repairer, or another duly
qualified and equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
Child restraint systems with a top strap
1
2
3
4
5

711-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52F30E
WARNING
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking, sudden swerving or an accident.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the rear right
seat (left-hand drive vehicles) or the
rear left seat (right-hand drive vehicles).
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).

721-1. For safe use
YARIS_HV_EE_OM52F30E
WARNING
■ When installing a child restraint system
●Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( →P. 52)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
