2015 TOYOTA PRIUS V Owners Manual

5048-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tanceA buzzer also sounds.
 If the windshield wipers are on, turn them
off or set them to either intermittent or slow
mode.
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the LDA malfunction
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the LDA temporarily stops (temper-
ature of white camera sensor is higher than oper-
ation range)
A buzzer also sounds.
 Restart the LDA after driving for a while
(If equipped)
Indicates a malfunction in the pre-collision sys-
tem
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Warning messageDetails/Actions
(Flashes)

5058-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
Indicates an engine oil pressure malfunction A buzzer also sounds.
 Immediately contact your Toyota dealer.
Indicates that the hybrid system has overheated
This message may be displayed when driving
under severe operating conditions, and the out-
put of the hybrid system may temporarily
decrease in order to protect the system. (For
example, when driving up a long steep hill or
driving up a steep hill in reverse.)
A buzzer also sounds.
 Stop and check. ( P. 541)
(If equipped)
Indicates a malfunction in the Automatic High
Beam
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates that the insufficient 12-volt battery
charge
A few seconds
* after the message disap-
pears: Maintain the hybrid system opera-
tion state for approximately 15 minutes or
more to recharge the 12-volt battery.
 If the message does not disappear: Start
the hybrid system by following the “If the
12-volt battery is discharged” procedure
(P. 536).
*: This is displayed for about 6 seconds.
Warning messageDetails/Actions
(Flashes)

5068-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule
*
should be performed soon. Comes on approximately 4500 miles (7200 km)
after the message has been reset.
 If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*.
Comes on approximately 5000 miles (8000 km)
after the message has been reset. (The indica-
tor will not work properly unless the message
has been reset.)
 Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. ( P. 412)
(If equipped)
The Automatic High Beam switch was pressed
with the low beam headlights turned on.
Turn the high beam headlights on before
pressing the Automatic High Beam switch.
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
Turn the VSC on. ( P. 247)
(If equipped)
Indicates that the pre-collision system is not cur-
rently functional
Check the grille cover and the sensor and
clean them if they are dirty.
Warning messageDetails/Actions
(Flashes)

5078-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
Warning messageDetails/Actions
Hybrid battery (traction battery) inspection or
replacement time.
Have the hybrid battery (traction battery)
inspected by your Toyota dealer immedi-
ately.
Hybrid system restarting will soon be disabled.
If you continue to use the vehicle in this
state, you will soon become unable to
restart the hybrid system. Have the hybrid
battery (traction battery) inspected by your
Toyota dealer immediately.
Indicates that restarting of the hybrid system is
not possible.
Contact your Toyota dealer immediately.
An attempt was made to change the shift position
when the 12-volt battery voltage was low.
A buzzer also sounds.
 Charge or replace the 12-volt battery.
The shift lever and P position switch were repeat-
edly operated in quick succession.
A buzzer also sounds.
 Wait approximately 20 seconds and change
the shift position.
An attempt was made to change the shift position
to B when the shift position was P or N.
A buzzer also sounds.
 Change the shift position to D, and then
change the shift position to B.
(Flashes)
(Flashes)
(Flashes)

5088-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
An attempt was made to change the shift position
to R, D or B with the power switch on (READY
indicator turned off). A buzzer also sounds.
 After starting the hybrid system, change
the shift position to R, D or B
*.
*: When changing the shift position to B, first
change the shift position to D, and then
change the shift position to B.
An attempt was made to change the shift position
from P with the brake pedal released. A buzzer also sounds.
 When changing the shift position from P,
depress the brake pedal.
An attempt was made to change the shift position
to B when the shift position was R.
A buzzer also sounds.
The shift position automatically changed to N.
 Change the shift position to D, and then
change the shift position to B.
An attempt was made to change the shift position
to D while the vehicle was driven in reverse.
A buzzer also sounds.
The shift position automatically changed to N.
 Stop the vehicle, and then change the shift
position.
An attempt was made to change the shift position
to R while the vehicle was moving forward.
A buzzer also sounds.
The shift position automatically changed to N.
 Stop the vehicle, and then change the shift
position.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)
(Flashes)

5098-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
Indicates that the P position switch is pressed
while the vehicle is running.A buzzer also sounds.
The shift position automatically changed to N.
 To shift the shift position to P, stop the
vehicle completely and press the P posi-
tion switch.
 To continue driving, shift the shift position
to D or R.
Insufficient 12-volt battery charge
A buzzer also sounds.
 Recharge or replace the 12-volt battery.
• The hybrid system may not be able to start.
• The parking lock mechanism may not func-
tion. When parking, choose a level location
and apply the parking brake securely.
• The power switch may not be able to be
turned off. In this case, the power switch
may be turned off by applying the parking
brake.
• After charging the 12-volt battery, the mes- sage may continue to be displayed until the
shift position is changed from P.
Shift control system malfunction
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
• The hybrid system may not be able to start.
• The parking lock mechanism may not func- tion. When parking, choose a level location
and apply the parking brake securely.
• The power switch may not be able to be turned off. In this case, the power switch
may be turned off by applying the parking
brake.
Shift control system malfunction A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately. If not inspected, vehi-
cle systems may stop operating normally.
Warning messageDetails/Actions
(Flashes)

5108-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
Shift control system communication malfunctionA buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
• The hybrid system may not be able to start.
• May not be switched to the P position.
When parking, choose a level location and
apply the parking brake securely.
• The automatically P position selection func-
tion ( P. 182) may not function. Before
turning the power switch off, securely press
the P position switch, and be sure to check
that the shift position is in P by verifying the
shift position or P position switch operation
indicator lights.
• The power switch may not be able to be turned off. In this case, the power switch
may be turned off by applying the parking
brake.
(If equipped)
Indicates a malfunction in the LED headlight sys-
tem A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Turns on or
Flashes)

5118-2. Steps to take in an emergency
PRIUS v_OM_OM47887U_(U)
8
When trouble arises
Carrying out the corresponding action turns the messages off.

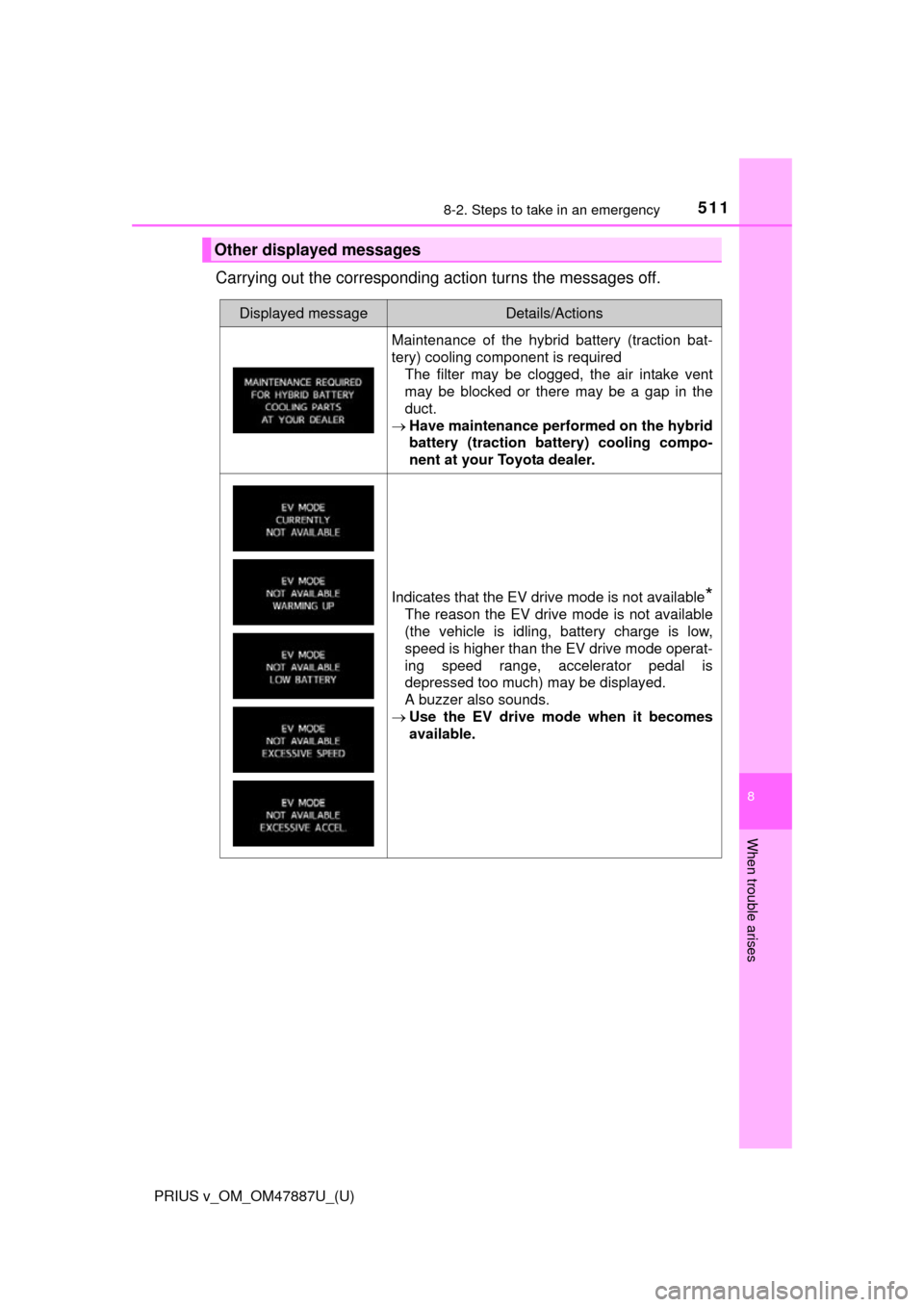

Other displayed messages
Displayed messageDetails/Actions
Maintenance of the hybrid battery (traction bat-
tery) cooling component is required
The filter may be clogged, the air intake vent
may be blocked or there may be a gap in the
duct.
 Have maintenance performed on the hybrid
battery (traction batt ery) cooling compo-
nent at your Toyota dealer.
Indicates that the EV drive mode is not available*
The reason the EV drive mode is not available
(the vehicle is idling, battery charge is low,
speed is higher than the EV drive mode operat-
ing speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
 Use the EV drive mode when it becomes
available.
