2015 TOYOTA PRIUS PLUG-IN HYBRID windshield wipers

1
2
3
4
5
6
7
3
PRIUS PHV_OM_OM47A11U_(U)
1-9. Safety informationCorrect driving posture........ 185
SRS airbags ........................ 187
Front passenger occupant classification system ......... 202
Child restraint systems........ 208
Installing child restraints...... 213
2-1. Driving procedures Driving the vehicle............... 228
Power (ignition) switch ........ 242
Hybrid transmission ............ 249
Turn signal lever ................. 259
Parking brake ...................... 260
Horn .................................... 261
2-2. Instrument cluster Gauges and meters ............ 262
Indicators and warning lights ................................. 267
Multi-information display ..... 271
Head-up display .................. 290 2-3. Operating the lights and
windshield wipers
Headlight switch ................. 297
Fog light switch................... 303
Windshield wipers and washer.............................. 305
Rear window wiper and washer.............................. 309
Headlight cleaner switch .... 312
2-4. Using other driving systems
Cruise control ..................... 313
Dynamic radar cruise control .............................. 317
Driving assist systems ........ 333
Hill-start assist control ........ 338
PCS (Pre-Collision System) ............................ 340
2-5. Driving information Cargo and luggage ............. 349
Vehicle load limits............... 354
Winter driving tips ............... 355
Trailer towing ...................... 360
Dinghy towing ..................... 361
2When driving

8
PRIUS PHV_OM_OM47A11U_(U)
Fuel filler door P. 178
Pictorial indexExterior
Fog lights P. 303
Daytime running lights(for Canada)
and headlights
Parking lights
Front side marker lights
P. 297, 300
P. 297
P. 297
Hood P. 448
Windshield wipers P. 305Outside rear view mirrors
P. 173
Front turn signal lights P. 259
Daytime running lights
(for the U.S.A.)
P. 300

15
PRIUS PHV_OM_OM47A11U_(U)
Headlight switch
Turn signal lever
Fog light switch

P. 297
P. 259
P. 303
Pre-collision braking off switch P. 341
Parking brake pedal P. 260
Tire pressure warning reset switch P. 483
Windshield wipers and
washer switch
Rear window wiper and
washer switch

P. 305
P. 309
Gauges and meters
Multi-information display P. 262
P. 271
Audio system*2 P. 382
Navigation system*1
SRS driver airbag
Horn
P. 187
P. 261
SRS knee airbag P. 187
Tilt and telescopic steering control lever P. 169
: If equipped
*1: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
*2: Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL”.
Pictorial indexInstrument panel

When driving2
227
PRIUS PHV_OM_OM47A11U_(U)
2-1. Driving proceduresDriving the vehicle............ 228
Power (ignition) switch ..... 242
Hybrid transmission ......... 249
Turn signal lever .............. 259
Parking brake ................... 260
Horn ................................. 261
2-2. Instrument cluster Gauges and meters ......... 262
Indicators and warning lights .............................. 267
Multi-information display............................ 271
Head-up display ............... 290 2-3. Operating the lights and
windshield wipers
Headlight switch ............... 297
Fog light switch ................ 303
Windshield wipers and washer ........................... 305
Rear window wiper and washer ........................... 309
Headlight cleaner switch ............................. 312
2-4. Using other driving systems
Cruise control ................... 313
Dynamic radar cruise control ............................ 317
Driving assist systems ..... 333
Hill-start assist control ...... 338
PCS (Pre-Collision System).......................... 340
2-5. Driving information Cargo and luggage .......... 349
Vehicle load limits ............ 354
Winter driving tips ............ 355
Trailer towing ................... 360
Dinghy towing .................. 361

297
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
2-3. Operating the lights and windshield wipers

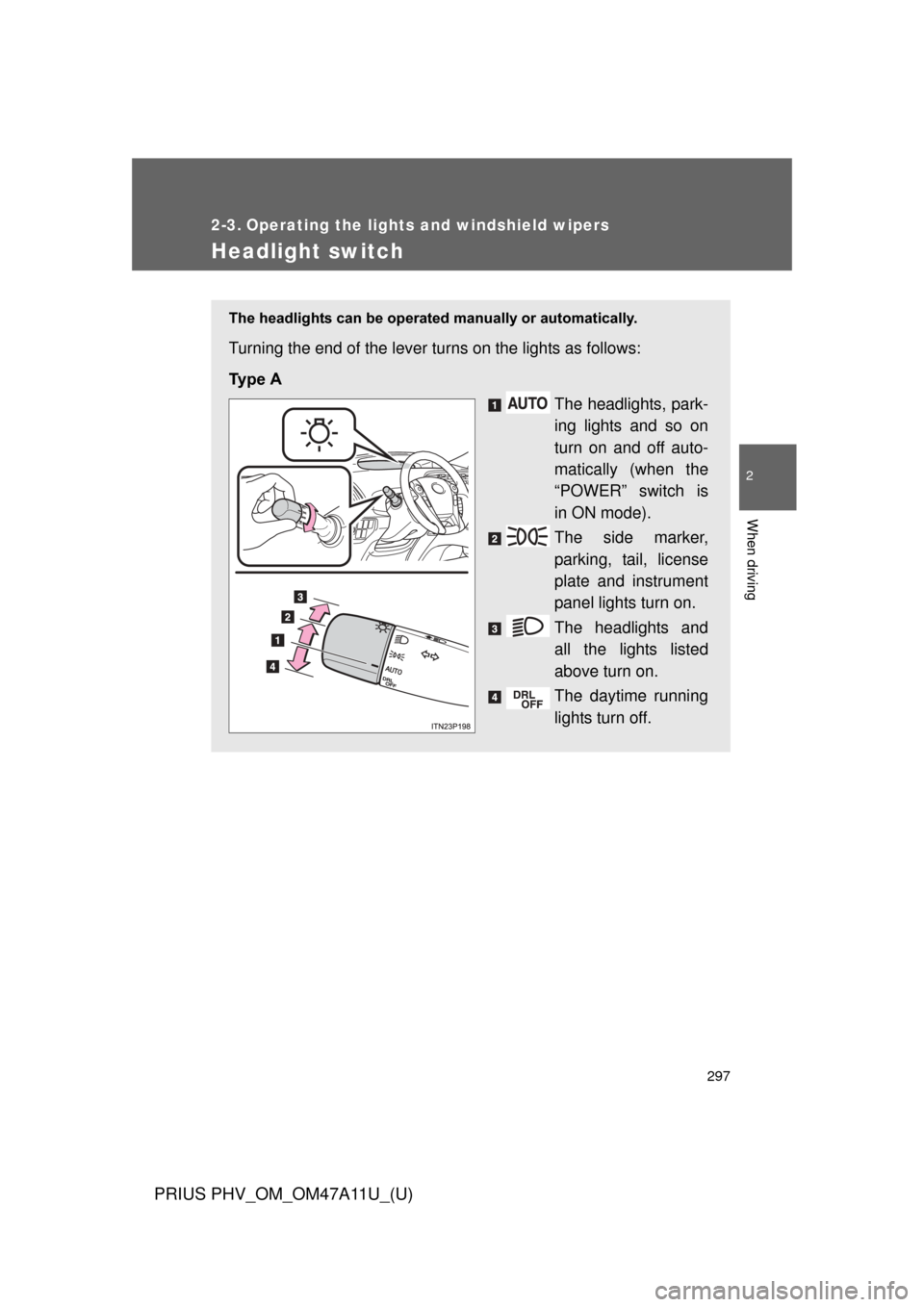

Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Ty p e AThe headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“POWER” switch is
in ON mode).
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and
all the lights listed
above turn on.
The daytime running
lights turn off.

298 2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47A11U_(U)

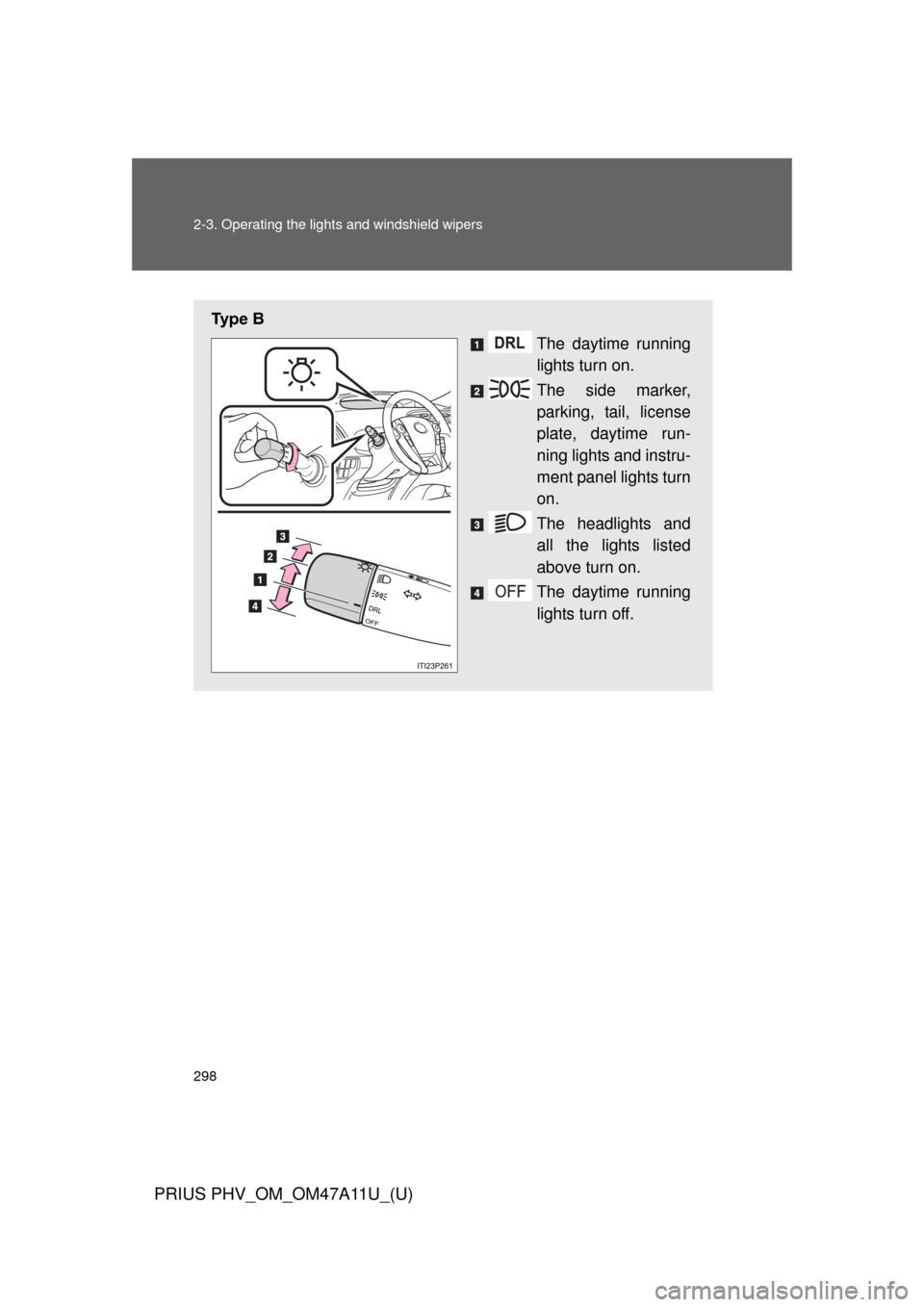

Ty p e B
The daytime running
lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights and instru-
ment panel lights turn
on.
The headlights and
all the lights listed
above turn on.
The daytime running
lights turn off.

299
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

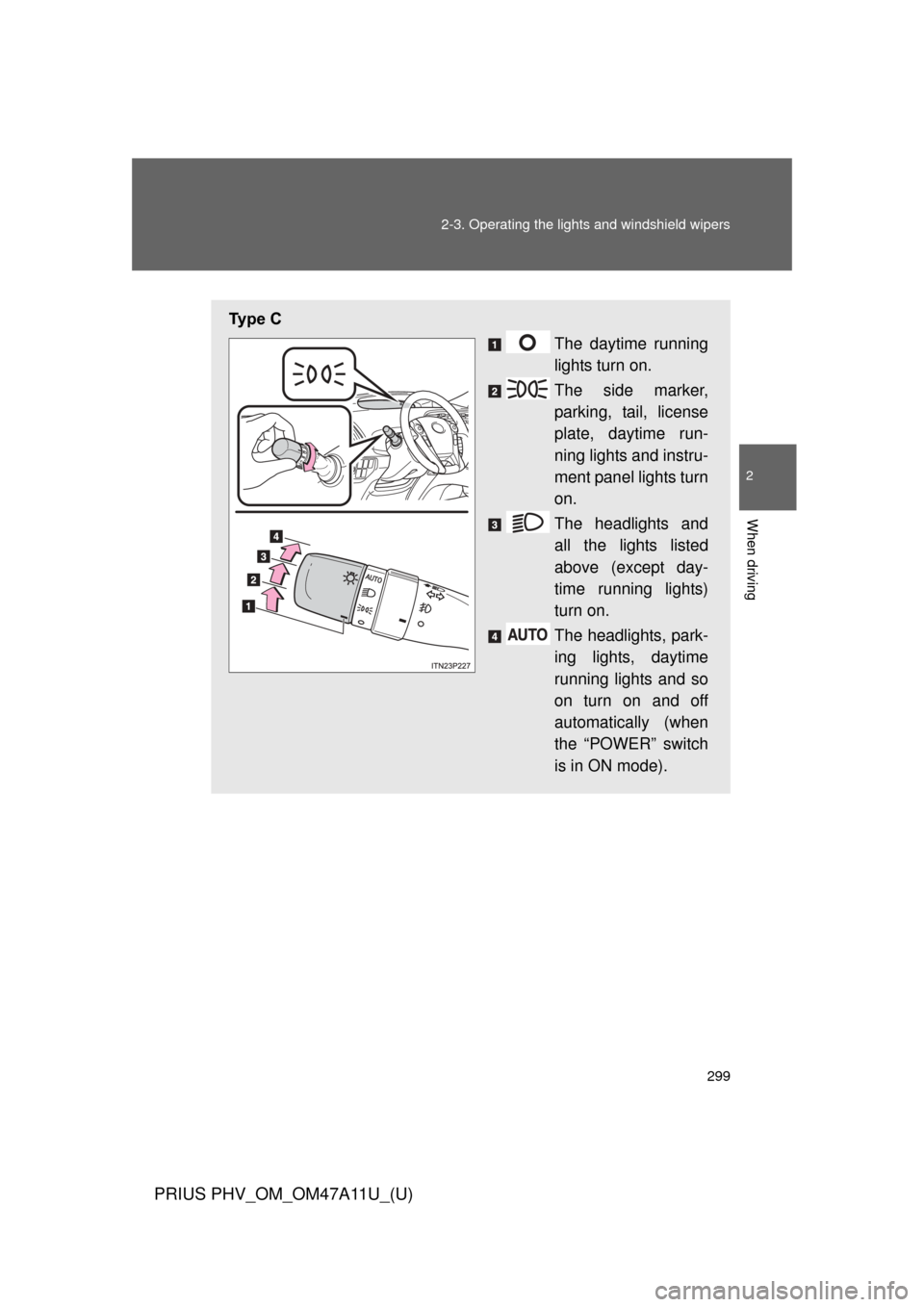

Ty p e C
The daytime running
lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights and instru-
ment panel lights turn
on.
The headlights and
all the lights listed
above (except day-
time running lights)
turn on.
The headlights, park-
ing lights, daytime
running lights and so
on turn on and off
automatically (when
the “POWER” switch
is in ON mode).

300 2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47A11U_(U)
Turning on the high beam headlights
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
■Daytime running light system
●For the U.S.A.: To make your vehicle more visible to other drivers, the
daytime running lights turn on automatically whenever the hybrid system
is started and the parking brake is released.
Daytime running lights can be turned off by operating the switch. (if
equipped)
For Canada: To make your vehicle more visible to other drivers, the day-
time running lights turn on automatically (at a reduced intensity) whenever
the hybrid system is started and the parking brake is released. Daytime
running lights are not designed for use at night.
● For Canada: Compared to turning on the headlights, the daytime running
light system offers greater durability and consumes less electricity, so it
can help improve fuel economy.
