2015 TOYOTA PRIUS PLUG-IN HYBRID windshield wipers

309
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

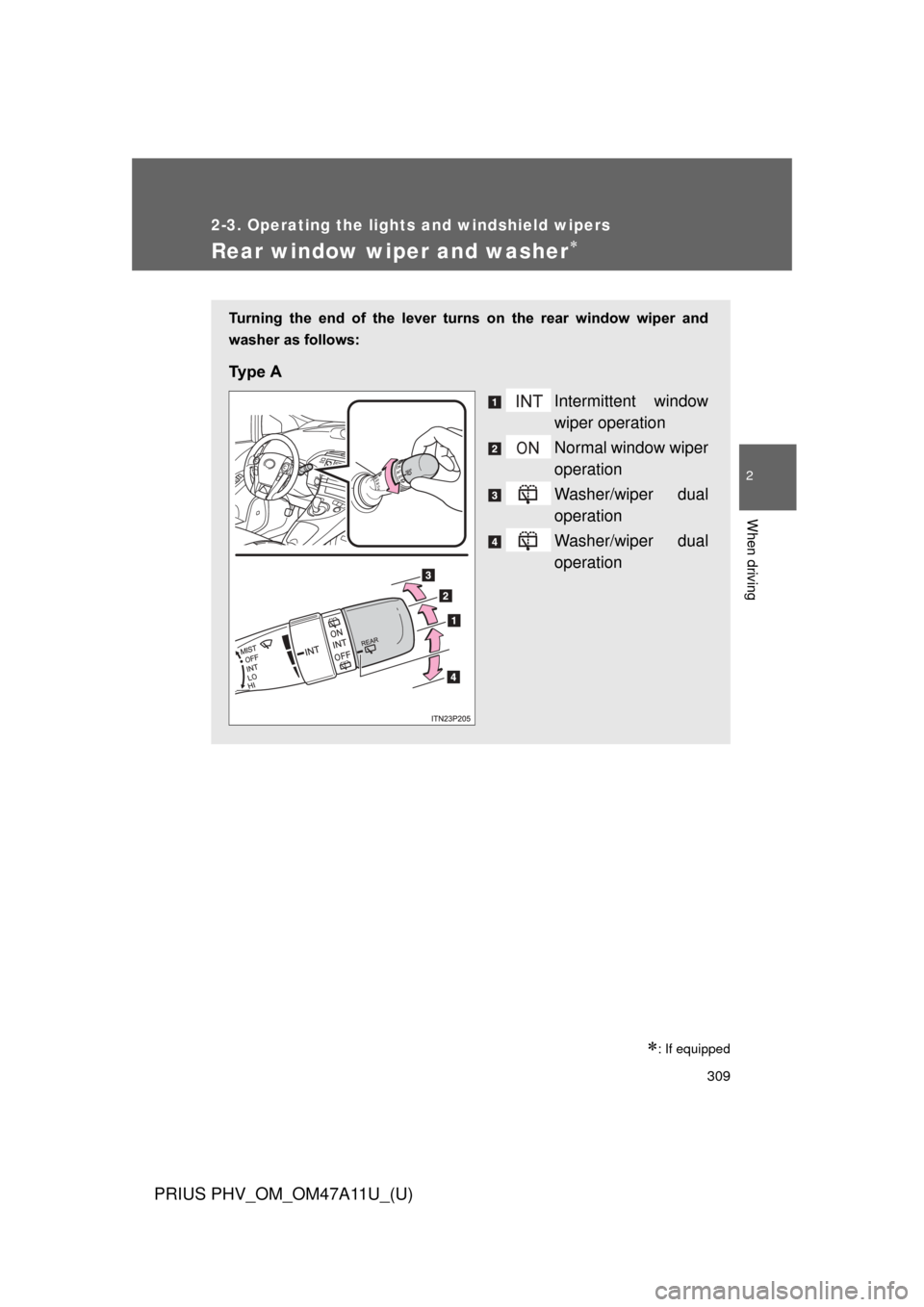

Rear window wiper and washer
: If equipped
Turning the end of the lever turns on the rear window wiper and
washer as follows:
Ty p e A
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation

310 2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47A11U_(U)
■The rear window wiper and w asher can be operated when
The “POWER” switch is in ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.

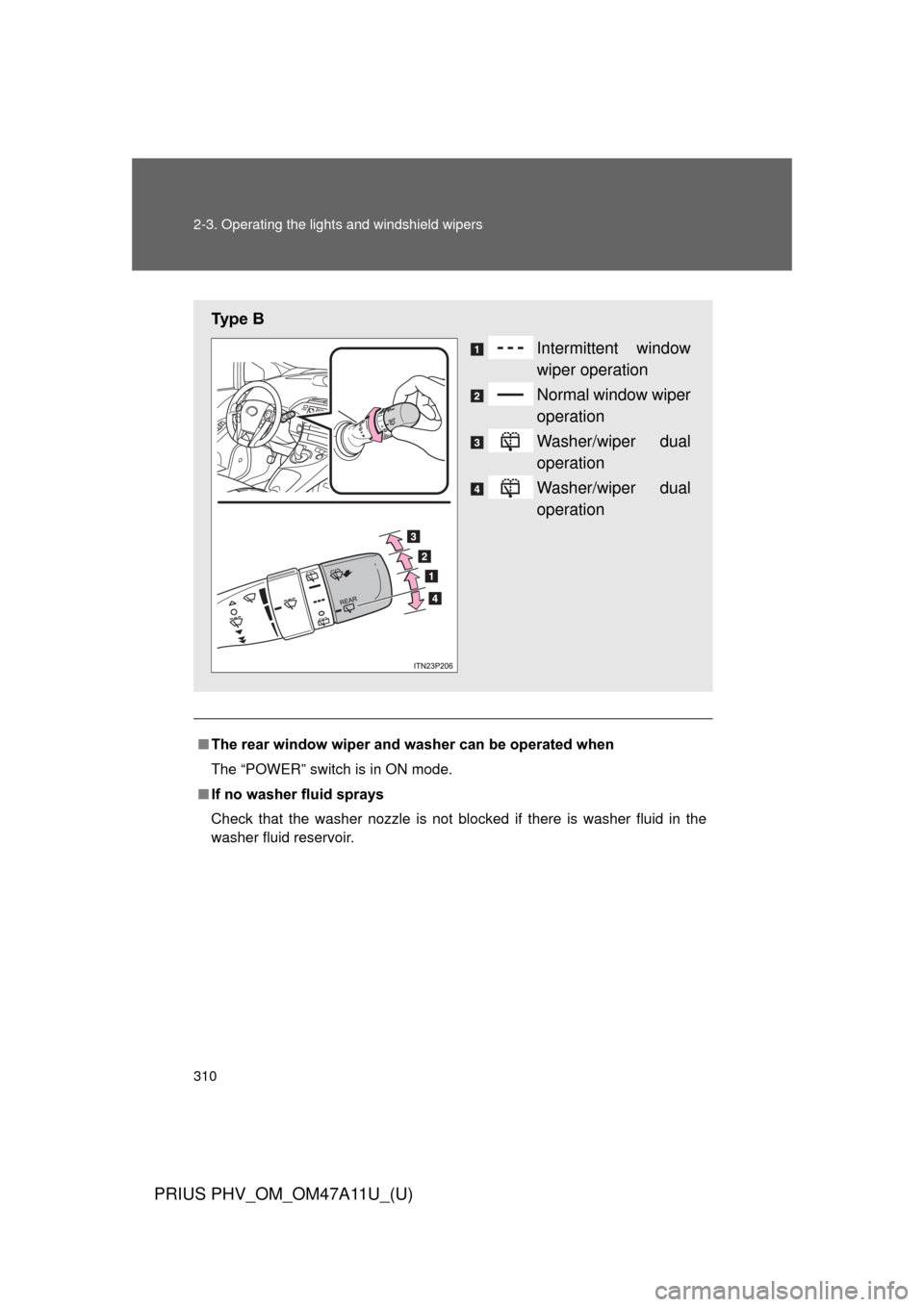

Ty p e B
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation

311
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
NOTICE
■
When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.

312
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47A11U_(U)
Headlight cleaner switch
: If equipped
■The headlight cleaners can be operated when
The “POWER” switch is in ON mode and the headlight switch is turned on.
If equipped, the headlight switch is in the “AUTO” position and the headlight
is on.
■ Windshield washer linked operation
Only for the first time when the windshield washer is operated with the
“POWER” switch in ON mode and the headlights on, the headlight cleaners
will operate once. ( P. 305)
NOTICE
■When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overhea\
t.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

326 2-4. Using other driving systems
PRIUS PHV_OM_OM47A11U_(U)
■Dynamic radar cruise control can be set when
●The shift position is in D.
● Vehicle speed is above approximately 30 mph (50 km/h).
■ Accelerating after setting the vehicle speed
The vehicle can accelerate normally. After acceleration, the set speed
resumes. However, during vehicle-to-vehicle distance control mode, the
vehicle speed may decrease below the set speed in order to maintain the
distance to the vehicle ahead.
■ Set speed
The set speed may be unsustainable depending on driving circumstances.
■ Automatic cancelation of vehicle -to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the
following situations:
● Actual vehicle speed falls below approximately 25 mph (40 km/h).
● Enhanced VSC is activated.
● The sensor cannot operate correctly because it is covered in some way.
● The windshield wipers are operating at high speed (when the wiper
switch is set to the high speed windshield wiper operation position).
If vehicle-to-vehicle distance control driving is automatically canceled for any
other reason, there may be a malfunction in the system. Contact your Toyota
dealer.

379
3-1. Using the air conditioning system
and defogger
PRIUS PHV_OM_OM47A11U_(U)
3
Interior features
■Security feature
Any unlocked doors will be automatically locked when the system is operat-
ing. The buzzer will beep and the emergency flashers flash when the doors
have been locked or the system has been turned off.
(The doors locked: Once; The system turned off: Twice)
■ Conditions aff ecting operation
P. 123
■ When using the Remote Air Conditioning System
A charging message will be displayed on the multi-information display. Dif-
ferent messages will be displayed depending on when the Remote Air Con-
ditioning System was started (after charging or during charging).
( P. 570)
■ While the Remote Air Conditio ning System is operating
● Depending on the operating condition of the Remote Air Conditioning
System, the electric fan may spin and an operating noise may be heard.
However, this does not indicate a malfunction.
● The Remote Air Conditioning System may stop operating temporarily if
other features that use electricity (for example, the seat heater, lights,
windshield wipers) are in operation or if the charge level of the 12-volt
battery becomes low.
■ Electronic key battery depletion
P. 127
■ When the electronic key battery is fully depleted
P. 497
■ Customization
Setting (e.g. Operation using the on the wireless remote control) can
be changed.
(Customizable features P. 653)

442 4-2. Maintenance
PRIUS PHV_OM_OM47A11U_(U)
Vehicle exterior
ItemsCheck points
Doors • Do the doors operate smoothly?
Engine hood • Does the engine hood lock sys-
tem work properly?
Fluid leaks • There should not be any signs of
fluid leakage after the vehicle has
been parked.
Tires • Is the tire inflation pressure cor-
rect?
• The tires should not be dam- aged or excessively worn.
• Have the tires been rotated according to the maintenance
schedule?
• The wheel nuts should not be loose.
Windshield wipers/rear window
wiper • The wiper blades should not show
any signs of cracking, splitting,
wear, contamination or deforma-
tion.
• The wiper blades should clear the windshield/rear window without
streaking or skipping.

507
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
FUSEAmpereCircuit
15 P FR DOOR 25A Power windows
16 D FR DOOR 25A Power windows
17 DOOR RR 25A Power windows
18 DOOR RL 25A Power windows
19 S/ROOF 30A No circuit
20 ECU-IG NO.1 10A Electric cooling fans, multiplex
communication system, vehicle
proximity notification system
21 ECU-IG NO.2 10A Driver support system, Pre-Colli-
sion System, inside rear view mir-
ror, garage door opener, yaw rate
& G sensor, brake system, naviga-
tion system, tire pressure warning
system, seat belt pretensioners,
audio system, emergency flash-
ers, turn signal lights, windshield
wipers, headlight cleaner
22 GAUGE 10A Headlight leveling system, gauges
and meters
23 A/C 10A Air conditioning system, Remote
Air Conditioning System
24 WASHER 15A Windshield washer
25 RR WIP 20A Rear window wiper and washer
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters
