1-1. Plug-in hybrid system
Plug-in hybrid system features
The plug-in hybrid system is a system that has the features of both
electric vehicles and hybrid vehicles.
●Electricity received by charging from an external power
source can be used, and the v ehicle can also be driven as an
electric vehicle by driv ing over certain distances
* using only
the electric motor (traction motor).
● If the amount of electricity remaining in the hybrid battery
(traction battery) becomes low, the vehicle is automatically
controlled in such a way that it can be driven as a hybrid vehi-
cle through the joint use of the gasoline engine.
*: The driving range will vary in accord ance with conditions such as vehi-
cle speed, the amount of charge remaining in the hybrid battery (trac-
tion battery) and the usage of the air conditioning system. The gasoline
engine may also be used simultaneously in accordance with driving
conditions.
Gasoline engine
Electric motor (traction motor)

34 1-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A11U_(U)
■When in HV mode
The vehicle can be used in the same way as a standard hybrid
vehicle.
In HV mode, controls are primarily carried out as follows in
accordance with the driving conditions.
●The gasoline engine stops when the vehicle is stopped.
● During start off, the electric motor (traction motor) drives the
vehicle.
● During normal driving, the gasoline engine and electric motor
(traction motor) are controlled effectively, and the vehicle is
driven with optimum fuel efficienc y. Also, when necessary, the
electric motor (traction motor) operates as an electrical gener-
ator to charge the hybrid battery (traction battery).
● When the accelerator pedal is depressed heavily, drive force
from both the gasoline engine an d the electric motor (traction
motor) is used to accelerate.
■ When braking (regenerative braking)
The electric motor (traction mo tor) charges the hybrid battery
(traction battery).
The EV driving range can be extended by actively using this
regenerative braking to store el ectricity in the hybrid battery
(traction battery).
Moreover, as fuel consumption is also reduced when in HV
mode, the regenerative braking sy stem can be used effectively.

35
1-1. Plug-in hybrid system
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
Plug-in hybrid system control
The plug-in hybrid system feat ures both EV mode and HV mode,
which are switched automatically. When a sufficient amount of elec-
tricity is remaining in the hybrid ba ttery (traction battery) the vehicle
can be driven as an electric vehicle in EV mode; and when only a lit-
tle electricity is remaining in the hybrid battery (traction battery), HV
mode is automatically selected and the vehicle can be used in the
same manner as a hybrid vehicle.
The modes can also be switched using the EV/HV mode selection
switch. ( P. 37)
■ EV mode
Using the electricity stored in the
hybrid battery (traction battery),
the vehicle can be driven using
only the electric motor (traction
motor).
The gasoline engine may also be
used temporarily at the same
time in accordance with the
speed and load of the vehicle,
and with heater usage.

44
1-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A11U_(U)

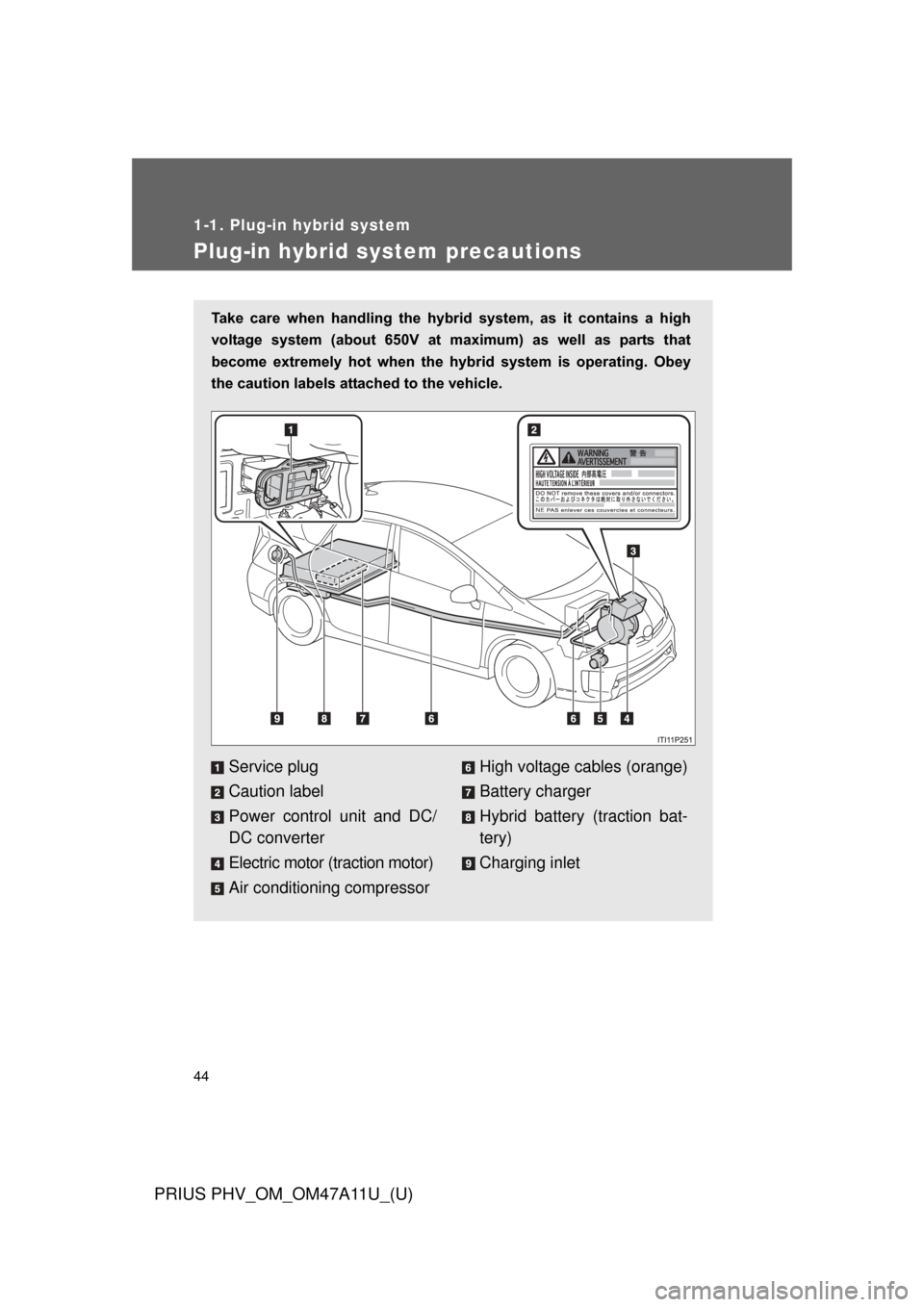

Plug-in hybrid system precautions
Take care when handling the hybrid system, as it contains a high
voltage system (about 650V at maximum) as well as parts that
become extremely hot when the hy brid system is operating. Obey
the caution labels attached to the vehicle.
Service plug
Caution label
Power control unit and DC/
DC converter
Electric motor (traction motor)
Air conditioning compressorHigh voltage cables (orange)
Battery charger
Hybrid battery (traction bat-
tery)
Charging inlet

258 2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)
NOTICE
■Hybrid battery (tract ion battery) charge
If the shift position is in N, the hybrid battery (traction battery) will not be
charged. To help prevent the battery from discharging, avoid leaving the N
position selected for an extended period of time.
■ Situations where shift control system malfunctions are possible
If any of the following situations occurs, shift control system malfunctions are
possible.
Immediately stop the vehicle in a safe place on level ground, apply the park-
ing brake, and then contact your Toyota dealer.
● When the “P LOCK MALFUNCTION” warning message appears on the
multi-information display. ( P. 552)
● When the shift position indicator remains off.
■ Notes regarding shift lever an d P position switch operation
Avoid repeatedly operating the shift lever and P position switch in quick suc-
cession.
The system protection function may activate and it will not be temporarily
possible to shift the shift position other than P. If this happens, please wait
for approximately 20 seconds before attempting to change the shift position
again.

333
2-4. Using other driving systems
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
Driving assist systems
To help enhance driving safety and performance, the following sys-
tems operate automatically in res ponse to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavi ly when operating the vehicle.
■ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface
■Brake assist
Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation
■VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning
on slippery road surfaces
■TRAC (Traction Control)
Helps to maintain drive power and prevent the drive wheels from spin-
ning when starting the vehicle or accelerating on slippery roads
■EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel
■Enhanced VSC (Enhanced Vehicle Stability Control)
Provides cooperative control of the ABS, TRAC, VSC and EPS.
Helps to maintain directional stability when swerving on slippery road
surfaces by controlling steering performance.

377
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47A11U_(U)
3
Interior features
Remote Air Conditioning System
The Remote Air Conditioning System uses electrical energy stored
in the hybrid battery (traction batt ery) and allows the air conditioning
to be operated by remote control.
If the Remote Air Conditioning System is used while the charging
cable is connected to the vehicle, the reduction of charge in the
hybrid battery (traction battery) will be suppressed to allow you to
use electricity from an external power source.
Charging will be conducted automatically after the Remote Air Condi-
tioning System is stopped.
■ Before leaving the vehicle
Check the temperature setting of the air conditioning system.
The Remote Air Conditioning System will operate in accordance with
the temperature settings of the air conditioning system.
■Activating the Remote Air Conditioning System
Press and hold the to
operate the Remote Air Condi-
tioning System.
The system will shut off if a
door is opened.
The system can be stopped by
pressing the twice.
