637
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47A11U_(U)
Uniform Tire Quality Grading
This information has been prepared in accordance with regulations
issued by the National Highway Tr affic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answ er any questions you may have as
you read this information.
■ DOT quality grades
All passenger vehicle tires mu st conform to Federal Safety
Requirements in addition to these grades. Quality grades can be
found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example: Treadwear 200 Traction AA Temperature A
■ Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions
of their use. Performance may diff er significantly from the norm due
to variations in driving habits, service practices and differences in
road characteristics and climate.
638 6-1. Specifications
PRIUS PHV_OM_OM47A11U_(U)
■Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ab ility to stop on wet pavement as
measured under controlled cond itions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, represent-
ing the tire’s resistance to the generation of heat and its ability to
dissipate heat when tested under controlled conditions on a speci-
fied indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
Grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.
675

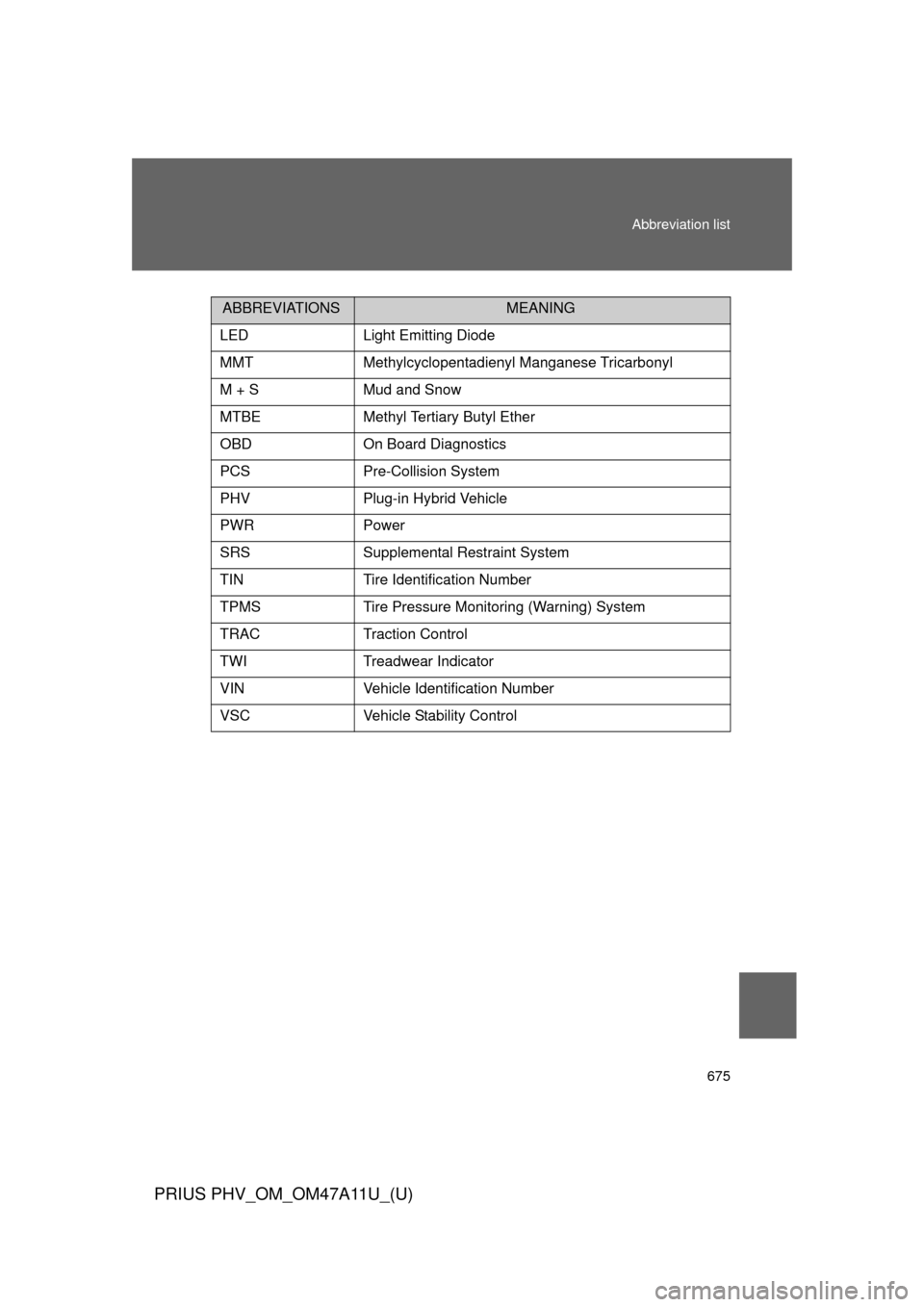

Abbreviation list
PRIUS PHV_OM_OM47A11U_(U)
LEDLight Emitting Diode
MMTMethylcyclopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
PCSPre-Collision System
PHVPlug-in Hybrid Vehicle
PWRPower
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Monitoring (Warning) System
TRACTraction Control
TWITreadwear Indicator
VINVehicle Identification Number
VSCVehicle Stability Control
ABBREVIATIONSMEANING
686 Alphabetical index
PRIUS PHV_OM_OM47A11U_(U)
Tonneau cover ......................... 410
Tools ......................................... 454
Total load capacity................... 354
Touch tracer display ................263
TowingDinghy towing........................ 361
Emergency towing................. 532
Trailer towing......................... 360
TRAC ......................................... 333
Traction control........................ 333
Trailer towing ........................... 360
Transmission
Hybrid transmission............... 249
P position switch ................... 252
Trip information ....................... 279
Trip meter ................................. 278
Turn signal lights Replacing light bulbs ............. 511
Switch.................................... 259
Wattage ................................. 628
USB port
*................................. 387
Vanity lights Vanity lights ........................... 399
Wattage ................................. 628
Vanity mirrors........................... 399
Vehicle data recordings ............24
Vehicle identification number ................................... 619
Vehicle proximity notification system ......................................38
Vehicle stability control........... 333
VSC............................................ 333 Warning buzzers
Brake system ........................ 537
Open door ............................ 541
Seat belt reminder................. 541
Warning lights Anti-lock brake system
(ABS) .................................. 539
Automatic headlight leveling system ................................ 540
Brake system ................ 537, 540
Charging system .... ............... 538
Cruise control ........................ 540
Electric power steering
system ................................ 539
High coolant temperature...... 538
Hybrid system ....................... 539
Low fuel level ........................ 541
Low tire pressure .................. 542
Malfunction indicator lamp .... 539
Open door ............................. 541
Pre-collision system .............. 540
Radar cruise control. ............. 540
Seat belt warning light........... 541
Slip indicator ......................... 540
SRS airbags .......................... 539
Tire pressure warning light.... 542U
