2015 TOYOTA LAND CRUISER Quick Reference Guide

2015 Land Cruiser
Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Land
Cruiser.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Land
Cruiser operations. Every Land Cruiser owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2015
Land Cruiser
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Light control-Instrument panel 9
Smart Key system
1,2 7
Air Conditioning/Heating 20-21
Audio 18-19
Auto lock/unlock
1 10
Automatic Transmission 10
Back door 17
Bluetooth
® Device Pairing 18
Cooler box 29
Crawl control 22
Cruise control 23
Cup holders 28
Door locks 27

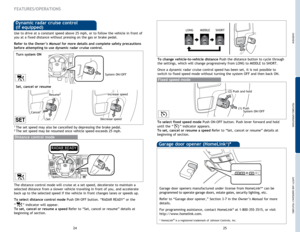

Dynamic radar cruise control 24-25
Four-wheel drive 11
Garage door opener (HomeLink
®)3 25
Lights1 & turn signals 15
Mirrors-Side 17
Moonroof 17
Multi-Information Display
2 26
Parking brake 29
Power outlets-12V DC 29
Power outlet-120V AC 29

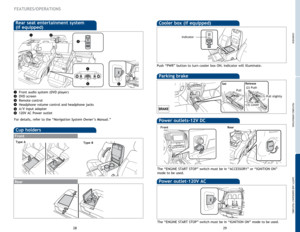

Rear seat entertainment system 28
Seat adjustments-Front 12
Seat adjustments-Rear 12
Seat heaters and ventilators 21-22
Seats-Head restraints 12
Seats-Tumbling second row seats 13
Seats-Tumbling third row seats 14
Steering lock release 11
Tilt and telescopic steering wheel 26
Telephone controls (Bluetooth
®) 27Windows-Power 16
Window wipers & washers 16
Doors-Child safety locks 31
Floor mat installation 33
Seat belts 30
Seat belts-Shoulder belt anchor 30
Spare tire & tools 31
Star Safety System
TM 32
Tire Pressure Monitoring (warning) System 30
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1
Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Johnson Controls, Inc.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
OVERVIEW
Instrument panel
Steering wheel audio controls1
Telephone controls1
Voice command button1
Multi-Information Display button
Dynamic radar cruise control distance switch2
Headlight, turn signal and front fog light controls
Multi-Information Display
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock
1
Front passenger seat belt reminder light
Emergency flasher button
Outside rearview mirrors/Rear window defogger button
Audio system
1
Air Conditioning controls1
Theft deterrent system/Engine immobilizer indicator
Steering wheel controls
Type AType A
VIEW switch (multi-terrain monitor)2
“ENGINE START STOP” switch
Four-wheel drive control switch
Cruise control
2/Dynamic radar cruise control2
Tire Pressure Monitoring (warning) System reset
Headlight leveling dial
Power outside rearview mirror controls
Instrument panel light control
Tilt and telescopic steering control
Intuitive parking assist switch
Center differential lock/unlock switch
Roll Sensing of Curtain shield Airbag OFF switch
Heated steering wheel switch
2
VSC/TRAC OFF switch
Headlight cleaner2
1
For vehicles with navigation system, refer to the “Navigation System
Owner’s Manual” for details.
2 If equipped

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
45
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Fuel gauge
Speedometer
Service indicator and reminder
Voltmeter
Multi-information display
Automatic Transmission shift range display
Odometer and two trip meters
Engine oil pressure gauge
Odometer/Trip meter and trip meter reset button
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1,2
Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator/Cruise control SET indicator
Crawl control indicator1
Low Tire Pressure Warning1
Automatic Transmission second start indicator
Open door warning
Airbag SRS warning1
Master warning1
Power mode indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Pre-Collision System warning light1
Malfunction/Check Engine indicator1
Unengaged Park warning light
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator1
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual .
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 The indicator flashes to indicate that the system is operating.
Vehicle Stability Control OFF indicator1
Multi-terrain select indicator
ECO driving indicator1
Turn assist function indicator
Radar cruise control indicator

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
67
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Back door lock/unlock
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Lock
Push
Unlock
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Push
Front door lockFront door unlock*
Grasp
Carry remote
to lock/unlock

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
89
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
” indicator
may illuminate.
Pull Turn to open
Store
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Windshield washer fluid tank
Power steering fluid reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
Pull
OVERVIEW

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP” switch must be in “IGNITION ON” mode and the brake
pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)

-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode

Park*
Reverse
Neutral
Drive
P
R
N
D
S“S” mode
“S”
“D”
Steering lock release
Turn
Push
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
R
W
Pd
n
2
ECT
PWR
R
W
Pd
n
2
2nd
STRT
R
W
Pd
n
2R
W
Pd
n
2
Power modeSecond start mode
For powerful acceleration and driving in
mountainous regions.For starting on slippery surfaces, such
as snowy roads. Press “2nd” to return to
normal mode.
Push
Push
4
4
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”\
H4
L4
Lock the center differential when your vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy surface.
Turn
Four-wheel drive control switch
Push
Center differential lock/unlock switch
Push

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1213
FEATURES/OPERATIONS
Seat adjustments-Rear
Seatback angle
Seat position
Refer to the Owner’s Manual for more details.
Seat adjustments-Front
Seat position, cushion angle and height
Seatback angle
Lumbar support (driver side only)
Second row Third row (folding down)
Seats-Head restraints
Front Second row
Lock release buttonLock release button
HeightAngle
(1)
Stow the seat belt buckles and lower the head restraints.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seatback and swing the whole seat up and forward.
(4) Hook the holding strap to the assist grip and secure the seat.
(5) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)
Seats-Tumbling second row seats
(4)
Pull Seat hook cover
Pull
Height
