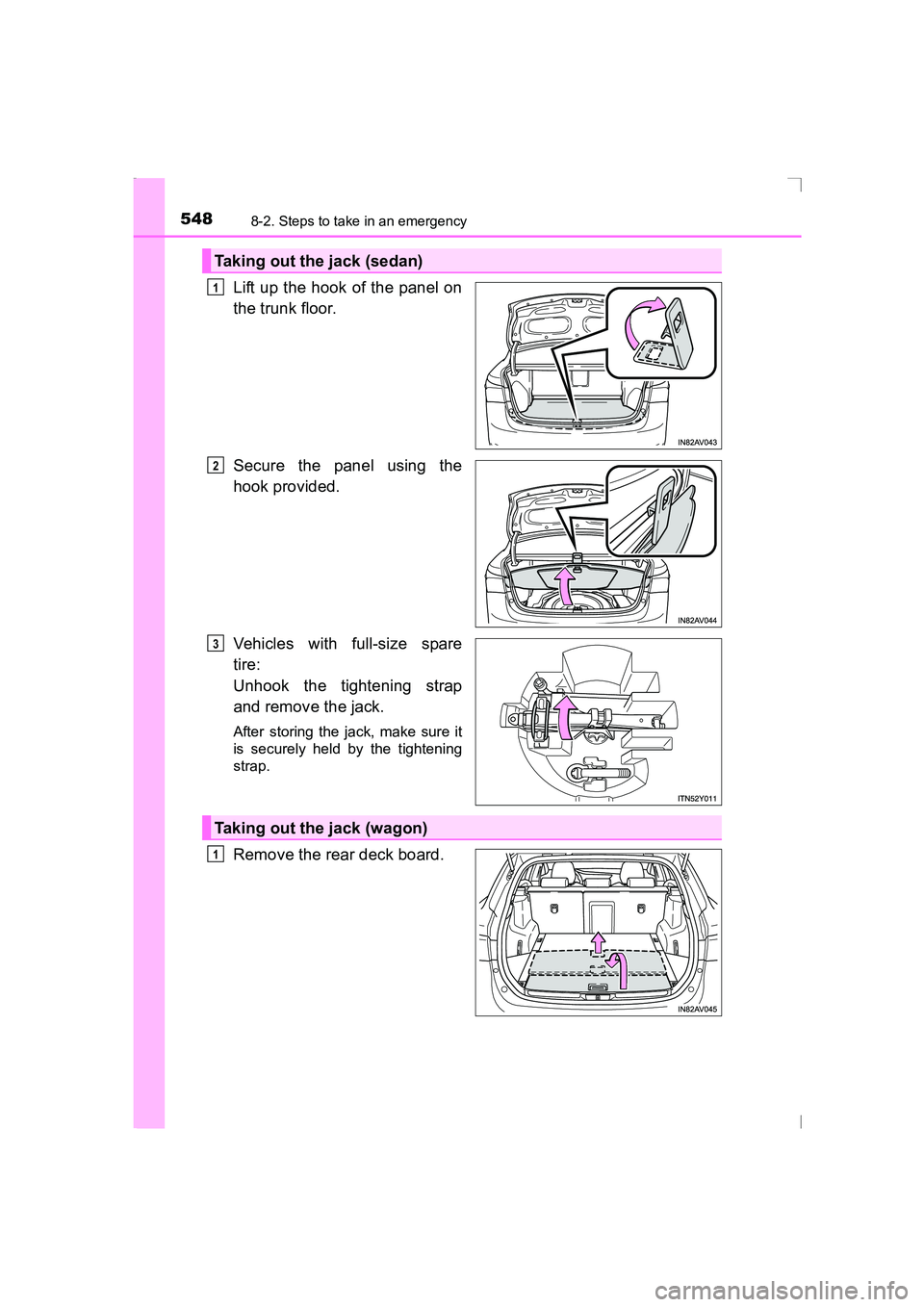

5488-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
Lift up the hook of the panel on
the trunk floor.
Secure the panel using the
hook provided.
Vehicles with full-size spare
tire:
Unhook the tightening strap
and remove the jack.
After storing the jack, make sure it
is securely held by the tightening
strap.
Remove the rear deck board.
Taking out the jack (sedan)
1
2
3
Taking out the jack (wagon)
1
AVENSIS_OM_OM20C20E_(EE).book Page 548 Thursday, January 29, 2015 1:47 PM

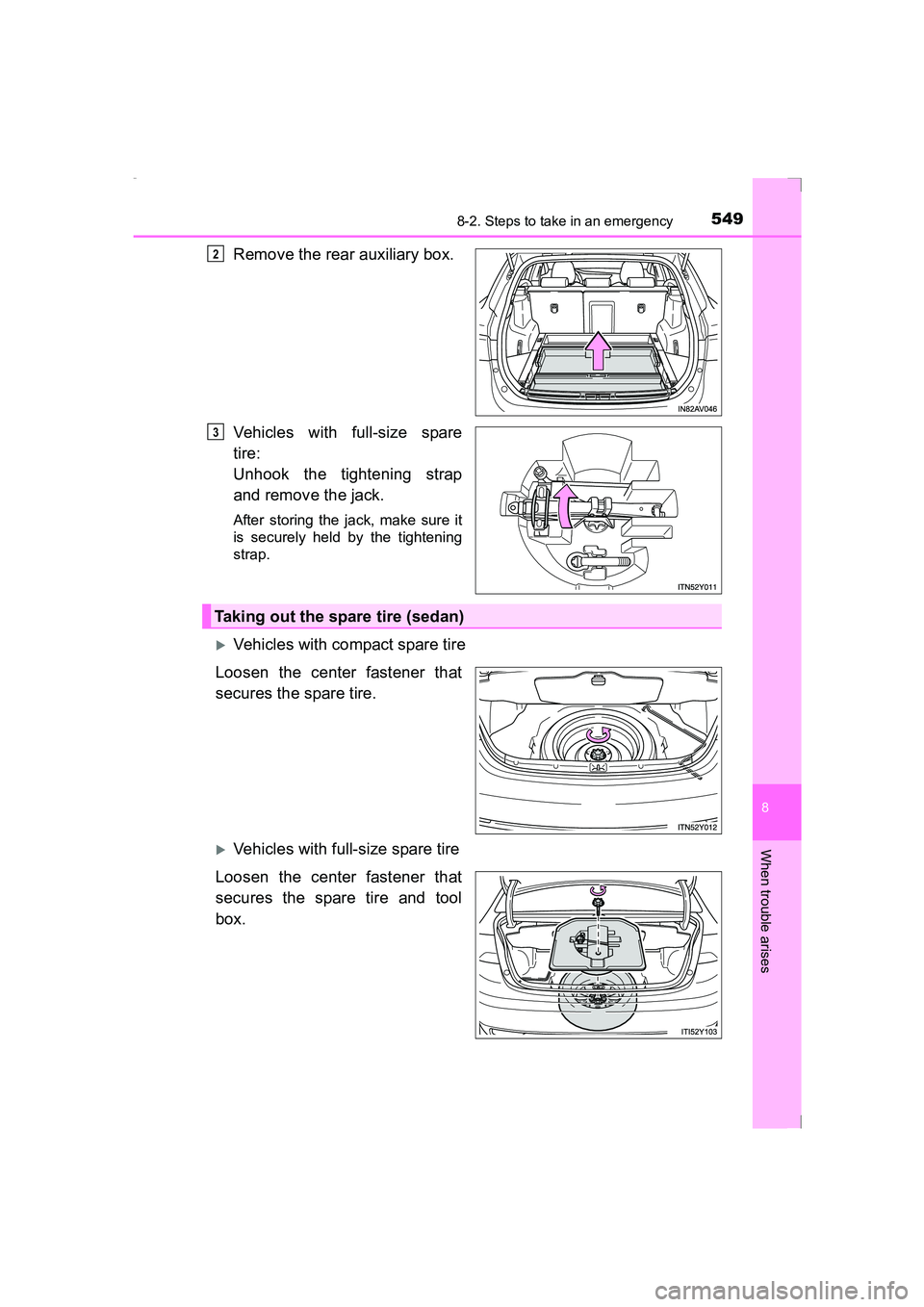

5498-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Remove the rear auxiliary box.
Vehicles with full-size spare
tire:
Unhook the tightening strap
and remove the jack.
After storing the jack, make sure it
is securely held by the tightening
strap.
XVehicles with compact spare tire
Loosen the center fastener that
secures the spare tire.
XVehicles with full-size spare tire
Loosen the center fastener that
secures the spare tire and tool
box.
2
3
Taking out the spare tire (sedan)
AVENSIS_OM_OM20C20E_(EE).book Page 549 Thursday, January 29, 2015 1:47 PM

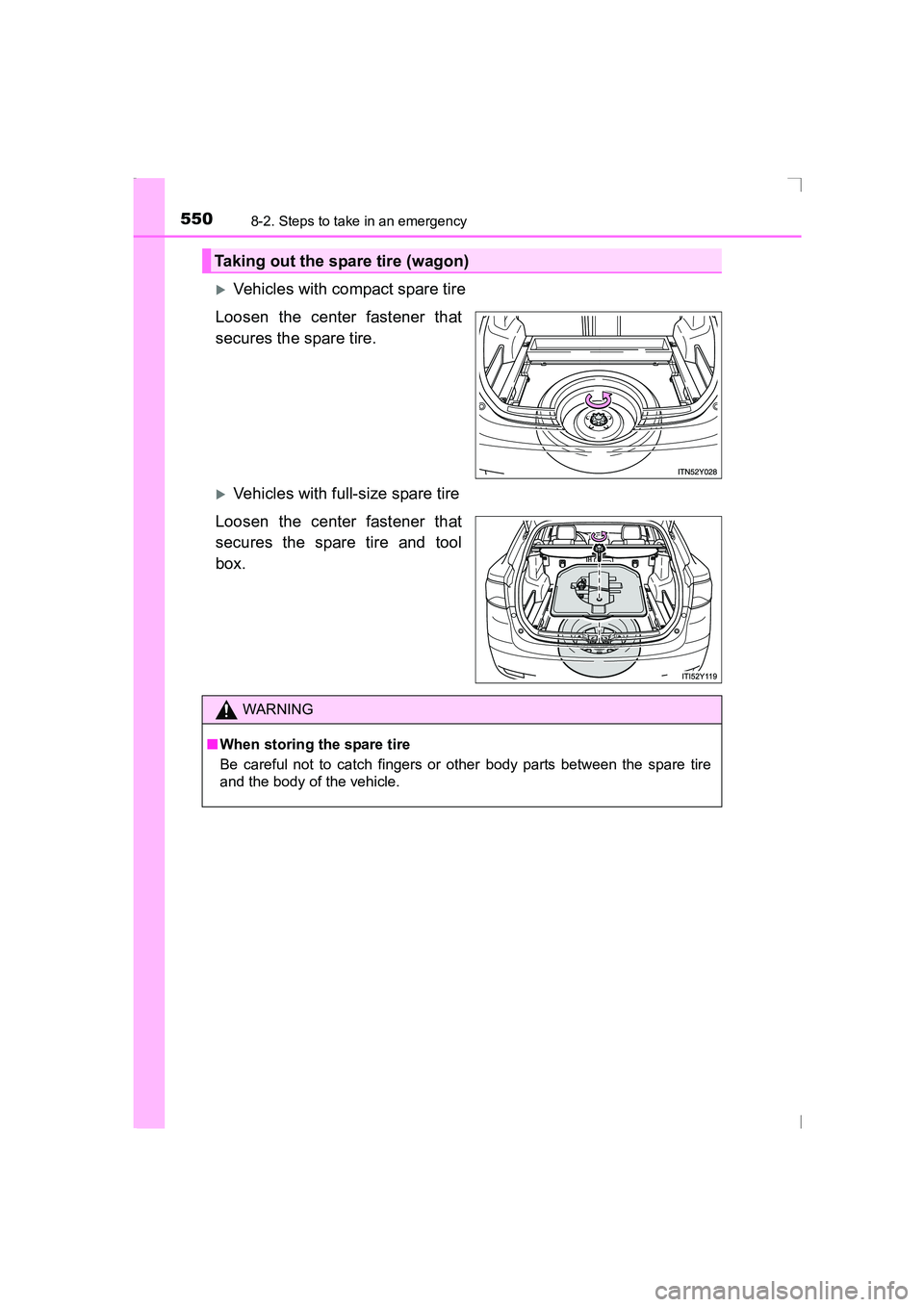

5508-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
XVehicles with compact spare tire
Loosen the center fastener that
secures the spare tire.
XVehicles with full-size spare tire
Loosen the center fastener that
secures the spare tire and tool
box.
Taking out the spare tire (wagon)
WARNING
■ When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.
AVENSIS_OM_OM20C20E_(EE).book Page 550 Thursday, January 29, 2015 1:47 PM

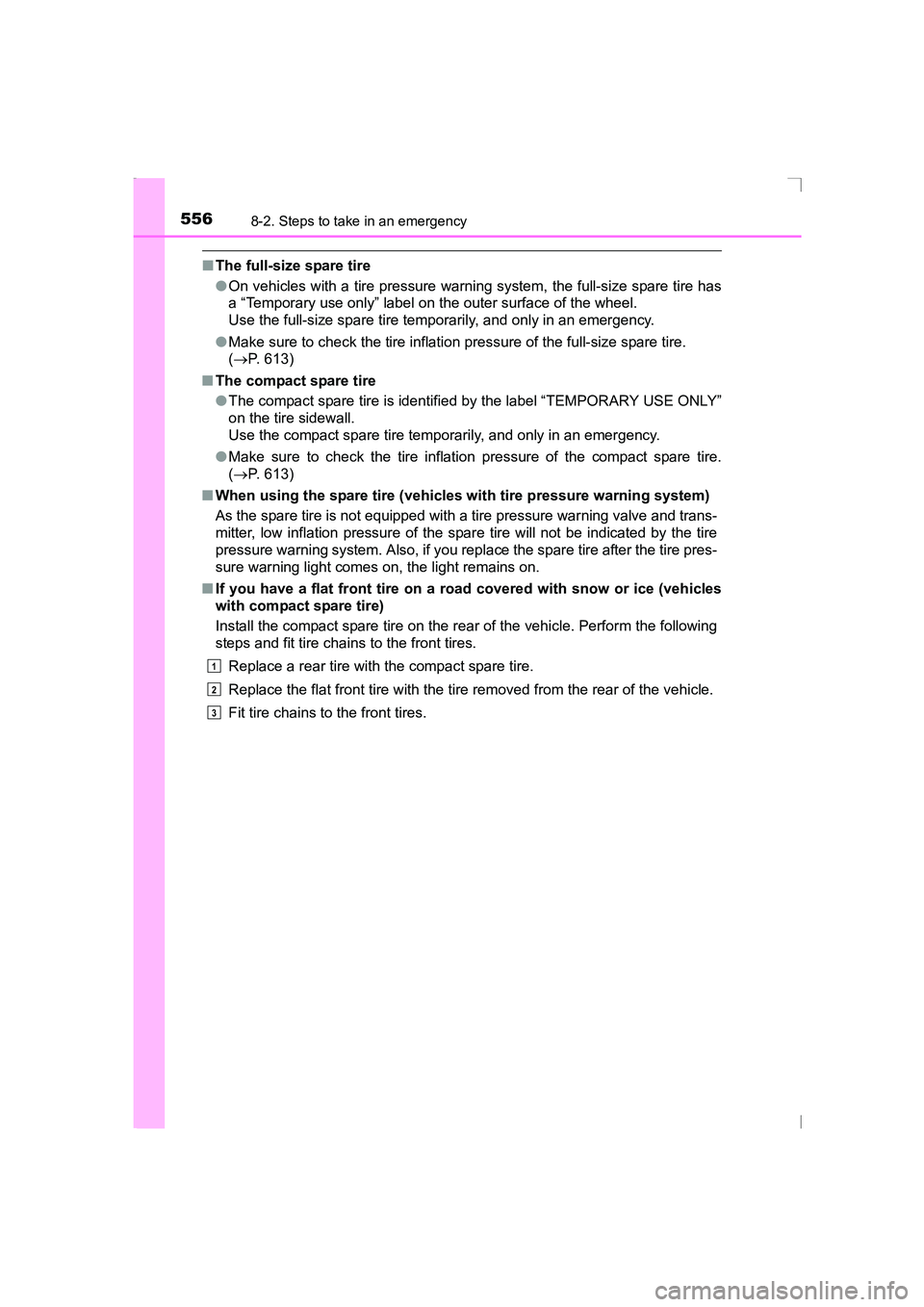

5568-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
■The full-size spare tire
●On vehicles with a tire pressure warn ing system, the full-size spare tire has
a “Temporary use only” label on the outer surface of the wheel.
Use the full-size spare tire temporarily, and only in an emergency.
● Make sure to check the tire inflation pressure of the full-size spare tire.
(→ P. 613)
■ The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
● Make sure to check the tire inflation pressure of the compact spare tire.
(→ P. 613)
■ When using the spare tire (vehicles with tire pressure warning system)
As the spare tire is not equipped with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you replace the spare tire after the tire pres-
sure warning light comes on, the light remains on.
■ If you have a flat front tire on a road covered with snow or ice (vehicles
with compact spare tire)
Install the compact spare tire on the rear of the vehicle. Perform the following
steps and fit tire chains to the front tires.
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 556 Thursday, January 29, 2015 1:47 PM

5708-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
■In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
●When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
● When the sealant has expired
■ Emergency tire puncture repair kit
●The sealant stored in the emergency tire puncture repair kit can be used
only once to temporarily repair a single tire. If the sealant has been used
and needs to be replaced, purchase a new bottle at any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional. The
compressor is reusable.
● The sealant can be used when the out side temperature is from -30°C
(-22°F) to 60°C (140°F).
● The repair kit is exclusively designed for size and type of tires originally
installed on your vehicle. Do not use it for tires that a different size than the
original ones, or for any other purposes.
● The sealant has a limited lifespan. The expiry date is marked on the bottle.
The bottle of sealant should be replaced with a new bottle before the expiry
date. Contact any authorized Toyota dealer or repairer, or another duly qual-
ified and equipped professional for replacement.
● If the sealant gets on your clothes, it may stain.
● If the sealant adheres to a wheel or the surface of the vehicle body, the stain
may not be removable if it is not cleaned at once. Immediately wipe away
the sealant with a wet cloth.
● During operation of the repair kit, a loud operation noise is produced. This
does not indicate a malfunction.
● Do not use to check or to adjust the tire pressure.
AVENSIS_OM_OM20C20E_(EE).book Page 570 Thursday, January 29, 2015 1:47 PM

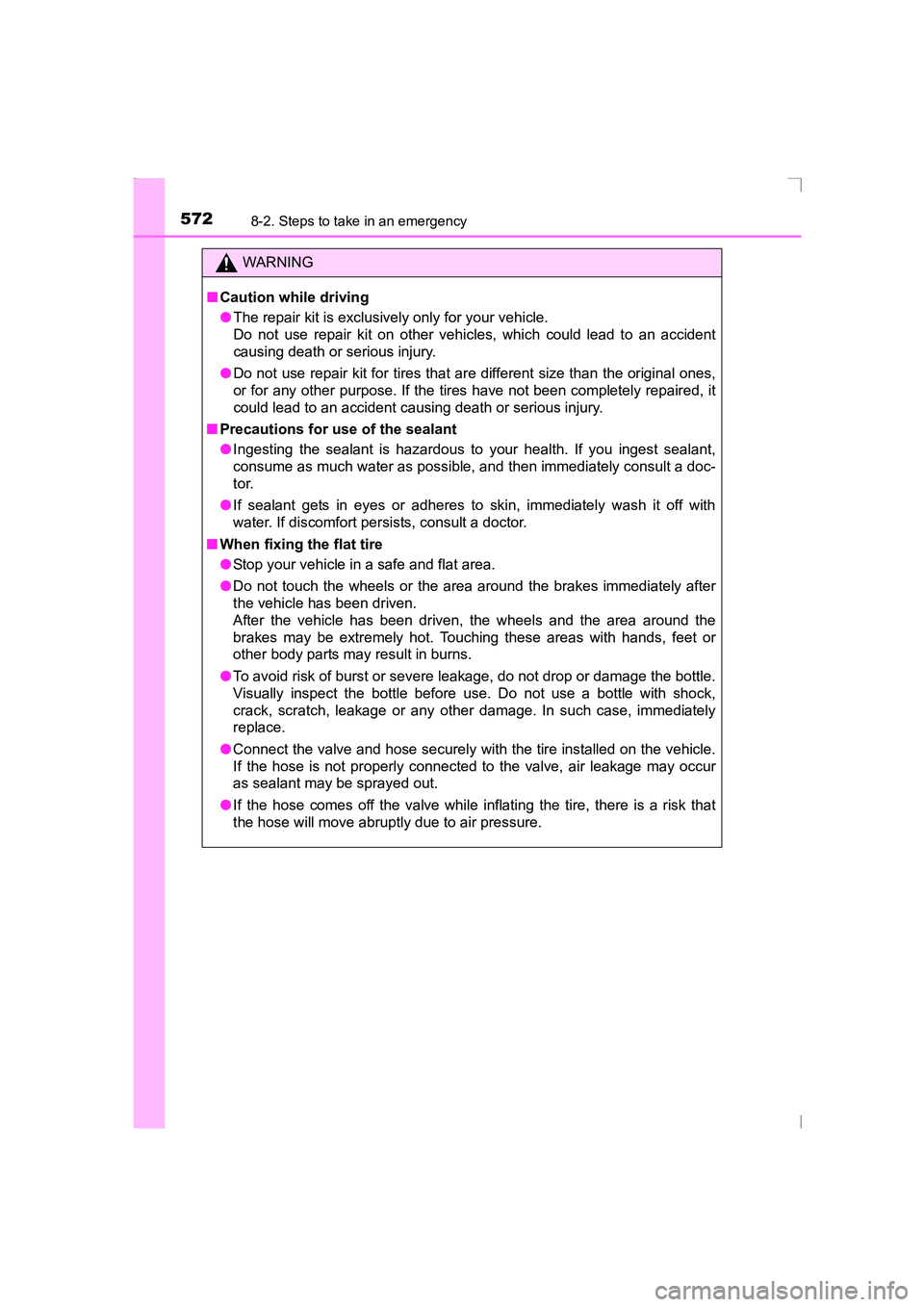

5728-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Caution while driving
●The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehicles, which could lead to an accident
causing death or serious injury.
● Do not use repair kit for tires that are different size than the original ones,
or for any other purpose. If the tires have not been completely repaired, it
could lead to an accident causing death or serious injury.
■ Precautions for use of the sealant
●Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, and then immediately consult a doc-
tor.
● If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.
■ When fixing the flat tire
●Stop your vehicle in a safe and flat area.
● Do not touch the wheels or the area around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven, the wheels and the area around the
brakes may be extremely hot. Touching these areas with hands, feet or
other body parts may result in burns.
● To avoid risk of burst or severe leakage, do not drop or damage the bottle.
Visually inspect the bottle before use. Do not use a bottle with shock,
crack, scratch, leakage or any other damage. In such case, immediately
replace.
● Connect the valve and hose securely with the tire installed on the vehicle.
If the hose is not properly connected to the valve, air leakage may occur
as sealant may be sprayed out.
● If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.
AVENSIS_OM_OM20C20E_(EE).book Page 572 Thursday, January 29, 2015 1:47 PM

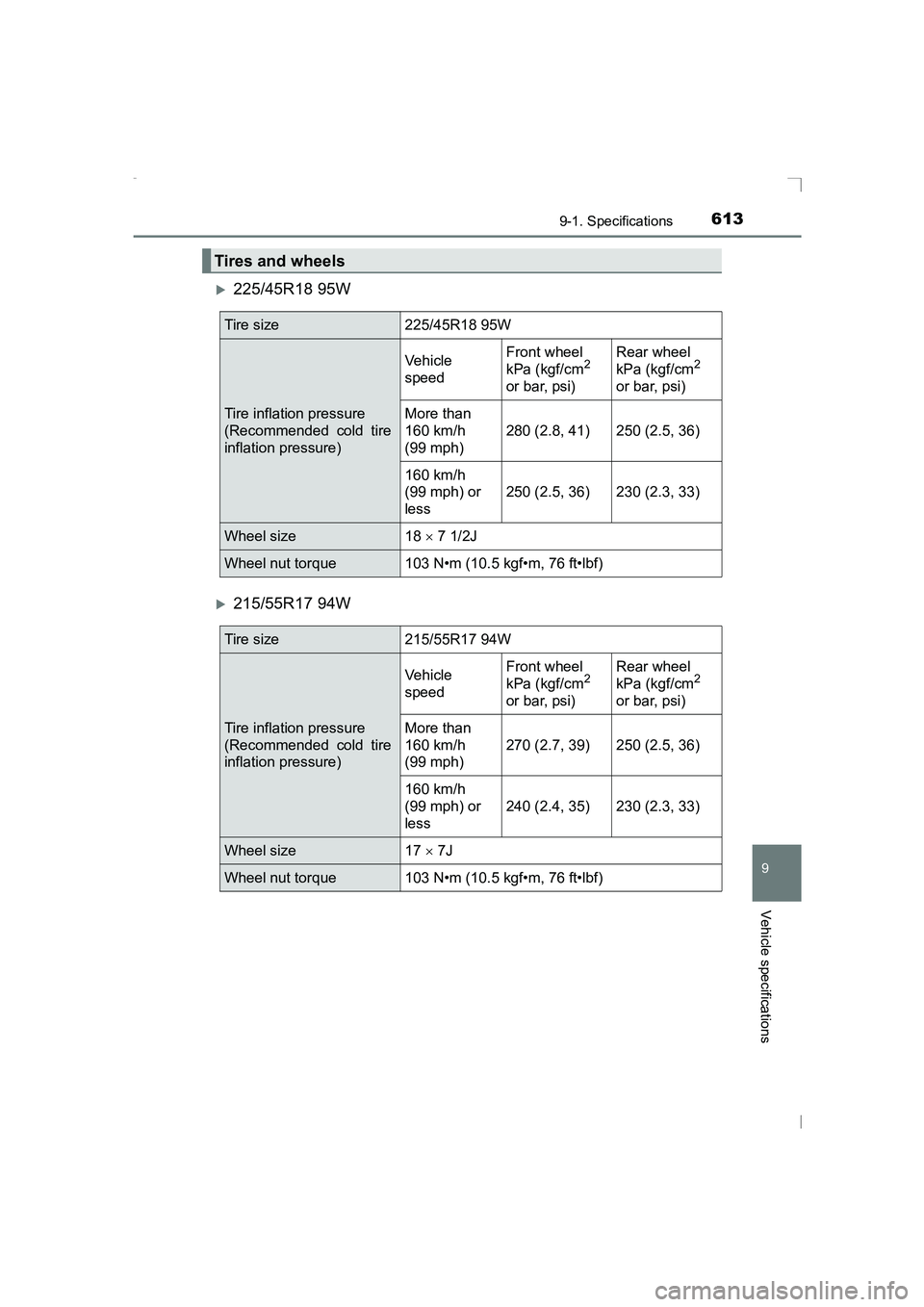

6139-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
X225/45R18 95W
X215/55R17 94W
Tires and wheels
Tire size 225/45R18 95W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 280 (2.8, 41) 250 (2.5, 36)
160 km/h
(99 mph) or
less 250 (2.5, 36) 230 (2.3, 33)
Wheel size 18
× 7 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure) Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less 240 (2.4, 35) 230 (2.3, 33)
Wheel size 17
× 7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
AVENSIS_OM_OM20C20E_(EE).book Page 613 Thursday, January 29, 2015 1:47 PM

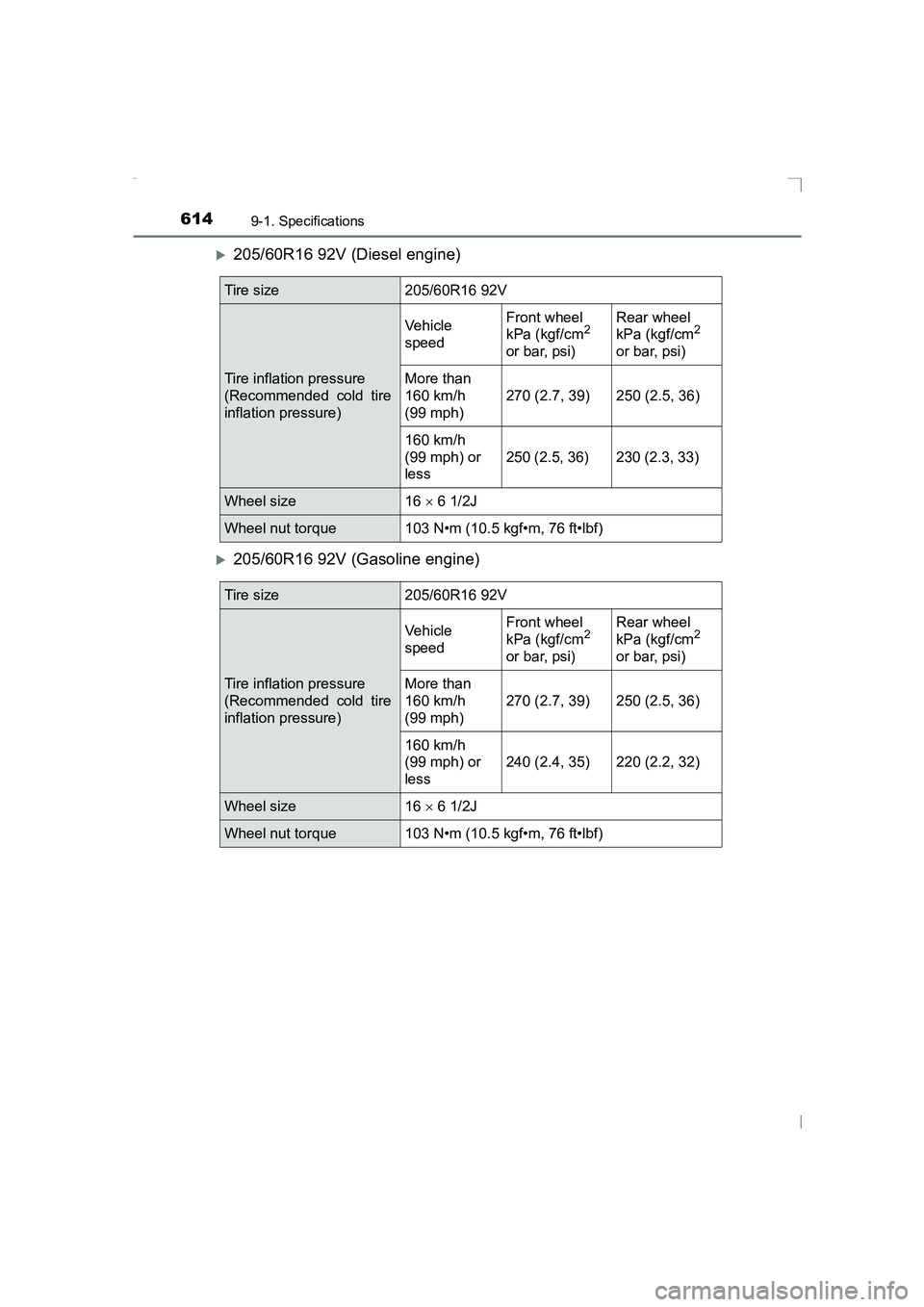

6149-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
X205/60R16 92V (Diesel engine)
X205/60R16 92V (Gasoline engine)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less
250 (2.5, 36) 230 (2.3, 33)
Wheel size 16 × 6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure) Vehicle
speed
Front wheel
kPa (kgf/cm
2
or bar, psi) Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph) 270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less 240 (2.4, 35) 220 (2.2, 32)
Wheel size 16
× 6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
