Audio mode
Media mode Intr oduction “Media sources” are audio sources contain-
in g audio fi
les on various different data me-
dia (e.g. CD, external MP3 player). These au-
dio files can be played by the respective data
media or by the radio input sockets.
Additional information and warnings:
● Safety notes  ›››
page 4
● Unit overview ›››
page 6
● Basic information on use ›››

page 8
Requirements for media sources and
audio file
sFactory-fitted CD players conform to safety
c
l
a

ss 1 according to DIN IEC 76 (CO)
6/ VDE 0837.
The unit only accepts 12-cm standard CDs.
Media sourceRequirements for playing in
the unit 
Audio CDs (up to
80 min).– CD Digital Audio specification.
Media sourceRequirements for playing in
the unit 
CD-ROM, CD-R,
CD-RW up to max.
700 MB (megabyte)
according to ISO
9660 or on the Joliet
data system.MP3 files (.mp3) with bitrates of
between 48 and 320 kbit/s or
with variable bitrates
– Playlists in formats PLS and
M3U
– Playlists no larger than 20 KB
and containing no more than
250 links.
– Max. 32 playlists on a data
medium.
– File names no longer than 64
characters.
– Folder structures with a maxi-
mum of ten levels.
– Max.120 folders and max. 500
files on a data medium.
AUX : External audio
source.– A 3.5 mm jack plug can be
used for audio output
››› page 23. Restrictions and notes
C
ont
amin

ation, exposure to high tempera-
tures and mechanical damage may render a
data medium unusable. Observe the manu-
facturer's instructions on the data medium.
Variations in the quality of data media pro-
duced by different manufacturers may lead to
problems during playback.
Please observe copyright laws. CDs recorded in UDF or Direct CD format can-
not be pl

ayed. Under Windows Vista ®
ensure
that the correct format is selected.
The unit may be unable to read individual
tracks or the entire data medium due to the
data medium configuration or the devices
and programs used for recording. Compatibil-
ity with all encoding/recording software, re-
cording devices and recording media cannot
be guaranteed. Information can be found on
the internet regarding the best ways to create
audio files and data media (compression
rate, ID3 tag etc.).
Due to the larger quantity of data, the unit
takes longer to read a data medium contain-
ing compressed audio files (MP3) than a
“normal” audio CD. Complex folder struc-
tures can also slow down the reading of a da-
ta medium.
Playlists only determine a certain playing or-
der. There are no files stored in a playlist. The
unit will not play a playlist if the files are not
stored on the data medium at the locations
referred to by the playlist (relative file paths).
18

Audio mode
Connecting a portable naviga-
t or*
Intr oduction The radio system will only operate with a spe-
ci
al
portable navigator, the SEAT Portable
System, bought through SEAT.
Different media sources can be played
through the portable navigator.
The portable navigator allows an additional
display and controls of CD and MP3 played
through the radio system (track display, track
selected from the track list).
Additional information and warnings:
● Safety notes  ››
›

page 4
● Unit overview ›››

page 6
● Basic information on use ›››

page 8
● Media mode ›››

page 18 Note
Please read and observe the manufacturer
operatin g m

anual for the Media and Tele-
phone modes for navigating with the portable
navigator. Connection and use
Mount and connect the portable navigator in
the hol
der a

s described in the manufacturer
operating manual.
Playing through the vehicle speakers
● With the radio system in media mode,
pres
s the MEDIA
››› Fig. 1 unit button to dis-
play the selection menu for available media
sources, and following this, press the NAV function button.
● OR: R epeatedly press the MEDIA unit but-
t on u
nti

l NAV is selected.
PORTABLE wi
l
l be shown on the screen of the
radio system.
Playback will continue from the last track
played when the corresponding media
source is still available through the portable
navigator.
When, at this moment, there is no media
source available through the portable naviga-
tor, NO MEDIA will be briefly displayed on
the screen of the radio system and playback
will resume from the last audio source activa-
ted on the radio system.
Portable navigator media mode
Different media sources can be played
through the portable navigator using the ve-
hicle speakers. Practically all playback con- trol is carried out through the portable navi-
gator

.
It is also possible to change tracks with the
arrow button ››› Fig. 1 10 of the radio system
› ›
›

page 18.
Displaying the track on the radio system is
not possible.
The change to another audio source played
through the portable navigation system is
carried out through the portable navigation
system.
Only audio sources available on the system
(Radio, CD, AUX) can be changed through the
radio system.
Navigation instructions
Navigation announcements are made
through the vehicle speakers.
Operations are controlled through the porta-
ble navigator.
Using the telephone
Linking, connecting and controlling is carried
out on the portable navigator.
Telephone call playback is carried out
through the vehicle speakers. PHONE will be
shown on the screen of the radio system.
When voice activation is activated on the
portable navigator, at the same time, the »
25

Settings menu
Settings menu Sou nd settin
g
s (SOUND)
Introduction Additional information and warnings:
● Safety notes  ›››
page 4
● Unit overview ›››
page 6
● Basic information on use ›››
page 8
Configuring the sound and volume
setting s Fig. 26
Sound settings. Changing sound settings
● From any menu, press the unit button ›››
Fig. 1 3 .
● Press one of the function buttons at the
bott om t
o open the c

orresponding settings
menu ››› Fig. 26. ●
Turn the setting kno
b ››› Fig. 1 8 or press
one of the arr
o
w buttons 10 to alter the cur-
r ent
settin
g.
Overview of sound settings
Function button: Setting
TRE: Treble
BASS: Bass
BAL: volume distribution between right and left (Bal-
ance).
FAD: volume distribution between front and rear (Fader). The Fader setting may not be available de-
pendin
g on the model
or the c

onfiguration of
your vehicle. 27

Settings menu
System and function settings
(S ETUP)
Intr oduction Additional information and warnings:
● Safety notes  ››› page 4
● Unit overview ›››
page 6
● Basic information on use ›››
page 8
Modifying the settings Fig. 27
Additional radio functions Fig. 28
SETUP menu: main view of the SETUP
menu f u
nction

s. Displaying settings menus and changing set-
ting
s
● Pr

ess the equipment button MENU
› ›
› Fig. 1
9 unit button in Radio or Media mode.
● Press the S
ET
› ›
› Fig. 27
unit button to open
the SETUP menu ››› Fig. 28.
● Pressing one of the function buttons dis-
pla
ys the corresponding settings menu.
● Turn the setting knob ›››
Fig. 1 8 to change
the di s
p
layed setting.
● Changes are applied automatically.
● Press the MENU unit button to close the
S ETUP menu
.
Whi

le volume settings are being adjusted,
the currently active audio source is played at
the level of the setting as it changes. Overview of available settings menus
Depending on the c

ountry, the unit and the
vehicle equipment, there may be differences
in the variety of settings.
Function button: Effect 
: Following functions (next screen)

: Previous functions (previous screen)
SKM SEEK MODE
: Regulate the operation of the arrow
buttons  ››› Fig. 1 10 and  to change the station in
radio mode ››› page 10.

ALL: The arrow buttons allow you to browse through
all available stations (Display: . to the left and
right of the selected station ››› Fig. 4).
PRESET: The arrow buttons allow you to browse
through only the stations stored to presets in the se-
lected frequency band (Display:
. to the left and
right of the station buttons ››› Fig. 5).
RDSa)
: It is possible to switch off RDS-dependent serv-
ices for travel in areas where there is no RDS coverage
(automatic station tracking, traffic news TP) ››› page 10.
ON: RDS is switched on.

OFF: RDS is deactivated and the
AF function but-
ton is no longer available in the SETUP menu.
AVa) HIGH FREQ. : Define the setting for automatic sta-
tion tracking ››› page 10. 28

Settings menuFunction button: Effect


ON: The unit always switches to the radio station's
frequency that offers the best reception as the vehi-
cle travels from one area to the next. As a result, re-
gional programmes may be interrupted. 
OFF: No frequency change takes place. The fre-
quency tuned is active until reception is interrupted.
VOL ON-VOLUME : Regulating the maximum switch on
volume.
If the volume of the radio system, when switched off,
was greater than the limit set, the volume will be re-
duced to the value set.
If the volume of the radio system, when switched off,
was lower than this limit, the volume will not be modi-
fied.
GAL GALA : To set the speed-dependent volume adjust-
ment ››› page 29.
DIS DISPLAY LIGHT : To adjust the screen brightness.
PDC PDC VOL ATTENU. : To reduce the volume of the
current audio source to a preset level when the parking
distance warning system is active.
AUX: Settings for the use of an external audio source in
the AUX - IN multimedia socket ››› page 18.
AUX VOL LEVEL 1-3 : Adjust the input volume of
an external audio source (AUX) to the output volume
of the other audio sources.
AUX VOL LEVEL OFF: The AUX-IN multimedia
socket will be deactivated and no longer displayed
in the Media selection menu .
Function button: Effect
SFOb)
: Service Following. If this setting is activated (ON)
and the reception of the DAB station selected gets
worse, this function automatically searches for another
channel in DAB with the same station.
DTPb) DAB-TP : This setting only affects the DAb station
currently selected if the TP function has already been ac-
tivated on the equipment (TP ON).
DTP OFF: Only FM traffic announcements (TA) in-
terrupt the current broadcast.
DTP ON: Both FM and DAB traffic announcements
interrupt the current broadcast.
FMLb) DAB-FM Link : If this setting is activated (ON)
and the reception of the DAB station selected gets
worse, and no other channel is available with the same
station, or when reception in DAB is deficient, this func-
tion automatically searches for another channel in the
FM band.
The change is not possible if the reception of the FM sta-
tion is deficient or the stations do not transmit informa-
tion that established the relationship between the DAB
and FM stations. In this case it is not a faulty radio oper-
ation.
If the DAB reception is recovered with greater quality
than the FM station it will switch back from FM to DAB.
a) It is not available everywhere or for all radio models.
b) They are only available for radio models with DAB.
Functional mode description of speed-de-
pendent volume adjustment (GALA)
The GALA function automatically adjusts the
volume in line with the speed of the vehicle. The degree to which the volume increases
with speed (GALA) i

s set on a scale between
1 and 7.
If a low value is set, the volume increases on-
ly slightly as the speed of the vehicle increa-
ses. At a high setting the volume increases
further. At 0, speed-dependent volume ad-
justment is switched off. 29

Index
Index
A
Ad dition
al
di
splays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the output volume . . . . . . . . . . . . . . . . . 24
AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Anti-theft code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 30
AUX-IN multimedia socket . . . . . . . . . . . . . . . . . . . 23
B Base volume Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C
CD - IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CD mode See: MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
D
DAB canal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
programme tracking . . . . . . . . . . . . . . . . . . . . . . 14
set of stations . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
station update . . . . . . . . . . . . . . . . . . . . . . . . . . 14
tuning manually . . . . . . . . . . . . . . . . . . . . . . . . . 15
Digital radio see: DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
E
Energy management . . . . . . . . . . . . . . . . . . . . . . . . 9 EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
External
audio source (AUX) . . . . . . . . . . . . . . . . . 23
F
FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Function buttons (virtual buttons) . . . . . . . . . . . . . 8
Function settings . . . . . . . . . . . . . . . . . . . . . . . . . . 28
G General overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
I INFO (traffic announcement) . . . . . . . . . . . . . . . . . 16
Interference from a mobile telephone . . . . . . . . . . 8
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
L LOW BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
M Main menu MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Audio CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Changing folder . . . . . . . . . . . . . . . . . . . . . . . . . 22
Changing media source . . . . . . . . . . . . . . . . . . . 21
Changing track . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Fast forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Media source selection menu . . . . . . . . . . . . . . 21 MIX (random playback) . . . . . . . . . . . . . . . . . . . 23
MP3 file
s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
NAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Playback mode . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Playing order . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Portable navigator . . . . . . . . . . . . . . . . . . . . . . . 25
Random playback (Mix) . . . . . . . . . . . . . . . . . . . 23
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rewind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Scan function (Scan) . . . . . . . . . . . . . . . . . . . . . 23
Track information . . . . . . . . . . . . . . . . . . . . . . . . 21
Warnings and error messages . . . . . . . . . . . . . . 20
Media source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
MW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
N
NAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Numerical code . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
O Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
P
Portable navigator . . . . . . . . . . . . . . . . . . . . . . . . . 25
Q Quick reference guide . . . . . . . . . . . . . . . . . . . . . . . 4
R
RADIO Changing frequency . . . . . . . . . . . . . . . . . . . . . . 10
Changing stations . . . . . . . . . . . . . . . . . . . . . . . 11
Frequency bands . . . . . . . . . . . . . . . . . . . . . . . . 10
31

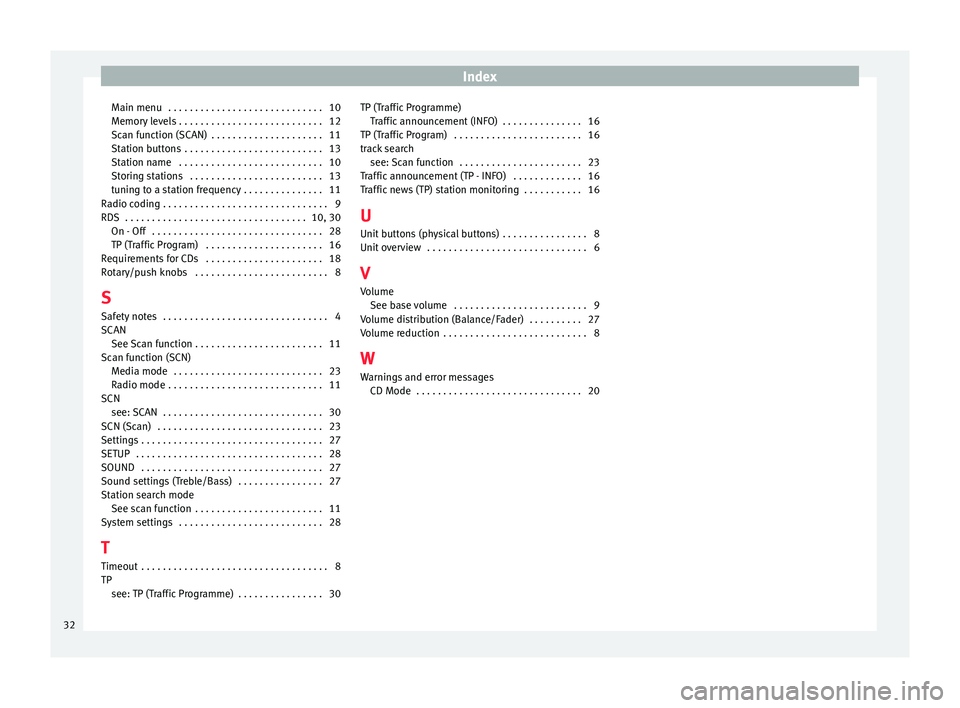

Index
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
M emor
y
levels . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Scan function (SCAN) . . . . . . . . . . . . . . . . . . . . . 11
Station buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Station name . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Storing stations . . . . . . . . . . . . . . . . . . . . . . . . . 13
tuning to a station frequency . . . . . . . . . . . . . . . 11
Radio coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 30 On - Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
TP (Traffic Program) . . . . . . . . . . . . . . . . . . . . . . 16
Requirements for CDs . . . . . . . . . . . . . . . . . . . . . . 18
Rotary/push knobs . . . . . . . . . . . . . . . . . . . . . . . . . 8
S Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SCAN See Scan function . . . . . . . . . . . . . . . . . . . . . . . . 11
Scan function (SCN) Media mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SCN see: SCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SCN (Scan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Sound settings (Treble/Bass) . . . . . . . . . . . . . . . . 27
Station search mode See scan function . . . . . . . . . . . . . . . . . . . . . . . . 11
System settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
T
Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TP see: TP (Traffic Programme) . . . . . . . . . . . . . . . . 30 TP (Traffic Programme)
Traffic announcement (INFO) . . . . . . . . . . . . . . . 16
TP (Traffic Program) . . . . . . . . . . . . . . . . . . . . . . . . 16
track search see: Scan function . . . . . . . . . . . . . . . . . . . . . . . 23
Traffic announcement (TP - INFO) . . . . . . . . . . . . . 16
Traffic news (TP) station monitoring . . . . . . . . . . . 16
U Unit buttons (physical buttons) . . . . . . . . . . . . . . . . 8
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
V Volume See base volume . . . . . . . . . . . . . . . . . . . . . . . . . 9
Volume distribution (Balance/Fader) . . . . . . . . . . 27
Volume reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
W Warnings and error messages CD Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
32

SEAT S.A. is permanently concerned about continuous development of its t\
ypes and models. For this reason we ask you to under-
stand, that at any given time, changes regarding shape, equipment and te\
chnique may take place on the car delivered. For this reason
no right at all may derive based on the data, drawings and descriptions \
in this current handbook.
All texts, illustrations and standards in this handbook are based on the\
status of information at the time of printing. Except for error
or omission, the information included in the current handbook is valid a\
s of the date of closing print.
Re-printing, copying or translating, whether total or partial is not all\
owed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the “Copyright” Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.05.15
About this manual
This manual contains a description of the
equipment supplied with the vehicle at the
time this manual was published. Some of the
units described herein will not be available
until a later date or are only available in cer -
tain markets.
Because this is a general manual for the IBIZA
range, some of the equipment and functions
that are described in this manual are not in-
cluded in all types or variants of the model;
they may vary or be modied depending on
the technical requirements and on the mar -
ket; this is in no way deceptive advertising.
The illustrations are intended as a general
guide and may vary from the equipment tted
in your vehicle in some details.
The steering indications (left, right, forward,
reverse) appearing in this manual refer to the
normal driving movements of the vehicle ex -
cept when otherwise indicated.
The equipment marked with an aster -
isk* is tted as standard only in certain
versions, and is only supplied as op -
tional extras for some versions, or are
only offered in certain countries. ®
All registered marks are indicated with
®. Although the copyright symbol does
not appear, it is a copyrighted mark.
>> The section is continued on the follow -
ing page.
Important warnings on a given page
Detailed contents on a given page
General information on a given page

Emergency information on a given page

WARNING
Texts preceded by this symbol contain infor -
mation on safety. They warn you about possi -
ble dangers of accident or injury.
CAUTION
Texts with this symbol draw your attention to
potential sources of damage to your vehicle.
For the sake of the environment
Texts preceded by this symbol contain rele-
vant information concerning environmental
protection.
Note
Texts preceded by this symbol contain additio -
nal information.
This manual is divided into six large parts,
which are:
1. The essentials
2. Safety
3. Emergencies
4. Operation
5. Tips
6. Technical data
At the end of this manual, there is a detailed
alphabetical index that will help you quickly
nd the information you require.
