2015 Seat Mii SOUND SYSTEM 1.X

SEAT SOUND SYSTEM 1.X
Owner ’s manual
6J0012720CC
Inglés
6J0012720CC (05.15)

SEAT S.A. is permanently concerned about continuous development of its t\
ypes and models. For this reason we ask you to under-
stand, that at any given time, changes regarding shape, equipment and te\
chnique may take place on the car delivered. For this reason
no right at all may derive based on the data, drawings and descriptions \
in this current handbook.
All texts, illustrations and standards in this handbook are based on the\
status of information at the time of printing. Except for error
or omission, the information included in the current handbook is valid a\
s of the date of closing print.
Re-printing, copying or translating, whether total or partial is not all\
owed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the “Copyright” Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.05.15
About this manual
This manual contains information, recommen-
dations, advice and warnings related to your
radio system. The other publications in the
vehicle documentation contain further infor -
mation of which you should be aware for your
own safety and for that of your passengers.
Ensure that the onboard documentation is
kept in the vehicle at all times. This is espe -
cially important when lending or selling the
vehicle to another person.
This manual contains a description of the
equipment supplied with the vehicle at the
time of press. Some of the units described
herein will not be available until a later date or
is only available in certain markets. The
illustrations are intended as a general
guide and may vary from the equipment tted
in your vehicle in some details.
The screen colour and the colour of the infor -
mation displayed on it can vary according to
vehicle model.
Directions and positions of components (e.g.
right, left, front, rear) are always relative to the
direction of travel of the vehicle unless other -
wise stated.
The equipment marked with an aster -
isk* is tted as standard only in certain
versions, and is only supplied as op -
tional extras for some versions, or are
only offered in certain countries.
® All registered marks are indicated with
®. Although the copyright symbol does
not appear, it is a copyrighted mark.
>> The section is continued on the follow -
ing page.
WARNING
Texts preceded by this symbol contain infor -
mation on safety. They warn you about possi -
ble dangers of accident or injury.
CAUTION
Texts with this symbol draw your attention to
potential sources of damage to your vehicle.
For the sake of the environment
Texts preceded by this symbol contain rele-
vant information concerning environmental
protection.
Note
Texts preceded by this symbol contain additio -
nal information.

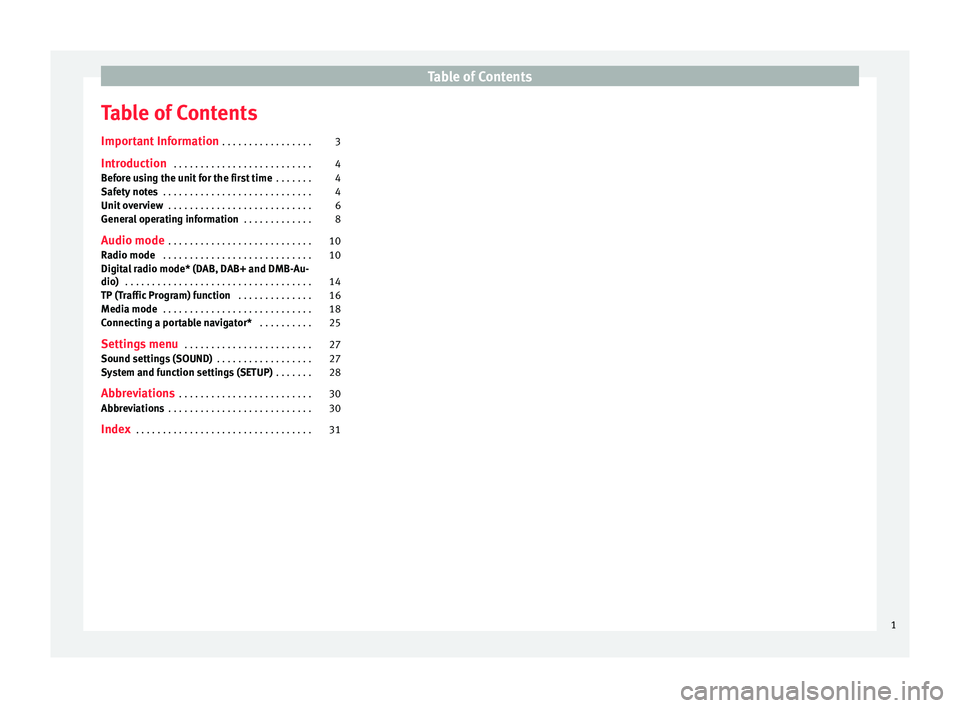

Table of Contents
Table of Contents
Impor t
ant
Information . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before using the unit for the first time . . . . . . . 4
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General operating information . . . . . . . . . . . . . 8
Audio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Digital radio mode* (DAB, DAB+ and DMB-Au-
dio) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
TP (Traffic Program) function . . . . . . . . . . . . . . 16
Media mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting a portable navigator* . . . . . . . . . . 25
Settings menu . . . . . . . . . . . . . . . . . . . . . . . . 27
Sound settings (SOUND) . . . . . . . . . . . . . . . . . . 27
System and function settings (SETUP) . . . . . . . 28
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . 30
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
1

Important Information
Important Information Impor t
ant
Information. Traffic safety
Travelling on today's roads requires the driv-
er's full attention at all times.
Only operate the radio and its various func-
tions when the traffic situation really permits
this. WARNING
● Bef or

e starting the trip, you should fa-
miliarise yourself with the different radio
functions.
● High audio volume may represent a dan-
ger to
you and to others.
● Adjust the volume in a way that you can
distin
guish surrounding noise, for exam-
ple, horns and sirens, etc.
● Radio settings should be made when
the car is
stopped or by a passenger. Note
The card bearing the radio code is availa-
bl e ac

cording to the model of the vehicle.
Separate the radio card and keep it in a
safe place, but never inside the vehicle. If
the card bearing the radio code is lost, go
to a SEAT dealership, where you will be
given help. 3

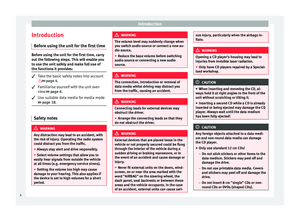

Introduction
Introduction B ef
or
e using the unit for the first time Before using the unit for the first time, carry
out the f
o

llowing steps. This will enable you
to use the unit safely and make full use of
the functions it provides:
 Take the b
asic safety notes into account
 ››› page 4.
 Familiarise yourself with the unit over-
view
››› page 6.
 Use suitable data media for media mode
››› page 18. Safety notes
WARNING
Any distraction may lead to an accident, with
the risk of

injury. Operating the radio system
could distract you from the traffic.
● Always stay alert and drive responsibly.
● Select volume settings that allow you to
eas
ily hear signals from outside the vehicle
at all times (e.g. emergency service sirens).
● Setting the volume too high may cause
damag
e to your hearing. This also applies if
the device is set to high volumes for a short
period. WARNING
The volume level may suddenly change when
you sw it

ch audio source or connect a new au-
dio source.
● Reduce the base volume before switching
audio source or c
onnecting a new audio
source. WARNING
The connection, introduction or removal of
dat a medi

a whilst driving may distract you
from the traffic, causing an accident. WARNING
Connecting leads for external devices may
ob s

truct the driver.
● Arrange the connecting leads so that they
do not ob
struct the driver. WARNING
External devices that are placed loose in the
vehic l

e or not properly secured could be flung
through the interior of the vehicle during a
sudden driving or braking manoeuvre, or in
the event of an accident and cause damage or
injury.
● Never fit external units on the doors, wind-
scr
een, on or near the area marked with the
word “AIRBAG” on the steering wheel, the
dash panel, seat backrests or between these
areas and the vehicle occupants. In the case
of an accident, external units can cause seri- ous injury, particularly when the airbags in-
flat
e. WARNING
Opening a CD player's housing may lead to
injurie s fr

om invisible laser radiation.
● Only have CD players repaired by a Special-
ised work
shop. CAUTION
● When in sertin

g and removing the CD, al-
ways hold it at right angles to the front of the
unit without scratching or tilting it.
● Inserting a second CD while a CD is already
insert
ed or being ejected may damage the CD
player. Always wait until the data medium
has been fully ejected! CAUTION
Any foreign objects attached to a data medi-
um and non-rou nd d

ata media can damage
the CD player.
● Only use standard 12 cm CDs!
– Do not stic

k stickers or other items to the
data medium. Stickers may peel off and
damage the drive.
– Do not use printable data media. Covers
and stickers may peel off and damage the
drive.
– Do not insert 8 cm "single" CDs or non-
round CDs or DVDs (shaped CDs). 4

Introduction
–
Do not in ser
t DVD-Plus discs, Dual Discs
or Flip Discs, as these are thicker than
normal CDs. CAUTION
The vehicle loudspeakers may be damaged if
the vo

lume is too high or the sound is distor-
ted. 5

Introduction

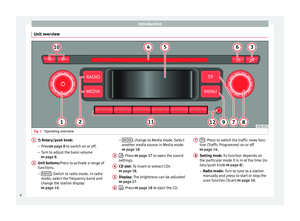

Unit overview Fig. 1
Operating overview  R
otary/push knob:
– Pr e
ss››› page 8 to switch on or off.
– Turn to adjust the basic volume
››› page 8.
Unit buttons: Press to activate a range of
functions.
– RADIO : Switch to radio mode. In radio
mode, sel ect the fr

equency band and
change the station display
››› page 10.
1
2 –
MEDIA : change to Media mode. Select
another medi a sour
c

e in Media mode
››› page 18.
 : Pr
ess ›››
p
age 27 to open the sound
settings.
CD slot: To insert or extract CDs
››› page 18.
Display: The brightness can be adjusted
››› page 27.
 : Pr
ess
›
›› p
age 18 to eject the CD.
3 4
5
6 TP
: Pr
ess
t
o switch the traffic news func-
tion (T
raffic Programme) on or off
››› page 16.
Setting knob: its function depends on
the particular mode it is in at the time (ro-
tary/push knob ››› page 8).
– Radio mode: Turn to tune to a station
manually and press to start or stop the
scan function (Scan) ››› page 10.
7 8
6
