2015 RENAULT MEGANE COUPE CABRIOLET engine

3.4
RETRACTABLE GLASS ROOF: opening
Before opening the roof
– Perform the procedure with the engine running (risk of battery dis-
charging) and the vehicle stationary.
– Ensure that the boot divider 1 is well
tensioned and that the boot is fully
closed.
Note: If one of these conditions is
not met, the message “Roof: shut
boot blind” or “Roof: see handbook”
appears on the instrument panel.
– Ensure that no object has been left in the part reserved for the roof (above
the divider 1).
– Make sure that no object is pushing up the boot divider 1.
– Make sure that no object projects above the boot divider 1.
– Check that no object has been left on the roof, on the luggage compart-
ment lid or on the parcel shelf behind
the rear headrests.
– Remove any ice or snow (risk of seal damage).
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).
1
2
Opening the roof
Move the switch 2 backwards, all four
windows go down a few centimetres.
Hold the switch backwards until the
roof is fully open (boot closed), the win-
dows go up again. A beep sounds to-
gether with the message “Operation
completed” when the operation ends.
Holding the switch 2 in the “open” posi-
tion lowers all the windows.
Release the switch. You may now start
driving. Note: if you stop closing the roof during
the operation, the roof will lower slowly
in stages over 10 minutes.

3.5
RETRACTABLE GLASS ROOF: closing
Closing the roof
Move the switch 2 forwards to close the
roof fully (roof closed and boot closed);
a beep sounds together with the mes-
sage “Operation completed” when the
operation ends.
Holding the switch 2 in the “close” posi-
tion raises all the windows.
Release the switch. You can now drive.
Before closing the roof
– Perform the procedure with the engine running (risk of battery dis-
charging) and the vehicle stationary.
– Ensure that the luggage compart- ment divider is well tensioned and
that the tailgate is fully closed.
Note: If one of these conditions is
not met, the message “Roof: shut
boot blind ” or “ Roof: see handbook”
appears on the instrument panel.
– Make sure that there are no objects in the space between the different
parts of the roof and above the lug-
gage compartment divider.
– Check that no objects have been left on the tailgate or on the parcel shelf
behind the rear headrests.
2
Note: if you stop closing the roof during
the operation, the roof will lower slowly
in stages over 10 minutes.
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).

3.6
RETRACTABLE GLASS ROOF: operating fault (1/2)
In the event of a fault before
or while opening or closing
the roof
There is a beep and the message
“Check roof See handbook”, accom-
panied by the warning light
© ap-
pears on the instrument panel.
Stop pressing the switch 1.
The roof lowers back slowly in stages.
Safety mode for closing the roof
From the driver’s seat:
– switch off the engine;
– move the switch 1 backwards while
starting the engine. Hold the switch 1
down for 10 seconds (a beep sounds
to warn you);
– open the boot fully by moving the switch 1 backwards and pulling the
switch 2 at the same time;
1
– bring the roof out of the boot by moving the switch 1 forwards and
pulling the switch 2 at the same time;
– position the shelf under the boot by moving the switch 1 backwards and
pressing the switch 2 at the same
time;
– close the boot fully by moving the switch 1 forwards and pressing the
switch 2 at the same time. Hold
these controls down for around
5 seconds once the boot lid is closed.
2
When operating in this
mode, all the sensors are
deactivated and there may
be contact between the var-
ious parts of the roof.

3.7
3
Take the tool 4 out of the tool kit.
– Remove objects from the luggage compartment before closing the tail-
gate;
– close the tailgate manually by push- ing it shut.
RETRACTABLE GLASS ROOF: operating fault (2/2)
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).
AB
4
5
6
From the driver’s seat:
– switch off the engine to exit safety mode;
– unclip the two blanking covers from the locks 3 and 5 located on each
side of the roof, and use the tool 6 to
secure the locks fully (movement A
for lock 3, movement B for lock 5);
– make sure that the roof is correctly locked.
Contact your approved dealer as
soon as possible.

3.14
The displayed temperature values
show a comfort level.
When starting the engine, increas-
ing or decreasing the value dis-
played will not allow the com-
fort level to be reached any more
quickly. The system will always op-
timise the temperature increase or
decrease (the ventilation system
does not start instantly at maximum
speed: it gradually increases). This
may take several minutes.
Generally speaking, unless there is
a particular reason not to, the dash-
board air vents should remain open.
You are recommended to use automatic mode by selecting one of the auto-
matic programmes AUTO, SOFT or FAST.
In automatic mode (indicator light for button 3 on), all heating and air conditioning
functions are controlled by the system.
You can also change the system selection. In this case, the indicator lig\
ht on the
button 3 will go out and the changed function, which is no longer controlled by \
the
system, will be shown on the display 12.
To return to automatic mode, press one of the AUTO, SOFT or FAST programmes.

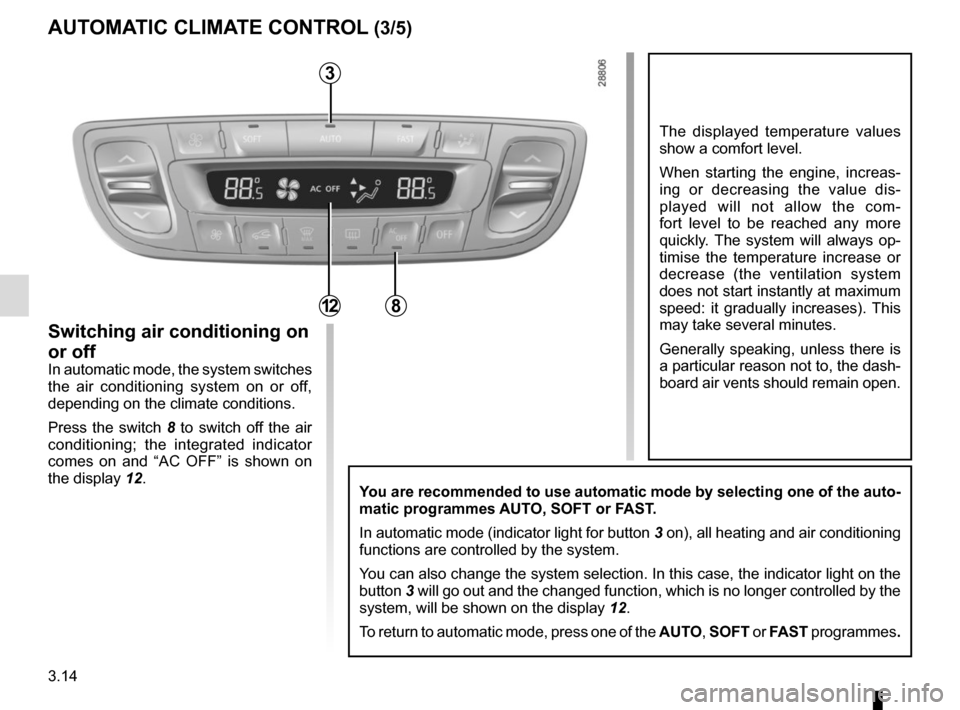

AUTOMATIC CLIMATE CONTROL (3/5)
Switching air conditioning on
or off
In automatic mode, the system switches
the air conditioning system on or off,
depending on the climate conditions.
Press the switch 8 to switch off the air conditioning; the integrated indicator
comes on and “AC OFF” is shown on
the display 12.
3
812

3.17
AIR CONDITIONING: information and advice on use
Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with manual air
conditioning, switch off the system
when it is not required.
Advice for reducing
consumption and therefore
helping to preserve the
environment:
Drive with the air vents open and
the windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection
frequency.Operating faults
As a general rule, contact your ap-
proved Dealer in the event of an op-
erating fault:
– reduction in de-icing, demist-
ing or air conditioning per-
formance. This may be caused
by the passenger compartment
filter cartridge becoming clogged;
– no cold air is being produced.
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.
Advice on use
In some situations, (air conditioning
off, air recirculation activated, venti-
lation speed at zero or low, etc.) you
may notice that condensation starts
to form on the windows and wind-
screen.
If there is condensation, use the
“Clear View” function to remove it,
then use the air conditioning in auto-
matic mode to stop it forming again.
If the condensation does not clear,
use the FAST programme.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
Note
Presence of water under the ve-
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.

3.18
These systems operate with the igni-
tion on or off, until one of the front doors
is opened (limited to about 3 minutes).
Electric windowsPress the window switch down or pull it
up to lower or raise the window to the
desired height.
From the driver’s seat, use switch:
1 for the driver’s side;
2 for the front passenger’s side;
3 and 5 for the rear passenger win-
dows;
4 for all the windows.
From the front passenger seat, move
switch 6.
Note: if the window detects resistance
when closing (e.g.: fingers, branch of
a tree, etc.) it stops and then lowers
again by a few centimetres.
ELECTRIC WINDOWS (1/2)
One-touch mode
Depending on the vehicle, this mode
works in addition to the operation of the
electric windows described previously.
Briefly press or pull the window switch
fully: the window lowers fully (all win-
dows) or rises (front windows only).
Pressing the switch again stops the
window moving.
1
2
3
5
6
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while. They may pose
a risk to themselves or to others
by starting the engine, activating
equipment such as the electric win-
dows or by locking the doors. If any
part of the body becomes trapped,
reverse the direction of the window
immediately by pressing the rele-
vant switch.
Risk of serious injury.
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
damaged.
4

4.1
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 4.4
topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 4.6
Engine oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9 engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . 4.9
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
windscreen/headlight washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 4.11
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.11
Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.13
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.15
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 4.17
