2015 RENAULT MEGANE COUPE CABRIOLET engine

5.32
OPERATING FAULTS (2/6)
The starter is activatedPOSSIBLE CAUSES WHAT TO DO
The instrument panel indicator lights
are weak or fail to light up and the
starter does not turn. Battery terminals not tight,
battery terminals discon-
nected or oxidised.Retighten or reconnect the terminals, or clean them
if they are oxidised.
Discharged battery or not
operational. Connect another battery to the faulty battery. Refer to
information on “Battery: troubleshooting” in Section 5
or replace the battery if necessary.
Do not push the vehicle if the steering column is
locked.
Faulty circuit. Consult an approved dealer.
The engine will not start. Starting conditions are not
fulfilled.Please refer to the information on “Starting, stopping
the engine” in Section 2.
The hands-free RENAULT
card does not work. Insert the card in the card reader in order to start the
engine.
Please refer to the information on “Starting, stopping
the engine” in Section 2.
The engine cannot be switched off. Card not detected. Insert the card in card reader.
Electronic fault. Press the starter button quickly five times. The engine
can be restarted by pressing on the clutch pedal if the
Stop and Start function is activated.

5.33
OPERATING FAULTS (3/6)
On the roadPOSSIBLE CAUSES WHAT TO DO
The steering column remains
locked. Steering wheel locked.
Move the steering wheel while pressing the engine
start button (please refer to Section 2 “Starting/stop-
ping the engine”).
Faulty circuit. Consult an authorised dealer.
Coolant boiling in the coolant
reservoir. Mechanical fault: damaged cylin-
der head gasket. Stop the engine.
Contact an approved dealer.
Smoke under the bonnet. Short-circuit or cooling system
leak. Stop, switch off the ignition, stand away from the ve-
hicle and contact an approved dealer.
The oil pressure warning light
comes on: while cornering or braking The level is too low. Top up the engine oil level (refer to the information
on “Engine oil level: topping up/filling” in Section 4).
is slow to go out or remains lit
under acceleration Loss of oil pressure.
Stop the vehicle and contact an approved dealer.
White smoke from the exhaust. In the diesel version, this is nec-
essarily a fault. Smoke may be
caused by particle filter regenera-
tion. Please refer to the information on “Special features
of diesel versions” in Section 2.

5.34
OPERATING FAULTS (4/6)
On the roadPOSSIBLE CAUSES WHAT TO DO
Steering becomes heavy. Assistance overheating. Consult an approved dealer.
The engine overheats. The
coolant temperature indica-
tor is in the warning zone and
warning light
® comes on. Engine cooling fan not working. Stop the vehicle, switch off the engine and contact an
approved dealer.
Coolant leaks. Check the coolant reservoir: it should contain fluid.
If there is no coolant, consult an approved dealer as
soon as possible.
Vibrations. T yres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged. Check the tyre pressures: if this is not the problem,
have them checked by an approved dealer.
Radiator:
If there is a significant lack of coolant, remember that it must never b\
e topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial drain\
ing of the cooling
system, it must be refilled with a new mixture prepared in the correct p\
roportions. Reminder: only products approved
by our Technical Department may be used for this purpose.

6.1
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 6.3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . 6.15

6.3
ENGINE IDENTIFICATION PLATES (1/2)
Quote the information on the identi-
fication plate or label A in all corre-
spondence or when ordering parts.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
A
AA
A
12
3

6.4
Quote the information on the identi-
fication plate or label A in all corre-
spondence or when ordering parts.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
A
ENGINE IDENTIFICATION PLATES (2/2)
A
3
12
A
A

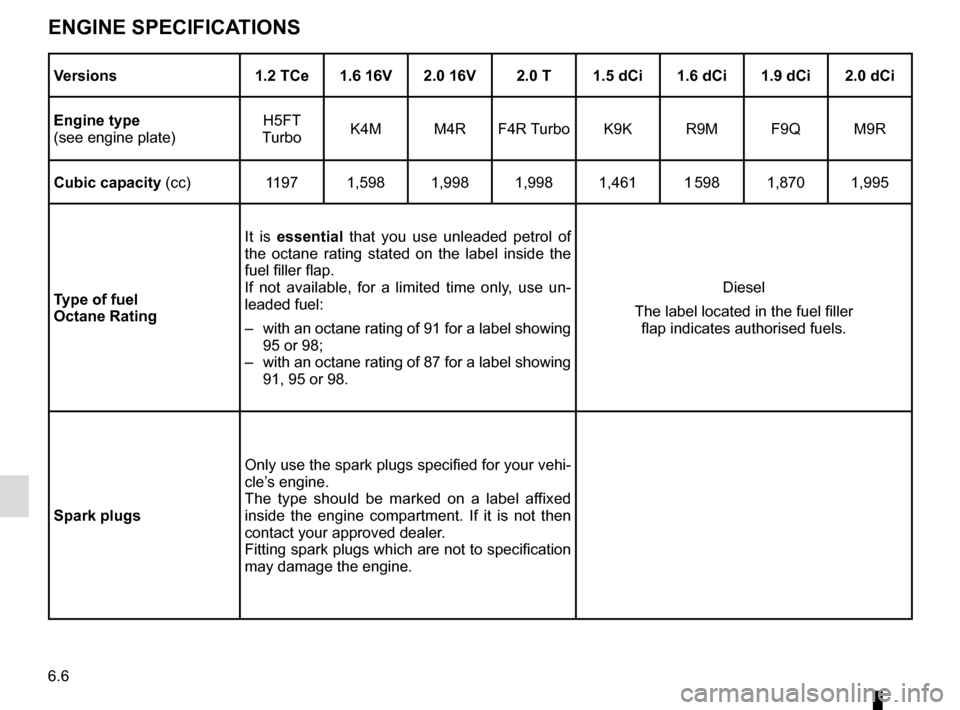

6.6
Versions1.2 TCe 1.6 16V 2.0 16V 2.0 T 1.5 dCi 1.6 dCi 1.9 dCi 2.0 dCi
Engine type
(see engine plate) H5FT
Turbo K4M M4R F4R Turbo K9K R9M F9Q M9R
Cubic capacity (cc) 1197 1,598 1,998 1,998 1,461 1 598 1,870 1,995
Type of fuel
Octane Rating It is
essential that you use unleaded petrol of
the octane rating stated on the label inside the
fuel filler flap.
If not available, for a limited time only, use un-
leaded fuel:
– with an octane rating of 91 for a label showing 95 or 98;
– with an octane rating of 87 for a label showing 91, 95 or 98. Diesel
The label located in the fuel filler flap indicates authorised fuels.
Spark plugs Only use the spark plugs specified for your vehi-
cle’s engine.
The type should be marked on a label affixed
inside the engine compartment. If it is not then
contact your approved dealer.
Fitting spark plugs which are not to specification
may damage the engine.
ENGINE SPECIFICATIONS

6.7
WEIGHTS (in kg)
The weights indicated for a basic vehicle without options: they vary dep\
ending on the your vehicle’s equipment. Consult
your approved Dealer.
Maximum permissible all-up weight (MMAC)
Total train weight (MTR)Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* found by calculating: MTR - MMAC
Unbraked Trailer Weight* 750
Permissible nose weight* 50
Maximum permissible load on roof Prohibited
Maximum permissible load on the tailgate
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or \
when the GTW is equal to zero (or is not listed) on th e
identification plate.
– It is important to comply with the towing weights, governed by local leg\
islation in each country and, in particular, laid down in the Road Traffic Regulations. Contact your approved dealer about any towing equipment\
.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more th\
an 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10\
% or 100 kg (whichever occurs first).
In either case, the maximum speed of the vehicle and trailer must not ex\
ceed 60 mph (100 km/h) and the tyre pressures must be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
