2015 Ram 1500 Diesel Supplement

Fuel Filter Life Reset
The cluster will display the “Service Fuel Filter” message
when the fuel filter maintenance life is less than 5%. To
check the remaining fuel filter life, go to the “Fuel Filter
Life” screen in the “Vehicle Info” menu. When this
message appears, dealers should replace both frame
mounted and engine mounted fuel filters.
NOTE:Use the steering wheel EVIC controls for the
following procedure(s)
Vehicles Equipped With Passive Entry
1. Without pressing the brake pedal, press the ENGINE START/STOP button and place the ignition in the
ON/RUN position (do not start the engine.)
2. Press and release the DOWNarrow button to scroll
downward through the main menu to “Vehicle Info”. 3. Press and release the
RIGHTarrow button to access
the ”Fuel Filter Life” screen.
4. Press and hold the RIGHTarrow button for one
second to access the Reset Confirmation screen.
5. Press and release the UPorDOWN arrow button to
select “Yes” or “No” then press and hold the RIGHT
arrow button to reset the Fuel Filter Life.
6. Press and release the Uparrow button to exit the EVIC
screen once the Fuel Filter Life is 100%
Vehicles Not Equipped With Passive Entry
1. Without pressing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine.)
2. Press and release the DOWNarrow button to scroll
downward through the main menu to “Vehicle Info”.
3. Press and release the RIGHTarrow button to access
the ”Fuel Filter Life” screen.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 199

4. Press and hold theRIGHTarrow button for one
second to access the ”Fuel Filter Life Reset” screen.
5. Press and hold the RIGHTarrow button for one
second to access the Reset Confirmation screen.
6. Press and release the UPorDOWN arrow button to
select “Yes” or “No” then press and hold the RIGHT
arrow button to reset the Fuel Filter Life.
7. Press and release the Uparrow button to exit the EVIC
screen once the Fuel Filter Life is 100%
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
Oil Life Reset
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the DID display for approximately 10 seconds after a single chime has sounded, to indicate the
next scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate, dependent
upon your personal driving style.
NOTE:
Use the steering wheel DID controls for the
following procedure(s)
Vehicles Equipped With Passive Entry
1. Without Pushing the brake pedal, push the ENGINE START/STOP button and cycle the ignition to the
ON/RUN position (do not start the engine.)
2. Push and release the DOWNarrow button to scroll
downward through the main menu to “Vehicle Info”.
3. Push and release the RIGHTarrow button to access
the ”Oil Life” screen.
200 UNDERSTANDING YOUR INSTRUMENT PANEL

4. Push and hold theRIGHTarrow button for one
second to access the ”Oil Life Reset” screen.
5. Push and release the DOWNarrow button to select
“Yes”, then push and release the Rightarrow button to
select reset of the Oil Life.
6. Push and release the Uparrow button to exit the DID
screen.
Vehicles Not Equipped With Passive Entry
1. Without pushing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine.)
2. Push and release the DOWNarrow button to scroll
downward through the main menu to “ Vehicle Info”.
3. Push and release the RIGHTarrow button to access
the ” Oil Life” screen. 4. Push and hold the
RIGHTarrow button for one
second to access the ” Oil Life Reset” screen.
5. Push and release the DOWNarrow button to select
“Yes”, then push and release the Rightarrow button to
select reset of the Oil Life.
6. Push and release the Uparrow button to exit the DID
screen.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 201

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................206
▫ Manual Transmission — If Equipped .......207
▫ Automatic Transmission — If Equipped .....207
▫ Keyless Enter-N-Go™ — If Equipped .......207
▫ Extreme Cold Weather ..................211
▫ Normal Starting Procedure — Engine Manifold
Air Temperature Above 66° F (19° C) ........212
▫ Starting Procedure — Engine Manifold Air
Temperature 0°F To 66°F (–18°C to 19°C) .....213
▫ Starting Procedure — Engine Manifold Air
Temperature Below 0°F (-18°C) ............215▫
Starting Fluids ....................... .217
 NORMAL OPERATION — DIESEL ENGINE . . .218
▫ Cold Weather Precautions ................219
▫ Engine Idling ....................... .221
▫ Stopping The Engine ...................223
▫ Idle Shutdown ....................... .224
▫ Programmable Maximum Vehicle Speed
(Chassis Cab Only) ....................224
▫ Operating Precautions ..................225
4

▫Cooling System Tips — Automatic
Transmission ........................ .225
 ENGINE BLOCK HEATER — IF EQUIPPED . . .227
▫ Block Heater Usage ....................227
 DIESEL EXHAUST BRAKE
(ENGINE BRAKING) ....................227
 AUTOMATIC TRANSMISSION — IF
EQUIPPED .......................... .230
▫ Key Ignition Park Interlock ...............232
▫ Brake/Transmission Shift Interlock System . . .232
▫ Six-Speed Automatic Transmission — If
Equipped .......................... .232
 MANUAL TRANSMISSION — IF EQUIPPED . .244
▫ Shifting ............................ .244▫
Downshifting ....................... .246
▫ Reverse Shifting ..................... .247
 AUXILIARY SWITCHES — IF EQUIPPED .....248
 POWER TAKE OFF OPERATION — IF
EQUIPPED (CHASSIS CAB ONLY) ..........248
▫ Stationary Mode ..................... .249
▫ Mobile Mode ........................ .250
 ENGINE RUNAWAY ....................251
 FUEL REQUIREMENTS ..................252
▫ Fuel Specifications ....................253
▫ Bio-Diesel Fuel Requirements .............254
 ADDING FUEL — 2500/3500 DIESEL
MODELS ........................... .257
 ADDING FUEL — CHASSIS CAB MODELS . . .260
204 STARTING AND OPERATING

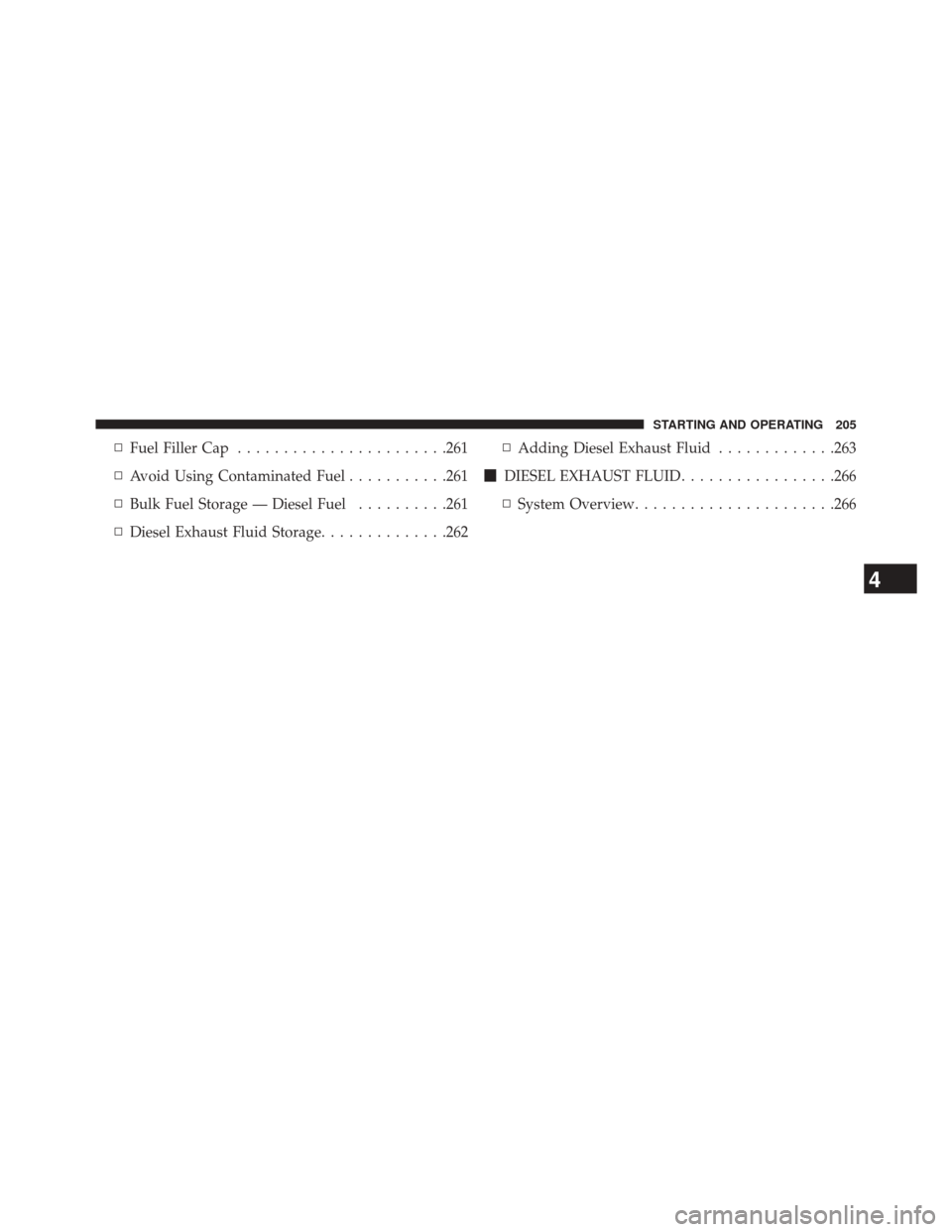

▫Fuel Filler Cap ...................... .261
▫ Avoid Using Contaminated Fuel ...........261
▫ Bulk Fuel Storage — Diesel Fuel ..........261
▫ Diesel Exhaust Fluid Storage ..............262▫
Adding Diesel Exhaust Fluid .............263
 DIESEL EXHAUST FLUID .................266
▫ System Overview ..................... .266
4
STARTING AND OPERATING 205

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
The starter should not be operated for more than 15-
second intervals. Waiting a few minutes between such
intervals will protect the starter from overheating.
WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build up may
cause serious injury or death.
• When leaving the vehicle, always make sure the
ignition is in the OFF position, remove the key fob
from the vehicle, and lock the vehicle.
(Continued)
WARNING! (Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the transmission gear selector. Do not leave the
key fob in or near the vehicle (or in a location
accessible to children), and do not leave the igni-
tion (of a vehicle equipped with Keyless Enter-N-
Go™) in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move
the vehicle.
206 STARTING AND OPERATING
