Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). u
s
e a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-

b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a P
e

uge
Ot
dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
eco-driving

94
308_en_Chap03_confort_ed01-2015
Boot fittings (hatchback)
1. Rear parcel shelf
2. Boot floor
R

aise the floor for access to the storage.
3.
S

torage wells
i

n which are stowed:
-

t
he towing eye,
-

t
he temporary puncture repair kit,
-

t
he spare wheel, depending on trim
level, an option or standard.
4.
S

towing rings
Comfort

95
308_en_Chap03_confort_ed01-2015
Boot fittings (SW)
1. Boot lamp
2. Rear seat folding controls
3.
1

2 V accessor y socket (120 W max)
4.
R

emovable storage boxes
P

ull on the separations to unclip them.
5.
S

torage wells
w

here are stowed:
-

t
he towing eye,
-

t
he temporary puncture repair kit,
-

t
he spare wheel, depending on trim
level, an option or standard.
6.
L

oad space cover
(

see corresponding section).
7.

E
yes for fixing the luggage retaining net
F
e
x
tract the eyes one at a time then slide
them into the oblong housing.
F

W
hile pressing the button, move the eye to
the desired position.
F

O
bserve the direction of fitting (eyes to the
outside of the vehicle).
3
Comfort

197
308_en_Chap06_securite_ed01-2015
Under-inflation detection
the system monitors the pressures in the four
tyres, once the vehicle is moving.
It compares the information given by the four
wheel speed sensors with reference values,
which must be reinitialised ever y time the
tyre pressures are adjusted or a wheel
changed.
th

e system triggers an alert as soon as it
detects a drop in the inflation pressure of one
or more tyres.th e under-inflation detection system
does not replace the vigilance or the
responsibility of the driver.
th

is system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a long journey.
Driving with under-inflated tyres impairs
road holding, extends braking distances
and causes premature tyre wear,
particularly under arduous condition
(high loading, high speed, long journey).
System which automatically checks the pressures of the tyres while driving.th
e inflation pressures defined for
your vehicle can be found on the tyre
pressure label.
See the "Identification markings"
section.
ty

re pressures should be checked
when the tyres are "cold" (vehicle
stopped for 1 hour or after a journey of
less than 6 miles (10 km) at moderate
speeds).
Other wise (when hot), add 0.3 bar to
the pressures shown on the label.
Driving with under-inflated tyres
increases fuel consumption.
6
Safety

198
308_en_Chap06_securite_ed01-2015

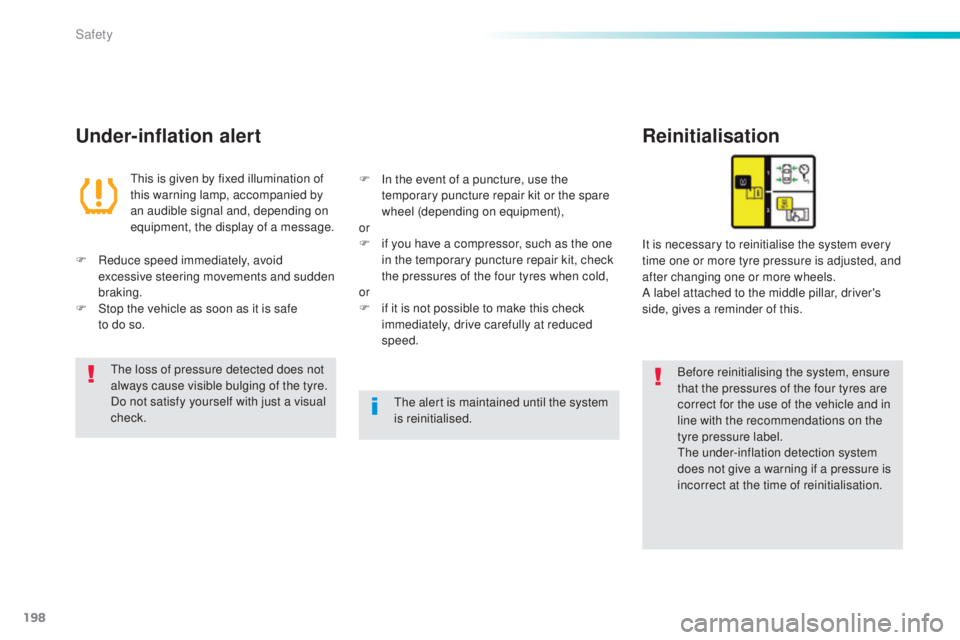

Under-inflation alertReinitialisation
Before reinitialising the system, ensure
that the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the
tyre pressure label.
th

e under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
th

is is given by fixed illumination of
this warning lamp, accompanied by
an audible signal and, depending on
equipment, the display of a message.
It is necessary to reinitialise the system every
time one or more tyre pressure is adjusted, and
after changing one or more wheels.
A label attached to the middle pillar, driver's
side, gives a reminder of this.
F

R

educe speed immediately, avoid
excessive steering movements and sudden
braking.
F

S

top the vehicle as soon as it is safe
to do so. F

I

n the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (depending on equipment),
or
F

i

f you have a compressor, such as the one
in the temporary puncture repair kit, check
the pressures of the four tyres when cold,
or
F

i

f it is not possible to make this check
immediately, drive carefully at reduced
speed.th
e loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check.
th

e alert is maintained until the system
is reinitialised.
Safety

222
308_en_Chap06_securite_ed01-2015

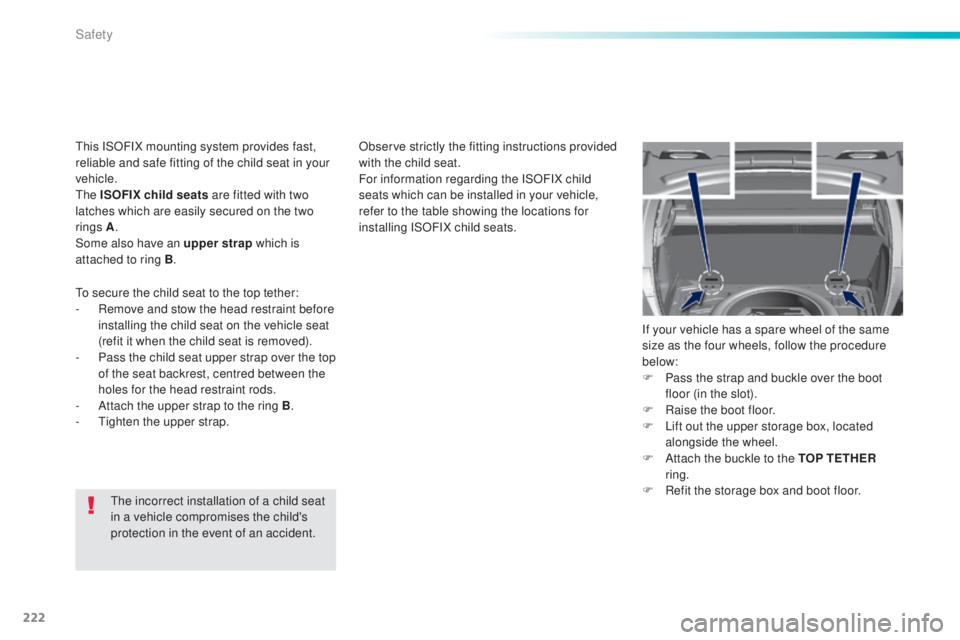

the incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.Observe strictly the fitting instructions provided
with the child seat.
For information regarding the ISOFIX child
seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.
to s

ecure the child seat to the top tether:
-

R

emove and stow the head restraint before
installing the child seat on the vehicle seat
(refit it when the child seat is removed).
-

P

ass the child seat upper strap over the top
of the seat backrest, centred between the
holes for the head restraint rods.
-

A

ttach the upper strap to the ring B
.
-
t
i

ghten the upper strap. If your vehicle has a spare wheel of the same
size as the four wheels, follow the procedure
below:
F
P
ass the strap and buckle over the boot
floor (in the slot).
F
Ra
ise the boot floor.
F
L
ift out the upper storage box, located
alongside the wheel.
F
A
ttach the buckle to the TOP TETHER
ring.
F R efit the storage box and boot floor.
th

is ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
th

e ISOFIX child seats are fitted with two
latches which are easily secured on the two
rings A .
Some also have an upper strap which is
attached to ring B .
Safety

235
308_en_Chap07_info-pratiques_ed01-2015
Changing a wheel
the tools are installed in the boot under
t h e f l o o r.
Access to the tools
List of tools
these tools are specific to your vehicle and can
vary according to the level of equipment. Do
not use them for other purposes.
1.


Wheelbrace.
F

or removing the wheel trim and removing
the wheel bolts.
2.
J

ack with integral handle.
F

or raising the vehicle. 3.
"

Bolt cover" tool.
F

or removing the bolt protectors (covers)
on alloy wheels.
4.
S
ocket for the security bolts (located in the
glove box).
F
or adapting the wheelbrace to the special
"security" bolts.
5.

t
o
wing eye.
S

ee "
to
wing the vehicle".
Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle.
7
Practical information

236
308_en_Chap07_info-pratiques_ed01-2015

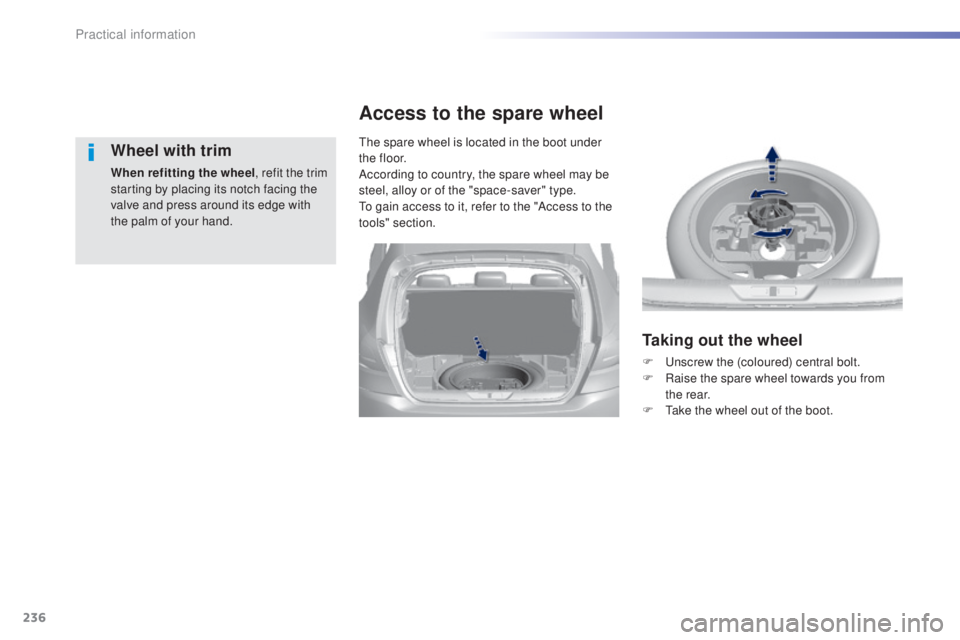

Wheel with trim
When refitting the wheel, refit the trim
starting by placing its notch facing the
valve and press around its edge with
the palm of your hand.
th
e spare wheel is located in the boot under
t h e f l o o r.
According to country, the spare wheel may be
steel, alloy or of the "space-saver" type.
to g

ain access to it, refer to the "Access to the
tools" section.
Access to the spare wheel
Taking out the wheel
F unscrew the (coloured) central bolt.
F R aise the spare wheel towards you from
the rear.
F
t
a
ke the wheel out of the boot.
