2015 Peugeot 308 boot

272
308_en_Chap07_info-pratiques_ed01-2015
Accessories
A wide range of accessories and genuine parts is available from the PeugeOt dealer network.th
ese accessories and parts are all suitable for your vehicle and benefit from Pe ugeOt' s recommendation and warranty.
"Comfort"
Door deflectors, side blinds and rear blind,
cigarette lighter, boot dividers, coat hanger
fixed to head restraint, front centre armrest,
under shelf storage, front and rear parking
sensors, styling mudflaps, window film, boot
management system, ...
"Transport solutions"
Boot liners, roof bars, bicycle carrier on roof
bars, ski carrier, roof box, towbar harness, ...
to

w bar, which mst be fitted by P
e
uge
Ot

dealer or a qualified workshop.
"Styling"
alloy wheels from 15 inch to 18 inch, finishers
for wheels, door sills, gear lever knobs, ...
"Ligne S": 16 and 17 inch alloy wheels, body
kit, stickers, interior and exterior mirror shells,
gear lever knob, door sills, mats*, …
*
t
o a
void any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
"Security and safety"
Anti-theft alarm, window engraving, wheel
security bolts, child seats and booster
cushions, breathalyzer, first aid kit, warning
triangle, high visibility jacket, stolen vehicle
tracking system, temporary puncture repair kit,
snow chains, non-slip covers, front foglamps
kit, dog guard, ...
"Protection"
Mats*, seat covers compatible with lateral
airbags, mud flaps, side protection rubbing
strips, bumper protection rubbing strips,
bumper protectors, boot sill finishers, boot
mat,

...
Conversion kits
You can obtain an "en terprise" kit to convert a
trade vehicle to a private car and vice-versa.
Practical information

279
308_en_Chap08_verifications_ed01-2015
AdBlue® additive and SCR system
for BlueHDi Diesel engines
to assure respect for the environment and
conformity with the new
eu ro 6 emissions
standard, without adversely affecting the
per formance or fuel consumption of Diesel
engines, P
e

uge
Ot
has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
Presentation of the SCR system
using an additive called AdBlue® containing
urea, a catalytic converter turns up to 85%
of nitrous oxides (NOx) into nitrogen and
water, which are harmless to health and the
environment.
th
e AdBlue
® additive is held in a special
tank located under the boot at the rear of
the vehicle. It has a capacity of 17 litres: this
provides a driving range of about 12 500 miles
(20 000 km), after which an alert is triggered
warning you when the reserve remaining is
enough for just 1 500 miles (2 400 km).
During each scheduled service of your vehicle
by a P
e

uge
Ot
dealer or a qualified workshop,
the AdBlue
® additive tank is refilled in order to
allow normal operation of the SCR system.
If the estimated mileage between two services
is greater than 12 500 miles (20 000 km), we
recommend that you go to a P
e

uge
Ot
dealer
or a qualified workshop to have the necessary
top-up carried out. Once the AdBlue
® tank is empty, a
s
ystem required by regulations prevents
starting of the engine.
If the SCR

is faulty, the level of
emissions from your vehicle will no
longer meet the
e
u
ro 6 standard: you
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a P
e

uge
Ot

dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1

100 km), a system will be triggered
automatically to prevent engine starting.
8
Checks

285
308_en_Chap08_verifications_ed01-2015
Recommendations on storage
Never store bottles of AdBlue® in your
vehicle.
AdBlue
® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
und

er these conditions, the additive can be
kept for at least a year.
If the additive has frozen, can be used once it
has completely thawed out.
Procedure
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise, by freezing, the AdBlue
® cannot
be poured into its tank. Park your vehicle in a
warmer area for a few hours to allow the top-up
to be carried out.
F

S

witch off the ignition and remove the
key, or if your vehicle has one, press
the S
tA

R
t/

S
tO

P button to switch off
the


engine. F

F
or access to the AdBlue
® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the storage
box.
F

W

ithout pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F
t
u

rn the blue cap a 6
th of a turn anti-
clockwise.
F

L

ift off the cap.
8
Checks

286
308_en_Chap08_verifications_ed01-2015
Never dispose of AdBlue® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your dealer.
Important
: if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert
messages and the impossibility of
starting the engine, you must add at
least 3.8 litres (so two 1.89 litre bottles). F

A
fter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
F
R
efit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F
R
efit the black cap and turn it a quarter of
a turn clockwise without pressing.
e
n
sure
that the indicator on the cap lines up with
the indicator on the support.
F

D

epending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F

R

efit the boot carpet and close the tailgate. Important: when topping
-up after
running out of additive , signalled
by the message "
to
p up emissions
additive: Starting prevented", you
must wait for about 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, introducing the key
into the ignition switch, or placing
the key of the "Keyless Entr y and
Star ting" system inside the vehicle.
Switch on the ignition, then wait for
10 seconds before starting the engine.
F

O

btain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
Checks

287
308_en_Chap08_verifications_ed01-2015

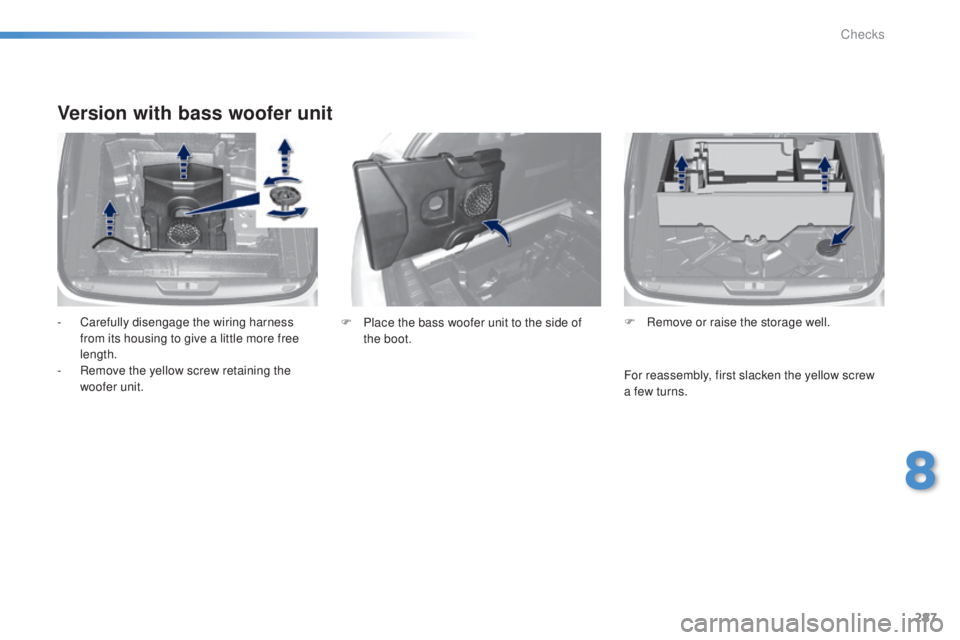

Version with bass woofer unit
- Carefully disengage the wiring harness from its housing to give a little more free
length.
-

R
emove the yellow screw retaining the
woofer unit. F
R emove or raise the storage well.
F
P lace the bass woofer unit to the side of
the boot.
For reassembly, first slacken the yellow screw
a few turns.
8
Checks

295
308_en_Chap09_caracteristiques-techniques_ed01-2015
Affaire version
Number of seats: 2 persons.useable boot volume: 1.31 m3
In metres ( m)
Load floor length 1.4 5 8
Load width at the wheel arches 1.03 6
Load width at the centre 1.07 7
Load height
-

a

t the centre 0.916
-

a

t the load aperture 0.831
-

b

elow the luggage cover 0.5
9
technical data

299

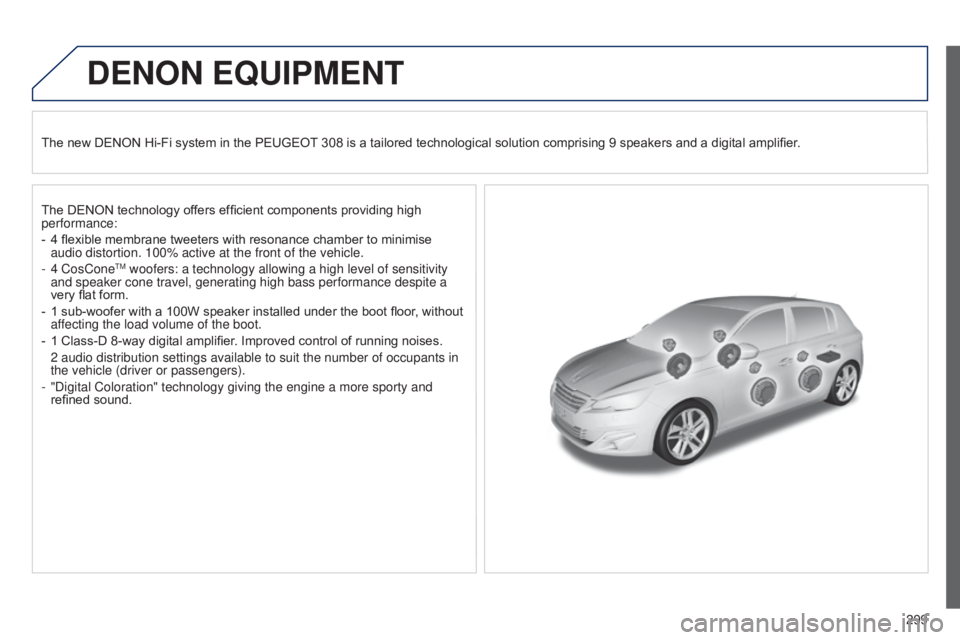

DENON EqUIPMENT
The new DENON Hi-Fi system in the PEUGEOT 308 is a tailored technological solution comprising 9 speakers and a digital amplifier.
The DENON technology offers efficient components providing high
performance:
-
4 flexibl
e membrane tweeters with resonance chamber to minimise
audio distortion. 100% active at the front of the vehicle.
-

4 CosConetM woofers: a technology allowing a high level of sensitivity
and speaker cone travel, generating high bass performance despite a
very flat form.
-

1 sub-woofer with a 100W speaker
installed under the boot floor, without
affecting the load volume of the boot.
-

1 Class-D 8-way digital amplifier
. Improved control of running noises.
2 audio distributio

n settings available to suit the number of occupants in
the vehicle (driver or passengers).
-

"Digital Coloratio
n" technology giving the engine a more sporty and
refined sound.

395
230 V socket .............................................8 8, 92
Audio streaming (Bluetooth) .........3
18, 321, 387
Automatic braking on risk of collision


.........................................22, 158, 161
Automatic emergency braking


..............15 8, 161
Automatic illumination of headlamps


......................................182, 18 6
Automatic operation of hazard warning lamps
..............................

............................195
Automatic rain sensitive windscreen wipers
...............

..................................189, 191
Auxiliary


................................................318, 322
Auxiliary socket


.......................91, 318, 322, 384 Capacity, fuel tank ..............................
............
76
CD .........................................................318, 378
CD MP3
.................................................318, 379
Central locking


..............................52, 57, 59, 68
Changing a bulb


....................................243-252
Changing a fuse


....................................253-258
Changing a wheel


.................................2 3 5 - 2 41
Changing a wiper blade


...................................................192, 26 4
Changing the date


.........................46, 47, 48, 49
Changing the remote control battery .........................................56, 66
Changing the time


...............................46, 47, 49
Checking levels
..................................... 2

88-290
Checking the engine oil level


..................................................32, 288
Checking tyre pressures (using the kit)
..............................

................234
Checks
...............

...................276, 277, 291, 292
Child lock
...............................

........................228
Children
...............................

..206, 208, 212-228
Child seats

..............................
..............212-2 27
Child seats, conventional


..............................218
Child seats, ISOFIX

......................
221, 223, 224
Closing the boot
..............................................63
Closing the doors


................................52, 58 - 60
Cold climate screen


.........................................................267
Collision risk alert
..............................

...........15 8
Colour screen
...............................

........302, 303
Connectors, audio
.......... 9

1, 318, 322, 382, 384
Container, AdBlue


.........................................286
Coolant level


...........................................28, 289
Coolant temperature indicator


........................................................28
Courtesy lamps
.............................................193
Cruise control
........................................ 13

9, 14 3
Cruise control active


.............................13 9, 14 6
Cup holder

...............................
........................88
B
C
Battery ........................................... 259 -262, 291
Battery, charging ........................................... 262
Battery, remote control
............................. 5

6, 66
Bicycle carrier
............................................... 271
Blind spot sensors


.................................. 16, 163
BlueHDi


......................................................... 279
Bluetooth (hands-free)
......................... 3

60, 385
Bluetooth (telephone)


...........................360, 385
Bonnet


........................................................... 275
Bonnet stay


................................................... 275
Boot


........................................................... 61, 62
Brake discs
.................................................... 2

92
Brake lamps
...............................

...........248, 250
Brake pads


.................................................... 292
Braking system warning lamp


................................................ 21
Accessories


..........................................
271, 272
Accessory position


.......................................
117
Accessory socket, 12V

.............................
88, 91
AdBlue
® ............................... ..........................279
Additive, AdBlue .............................. 26, 279-286
Adjusting headlamps


.................................... 188
Adjusting head restraints


................................ 83
Adjusting the steering wheel


..........................79
Advice on driving


.......................................... 112
Affaire version


............................................... 295
Airbags


.................................................... 23, 207
Airbags, curtain
..................................... 21

0, 211
Airbags, front ......................................... 208, 211
Airbags, lateral


...................................... 210, 211
Air conditioning


....................... 10, 102, 104, 108
Air conditioning, digital


................................. 105
Air conditioning, manual


.......................101, 103
Air distribution adjustment


............102, 104, 107
Air filter

.......................................................... 291
Air flow adjustment


....................... 101, 103, 107
Air intake


....................................................... 109
Air recirculation


..................................... 102, 109
Air vents


.......................................................... 99
Alarm


............................................................... 69
Anti-theft


................................................. 5 4 , 11 9
Armrest, front
............................................ 88, 90
Armrest, rear
................................................... 93
A

ssistance call

.............................. 196, 297, 298
Audible warning


............................................ 19 6
Audio cable


................................... 321, 322, 323
A
.
Alphabetical index
