the brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specification
the brake fluid must conform to the
manufacturer's recommendations.
Topping-up the engine oil
Oil gradethe oil must be the correct grade for your
engine and conform to the manufacturer's
recommendations.
Refer to the under-bonnet view for the location
of the oil filler cap on your vehicle.
F
u
n
screw the filler cap for access to the
filler orifice.
F

P
our in the oil in small quantities, avoiding
spills onto the engine (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F
t
o
p-up again if necessary.
F

A
fter checking and topping up, carefully
refit the oil filler cap and the dipstick to its
housing.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emissions control system, never use
additives in the engine oil.
10
Checks

176
108_en_Chap10_verifications_ed01-2015
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
ta

ke used oil to a P
e
uge
Ot
dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Used products
Fluid specification
For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
In wintry conditions, it is recommended that you
use an ethyl alcohol or methanol based fluid.
Screenwash fluid level
top up the level when necessary.

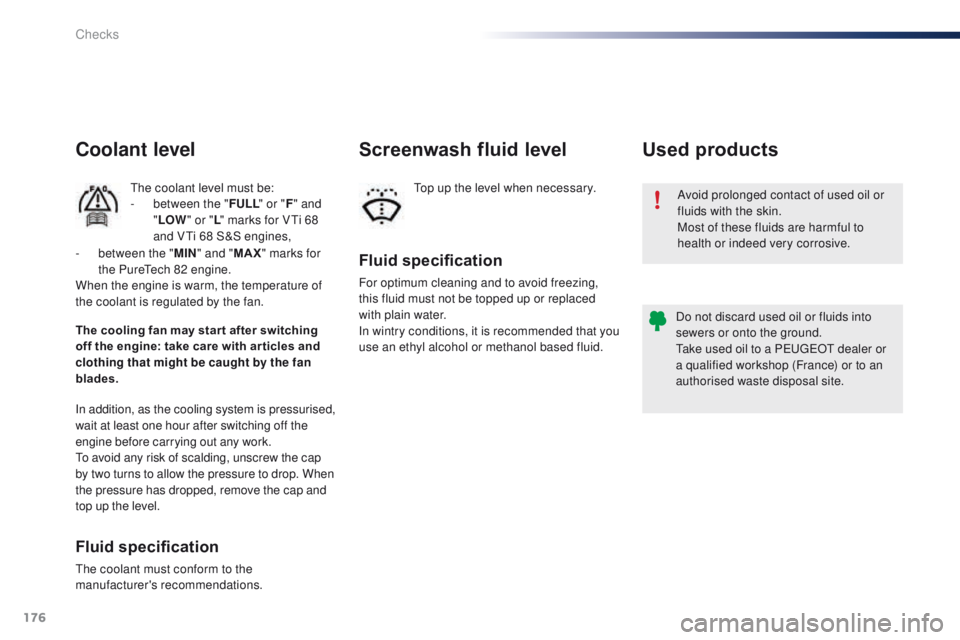

Coolant level
the coolant level must be:
- b etween the " FULL" or "F" and
" LOW " or "L" marks for V
ti 6

8
and V
ti 6

8 S&S engines,
In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
to a

void any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop. When
the pressure has dropped, remove the cap and
top up the level.
Fluid specification
the coolant must conform to the
manufacturer's recommendations. The cooling fan may star t after switching
off the engine: take care with ar ticles and
clothing that might be caught by the fan
blades. -
b
etween the "
MIN" and " MAX" marks for
the Pure
te
ch 82 engine.
When the engine is warm, the temperature of
the coolant is regulated by the fan.
Checks

177
108_en_Chap10_verifications_ed01-2015
Checks
12 V battery
the battery does not require any maintenance.
However, check that the terminals are clean
and correctly tightened, particularly in summer
and winter.Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Air filter and passenger compartment filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
Oil filter
unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Other wise, have them checked by a PeugeOt dealer or a qualified workshop.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary .
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.
Manual gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Clutch
the clutch is operated mechanically and
requires regular adjustment.
Refer to the manufacturer's service schedule
for information on when the adjustment should
be checked.
In the event of an operating fault
(difficulty moving off, for example),
contact a P
e

uge
Ot
dealer or a
qualified workshop.
10
Checks

178
108_en_Chap10_verifications_ed01-2015
ETG gearbox
the etg gearbox does not require
any maintenance (no oil change).
Refer to the manufacturer's service
schedule for information on when this
unit should be checked.
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to
Brake pads
For information on checking brake
disc wear, contact a Pe ugeOt
dealer or a qualified workshop.
Brake disc wearOnly use products recommended by
Pe ugeOt or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, P
e

uge
Ot
selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must
be checked, even between two
services.
Checking this system must be done by a
P
e

uge
Ot
dealer or a qualified workshop.
have the condition of the brakes checked, even
between vehicle services.
un

less there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Checks

179
108_en_Chap11_caracteristiques-techniques_ed01-2015
Petrol engineVTi 68VTi 68 S&SPureTech 82
Gearbox Manual

(5 - speed) ETG electronic
(5 - speed) Manual
(5 - speed) Manual
(5 - speed)
Model code:
P... SCFBB
SCFBC ...B1A
...H1A ...P1A
...W1A SCFBB
SCFBC ...B1C
...H1C ...P1C
...W1C SCFB2
SCFB3 ...B1B
...H1B ...P1B
...W1B AHMTB
AHMTC ...B1A
...H1A ...P1A
...W1A
Cubic capacity (cc) 9989989981 19 9
Bore x stroke (mm) 71 x 8471 x 8471 x 8475 x 90.5
e

u standard maximum power (kW)* 51515160
Max power engine speed (rpm) 6 0006 0006 000 5 750
e

u standard max torque (Nm) 959595118
Max torque engine speed (rpm) 4 3004 3004 300 2 750
Fuel
u

nleaded petrol
Catalytic converter Ye s
en

gine oil capacity in litres
(with filter replacement) 3.2
3.23.23.25
*
t
h
e maximum power corresponds to the value type-approved on a test bed, under conditions defined in e
u
ropean legislation
(Directive 1999/99/
eC

).
engines
...B1: 3 -door version.
...H1 : 5 -door version. ...P1
: 3 -door convertible version.
...W1 : 5 -door convertible version.
11
technical data

180
108_en_Chap11_caracteristiques-techniques_ed01-2015
EngineVTi 68VTi 68 S&SPureTech 82
Gearbox Manual

(5 - speed) ETG electronic
(5 - speed) Manual

(5 - speed) Manual
(5 - speed)
Model code:
P... SCFBB
SCFBC ...B1A
...H1A ...P1A
...W1A SCFBB
SCFBC ...B1C
...H1C ...P1C
...W1C SCFB2
SCFB3 ...B1B
...H1B ...P1B
...W1B AHMTB
AHMTC ...B1A
...H1A ...P1A
...W1A
Kerb weight 840860 855865
un

laden weiight* 915935 930940
gr

oss vehicle weight
(
g
V
W) 1 240
1 2401 2401 240
gr

oss train weight (
g
t
W
) 1 2401 2401 2401 240
Weights (in kg)
the design of your vehicle does not permit the fitting of a towbar.
*
t
h

e unladen weight is equal to the kerb weight + driver (75 kg).
...B1
: 3 -door version.
...H1 : 5 -door version. ...P1
: 3 -door convertible version.
...W1 : 5 -door convertible version.
technical data

181
108_en_Chap11_caracteristiques-techniques_ed01-2015
Dimensions (in mm)these dimensions have been measured on a vehicle that is not loaded.
11
technical data

182
108_en_Chap11_caracteristiques-techniques_ed01-2015

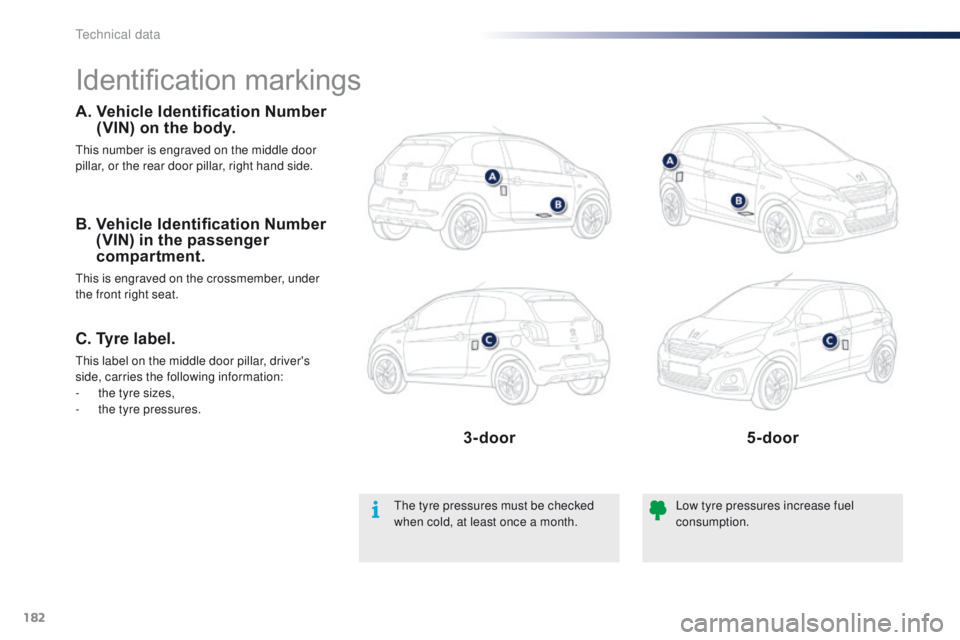

Identification markings
A. Vehicle Identification Number (VIN) on the body.
this number is engraved on the middle door
pillar, or the rear door pillar, right hand side.
th

e tyre pressures must be checked
when cold, at least once a month. Low tyre pressures increase fuel
consumption.
B. Vehicle Identification Number
(VIN) in the passenger
compartment.
this is engraved on the crossmember, under
the front right seat.
C. Tyre label.
this label on the middle door pillar, driver's
side, carries the following information:
-

t
he tyre sizes,
-

t
he tyre pressures.
3-door 5-door
technical data
